Description

Highly versatile steel hardtail mountain bike frame - none more rad

The Karate Monkey frame has recently gotten a makeover that includes the addition of features like internal dropper post routing a new tubeset that uses the same trumpet tubes found on our Instigator 2.0 and a slight tweak in geometry that is more progressive and trail-oriented.

The Karate Monkey uses a horizontal dropout with a derailleur hanger that features Gnot-Boost spacing which gives the rider the ability to run any kind of mountain bike hub they choose. 10 x 135mm QR 12 x 142 or 12 x 148 Boost will all work in the Karate Monkey frame. The frame uses a 44mm headtube for broad fork compatibility and is ED coated for an added layer of internal protection.

If at any point you decide you want to throw on some skinny meats standard 29 wheels and tyres can be swapped in with no issue. If you want to round-house kick some trail right in the face the Karate Monkey is your sled. Clearance for 29” x 2.5” or 27.5” x 3” tires

Please contact us at support@biketart.com to discuss components or to arrange a full custom build

Specifications

Discipline Trail
Material Steel
Front Travel 140mm (Recommended)
Rear Travel Hardtail
Wheel Size 27.5+
Warranty 3 years (frame)

Tubing - Surly 4130 CroMoly Steel 'Natch tubing
Rear Dropouts - Horizontal slotted with derailleur hanger; Surly Gnot Boost 135 142 or 148mm hub spacing compatibility threaded fender eyelets
Brake Compatibility - 51mm I.S. disc caliper mounts 180mm max rotor size
Braze-ons/extras - Dual bottle-mounts on XS M three bottle-mounts on LG XL dropper post routing rack and fender mounts
Seatpost - 30.9mm
Seatpost clamp - 33.1mm (Surly stainless included)
Headtube - 44mm
Front Derailleur Clamp Diameter - 34.9mm high direct-mount
Bottom Bracket - 73mm
Chainring Clearance - 32t Boost 1x 24/36t Boost 2x 28t 1x 24/34t 2x
Tyre Clearance - 27.5 x 3.0" and 29 x 2.5" individual tyre and rim combos affect tyre clearance
Fork - 140mm travel suspension fork compatible (547mm A-to-C max)
Thru Axle - Surly 15x110 and 12x142/148 Thru Axles (included)

View Gallery

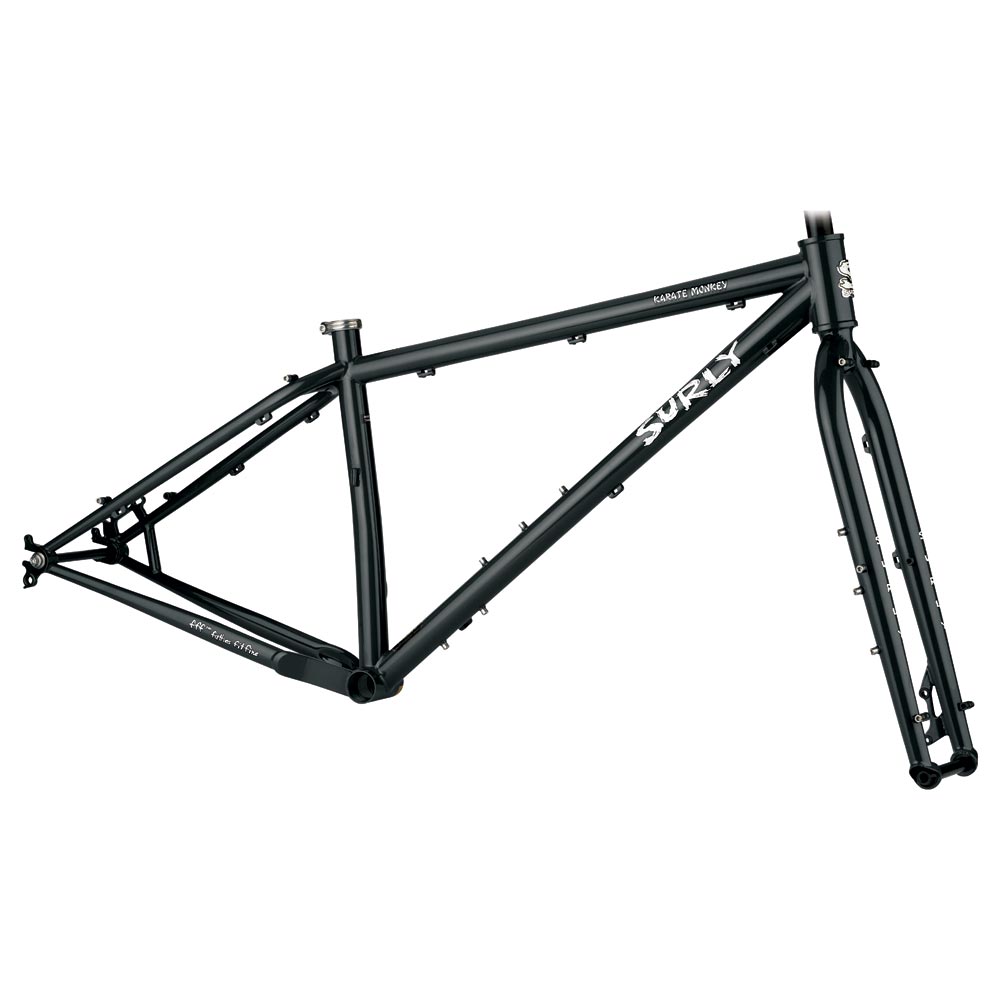

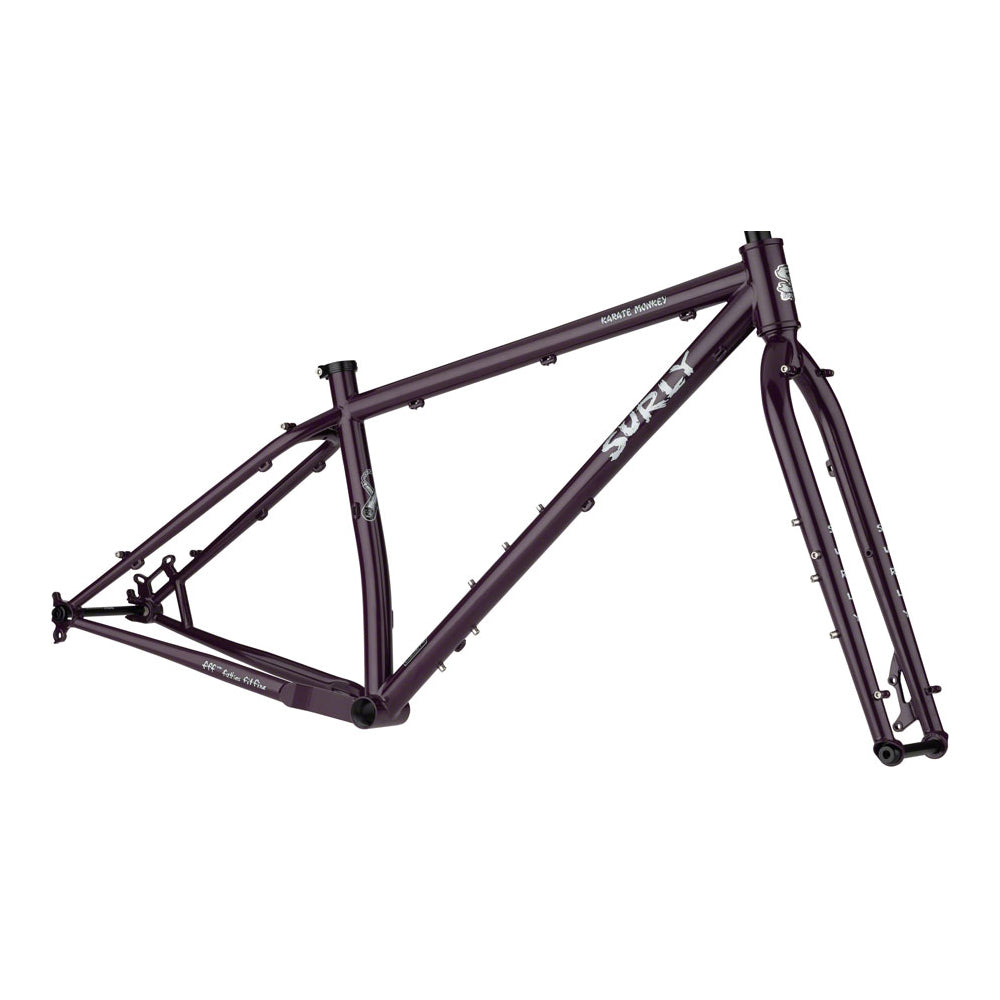

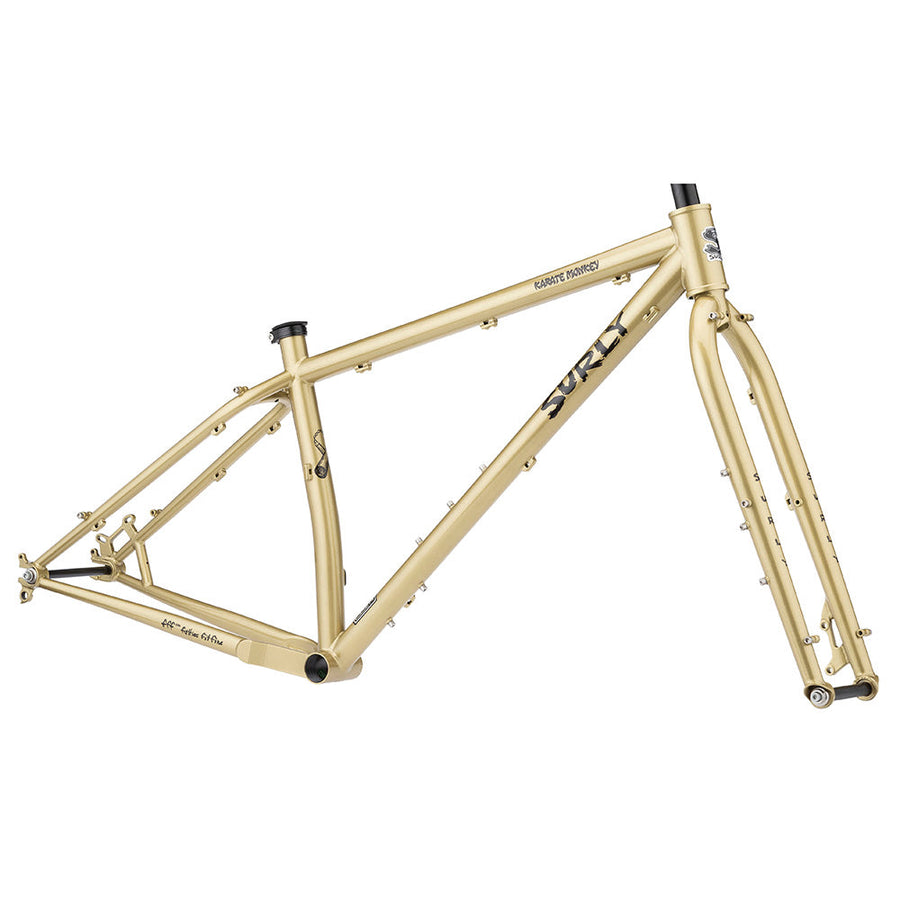

Surly Karate Monkey 27.5+ Frameset

Name: Surly Karate Monkey 27.5+ Frameset
Brand: Surly
Price: 899.99 GBP
Availability: InStock

SKU: FMSUKM210D

Barcode:

Highly versatile steel hardtail mountain bike frame - none more rad

The Karate Monkey frame has recently gotten a makeover that includes the addition of features like internal dropper post... Read more

£899.99

Select Colour

Fools Gold
Peach Salmon Sundae
Organic Eggplant
Black

Size Please select
