Description
Given the choice between clearing challenging lines and taking them on with gusto, you prefer the latter. If this sounds like you, the Rustler Carbon frame is the perfect platform for your ultimate trail bike build. The Split Pivot rear suspension system with a Fox Float DPS Performance shock, flip chip geometry adjustment, and 27.5 x 2.3-2.8 tire clearance let you build the bike that suits your playful style. Get excited for a trail-roosting rig with impeccable pedalling efficiency--a surefire recipe for fun on many trails.
Sizing:
- XS - 155cm–168cm
- S - 168cm–175cm
- M - 175cm–183cm
- L - 183cm–190cm
- XL - 190cm–UP
Specifications:
- Tyre Size Range for 622/700c/29" Wheels*: Not Compatible
- Tyre Size Range for 584/650b/27.5" Wheels: 58–71mm (2.3–2.8")
- Tyre Size Range for 559/26" Wheels*: Not Compatible
- Maximum Wheel/Tire Diameter**: 727mm (28.6")
- Minimum Wheel/Tire Diameter***: 684mm (26.9")
- Suspension Fork Length (Travel): 522–542mm (130–150mm)
- Rigid Fork Length: N/A
- Fork Offset: 37–46mm
- Rear Shock: 210 x 50mm
- Shock Mount: Ø8 x 40mm (bearing mount possible)
- Shock Mount: Ø8 x 12.5mm (included)
- Pivot Kit: Refer to Suspension Frame Service Instructions
- Bearings: 17287 (qty 4), 6801 (qty 6)
- Headset: Upper: IS41, Lower IS52
- Seatpost: Ø30.9mm
- Seat Collar: Carbon: 35.4mm, Aluminium: 35.0mm
- Dropper Compatible (Routing): Yes, internal/stealth
- Bottom Bracket: 73mm BSA w/ ISCG-05 Mounts (Carbon frames feature removable ISCG-05 bracket)
- Crankset (Max Ring): Boost-148 - 52mm chainline only 1x: 32t max
- Rear Brake (Rotor): Post mount 180mm, (Ø200mm max)
- Rear Spacing: 148 x 12mm thru-axle
- Rear Axle Size: Ø12 x 188mm, TP = 1.75, TL = 20
- Derailleur Hanger: FS2322
- Bottle Mounts: 1
- Accessory Mounts: Top tube bag mounts

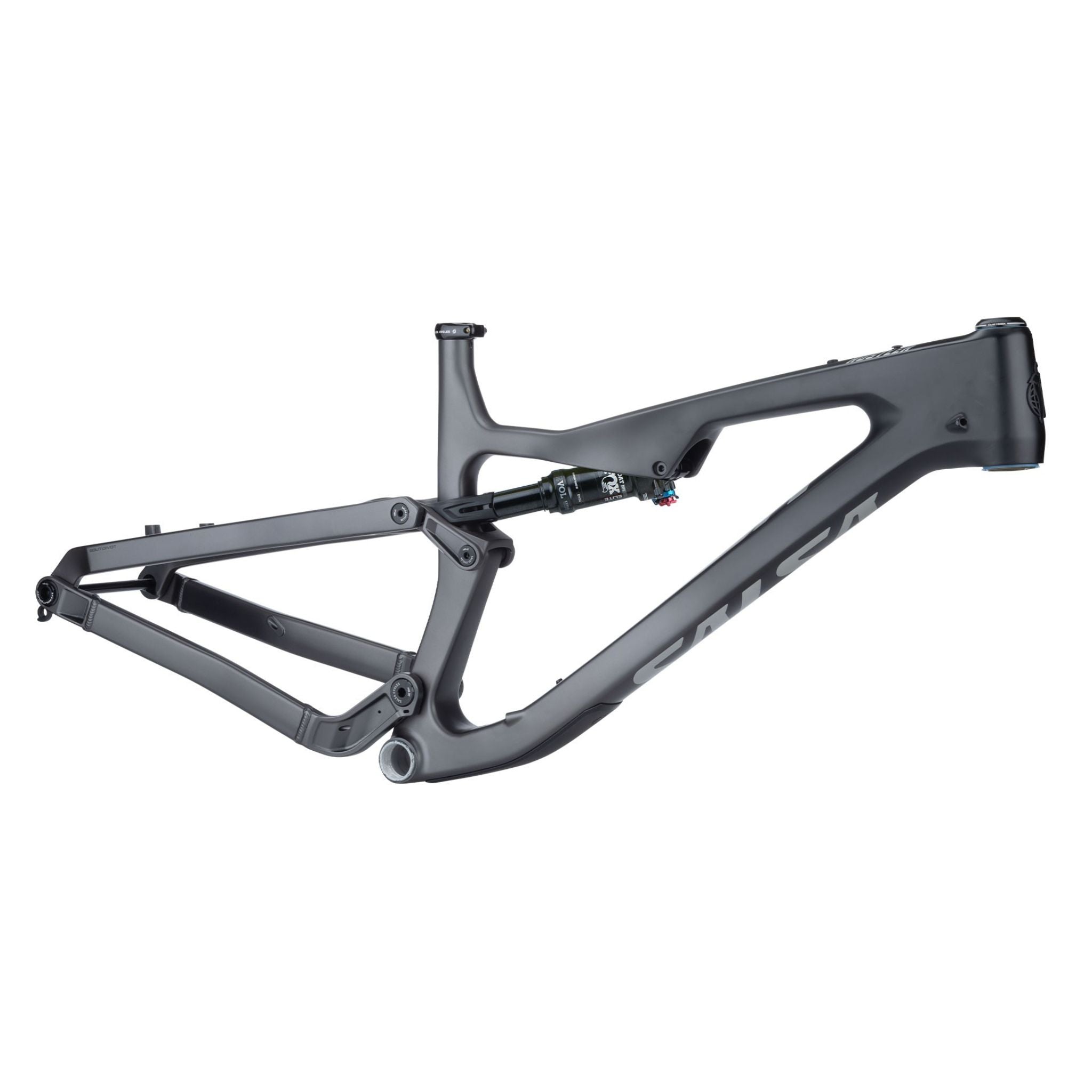

Salsa Rustler Carbon Frameset
Given the choice between clearing challenging lines and taking them on with gusto, you prefer the latter. If this sounds like you, the Rustler Carbon frame is the perfect platform...
Order within [time] for delivery by [date]
90 Day Returns -
Description
Given the choice between clearing challenging lines and taking them on with gusto, you prefer the latter. If this sounds like you, the Rustler Carbon frame is the perfect platform for your ultimate trail bike build. The Split Pivot rear suspension system with a Fox Float DPS Performance shock, flip chip geometry adjustment, and 27.5 x 2.3-2.8 tire clearance let you build the bike that suits your playful style. Get excited for a trail-roosting rig with impeccable pedalling efficiency--a surefire recipe for fun on many trails.
Sizing:
- XS - 155cm–168cm
- S - 168cm–175cm
- M - 175cm–183cm
- L - 183cm–190cm
- XL - 190cm–UP
Specifications:
- Tyre Size Range for 622/700c/29" Wheels*: Not Compatible
- Tyre Size Range for 584/650b/27.5" Wheels: 58–71mm (2.3–2.8")
- Tyre Size Range for 559/26" Wheels*: Not Compatible
- Maximum Wheel/Tire Diameter**: 727mm (28.6")
- Minimum Wheel/Tire Diameter***: 684mm (26.9")
- Suspension Fork Length (Travel): 522–542mm (130–150mm)
- Rigid Fork Length: N/A
- Fork Offset: 37–46mm
- Rear Shock: 210 x 50mm
- Shock Mount: Ø8 x 40mm (bearing mount possible)
- Shock Mount: Ø8 x 12.5mm (included)
- Pivot Kit: Refer to Suspension Frame Service Instructions
- Bearings: 17287 (qty 4), 6801 (qty 6)
- Headset: Upper: IS41, Lower IS52
- Seatpost: Ø30.9mm
- Seat Collar: Carbon: 35.4mm, Aluminium: 35.0mm
- Dropper Compatible (Routing): Yes, internal/stealth
- Bottom Bracket: 73mm BSA w/ ISCG-05 Mounts (Carbon frames feature removable ISCG-05 bracket)
- Crankset (Max Ring): Boost-148 - 52mm chainline only 1x: 32t max
- Rear Brake (Rotor): Post mount 180mm, (Ø200mm max)
- Rear Spacing: 148 x 12mm thru-axle
- Rear Axle Size: Ø12 x 188mm, TP = 1.75, TL = 20
- Derailleur Hanger: FS2322
- Bottle Mounts: 1
- Accessory Mounts: Top tube bag mounts
