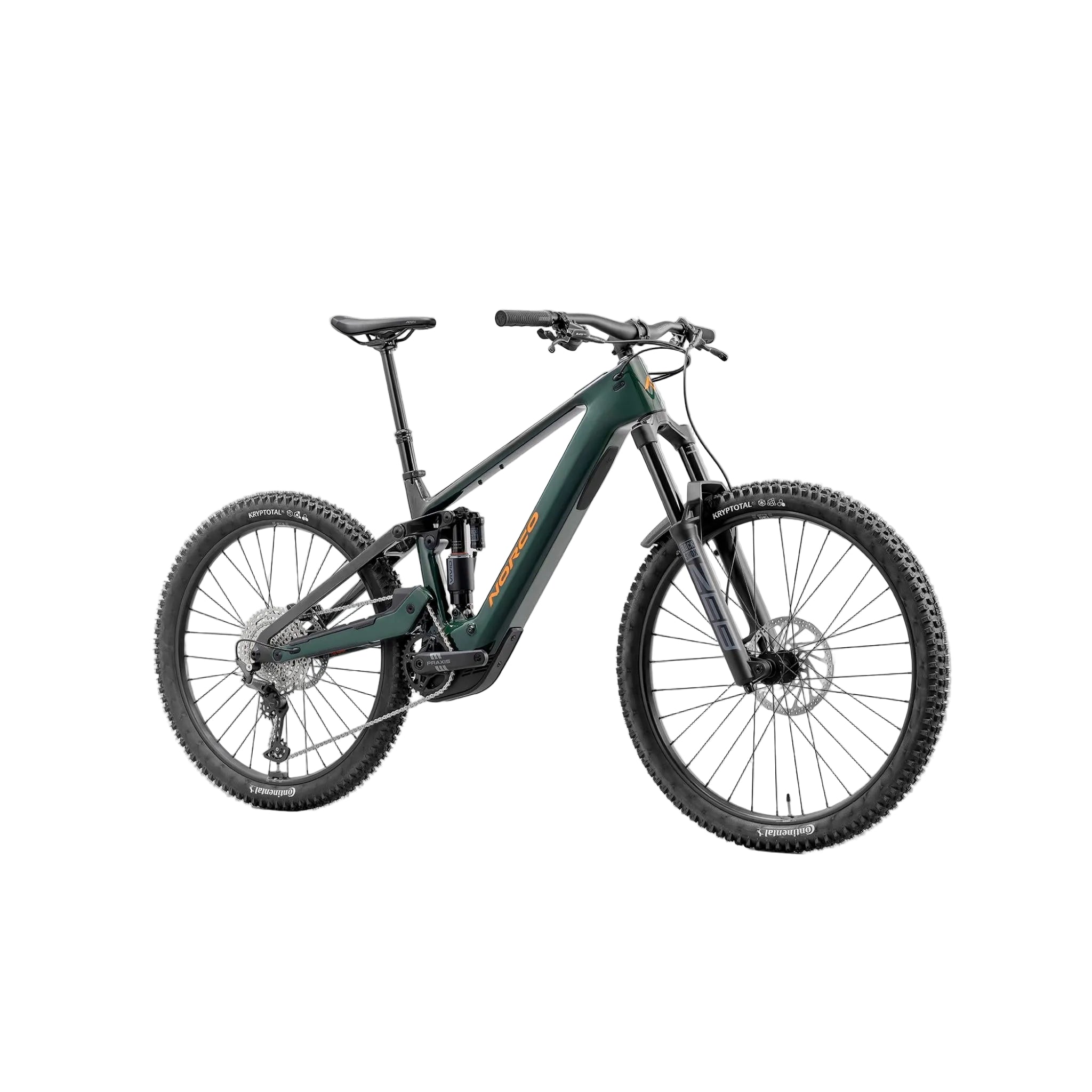

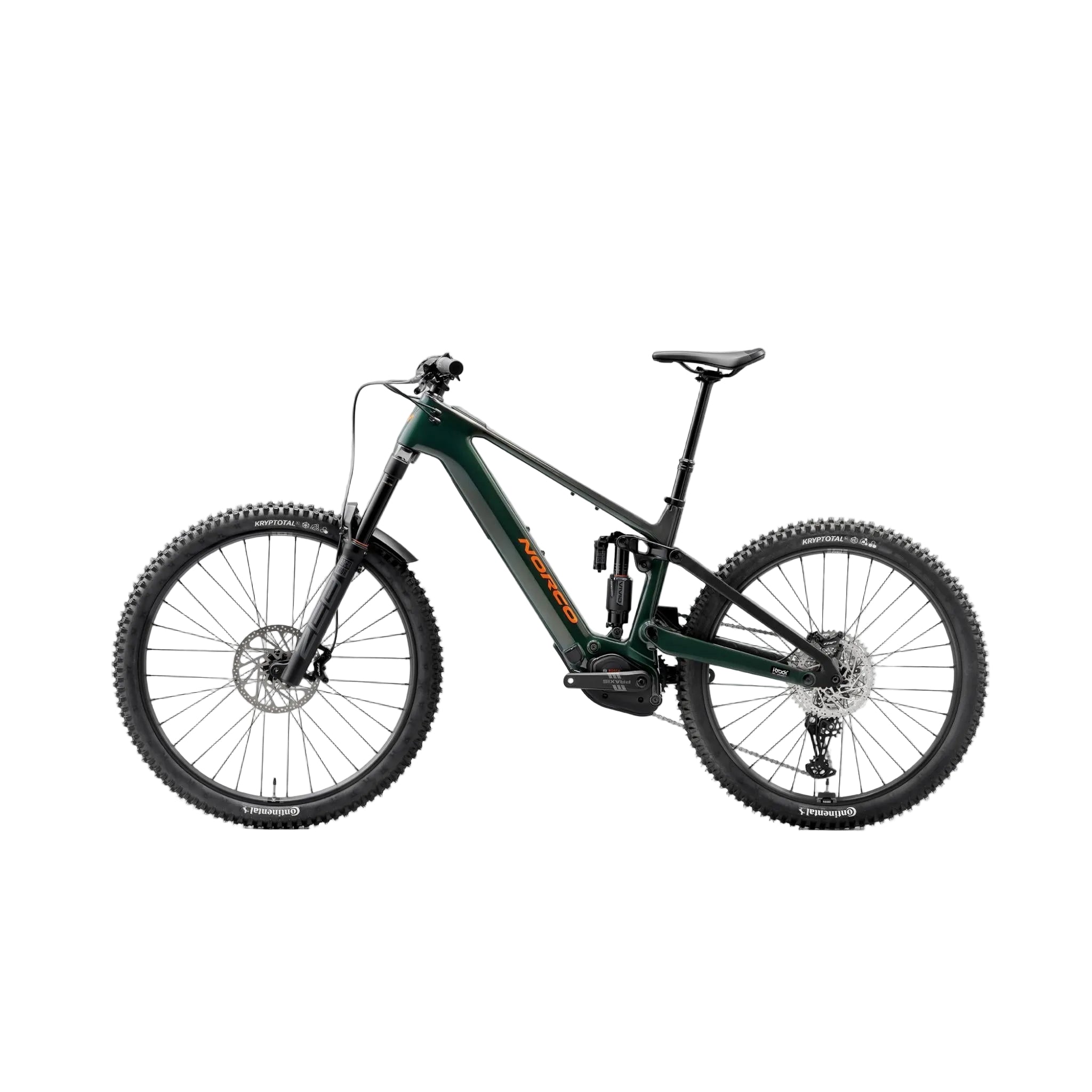

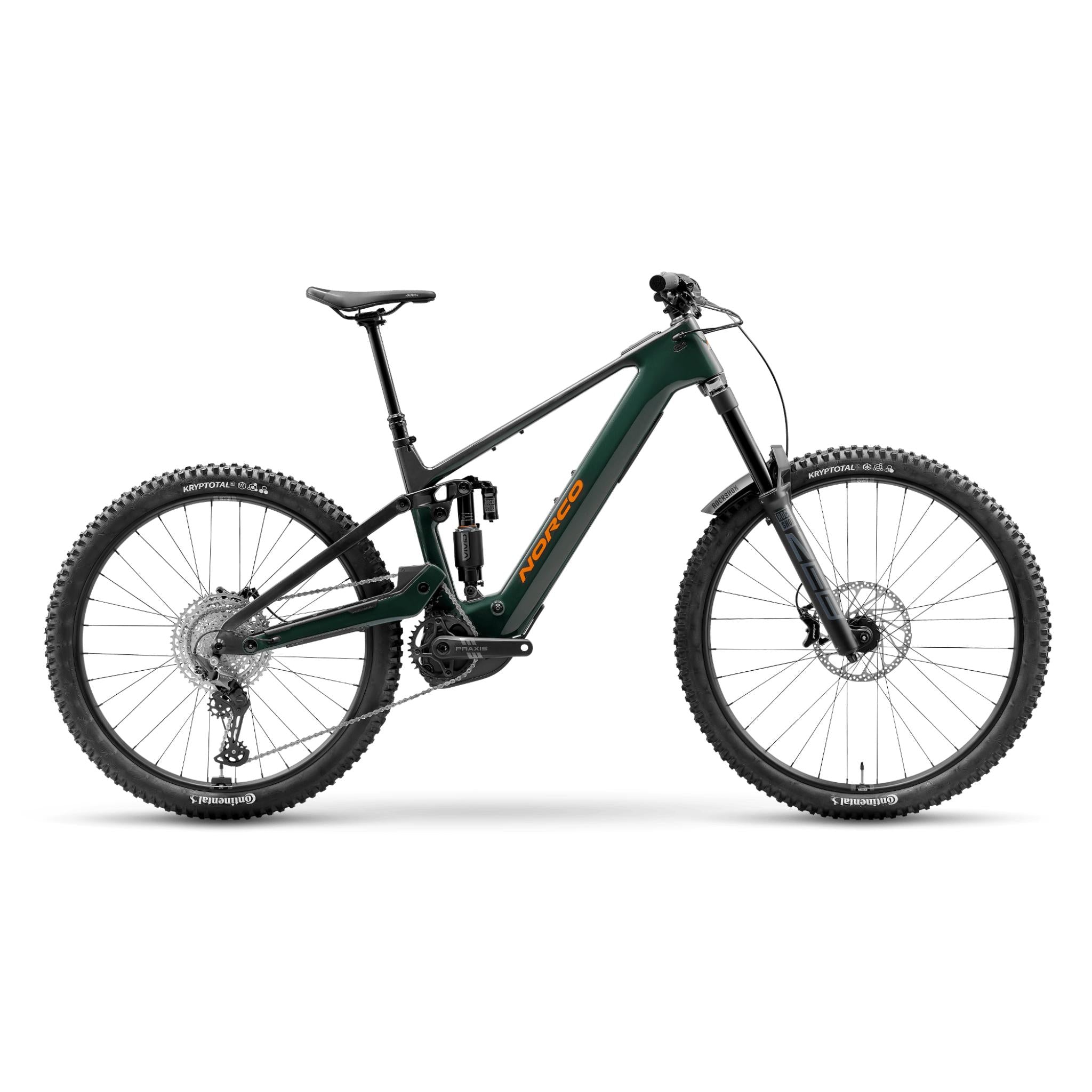

Norco's Range is the big brother of their electric mountain bike family. Big travel numbers and and all-new advanced lightweight carbon frame make this the dream partner for riders who are all about the descents.
Bosch Drive System -
Built in uplift comes by way of the MTB hero Gen 5 Bosch CX smart motor. Pumping out a massive 85nm of torque and 600wh of peak power (Upgradeable via the Bosch Flow app to increase to 100nm and 750wh). The Bosch system is a Biketart favourite and the go-to for many riders due to it's reliability, superb ride feel and smooth power delivery.
Providing power is the PT800wh battery, smaller and lighter than previous generations, but still providing all the juice you need for a long day's riding.
VLT Frame -
The Range VLT frame has been engineered to be a master of balance and control, giving riders the confidence to push their limits and rely on the bike’s capability in any terrain. Designed with enduro-focused geometry, it delivers impressive front-end stability paired with precise directional control, allowing you to charge steep, technical descents without hesitation.
To ensure every rider experiences optimal performance, the Range VLT CX features size-specific rear centres that maintain consistent kinematics across all frame sizes. Each size also benefits from tailored chainstay lengths and a mixed wheel setup, providing the ideal blend of agility, traction, and weight distribution. The result is a bike with exceptional handling, refined balance, and confidence-inspiring stability.
KEY FEATURES -
- Carbon frame - Size specific rear centres
- 170mm front / 160mm rear travel
- Bosch Performance Line CX drive unit
- Bosch Powertube PT800wh battery
- High-Pivot VPSHP suspension platform
- Rockshox Zeb fork and Vivid shock
- Shimano Deore drivetrain
- UDH
- Bosch eBike Flow App – personalize your experience and stay up to date
- Ride Aligned™ - Perfect fit, dialed handling and personalized setup in minutes
- Norco 'No Other Way' Limited Lifetime Warranty
SIZING -
- S2: 164 - 174cm
- S3: 173 - 183cm
- S4: 182 - 192cm
- S5: 190 - 200cm
Specifications
-
Discipline Enduro
-
Material Carbon
-
Front Travel 170mm
-
Rear Travel 160mm
-
Wheel Size MX
-
Warranty Lifetime (frame)
FRAME - Carbon Frame, 160mm Travel, UDH, Eagle Transmission Compatible, Ride Aligned™
FORK - Rockshox Zeb Base, 170mm travel, 44mm offset, Fender Included
REAR SHOCK - Rockshox Vivid Air Base, 205x65mm TR
REAR SHIFTER - Shimano Deore SL-M6100-R, 12sp
REAR MECH - Shimano Deore RD-M6100, 12sp
CRANKSET - Praxis HD Aluminium Bosch Cranks, 34T, 160mm
BB - Bosch BES3 DU
CASSETTE - Shimano Deore CS-M6100-12, 10-51T, 12sp
CHAIN - Shimano Deore XT CN-M8100, 12sp
BRAKES - TRP Slate EVO, Organic Pads
FRONT BRAKE ROTOR - TRP 203mm, 2.3mm Thickness, 6-Bolt
REAR BRAKE ROTOR - TRP 180mm, 2.3mm Thickness, 6-Bolt
BRAKE LEVERS - TRP Slate EVO
HANDLEBAR - Butted 6061 Alloy, 800mm, 25mm Rise
STEM - 6061 Alloy, 40mm Length, 35mm Clamp
SEATPOST - TranzX YS134 Dropper, 34.9mm 150mm (S1), 170mm (S2, S3), 200mm (S4, S5)
HEADSET - FSA No. 55 Sealed Bearing, 1 1/8" - 1.8" Tapered
HEADSET SPACER - 2 x 10mm, 1x 5mm
SADDLE - Fizik Terra Aidon X5
GRIPS - WTB Wavelength
SEAT CLAMP - Norco Alloy Nutted Clamp, 38.5mm
HUBS - Bear Pawls BMB Boost, 6 Bolt
RIMS - WTB ST i30,30 mm, 32H, 29"-27.5" F/R
FRONT TIRE - Continental Kryptotal-F Enduro 29" x 2.4", Foldable
REAR TIRE - Continental Kryptotal Enduro 27.5" x 2.4", Foldable
DRIVE UNIT - Bosch Performance Line CX, 85nm/100nm
BATTERY - Bosch PowerTube 800Wh
Range VLT CX C2 2026
