Description
As the big brother to the iconic Foxy the SuperFoxy boasts the biggest travel numbers of the Mondraker enduro mountain bikes.. Not quite a DH bike but definitely a bike for blistering descents and big features.
The aluminium frame SuperFoxy makes all the DH/Enduro goodness available at a lower price than the premium carbon SuperFoxy range yet retains the exact same frame design and features. Build kit on the R is awesome, starting with the Öhlins suspension front and back, ONOFF’s range-topping components, e*thirteen’s LG1 Plus Enduro wheels... and best of all, its spectacular frame made of our top of the range aluminium: STEATH ALLOY. Spectacular design, beautiful colours, and everything designed to be taken to the limit with nothing to hold you back.
SIZING -
- S: 160cm - 170cm
- M: 165cm - 180cm
- L: 175cm - 185cm
- XL: 185cm - 190cm+
Specifications
-
Discipline Enduro/Race
-
Material Stealth Alloy
-
Front Travel 170mm
-
Rear Travel 160mm
-
Wheel Size 29"
-
Warranty Lifetime (frame)
Frame - SuperFoxy 29 6061 Alloy Stealth Evo, hydroformed tubing, Zero Suspension System, 160mm travel, Forward Geometry, one piece Monoblock upper link, SuperBoost 12x157mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, telescopic seatpost internal routing, Max. capacity sealed bearings, ISCG 05
Rear shock - Öhlins TTX Air 205X65mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload. Trunnion top mount, 22.2x10mm bottom bushings
Shock settings - C20 compression, R35 rebound. Volume reducers 16.000 (2xF+1E)
Fork - Öhlins RXF 38 M.2 29, 170mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber
Headset - Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º
Stem - Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore
Handlebar - Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Grips - Onoff Twin, 1lock-on, 135mm
Seatpost - Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 405x95-125mm, M size: 458x120-150mm, L size: 498x140-170mm, XL size: 558x170-200mm
Saddle - SDG BEL-AIR 3.0, LPU foam, steel rails
Front brake - Sram DB8, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Rear brake - Sram DB8, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Brake lever - Sram DB8, tool reach adjust, lever pivot bushings
Rims - e*thirteen LG1 Enduro, IW30 Hookless, 6069 Welded Aluminium, 30mm internal width, tubeless ready, 28 spokes
Spokes - e*thirteen custom Hive triple-butted black steel, alloy nipples, nipple washers
Front hub - e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminium, IS 6 bolts
Rear hub - e*thirteen Superboost 12x157mm, triple-sealed, fully machined aluminium w/6-degree engagement, IS 6 bolts, HG freehub
Front tire - Maxxis Assegai 29x2.5WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead
Rear tire - Maxxis Dissector 29x2.4WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead
Crankset - Sram Truvativ Descendant 7K Eagle, SuperBoost, DUB axle, Direct mount chain ring, S size: 170mm M size: 170mm L size: 175mm XL size: 175mm CL 56´5
Rings - 32T, CNC-machined alloy, X-SYNC 2
Bottom bracket - Sram DUB BSA, sealed bearings, 73mm, superboost
Chain - Sram SX Eagle, 12s, Powerlock
Rear derailleur - Sram NX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1x12s, X-actuation 1:1
Shift levers - Sram Trigger SX Eagle, 12s, X-Actuation 1:1
Cassette - Sram PG-1230, 11-50T, 12s
Derailleur hanger - Mondraker M068
Weight - 17,2 kg

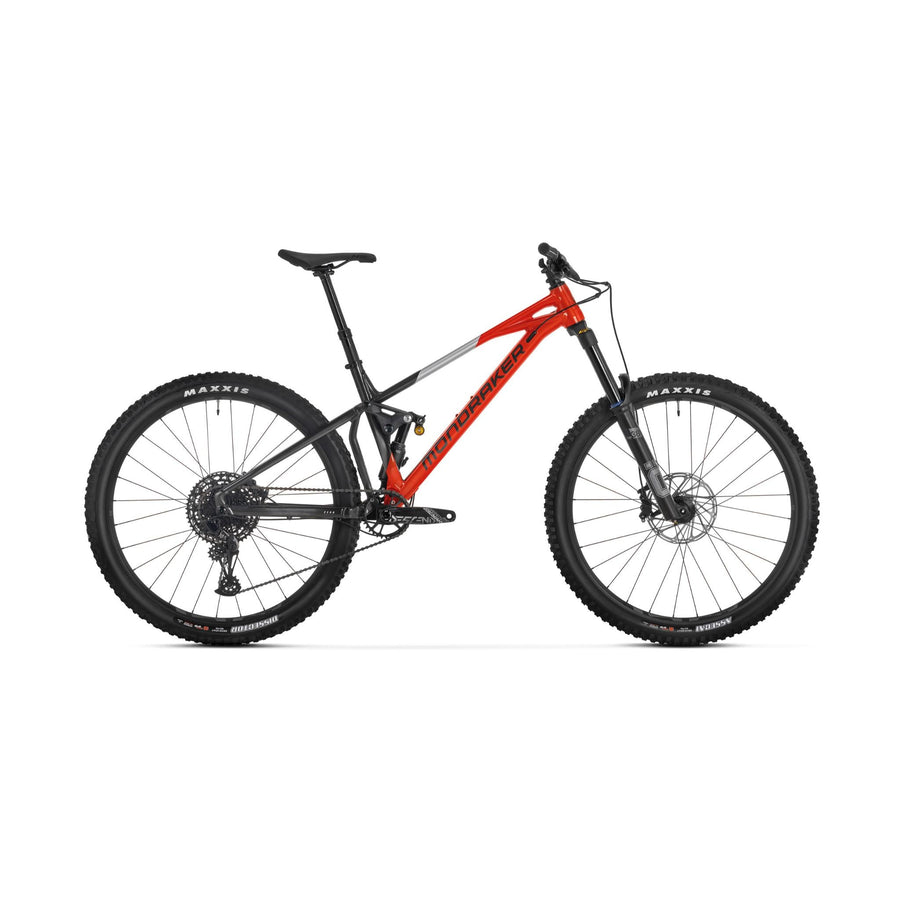

Mondraker Superfoxy R 2024
As the big brother to the iconic Foxy the SuperFoxy boasts the biggest travel numbers of the Mondraker enduro mountain bikes.. Not quite a DH bike but definitely...
Order within [time] for delivery by [date]
90 Day Returns -
Description
As the big brother to the iconic Foxy the SuperFoxy boasts the biggest travel numbers of the Mondraker enduro mountain bikes.. Not quite a DH bike but definitely a bike for blistering descents and big features.
The aluminium frame SuperFoxy makes all the DH/Enduro goodness available at a lower price than the premium carbon SuperFoxy range yet retains the exact same frame design and features. Build kit on the R is awesome, starting with the Öhlins suspension front and back, ONOFF’s range-topping components, e*thirteen’s LG1 Plus Enduro wheels... and best of all, its spectacular frame made of our top of the range aluminium: STEATH ALLOY. Spectacular design, beautiful colours, and everything designed to be taken to the limit with nothing to hold you back.
SIZING -
- S: 160cm - 170cm
- M: 165cm - 180cm
- L: 175cm - 185cm
- XL: 185cm - 190cm+
Specifications
-
Discipline Enduro/Race
-
Material Stealth Alloy
-
Front Travel 170mm
-
Rear Travel 160mm
-
Wheel Size 29"
-
Warranty Lifetime (frame)
Frame - SuperFoxy 29 6061 Alloy Stealth Evo, hydroformed tubing, Zero Suspension System, 160mm travel, Forward Geometry, one piece Monoblock upper link, SuperBoost 12x157mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, telescopic seatpost internal routing, Max. capacity sealed bearings, ISCG 05
Rear shock - Öhlins TTX Air 205X65mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload. Trunnion top mount, 22.2x10mm bottom bushings
Shock settings - C20 compression, R35 rebound. Volume reducers 16.000 (2xF+1E)
Fork - Öhlins RXF 38 M.2 29, 170mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber
Headset - Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º
Stem - Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore
Handlebar - Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Grips - Onoff Twin, 1lock-on, 135mm
Seatpost - Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 405x95-125mm, M size: 458x120-150mm, L size: 498x140-170mm, XL size: 558x170-200mm
Saddle - SDG BEL-AIR 3.0, LPU foam, steel rails
Front brake - Sram DB8, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Rear brake - Sram DB8, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Brake lever - Sram DB8, tool reach adjust, lever pivot bushings
Rims - e*thirteen LG1 Enduro, IW30 Hookless, 6069 Welded Aluminium, 30mm internal width, tubeless ready, 28 spokes
Spokes - e*thirteen custom Hive triple-butted black steel, alloy nipples, nipple washers
Front hub - e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminium, IS 6 bolts
Rear hub - e*thirteen Superboost 12x157mm, triple-sealed, fully machined aluminium w/6-degree engagement, IS 6 bolts, HG freehub
Front tire - Maxxis Assegai 29x2.5WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead
Rear tire - Maxxis Dissector 29x2.4WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead
Crankset - Sram Truvativ Descendant 7K Eagle, SuperBoost, DUB axle, Direct mount chain ring, S size: 170mm M size: 170mm L size: 175mm XL size: 175mm CL 56´5
Rings - 32T, CNC-machined alloy, X-SYNC 2
Bottom bracket - Sram DUB BSA, sealed bearings, 73mm, superboost
Chain - Sram SX Eagle, 12s, Powerlock
Rear derailleur - Sram NX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1x12s, X-actuation 1:1
Shift levers - Sram Trigger SX Eagle, 12s, X-Actuation 1:1
Cassette - Sram PG-1230, 11-50T, 12s
Derailleur hanger - Mondraker M068
Weight - 17,2 kg
