Description

Mondraker built the Prime for riders who want a fast, reliable, modern electric mountain bike that will consistently perform on their local trails. The Prime X and RX models add some extra features to boost versatility.

The perfect choice for someone looking for a versatile bike to give them the widest range of options possible. On the one hand it comes as standard with mudguards, a pannier rack and lights to move comfortably around the city, yet it’s also a fully-fledged off road bike offering you access to the trails and bridleways when you feel like it. The range offered by its big 750Wh battery coupled with its bang up-to-date motor, Bosch’s 2023 Smart System, is complimented by the wireless Mini Remote and integrated System Controller to let you ride for hours and hours wherever you fancy. Disconnect from the daily grind and enjoy getting out on your bike, whether on-road or off.

SIZING -

XS: <165cm
S: 160cm - 170cm
M: 165cm - 180cm
L: 175cm - 185cm
XL: 185cm - 190cm+

Specifications

Discipline Trail/Commute
Material Aluminium
Front Travel 100mm
Rear Travel Hardtail
Wheel Size 29"
Warranty Lifetime (frame)

Frame - Prime 6061 Xtralite Full Butted Alloy, Forward Geometry, internal non-removable battery, tapered head tube, Boost 12x148mm rear axle, integrated dropout speed sensor
Fork - RockShox 35 Silver TK 29, 120mm, TurnKey, Solo Air, tapered steerer tube, Boost 15x110mm axle, 35mm steel stanchions, 44mm offset. Settings: compression adjustment at low-speed to lock, rebound, air preload
Headset - Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º
Stem - MDK Urban 35mm 0º, 6061 forged alloy, 31.8mm barbore
Handlebar - MDK Urban 1.0 double butted 6061 alloy, rise: 20mm, width: 680mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Grips - Onoff Shaper
Seatpost - Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 405x95-125mm, M size: 458x120-150mm, L size: 498x140-170mm, XL size: 558x170-200mm
Saddle - MDK urban
Front brake - Sram DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Rear brake - Sram DB8, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads
Brake lever - Sram DB8, tool reach adjust, lever pivot bushings
Rims - MDK-HP1 29, 30mm internal width, tubeless ready, 32 spokes
Spokes - CN round stainless steel
Front hub - Formula DC711, Boost 15x110mm, sealed bearings, IS 6 bolts
Rear hub - Formula EHL148 Boost 12x148mm, sealed bearings, IS 6 bolts, HG freehub
Front tire - Maxxis Grifter 29x2.5, single compound, 60TPI, wire bead, tanned wall.
Rear tire - Maxxis Grifter 29x2.5, single compound, 60TPI, wire bead, tanned wall.
Crankset - Race Face Aeffect ebike, 165mm
Rings - Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD
Pedals - Urban pedal resin black
Chain - Sram SX Eagle, 12s, Powerlock
Rear derailleur - Sram SX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1x12s, X-actuation 1:1
Shift levers - Sram Trigger SX Eagle, 12s, X-Actuation 1:1, single click
Cassette - Sram PG-1210, 11-50T, 12s
Derailleur hanger - Mondraker M068
Others - Front light: 50LUX output DC 6-12V, waterproof Alloy cage. Rear Light: Fender Mount, w/ Reflective, e-bike version, 6-12V. Fenders: Alloy black MDK custom fenders. Rack: Alloy MDK rear Rack, Max loading 25kg. Kickstand: Massload KSA18-40
Weight - 24,9 kg
Display - Bosch Intuvia 100 / Bosch Mini Remote / Bosch System Controller
Motor - Bosch Performance Line CX Cruise (25Km/h) GEN4 SMART SYSTEM
Battery - Bosch Powertube 750Wh

View Gallery

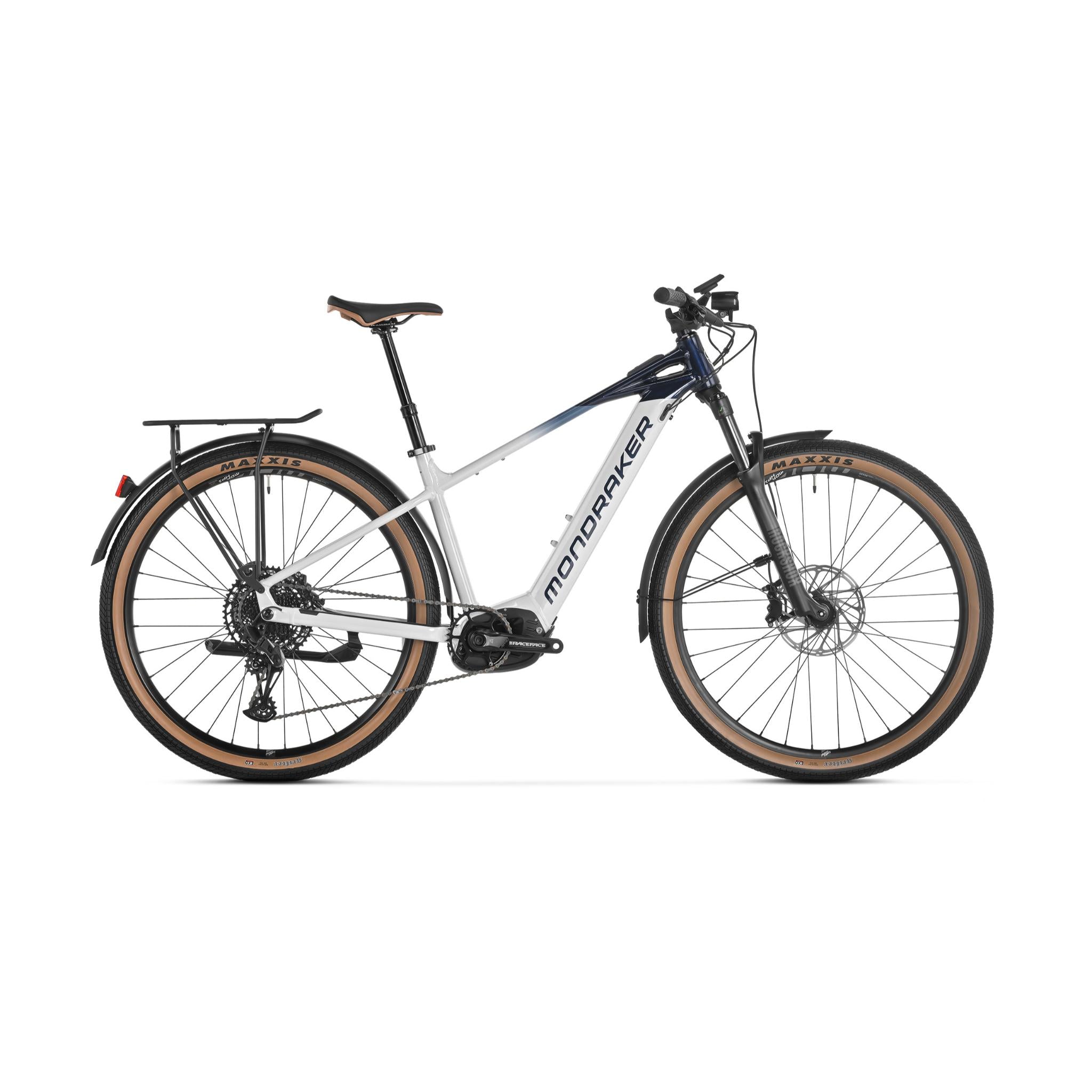

Mondraker Prime RX 2024

Name: Mondraker Prime RX 2024
Availability: BackOrder

SKU: 010.24320

Barcode: 8435392879132

Mondraker built the Prime for riders who want a fast, reliable, modern electric mountain bike that will consistently perform on their local trails. The Prime X and RX models... Read more

£4,099.00

Select Colour

Bunker Grey / Midnight Blue / Denim Blue

Size Please select
