Description

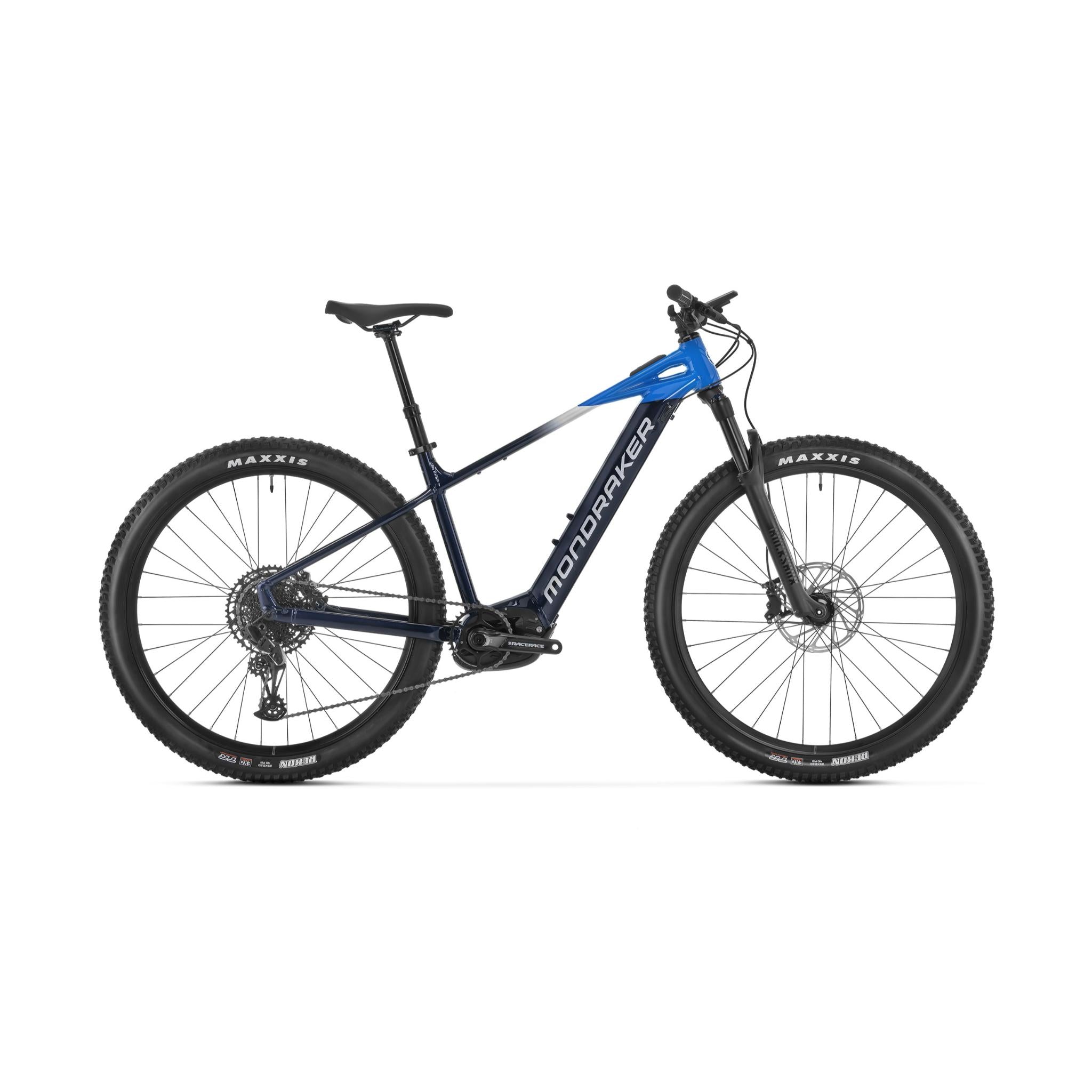

Mondraker's Prime R is the sporty, versatile electric mountain bike for people who want to get into off-road biking. pedal assist comes from the smooth, reliable Bosch Performance Line CX Smart System motor paired with a 750Wh battery and is also fitted with the all new integrated System Controller and Bosch’s wireless Mini Remote control plus the Intuvia 100 display. A RockShox suspension fork with 120mm travel and 29" wheels let you enjoy either quiet rides, if that’s what you’re after, or the most challenging day outs you could possibly dream of.
SIZING -
- XS: <165cm
- S: 160cm - 170cm
- M: 165cm - 180cm
- L: 175cm - 185cm
- XL: 185cm - 190cm+
Specifications
-
Discipline Trail/Commute
-
Material Aluminium
-
Front Travel 120mm
-
Rear Travel Hardtail
-
Wheel Size 29"
-
Warranty Lifetime (frame)
Frame - Prime Xtralite 6061 Full Butted Alloy, Forward Geometry, intenal non-removable battery, tapered head tube, Boost 12x148mm rear axle, integrated dropout speed sensor
Fork - RockShox 35 Silver TK 29, 120mm, TurnKey, Solo Air, tapered steerer tube, Boost 15x110mm axle, 35mm steel stanchions, 44mm offset. Settings: compression adjustment at low-speed to lock, rebound, air preload
Headset - Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º
Stem - Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore
Handlebar - Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Grips - Onoff Twin, 1lock-on, 135mm
Seatpost - Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 405x95-125mm, M size: 458x120-150mm, L size: 498x140-170mm, XL size: 558x170-200mm
Saddle - MDK ebike black
Front brake - Sram DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Rear brake - Sram DB8, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads
Brake lever - Sram DB8, tool reach adjust, lever pivot bushings
Rims - Mavic E-CrossRide 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes
Spokes - Mavic J-bend double butted, contactless lacing
Front hub - Mavic, Boost 15x110mm, IS 6 bolts
Rear hub - Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts, HG freehub
Front tire - Maxxis Rekon 29x2.6, tubeless ready, dual compound, EXO protection, 60TPI, folding bead
Rear tire - Maxxis Rekon 29x2.6, tubeless ready, dual compound, EXO protection, 60TPI, folding bead
Crankset - Race Face Aeffect ebike, 165mm
Rings - Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD
Chain - Sram SX Eagle, 12s, Powerlock
Rear derailleur - Sram SX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1x12s, X-actuation 1:1
Shift levers - Sram Trigger SX Eagle, 12s, X-Actuation 1:1, single click
Cassette - Sram PG-1210, 11-50T, 12s
Derailleur hanger - Mondraker M068
Weight - 23,4 kg
Display - Bosch Intuvia 100 / Bosch Mini Remote / Bosch System Controller
Motor - Bosch Performance Line CX Cruise (25Km/h) GEN4 SMART SYSTEM
Battery - Bosch Powertube 750Wh
Mondraker Prime R 2024
Mondraker's Prime R is the sporty, versatile electric mountain bike for people who want to get into off-road biking. pedal assist comes from the smooth, reliable Bosch Performance Line CX Smart System...
Order within [time] for delivery by [date]
90 Day Returns -
Description
Mondraker's Prime R is the sporty, versatile electric mountain bike for people who want to get into off-road biking. pedal assist comes from the smooth, reliable Bosch Performance Line CX Smart System motor paired with a 750Wh battery and is also fitted with the all new integrated System Controller and Bosch’s wireless Mini Remote control plus the Intuvia 100 display. A RockShox suspension fork with 120mm travel and 29" wheels let you enjoy either quiet rides, if that’s what you’re after, or the most challenging day outs you could possibly dream of.
SIZING -
- XS: <165cm
- S: 160cm - 170cm
- M: 165cm - 180cm
- L: 175cm - 185cm
- XL: 185cm - 190cm+
Specifications
-
Discipline Trail/Commute
-
Material Aluminium
-
Front Travel 120mm
-
Rear Travel Hardtail
-
Wheel Size 29"
-
Warranty Lifetime (frame)
Frame - Prime Xtralite 6061 Full Butted Alloy, Forward Geometry, intenal non-removable battery, tapered head tube, Boost 12x148mm rear axle, integrated dropout speed sensor
Fork - RockShox 35 Silver TK 29, 120mm, TurnKey, Solo Air, tapered steerer tube, Boost 15x110mm axle, 35mm steel stanchions, 44mm offset. Settings: compression adjustment at low-speed to lock, rebound, air preload
Headset - Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º
Stem - Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore
Handlebar - Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Grips - Onoff Twin, 1lock-on, 135mm
Seatpost - Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 405x95-125mm, M size: 458x120-150mm, L size: 498x140-170mm, XL size: 558x170-200mm
Saddle - MDK ebike black
Front brake - Sram DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Rear brake - Sram DB8, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads
Brake lever - Sram DB8, tool reach adjust, lever pivot bushings
Rims - Mavic E-CrossRide 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes
Spokes - Mavic J-bend double butted, contactless lacing
Front hub - Mavic, Boost 15x110mm, IS 6 bolts
Rear hub - Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts, HG freehub
Front tire - Maxxis Rekon 29x2.6, tubeless ready, dual compound, EXO protection, 60TPI, folding bead
Rear tire - Maxxis Rekon 29x2.6, tubeless ready, dual compound, EXO protection, 60TPI, folding bead
Crankset - Race Face Aeffect ebike, 165mm
Rings - Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD
Chain - Sram SX Eagle, 12s, Powerlock
Rear derailleur - Sram SX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1x12s, X-actuation 1:1
Shift levers - Sram Trigger SX Eagle, 12s, X-Actuation 1:1, single click
Cassette - Sram PG-1210, 11-50T, 12s
Derailleur hanger - Mondraker M068
Weight - 23,4 kg
Display - Bosch Intuvia 100 / Bosch Mini Remote / Bosch System Controller
Motor - Bosch Performance Line CX Cruise (25Km/h) GEN4 SMART SYSTEM
Battery - Bosch Powertube 750Wh
