Description
The Mondraker Prime is expertly designed to provide fast, reliable performance on local trails. This modern electric mountain bike is perfect for riders seeking top-notch quality.
With a 120mm travel fork, a powerful Bosch Performance Line CX G4 motor, and a convenient Mini Remote and System Controller, the Prime G4 is perfect for all types of cycling, including trail rides, commuting, and more.
SIZING -
- XS: <165cm
- S: 160cm - 170cm
- M: 165cm - 180cm
- L: 175cm - 185cm
- XL: 185cm - 190cm+
Specifications
-
Discipline Trail/Commute
-
Material Aluminium
-
Front Travel 120mm
-
Rear Travel hardtail
-
Wheel Size 29"
-
Warranty Lifetime (frame)
Frame - Prime Xtralite 6061 Full Butted Alloy, Forward Geometry, intenal removable battery, tapered head tube, Boost 12x148mm rear axle, integrated dropout speed sensor
Fork -RockShox Recon Silver RL 29, 120mm, Motion control, Solo Air, tapered steerer tube, Boost 15x110mm axle, 32mm steel stanchions, 42mm offset. Settings: compression adjustment at low-speed to lock, rebound, air preload
Headset - Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º
Stem - Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore
Handlebar - Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Grips - Onoff Twin, 1lock-on, 135mm
Seatpost - Onoff Sulfur 0-R, 6061 T6 Alloy, 3D forged, diameter 31.6mm, length 400mm
Saddle - MDK ebike black
Front brake - Sram Level T, 2 piece caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pad
Rear brake - Sram Level T, 2 piece caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pad
Brake lever - Sram Level T, Direct Link actuation, tooled reach adjust, lever pivot bushings
Rims - Mavic E-CrossRide 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes
Spokes - Mavic J-bend double butted, contactless lacing
Front hub - Mavic, Boost 15x110mm, IS 6 bolts
Rear hub - Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts, HG freehub
Front tyre - Maxxis Rekon 29x2.6, tubeless ready, dual compound, EXO protection, 60TPI, folding bead
Rear tyre - Maxxis Rekon 29x2.6, tubeless ready, dual compound, EXO protection, 60TPI, folding bead
Crankset - Race Face Aeffect ebike, 165mm
Rings - Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD
Chain - Sram SX Eagle, 12s, Powerlock
Rear derailleur - Sram SX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1x12s, X-actuation 1:1
Shift levers - Sram Trigger SX Eagle, 12s, X-Actuation 1:1, single click
Cassette - Sram PG-1210, 11-50T, 12s
Derailleur hanger - Mondraker M068
Weight - 22,9 kg
Display - Bosch Intuvia 100 / Bosch Mini Remote / Bosch System Controller
Motor - Bosch Performance Line CX Cruise (25Km/h) GEN4 SMART SYSTEM
Battery - Bosch Powertube 625Wh

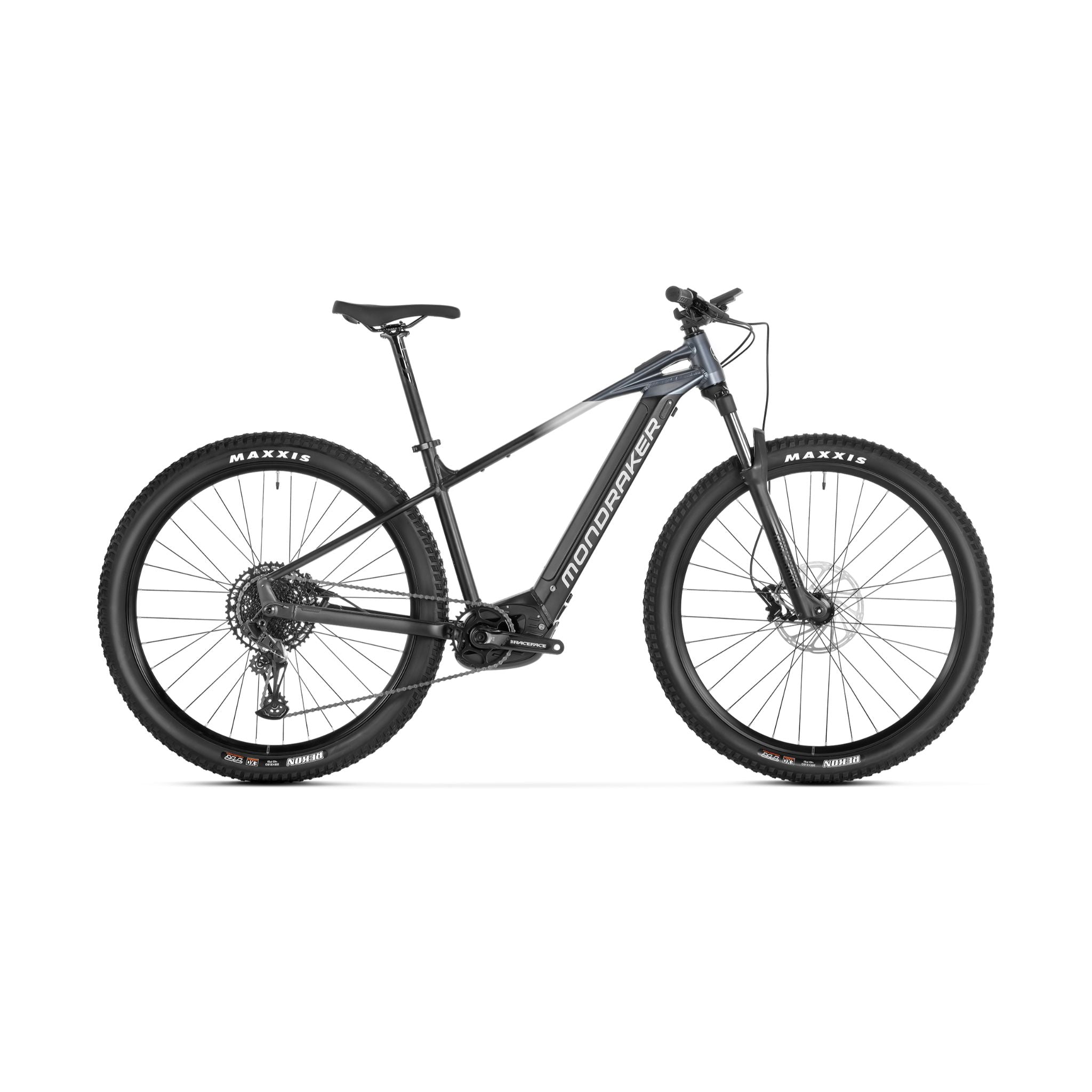

Mondraker Prime G4 2025
