Description
Mondraker have brought us something truly special. The NEAT Unlimited electric mountain bike is without question one of the most stunning builds to arrive at Biketart
This exclusive limited edition NEAT is 1 of only 50 bikes released worldwide. Each Stealth carbon frame is hand painted by specialist bike painters at the Mondraker factory in the famous Gulf combination of gloss orange and matt blue, with extra detailing inspired by the legendary Porsche 917K LeMans car.
Each bike is individually numbered and includes a presentation box containing certificate of authenticity, colour-matched touch-up pens, a poster and a booklet highlighting the history of Mondraker bikes and Gulf motorsport.
The NEAT is the definitive all-mountain electric bike, the sleek stealth carbon frame nails the balance of efficient, comfortable climbing and confident, controlled descent. The one E-MTB to handle any task.
For such a special frame only the best build kit will do, and Mondraker know how to spec a beast of a bike. Suspension is taken care of by the revered Fox Factory range, with a 36 Grip X2 fork up front and Float Factory X rear shock working with the e-bike optimised Zero Suspension system. Gearing is handled by SRAMs wireless Eagle 1x12 T-Type drivetrain, and brakes are upgraded from the NEAT RR SL to the 4-piston SRAM Code Ultimate Stealth. You'll also find a Wireless Rockshox AXS dropper seatpost and high-end Mondraker finishing kit, as well as carbon Mavic wheelset wearing Maxxis Minion DHF/DHR II tyres.
TQ-HPR50 Motor -
Combining 3 natural-feeling levels of assistance and running almost silently, the TQ-HPR50 provides up to 300W of power and 50Nm of torque. A multitude of variables will always come into play when talking about range, but a rider of average weight (around 75Kg) can expect to be able to complete a ride of between 3-4 hours, with more than 1000m of altitude gain, switching between ECO and MID modes, and ride anywhere from 40 to 50km. Also, the optional range extender can increase that by up to 50%
Via the TQ E-Bike smartphone app and Bluetooth connection you can control all the parameters of the motor to an almost limitless extent to dial in the perfect ride.
SIZING -
- L: 175cm - 185cm
Specifications
-
Discipline Trail/AM
-
Material Carbon
-
Front Travel 160mm
-
Rear Travel 150mm
-
Wheel Size 29"
-
Warranty Lifetime (frame)
Frame - Stealth Air full Carbon, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal & removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, integrated dropout speed sensor, exclusive plastic motor covers.
Rear shock - Fox Float X Factory Kashima EVOL, 185x55mm. Settings: 2-position compression (Open/Firm), rebound, air preload. Trunnion top mount, 30x8mm bottom bushings
Shock settings - Medium compression, medium rebound, air volume spacer 0.4
Fork - Fox 36 29 Float GRIP X2 Factory Kashima, Gloss Orange, 160mm, tapered steerer tube, Boost 15x110mm Kabolt axle, 44mm offset. Settings: high and low-speed compression, high and low-speed rebound, air preload
Headset - Acros custom for 1-1/2" head tube, angular contact bearings 40x52x7, Internal cable routing
Stem - Onoff Krypton FG 30mm, CNC, 31.8mm barbore
Handlebar - Onoff Krypton Carbon 1.0, rise: 25mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Grips - Onoff Desert, 1lock-on, 135mm
Seatpost - RockShox Reverb Stealth AXS, diameter 31.6mm S size: 340x125mm M size: 390x150mm L size: 440x170mm XL size: 440x170mm
Saddle - Fizik Terra Aidon Slim X5
Front brake - Sram Code Ultimate Stealth, oversized 4-piston caliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Rear brake - Sram Code Ultimate Stealth, oversized 4-piston caliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Brake lever - Sram Code Ultimate, SwingLink and lever pivot bearings, tools-free reach adjust
Rims - Mavic E-CrossMax Carbon XL R, 29 Boost 30mm internal width, hookless, tubeless ready, 28 spokes
Spokes - Mavic 28 straight-pull double butted spokes
Front hub - Mavic Infinity hub, Boost 15x110mm, IS 6 bolts
Rear hub - Mavic Infinity hub, ID360 freewheel technology, Boost 12x148mm, IS 6 bolts XD freehub
Front tire - Maxxis Minion DHF 29x2.5 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead
Rear tire - Maxxis Minion DHR II 29x2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead
Crankset - E.13 TRS Race carbon ebike, S size: 165mm M size: 165mm L size: 170mm XL size: 170mm
Rings - Sram X-Sync 2 Eagle 34T T-Type, steel, narrow-wide, 104 BCD
Chain - Sram X0 Eagle T-Type, 12s, Powerlock
Rear Mech - Sram XX Eagle AXS, T-Type roller bearing clutch, cage lock, long carbon cage, 1x12s
Shift levers - Sram Eagle AXS Pod MMX, 12s
Cassette - Sram XG-1295, 10-52T, T-Type, 12s
Others - Mondraker custom design Fidlock smoked transparent 600ml bottle + Fidlock base down version *Optional external battery: TQ 160Wh
Weight - 17.9 kg - Max System Weight 150kg
Display - TQ HPR display V01
Motor - TQ HPR-50
Battery - TQ HPR-50 360Wh integrated and removable

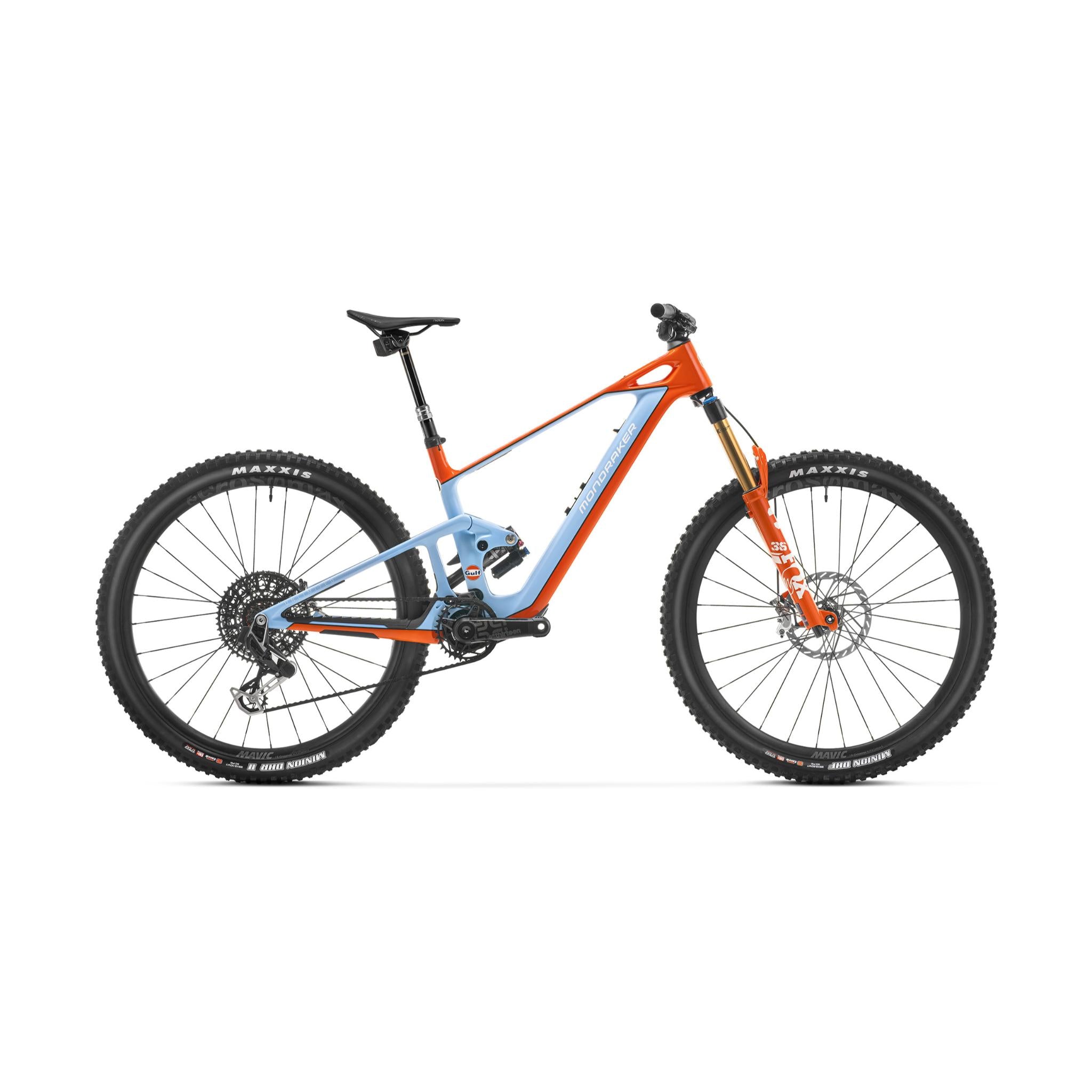

Mondraker NEAT Unlimited Gulf Edition
Mondraker have brought us something truly special. The NEAT Unlimited electric mountain bike is without question one of the most stunning builds to arrive at Biketart
This exclusive limited edition...
Order within [time] for delivery by [date]
90 Day Returns -
Description
Mondraker have brought us something truly special. The NEAT Unlimited electric mountain bike is without question one of the most stunning builds to arrive at Biketart
This exclusive limited edition NEAT is 1 of only 50 bikes released worldwide. Each Stealth carbon frame is hand painted by specialist bike painters at the Mondraker factory in the famous Gulf combination of gloss orange and matt blue, with extra detailing inspired by the legendary Porsche 917K LeMans car.
Each bike is individually numbered and includes a presentation box containing certificate of authenticity, colour-matched touch-up pens, a poster and a booklet highlighting the history of Mondraker bikes and Gulf motorsport.
The NEAT is the definitive all-mountain electric bike, the sleek stealth carbon frame nails the balance of efficient, comfortable climbing and confident, controlled descent. The one E-MTB to handle any task.
For such a special frame only the best build kit will do, and Mondraker know how to spec a beast of a bike. Suspension is taken care of by the revered Fox Factory range, with a 36 Grip X2 fork up front and Float Factory X rear shock working with the e-bike optimised Zero Suspension system. Gearing is handled by SRAMs wireless Eagle 1x12 T-Type drivetrain, and brakes are upgraded from the NEAT RR SL to the 4-piston SRAM Code Ultimate Stealth. You'll also find a Wireless Rockshox AXS dropper seatpost and high-end Mondraker finishing kit, as well as carbon Mavic wheelset wearing Maxxis Minion DHF/DHR II tyres.
TQ-HPR50 Motor -
Combining 3 natural-feeling levels of assistance and running almost silently, the TQ-HPR50 provides up to 300W of power and 50Nm of torque. A multitude of variables will always come into play when talking about range, but a rider of average weight (around 75Kg) can expect to be able to complete a ride of between 3-4 hours, with more than 1000m of altitude gain, switching between ECO and MID modes, and ride anywhere from 40 to 50km. Also, the optional range extender can increase that by up to 50%
Via the TQ E-Bike smartphone app and Bluetooth connection you can control all the parameters of the motor to an almost limitless extent to dial in the perfect ride.
SIZING -
- L: 175cm - 185cm
Specifications
-
Discipline Trail/AM
-
Material Carbon
-
Front Travel 160mm
-
Rear Travel 150mm
-
Wheel Size 29"
-
Warranty Lifetime (frame)
Frame - Stealth Air full Carbon, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal & removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, integrated dropout speed sensor, exclusive plastic motor covers.
Rear shock - Fox Float X Factory Kashima EVOL, 185x55mm. Settings: 2-position compression (Open/Firm), rebound, air preload. Trunnion top mount, 30x8mm bottom bushings
Shock settings - Medium compression, medium rebound, air volume spacer 0.4
Fork - Fox 36 29 Float GRIP X2 Factory Kashima, Gloss Orange, 160mm, tapered steerer tube, Boost 15x110mm Kabolt axle, 44mm offset. Settings: high and low-speed compression, high and low-speed rebound, air preload
Headset - Acros custom for 1-1/2" head tube, angular contact bearings 40x52x7, Internal cable routing
Stem - Onoff Krypton FG 30mm, CNC, 31.8mm barbore
Handlebar - Onoff Krypton Carbon 1.0, rise: 25mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Grips - Onoff Desert, 1lock-on, 135mm
Seatpost - RockShox Reverb Stealth AXS, diameter 31.6mm S size: 340x125mm M size: 390x150mm L size: 440x170mm XL size: 440x170mm
Saddle - Fizik Terra Aidon Slim X5
Front brake - Sram Code Ultimate Stealth, oversized 4-piston caliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Rear brake - Sram Code Ultimate Stealth, oversized 4-piston caliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Brake lever - Sram Code Ultimate, SwingLink and lever pivot bearings, tools-free reach adjust
Rims - Mavic E-CrossMax Carbon XL R, 29 Boost 30mm internal width, hookless, tubeless ready, 28 spokes
Spokes - Mavic 28 straight-pull double butted spokes
Front hub - Mavic Infinity hub, Boost 15x110mm, IS 6 bolts
Rear hub - Mavic Infinity hub, ID360 freewheel technology, Boost 12x148mm, IS 6 bolts XD freehub
Front tire - Maxxis Minion DHF 29x2.5 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead
Rear tire - Maxxis Minion DHR II 29x2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead
Crankset - E.13 TRS Race carbon ebike, S size: 165mm M size: 165mm L size: 170mm XL size: 170mm
Rings - Sram X-Sync 2 Eagle 34T T-Type, steel, narrow-wide, 104 BCD
Chain - Sram X0 Eagle T-Type, 12s, Powerlock
Rear Mech - Sram XX Eagle AXS, T-Type roller bearing clutch, cage lock, long carbon cage, 1x12s
Shift levers - Sram Eagle AXS Pod MMX, 12s
Cassette - Sram XG-1295, 10-52T, T-Type, 12s
Others - Mondraker custom design Fidlock smoked transparent 600ml bottle + Fidlock base down version *Optional external battery: TQ 160Wh
Weight - 17.9 kg - Max System Weight 150kg
Display - TQ HPR display V01
Motor - TQ HPR-50
Battery - TQ HPR-50 360Wh integrated and removable
