Description
Mondraker introduces its latest all 'new light' electric mountain bike, offering riders cutting-edge components paired with modern frame design principles. Crafted from lightweight stealth carbon and powered by the robust TQ motor, this bike stands out as a formidable E-MTB.
Part of Mondraker's esteemed electric MTB lineup, the NEAT embodies the brand's commitment to exceptional performance and aesthetics. Engineered to prioritize agility, maneuverability, and weight reduction, it represents the pinnacle of Mondraker's offerings.
At the core of the NEAT is the TQ drive system, renowned for its compact size, lightweight construction, reliability, minimal noise output, and notably, its impressive power delivery.
TQ-HPR50 -
Combining 3 natural-feeling levels of assistance and running almost silently, the TQ-HPR50 provides up to 300W of power and 50Nm of torque. A multitude of variables will always come into play when talking about range, but a rider of average weight (around 75Kg) can expect to be able to complete a ride of between 3-4 hours, with more than 1000m of altitude gain, switching between ECO and MID modes, and ride anywhere from 40 to 50km. The optional range extender can increase that by up to 50%
Via the TQ E-Bike smartphone app and Bluetooth connection you can control all the parameters of the motor to an almost limitless extent.
SIZING -
- S: 160cm - 170cm
- M: 165cm - 180cm
- L: 175cm - 185cm
- XL: 185cm - 190cm+
Specifications
-
Discipline Trail/AM
-
Material Carbon
-
Front Travel 160mm
-
Rear Travel 150mm
-
Wheel Size 29"
-
Warranty Lifetime (frame)
Frame - Stealth Air full Carbon, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal & removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, integrated dropout speed sensor, exclusive plastic motor covers.
Rear shock - Fox Float X Factory Kashima EVOL, 185x55mm. Settings: 2-position compression (Open/Firm), rebound, air preload. Trunnion top mount, 30x8mm bottom bushings
Shock settings - Medium compression, medium rebound, air volume spacer 0.4
Fork - Fox 36 29 Float GRIP2 Factory Kashima, 160mm, tapered steerer tube, Boost 15x110mm Kabolt axle, 44mm offset. Settings: high and low-speed compression, high and low-speed rebound, air preload
Headset - Acros custom for 1-1/2" head tube, angular contact bearings 40x52x7, Internal cable routing
Stem - Onoff Krypton FG 30mm, CNC, 31.8mm barbore
Hanger - Sram UDH
Display - TQ HPR V01 Screen
Battery - TQ HPR-50 360Wh integrated and removable
Power - ONOFF Krypton FG 30mm, CNC, 31.8mm diameter
Motor - TQ HPR-50
Others - Customized Mondraker 600ml Smoked Clear Bottle + Fidlock Base Version for Inverted Mounting *Optional External Battery: TQ 160Wh

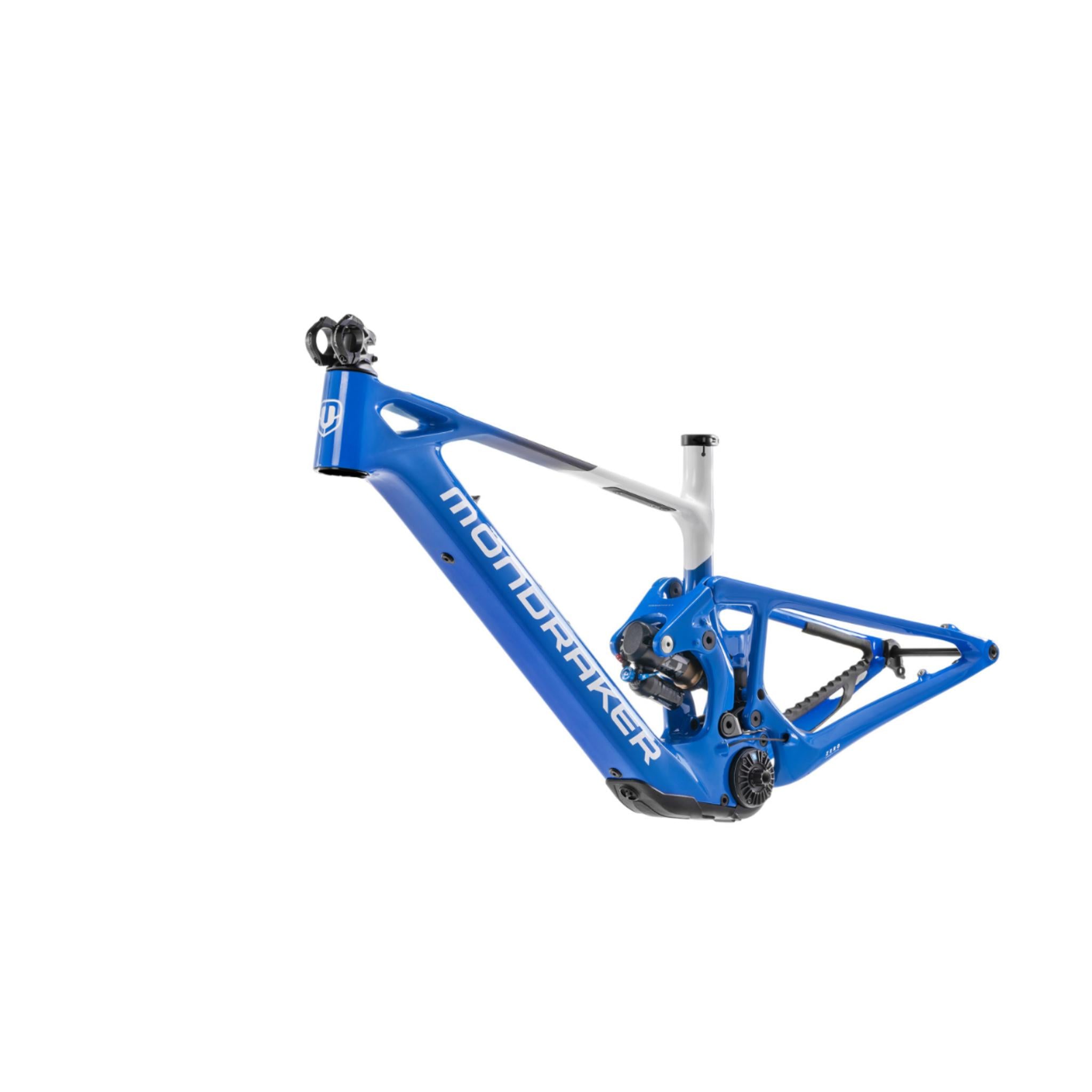

Mondraker Neat RR SL Frame 2024
Mondraker introduces its latest all 'new light' electric mountain bike, offering riders cutting-edge components paired with modern frame design principles. Crafted from lightweight stealth carbon and powered by the robust...
Order within [time] for delivery by [date]
90 Day Returns -
Description
Mondraker introduces its latest all 'new light' electric mountain bike, offering riders cutting-edge components paired with modern frame design principles. Crafted from lightweight stealth carbon and powered by the robust TQ motor, this bike stands out as a formidable E-MTB.
Part of Mondraker's esteemed electric MTB lineup, the NEAT embodies the brand's commitment to exceptional performance and aesthetics. Engineered to prioritize agility, maneuverability, and weight reduction, it represents the pinnacle of Mondraker's offerings.
At the core of the NEAT is the TQ drive system, renowned for its compact size, lightweight construction, reliability, minimal noise output, and notably, its impressive power delivery.
TQ-HPR50 -
Combining 3 natural-feeling levels of assistance and running almost silently, the TQ-HPR50 provides up to 300W of power and 50Nm of torque. A multitude of variables will always come into play when talking about range, but a rider of average weight (around 75Kg) can expect to be able to complete a ride of between 3-4 hours, with more than 1000m of altitude gain, switching between ECO and MID modes, and ride anywhere from 40 to 50km. The optional range extender can increase that by up to 50%
Via the TQ E-Bike smartphone app and Bluetooth connection you can control all the parameters of the motor to an almost limitless extent.
SIZING -
- S: 160cm - 170cm
- M: 165cm - 180cm
- L: 175cm - 185cm
- XL: 185cm - 190cm+
Specifications
-
Discipline Trail/AM
-
Material Carbon
-
Front Travel 160mm
-
Rear Travel 150mm
-
Wheel Size 29"
-
Warranty Lifetime (frame)
Frame - Stealth Air full Carbon, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal & removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, integrated dropout speed sensor, exclusive plastic motor covers.
Rear shock - Fox Float X Factory Kashima EVOL, 185x55mm. Settings: 2-position compression (Open/Firm), rebound, air preload. Trunnion top mount, 30x8mm bottom bushings
Shock settings - Medium compression, medium rebound, air volume spacer 0.4
Fork - Fox 36 29 Float GRIP2 Factory Kashima, 160mm, tapered steerer tube, Boost 15x110mm Kabolt axle, 44mm offset. Settings: high and low-speed compression, high and low-speed rebound, air preload
Headset - Acros custom for 1-1/2" head tube, angular contact bearings 40x52x7, Internal cable routing
Stem - Onoff Krypton FG 30mm, CNC, 31.8mm barbore
Hanger - Sram UDH
Display - TQ HPR V01 Screen
Battery - TQ HPR-50 360Wh integrated and removable
Power - ONOFF Krypton FG 30mm, CNC, 31.8mm diameter
Motor - TQ HPR-50
Others - Customized Mondraker 600ml Smoked Clear Bottle + Fidlock Base Version for Inverted Mounting *Optional External Battery: TQ 160Wh
