Description

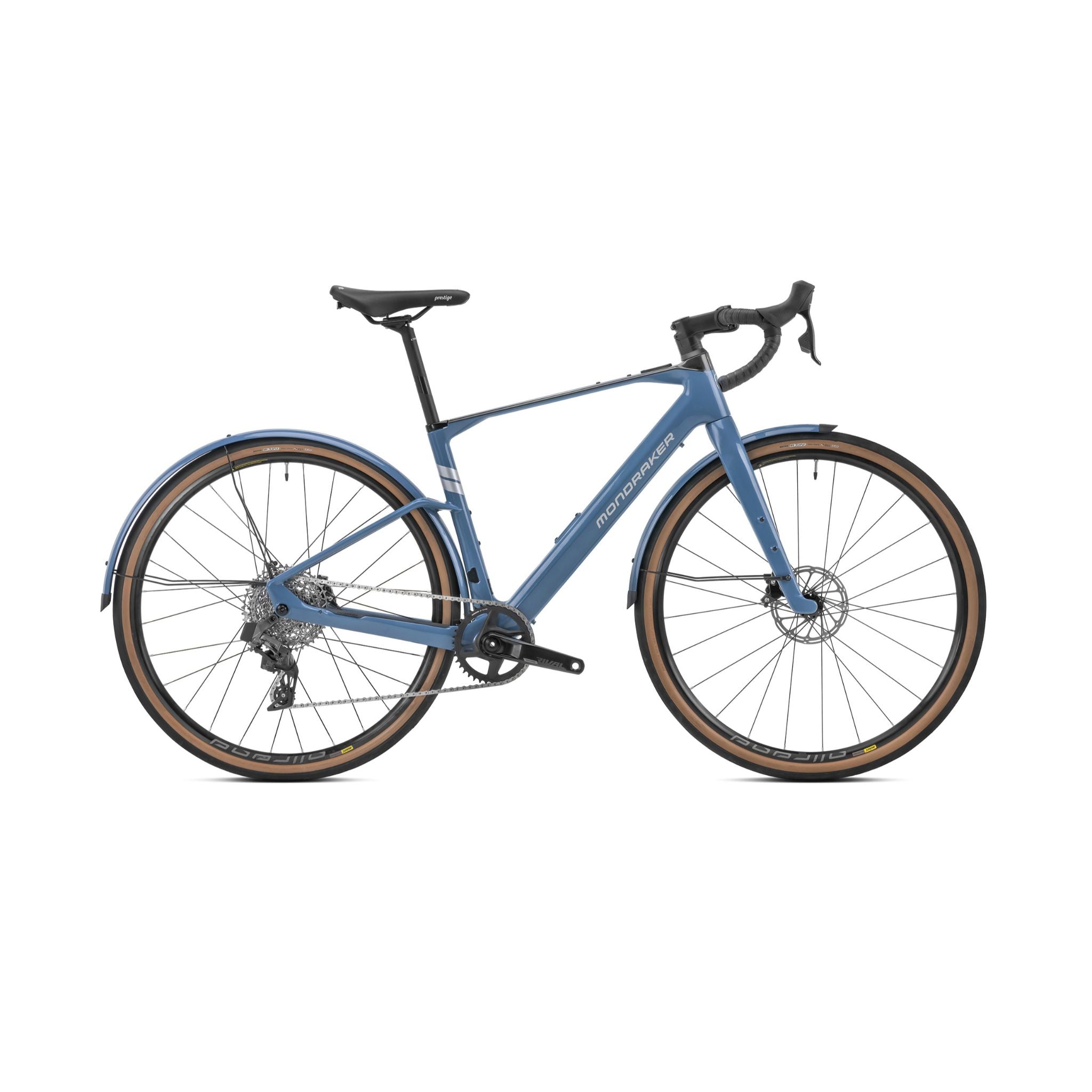

Mondraker's Dusty SX is a modern electric urban bike made for commuting and leisure riding. The Dusty range is a gravel/adventure bike at heart and the SX model adpats to add some additional comfort and features for those riding tarmac as well as the occasional off-road pathway.
This stunning looking bikes frame is built around the reliable and smooth Mahle X20 drive system - with only 3.2 Kg of system weight, including drive unit, inner battery and head unit, the X20 System is the lightest eBike rear hub system on the market. The X20 has 55 Nm of torque and is paired with a 350wh battery, 3 assist modes allow you to tailor your ride to your needs.
SIZING -
- S: 160cm - 167cm
- M: 167cm - 175cm
- L: 175cm - 185cm
- XL: 185cm - 195cm+
Specifications
-
Discipline Leisure/Commute/Gravel
-
Material Stealth Carbon
-
Front Travel N/A
-
Rear Travel N/A
-
Wheel Size 700c
-
Warranty Lifetime (frame)
Frame - Dusty Stealth Air Carbon, pressfit 386 EVO bottom bracket, tapered head tube, HHG internal cable routing, integrated internal non-removable battery, 12x142mm rear axle, 1X or 2X drivetrain design, Flat-mount brake compatible, integrated dropout speed sensor.
Fork - Steatlh Air Carbon tapered steerer tube, HHG, flat mount integrated fork
Headset - OnOff e-gravel tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º
Stem - OnOff e-gravel 6061 T6 Alloy, 31.8mm barbore, rise: +/-7º, length: sizes S/M: 80mm, size L/XL: 90mm
Handlebar - OnOff Barium gravel 18º bar flare. Width sizes S/M: 440mm, size L/XL: 460mm
Grips - Barium gravel dark grey
Seatpost - OnOff Barium gravel carbon microadjust diameter 27.2mm, length 400mm
Saddle - Selle Royal Prestige 139mm
Front brake - SRAM Rival Etap AXS, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad
Rear brake - Sram Rival Etap AXS, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad
Brake lever - Sram Rival, contact point adjustment, tooled reach adjust, plastic levers
Rims - Mavic Allroad Disc, UST, 22mm internal width, hookless, infinity hubs, 24 spokes
Spokes - Steel double butted flat spokes
Front hub - Mavic, 12x100mm, IS 6 bolts
Rear hub - Mavic X20, 12x142mm, XD ID360 Ratchet system, IS 6 bolts
Front tire - Maxxis Re-fuse 700x40, tubeless ready, dual compound, MaxxShield EXO protection, 60 TPI, folding bead, light tan wall
Rear tire - Maxxis Re-fuse 700x40, tubeless ready, dual compound, MaxxShield EXO protection, 60 TPI, folding bead, light tan wall
Crankset - SRAM Rival 1 GLS Wide, S: 170mm, M/L: 172,5mm, XL: 175mm.
Rings - Sram X-Sync Eagle 40T direct mount, alloy, narrow-wide,
Bottom bracket - Mahle pressfit, sealed bearings, w/ torque sensor
Chain - Sram Rival, 12s, Powerlock
Rear derailleur - Sram Rival XPLR Etap AXS 12s
Shift levers - Sram Rival Etap AXS 12s, X-Actuation 1:1, single click
Cassette - Sram XG-1251 10-44T, 12s
Others - Front and rear custom e-gravel dedicated fenders. Optional range extender: Mahle e185 , 172Wh
Display - Pulsar One Wireless
Motor - Mahle X20 Drive Unit
Battery - Mahle X20 IX350Wh
Mondraker Dusty SX RR 2024
Mondraker's Dusty SX is a modern electric urban bike made for commuting and leisure riding. The Dusty range is a gravel/adventure bike at heart and the SX model adpats...
Order within [time] for delivery by [date]
90 Day Returns -
Description
Mondraker's Dusty SX is a modern electric urban bike made for commuting and leisure riding. The Dusty range is a gravel/adventure bike at heart and the SX model adpats to add some additional comfort and features for those riding tarmac as well as the occasional off-road pathway.
This stunning looking bikes frame is built around the reliable and smooth Mahle X20 drive system - with only 3.2 Kg of system weight, including drive unit, inner battery and head unit, the X20 System is the lightest eBike rear hub system on the market. The X20 has 55 Nm of torque and is paired with a 350wh battery, 3 assist modes allow you to tailor your ride to your needs.
SIZING -
- S: 160cm - 167cm
- M: 167cm - 175cm
- L: 175cm - 185cm
- XL: 185cm - 195cm+
Specifications
-
Discipline Leisure/Commute/Gravel
-
Material Stealth Carbon
-
Front Travel N/A
-
Rear Travel N/A
-
Wheel Size 700c
-
Warranty Lifetime (frame)
Frame - Dusty Stealth Air Carbon, pressfit 386 EVO bottom bracket, tapered head tube, HHG internal cable routing, integrated internal non-removable battery, 12x142mm rear axle, 1X or 2X drivetrain design, Flat-mount brake compatible, integrated dropout speed sensor.
Fork - Steatlh Air Carbon tapered steerer tube, HHG, flat mount integrated fork
Headset - OnOff e-gravel tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º
Stem - OnOff e-gravel 6061 T6 Alloy, 31.8mm barbore, rise: +/-7º, length: sizes S/M: 80mm, size L/XL: 90mm
Handlebar - OnOff Barium gravel 18º bar flare. Width sizes S/M: 440mm, size L/XL: 460mm
Grips - Barium gravel dark grey
Seatpost - OnOff Barium gravel carbon microadjust diameter 27.2mm, length 400mm
Saddle - Selle Royal Prestige 139mm
Front brake - SRAM Rival Etap AXS, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad
Rear brake - Sram Rival Etap AXS, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad
Brake lever - Sram Rival, contact point adjustment, tooled reach adjust, plastic levers
Rims - Mavic Allroad Disc, UST, 22mm internal width, hookless, infinity hubs, 24 spokes
Spokes - Steel double butted flat spokes
Front hub - Mavic, 12x100mm, IS 6 bolts
Rear hub - Mavic X20, 12x142mm, XD ID360 Ratchet system, IS 6 bolts
Front tire - Maxxis Re-fuse 700x40, tubeless ready, dual compound, MaxxShield EXO protection, 60 TPI, folding bead, light tan wall
Rear tire - Maxxis Re-fuse 700x40, tubeless ready, dual compound, MaxxShield EXO protection, 60 TPI, folding bead, light tan wall
Crankset - SRAM Rival 1 GLS Wide, S: 170mm, M/L: 172,5mm, XL: 175mm.
Rings - Sram X-Sync Eagle 40T direct mount, alloy, narrow-wide,
Bottom bracket - Mahle pressfit, sealed bearings, w/ torque sensor
Chain - Sram Rival, 12s, Powerlock
Rear derailleur - Sram Rival XPLR Etap AXS 12s
Shift levers - Sram Rival Etap AXS 12s, X-Actuation 1:1, single click
Cassette - Sram XG-1251 10-44T, 12s
Others - Front and rear custom e-gravel dedicated fenders. Optional range extender: Mahle e185 , 172Wh
Display - Pulsar One Wireless
Motor - Mahle X20 Drive Unit
Battery - Mahle X20 IX350Wh
