Description
The Mondraker Dusty RX 2025 is a highly adaptable E-Gravel bike, perfect for all terrain and adventure. Its electric features allow for limitless exploration.
Although it may not seem like it, the Dusty by Mondraker actually boasts an electric bike design, with the innovative integration of the Mahle X20 drive unit and battery into the sleek carbon frame. This frame offers a comfortable ride for longer distances and a slightly more aggressive riding position suitable for off-road cycling. Its adaptable nature on different terrains makes the Dusty a perfect choice for cyclists looking to broaden their riding horizons.
The Mondraker Dusty 2025 boasts a Mahles X20 drive unit and 350wh battery that provide dependable, seamless pedal assist while maintaining a surprisingly light weight. This makes for a nimble, agile ride that is also incredibly enjoyable.
SIZING -
- S: 160cm - 167cm
- M: 167cm - 175cm
- L: 175cm - 185cm
- XL: 185cm - 195cm+
Specifications
-
Discipline Gravel/Adventure
-
Material Stealth Carbon
-
Front Travel N/A
-
Rear Travel N/A
-
Wheel Size 700c
-
Warranty Lifetime (frame)
Frame - Dusty Stealth Air Carbon, pressfit 386 EVO bottom bracket, tapered head tube, HHG internal cable routing, integrated internal non-removable battery, 12x142mm rear axle, 1X or 2X drivetrain design, Flatmount brake compatible, integrated dropout speed sensor.
Fork - Steatlh Air Carbon tapered steerer tube, HHG, fllat mount integrated fork
Headset - OnOff gravel tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º
Stem - OnOff gravel 6061 T6 Alloy, 31.8mm barbore, rise: +/-7º, length: sizes S/M: 70mm, size L: 80mm, XL: 90mm
Handlebar - MDK Urban 1.0 double butted 6061 alloy, rise: 0mm, width: 640mm, 9º backsweep, 0º upsweep, 31.8mm barbore
Grips - Lizard Skins DSP 30.3
Seatpost - Seatpost with integrated Supernova led rear light, diameter 27.2mm, length 400mm
Saddle - Selle Royal Prestige 139mm
Front brake - Sram Level Silver 2P Stealth, 2 piece flatmount caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad
Rear brake - Sram Level Silver 2P Stealth, 2 piece flatmount caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad
Brake lever - Sram Level Silver, tools-free reach adjust, lever pivot bearings
Rims - MDK-XG1, 25mm internal width, tubeless ready, 28 spokes
Spokes - CN round stainless steel
Front hub - Novatec D041, Boost 12x100mm, sealed bearings, IS 6 bolts
Rear hub - Mahle X20 Drive Unit, XDR freehub
Front tyre - Maxxis Re-fuse 700x40, tubeless ready, dual compound, MaxxShield EXO protection, 60 TPI, folding bead
Rear tyre - Maxxis Re-fuse 700x40, tubeless ready, dual compound, MaxxShield EXO protection, 60 TPI, folding bead
Crankset - SRAM Rival 1 GLS Wide, size S: 170mm, size M: 172,5mm, size L: 172,5mm, size XL: 175mm.
Rings - Sram X-Sync Eagle 40T direct mount, alloy, narrow-wide,
Bottom bracket - Mahle DUB pressfit, sealed bearings, w/ torque sensor
Chain - Sram Rival, 12s, Powerlock
Rear derailleur - Sram Rival XPLR Etap AXS 12s
Shift levers - Sram Rival Etap AXS 12s, X-Actuation 1:1, single click
Cassette - Sram XG-1251 10-44T, 12s
Derailleur hanger - Mondraker M076
Others - Front light: 150LUX output DC 6-12V, waterproof Alloy cage. Optional external battery: Mahle e185Wh
Weight - 14,0 kg
Display - Pulsar One Wireless
Motor - Mahle X20 Drive Unit
Battery - Mahle X20 IX350Wh

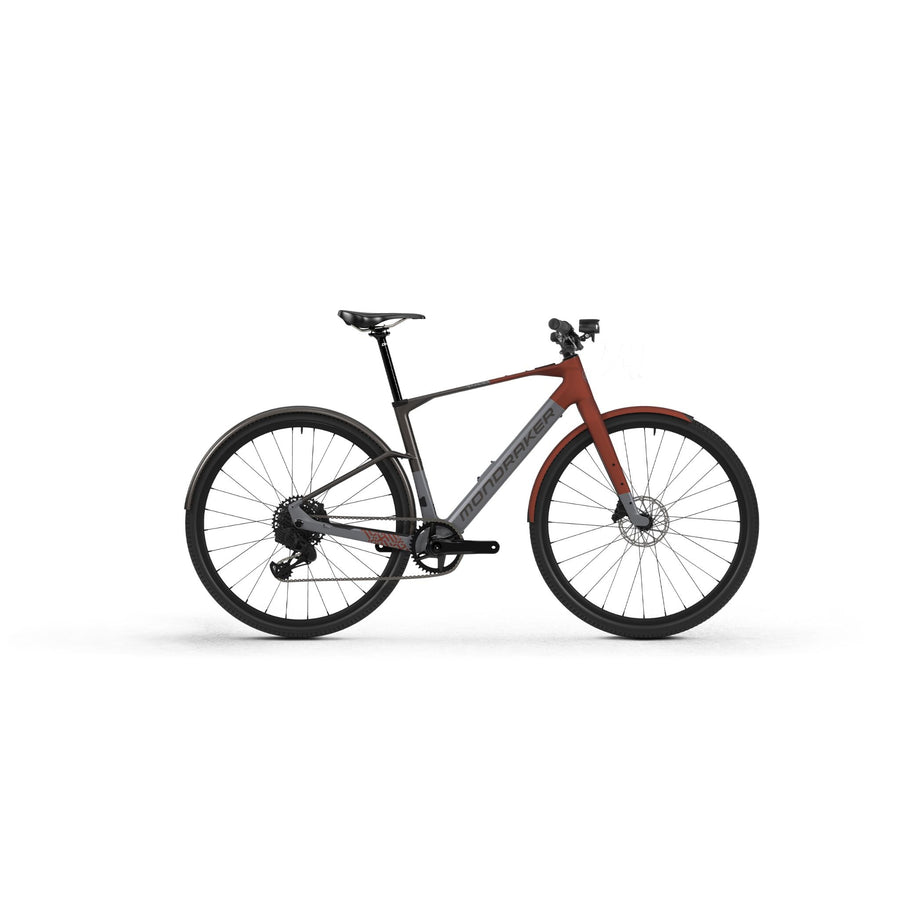

Mondraker Dusty RX 2025
