Description

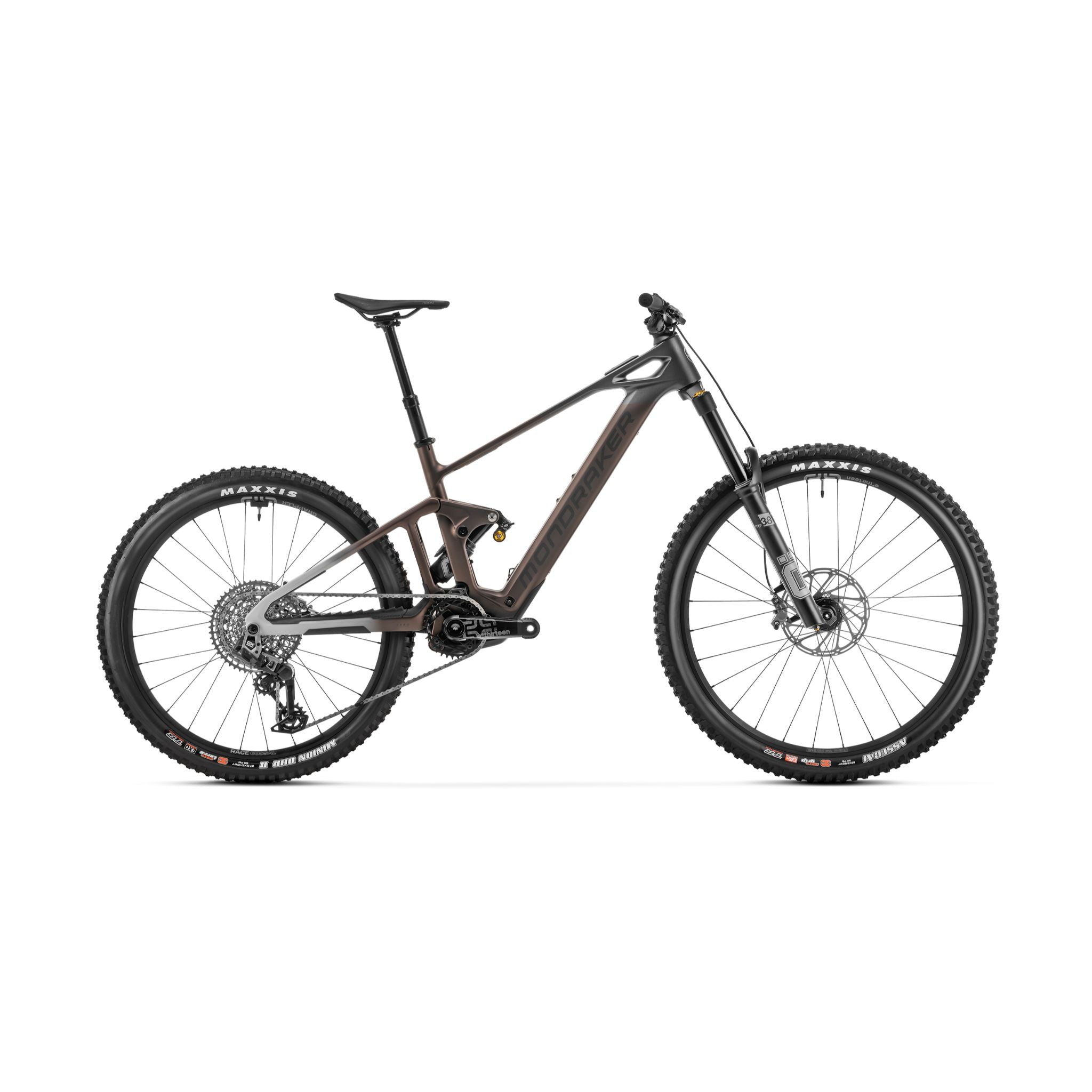

Introducing Mondraker Dune RR 2025, the ultimate electric enduro mountain bike. Featuring a lightweight Stealth carbon frame, 170mm front and 165mm rear travel, and the highly acclaimed Bosch SX motor, this bike is a top choice for riders. Plus, its exceptional build kit is to die for.
The Dune frame, meticulously crafted by Mondraker, is built to excel on even the most difficult terrain, making it the ultimate bike. It effortlessly conquers both technical descents and speedy trails, while still maintaining a fun and lively ride. The riding posture has been carefully optimized to ensure the Dune is equally enjoyable on ascents and extended pedalling stretches.
At the heart of the Dune is the Bosch Performance SX drive unit. 55nm of powerful pedal assist, a hugely popular motor choice due to the natural pedal feel and customisable assistance modes. This set up is powered by a 400wh battery, plenty of juice for a days ride, though you have the option to add a range extender (sold separately)
The RR is the mid spec level and has an outstanding build kit, such as Ohlins suspension, SRAM GX AXS transmission 12-speed wireless drivetrain, SRAM Code Bronze brakes, Mondraker dropper post, e13 wheelset and Maxxis Tyres.
SIZING -
- S: 160cm - 170cm
- M: 165cm - 180cm
- L: 175cm - 185cm
- XL: 185cm - 190cm+
Specifications
-
Discipline Enduro/AM
-
Material Stealth Carbon
-
Front Travel 170mm
-
Rear Travel 165mm
-
Wheel Size MX"
-
Warranty Lifetime (frame)
Frame - Stealth Air full Carbon, Updated Zero Suspension System, Mullet, 165mm travel, Forward Geometry, internal & removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers.
Rear shock - Öhlins TTX Air 205X65mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload. Trunnion top mount, 30x8mm bottom bushings
Shock settings - C10 compression, R20 rebound. Volume reducers 12.000 (2xF+1D)
Fork - Öhlins RXF 38 M.2 29, 170mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber
Headset - Acros custom IS52/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs without blocklock
Stem - Onoff S6 30mm 0º, 6061 forged alloy + CNC, 31.8mm barbore
Handlebar - Onoff S6 1.0 7050 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 1.5 rise.
Grips - Onoff Forest, CNC lock-on, 135mm
Seatpost - Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 140-115mm (388-235mm), M size: 160-135mm (428-255mm), L size: 180-155mm (468-275mm), XL size: 210-185mm (528-305mm)
Saddle - Fizik Terra Aidon Slim X5
Front brake - Sram Code Bronze Stealth, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Rear brake - Sram Code Bronze Stealth, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Brake lever - Sram Code Bronze Stealth, SwingLink and lever pivot bushings, tool-free reach adjust
Rims - e*thirteen Grappler Race, Hookless 6069 Welded Aluminum 30mm internal width, tubeless ready, 28F spokes 29 front, 27''5 rear
Spokes - e*thirteen custom J-bend, triple-butted steel, alloy nipples, nipple washers
Front hub - e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts
Rear hub - e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, XD freehub
Front tyre - Maxxis Assegai 29x2.5WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead
Rear tyre - Maxxis Minion DHR II 27’5x2.4 WT, tubeless ready, 3C MaxxTerra compound, DD protection, 2x120TPI, folding bead
Crankset - e*Thirteen Helix Core E*Spec Plus, All sizes: 160mm
Rings - Sram X-Sync 2 Eagle 34T T-Type, steel, narrow-wide, 104 BCD CL55
Chain - Sram GX Eagle T-Type, 12s, Powerlock
Rear derailleur - Sram GX Eagle AXS T-Type,12s
Shift levers - Sram Eagle AXS Pod MMX, 12s
Cassette - Sram XS-1275, 10-52T, T-Type, 12s
Weight - 19,6 kg
Display - Bosch Mini Remote / Bosch System Controller
Motor - Bosch Performance Line SX (25Km/h) GEN4 SMART SYSTEM Diagonal, Wide
Battery - Bosch Compact Powertube 400Wh
