Description
The Chaser RX and X are a unique pair in the Biketart stable. Blending the best-selling Chaser frame with some features more associated with commuter/touring bikes. The X range is therefore the perfect bike for off-road daily commuting and weekend adventuring.
The Chaser RX retains ride feel with its impressive geometry, travel capabilities, and Bosch motor. The bike's carefully chosen components and renowned frame design come together to deliver top-notch versatile E-MTB performance at an unbeatable price point.
Look forward to a seamless and effortless riding experience with the Bosch Performance Line CX Smart System motor, equipped with the latest Mini Remote wireless remote control, integrated System Controller, and the Intuvia 100 display. Enjoy a natural pedal-assist with four levels of assistance to cater to your needs.
Bosch Smart System -
The latest Bosch motor is a Performance Line CX Cruise unit that pushes out 85nm, featuring the Bosch Smart System, upgraded software and enhanced firmware modifications. In addition, a new display unit and handlebar mounted control module have been added for easier mode selection and adjustment.
The bikes also feature the Bosch 750Wh battery that allows you to enjoy a long days ride on a single charge.
SIZING -
- S: 160cm - 170cm
- M: 165cm - 180cm
- L: 175cm - 185cm
- XL: 185cm - 190cm+
Specifications
-
Discipline Trail/AM
-
Material Stealth Alloy
-
Front Travel 160mm
-
Rear Travel 150mm
-
Wheel Size 29"
-
Warranty Lifetime (frame)
Frame - Chaser 6061 Alloy Stealth Evo, e-Bike Optimized Zero Suspension System, 140mm travel, Forward Geometry, internal non-removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers, shock mudguard
Rear shock - RockShox Deluxe Select R DebonAir, 205x60mm. Settings: Low-speed rebound, air preload. Trunnion top mount, 25x10mm bottom bushings
Shock settings - Light compression, Linear rebound, 1 Token
Fork - RockShox Psylo Silver 29, 160mm, Motion control damper, Solo Air, tapered steerer tube, Boost 15x110mm axle, 35mm steel stanchions, 44mm offset. Settings: compression adjustment at low-speed to lock, rebound, air preload
Headset - Onoff ZS44/ZS56, 1-1/8", 1.5" head tube, ACB sealed bearings, top 42x30x7x45ºx45º, bottom 52x40x8x45ºx45º
Stem - Onoff S3 30mm 0º, 6061 forged alloy, 31.8mm barbore
Handlebar - Onoff S3 1.0 6061 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 1.5 rise.
Grips - Onoff Beehive, 1lock-on, 135mm
Seatpost - Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 140-115mm (388-235mm), M size: 160-135mm (428-255mm), L size: 180-155mm (468-275mm), XL size: 210-185mm (528-305mm)
Saddle - MDK urban
Front brake - Sram DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Rear brake - Sram DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Brake lever - Sram DB8, tool reach adjust, lever pivot bushings
Rims - MDK-HP1 29, 30mm internal width, tubeless ready, 32 spokes
Spokes - CN round stainless steel
Front hub - Formula DC711, Boost 15x110mm, sealed bearings, IS 6 bolts
Rear hub - Formula EHL148 Boost 12x148mm, sealed bearings, IS 6 bolts, HG freehub
Front tire - Maxxis Ikon 29x2.6, tubeless ready, dual compound, EXO protection, 60TPI, folding bead
Rear tire - Maxxis Ikon 29x2.6, tubeless ready, dual compound, EXO protection, 60TPI, folding bead
Crankset - Race Face Aeffect-R ebike, 165mm
Rings - Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD
Pedals - Urban pedal resin black
Chain - Sram SX Eagle, 12s, Powerlock
Rear derailleur - Sram GX Eagle,12s
Shift levers - Sram Trigger SX Eagle, 12s, X-Actuation 1:1, single click
Cassette - Sram PG-1210, 11-50T, 12s
Derailleur hanger - Sram UDH
Others - Front light: 150LUX output DC 6-12V, waterproof Alloy cage. Rear Light: Fender Mount, w/ Reflective, e-bike version, 6-12V. Fenders: Alloy black MDK custom fenders. Rack: Alloy MDK rear Rack, Max loading 25kg. Kickstand: Massload KSA18-40
Display - Bosch Kiox 500 / Bosch Mini Remote / Bosch System Controller
Motor - New Bosch Performance Line CX Cruise (25Km/h) SMART SYSTEM (BDU384Y)
Battery - Bosch Powertube 750Wh

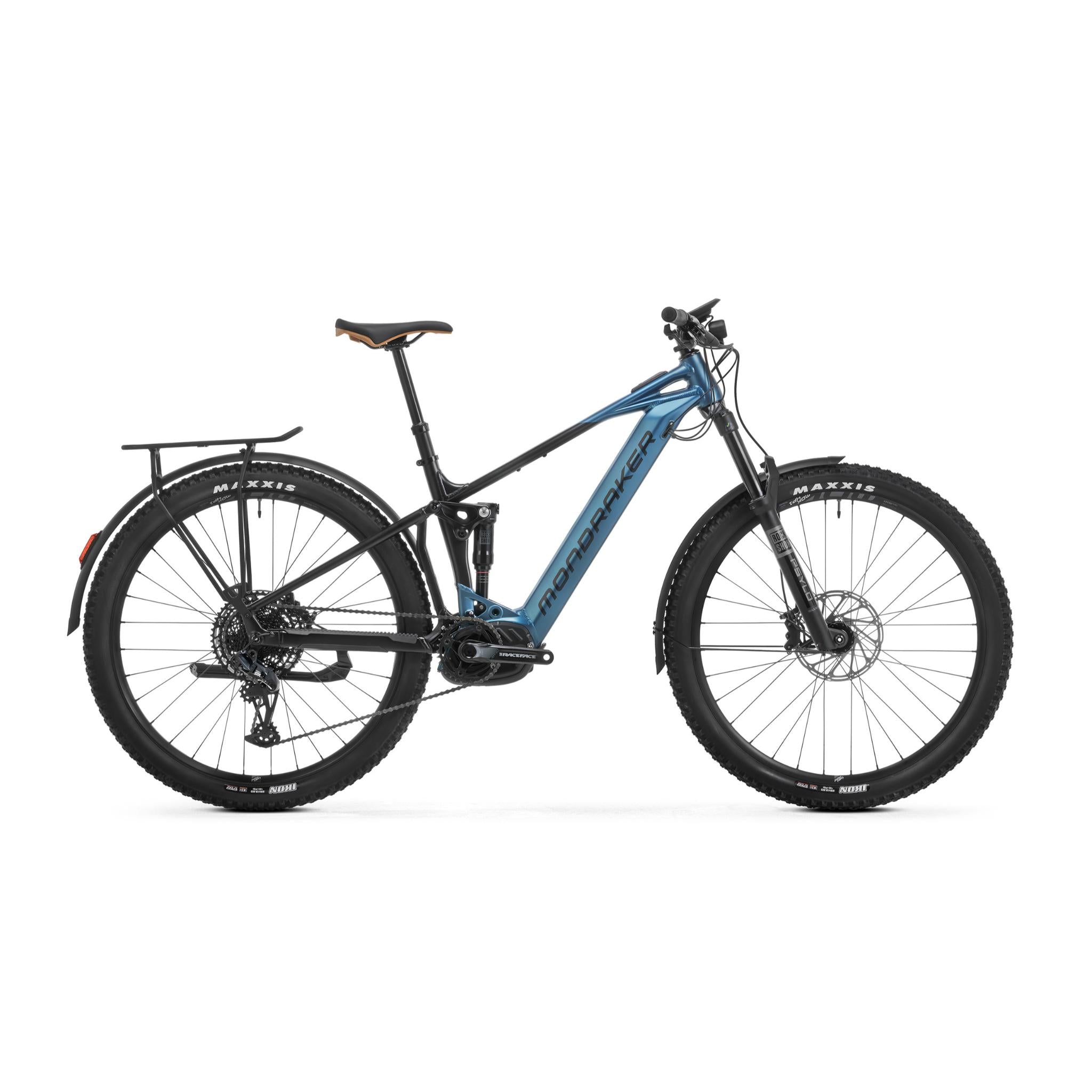

Mondraker Chaser RX 2025
The Chaser RX and X are a unique pair in the Biketart stable. Blending the best-selling Chaser frame with some features more associated with commuter/touring bikes. The X range is...
Order within [time] for delivery by [date]
90 Day Returns -
Description
The Chaser RX and X are a unique pair in the Biketart stable. Blending the best-selling Chaser frame with some features more associated with commuter/touring bikes. The X range is therefore the perfect bike for off-road daily commuting and weekend adventuring.
The Chaser RX retains ride feel with its impressive geometry, travel capabilities, and Bosch motor. The bike's carefully chosen components and renowned frame design come together to deliver top-notch versatile E-MTB performance at an unbeatable price point.
Look forward to a seamless and effortless riding experience with the Bosch Performance Line CX Smart System motor, equipped with the latest Mini Remote wireless remote control, integrated System Controller, and the Intuvia 100 display. Enjoy a natural pedal-assist with four levels of assistance to cater to your needs.
Bosch Smart System -
The latest Bosch motor is a Performance Line CX Cruise unit that pushes out 85nm, featuring the Bosch Smart System, upgraded software and enhanced firmware modifications. In addition, a new display unit and handlebar mounted control module have been added for easier mode selection and adjustment.
The bikes also feature the Bosch 750Wh battery that allows you to enjoy a long days ride on a single charge.
SIZING -
- S: 160cm - 170cm
- M: 165cm - 180cm
- L: 175cm - 185cm
- XL: 185cm - 190cm+
Specifications
-
Discipline Trail/AM
-
Material Stealth Alloy
-
Front Travel 160mm
-
Rear Travel 150mm
-
Wheel Size 29"
-
Warranty Lifetime (frame)
Frame - Chaser 6061 Alloy Stealth Evo, e-Bike Optimized Zero Suspension System, 140mm travel, Forward Geometry, internal non-removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers, shock mudguard
Rear shock - RockShox Deluxe Select R DebonAir, 205x60mm. Settings: Low-speed rebound, air preload. Trunnion top mount, 25x10mm bottom bushings
Shock settings - Light compression, Linear rebound, 1 Token
Fork - RockShox Psylo Silver 29, 160mm, Motion control damper, Solo Air, tapered steerer tube, Boost 15x110mm axle, 35mm steel stanchions, 44mm offset. Settings: compression adjustment at low-speed to lock, rebound, air preload
Headset - Onoff ZS44/ZS56, 1-1/8", 1.5" head tube, ACB sealed bearings, top 42x30x7x45ºx45º, bottom 52x40x8x45ºx45º
Stem - Onoff S3 30mm 0º, 6061 forged alloy, 31.8mm barbore
Handlebar - Onoff S3 1.0 6061 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 1.5 rise.
Grips - Onoff Beehive, 1lock-on, 135mm
Seatpost - Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 140-115mm (388-235mm), M size: 160-135mm (428-255mm), L size: 180-155mm (468-275mm), XL size: 210-185mm (528-305mm)
Saddle - MDK urban
Front brake - Sram DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Rear brake - Sram DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Brake lever - Sram DB8, tool reach adjust, lever pivot bushings
Rims - MDK-HP1 29, 30mm internal width, tubeless ready, 32 spokes
Spokes - CN round stainless steel
Front hub - Formula DC711, Boost 15x110mm, sealed bearings, IS 6 bolts
Rear hub - Formula EHL148 Boost 12x148mm, sealed bearings, IS 6 bolts, HG freehub
Front tire - Maxxis Ikon 29x2.6, tubeless ready, dual compound, EXO protection, 60TPI, folding bead
Rear tire - Maxxis Ikon 29x2.6, tubeless ready, dual compound, EXO protection, 60TPI, folding bead
Crankset - Race Face Aeffect-R ebike, 165mm
Rings - Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD
Pedals - Urban pedal resin black
Chain - Sram SX Eagle, 12s, Powerlock
Rear derailleur - Sram GX Eagle,12s
Shift levers - Sram Trigger SX Eagle, 12s, X-Actuation 1:1, single click
Cassette - Sram PG-1210, 11-50T, 12s
Derailleur hanger - Sram UDH
Others - Front light: 150LUX output DC 6-12V, waterproof Alloy cage. Rear Light: Fender Mount, w/ Reflective, e-bike version, 6-12V. Fenders: Alloy black MDK custom fenders. Rack: Alloy MDK rear Rack, Max loading 25kg. Kickstand: Massload KSA18-40
Display - Bosch Kiox 500 / Bosch Mini Remote / Bosch System Controller
Motor - New Bosch Performance Line CX Cruise (25Km/h) SMART SYSTEM (BDU384Y)
Battery - Bosch Powertube 750Wh
