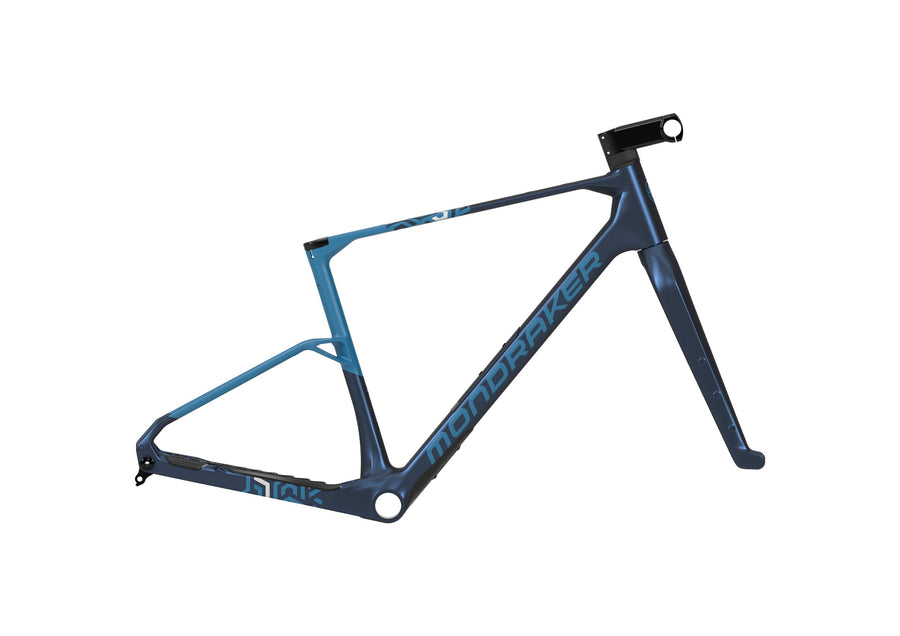

The Arid Carbon RR SL Frame 2025 features Mondraker's Stealth Air Carbon construction methodology—a precision engineering approach that orchestrates carbon fibre layup, cutting, and assembly to achieve an exceptional balance rarely seen in rigid frame design.
The result is a fully rigid platform that prioritises vertical compliance and rider comfort without compromising lateral stiffness or power transfer efficiency. Despite its gravel classification, the frame meets and surpasses the rigorous ISO standards applied to Mondraker's mountain bike lineage, proving that small-bump absorption and high-performance responsiveness need not be mutually exclusive.
Size Guide:
- S: <165cm
- M: 165-175cm
- M/L: 170-185cm
- L: 180-190cm
- XL: 190cm+
Specifications
-
Discipline Gravel
-
Material Carbon
-
Front Travel Rigid
-
Rear Travel N/A
-
Wheel Size 700c
-
Warranty Lifetime
Frame: Arid Stealth Air Carbon, in-tube storage, T47 bottom bracket, tapered head tube, HHG internal cable routing, 12x142mm rear axle, 1X drivetrain design, Flatmount brake compatible. Total system weight – including bike, rider, and equipment – should not exceed 130 kg (285 lbs).
Fork: Steatlh Air Carbon tapered steerer tube, HHG, flat mount integrated fork
Headset: Onoff IS52/IS52, 1-1/8", 1.5" head tube, sealed bearings, Internal cable routing.
Stem: Onoff Semi-Integrated, 31.8mm barbore, rise: -7º, length: S size: 60mm, M size: 70mm, ML size 70mm, L size: 80mm, XL size: 90mm
Derailleur hanger: Sram UDH
Others: Carry-On Bags System
Arid Carbon RR SL Frame 2025
Order within [time] for delivery by [date]
90 Day Returns
