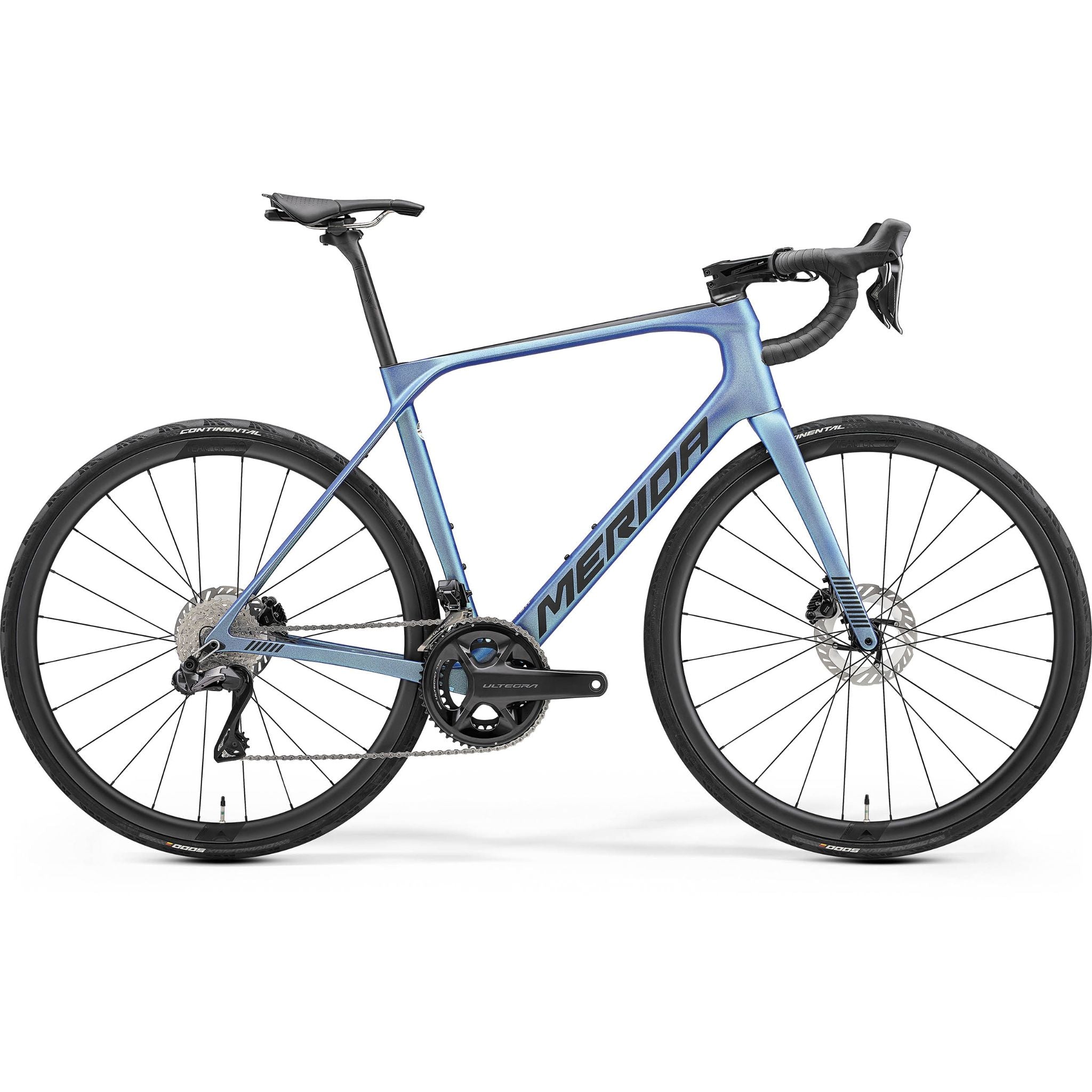

  • Merida Scultura Endurance 8000 2024

Description

Sitting between the Silex and Scultura in the Merida road range the Scultura Endurance is aimed at tarmac adventure riding.

The Scultura Endurance geometry is perfectly suited to riders who want to enjoy long hours in the saddle while being comfortable and relaxed on the bike.

Endowed with a modern frame design and comfort-orientated geometry the Scultura Endurance has a longer head tube creating a more upright and comfort-orientated seating position. The slacker head tube angle and slightly longer wheelbase give the bike more stability at speed

To increase frame stiffness and steering precision the Scultura Endurance uses 12mm bolt through axles and a full carbon tapered fork.

There’s plenty of tyre clearance (up to 35c, or 32c if you are running mudguards), larger volume tyres can be run at lower pressures and provide more comfort even on the most pothole littered country lanes.

Merida have used plenty of neat touches such as routing shifting and brake cables through the headset to declutter the cockpit. Even the seat clamp is hidden and the rear seat stay bridge can be removed if it isn’t used to mount mudguards.

All Scultura Endurance are equipped with powerful hydraulic disc brakes. Calipers are mounted via the flat mount standard for a neat, flush fit. Calipers sit on top of CNC'd aluminium Disc Cooler fins which reduce operating temperatures by up to 35%.

  • Comfortable, confidence inspiring geometry
  • Carbon frame and fork
  • 2 x 12 Shimano Ultegra Di2 transmission with Shimano Ultegra chainset
  • Merida Team GR carbon wheelset with Continental GP5000 All season 32c tyres
  • Shimano Ultegra hydraulic disc brakes
  • Carbon S-Flex seat post



SPECIFCATION:

FRAME - CF3 carbon, Nano Matrix for impact resistance. Internal cable routing, 12mm through axle, BB86 BB standard, flat mount rear brake with Disc Cooler, 1 1/2" headtube. Fully integrated seat clamp. Max tyre size 700 x 35c (700 x 32c with mudguard)
FORK - Scultura Endurance CF3 Disc; full carbon, tapered steerer. Disc Cooler; Max tyre size: 700 x 35c (700 x 32c with mudguard)
GEARS - 24
SHIFTERS - Shimano Ultegra disc Di2
FRONT DERAILLEUR - Shimano Ultegra Di2; FD-R8150
REAR DERAILLEUR - Shimano Ultegra Di2; RD-R8150
BOTTOM BRACKET - Shimano BB71-41B, Pressfit 86.5
CHAIN - Shimano CN-M6100-12
CHAINSET - Shimano Ultegra; 50-34 tooth chainset. Crank length: 165mm (XXS), 170mm (XS,S), 172.5mm (M,L), 175mm (XL)
CASSETTE - Shimano CS-R8101; 11-34 teeth; 12 speed
BRAKE LEVER - Shimano Ultegra
FRONT BRAKE - Shimano Ultegra hydraulic disc brake caliper with Shimano CL800 160mm rotor
REAR BRAKE - Shimano Ultegra hydraulic disc brake caliper with Shimano CL800 160mm rotor
GRIP - Merida ROAD Expert
HANDLEBAR - Merida Expert SLII; aluminium; Width: 380mm(XXS), 400mm (XS,S), 420mm (M,L), 440mm (XL)
STEM - FSA SMR ACR; aluminium; -6 degree rise. Length 90mm (XXS,XS), 100mm (S,M), 110mm (L), 120mm (XL)
HEADSET - FSA ACR
PEDAL - Not included
SADDLE - Prologo Scratch M5 with V-mount adapter; including Merida minitool
SEATPOST - Merida Team SL; 27.2mm diameter; 15mm lay back; Carbon; S-Flex
WHEEL SIZE - 700c
RIMS Merida Team GR30; 25mm inner rim width; 30mm rim depth; carbon
SPOKES - Part of wheelset
FRONT HUBMerida Team GR30; 100x12mm; Centerlock with Merida Expert TR axle
REAR HUB - Merida Team GR30; 142x12mm; Centerlock with Merida Expert SL axle including removable 6/4mm allen key
FRONT TYRE - Continental GP5000 AllSeason TR; 700 x 32C; Kevlar bead, folding
REAR TYRE - Continental GP5000 AllSeason TR; 700 x 32C; Kevlar bead, folding
COLOUR - Blue

Merida Scultura Endurance 8000 2024

SKU: P242 / Barcode: 4711256466804

Sitting between the Silex and Scultura in the Merida road range the Scultura Endurance is aimed at tarmac adventure riding.

The Scultura Endurance geometry is perfectly suited to riders who...

Regular price £4,600.00
Colour

Size

In stock with supplier: despatched in 2-3 days

90 Day Returns -

Description

Sitting between the Silex and Scultura in the Merida road range the Scultura Endurance is aimed at tarmac adventure riding.

The Scultura Endurance geometry is perfectly suited to riders who want to enjoy long hours in the saddle while being comfortable and relaxed on the bike.

Endowed with a modern frame design and comfort-orientated geometry the Scultura Endurance has a longer head tube creating a more upright and comfort-orientated seating position. The slacker head tube angle and slightly longer wheelbase give the bike more stability at speed

To increase frame stiffness and steering precision the Scultura Endurance uses 12mm bolt through axles and a full carbon tapered fork.

There’s plenty of tyre clearance (up to 35c, or 32c if you are running mudguards), larger volume tyres can be run at lower pressures and provide more comfort even on the most pothole littered country lanes.

Merida have used plenty of neat touches such as routing shifting and brake cables through the headset to declutter the cockpit. Even the seat clamp is hidden and the rear seat stay bridge can be removed if it isn’t used to mount mudguards.

All Scultura Endurance are equipped with powerful hydraulic disc brakes. Calipers are mounted via the flat mount standard for a neat, flush fit. Calipers sit on top of CNC'd aluminium Disc Cooler fins which reduce operating temperatures by up to 35%.

  • Comfortable, confidence inspiring geometry
  • Carbon frame and fork
  • 2 x 12 Shimano Ultegra Di2 transmission with Shimano Ultegra chainset
  • Merida Team GR carbon wheelset with Continental GP5000 All season 32c tyres
  • Shimano Ultegra hydraulic disc brakes
  • Carbon S-Flex seat post



SPECIFCATION:

FRAME - CF3 carbon, Nano Matrix for impact resistance. Internal cable routing, 12mm through axle, BB86 BB standard, flat mount rear brake with Disc Cooler, 1 1/2" headtube. Fully integrated seat clamp. Max tyre size 700 x 35c (700 x 32c with mudguard)
FORK - Scultura Endurance CF3 Disc; full carbon, tapered steerer. Disc Cooler; Max tyre size: 700 x 35c (700 x 32c with mudguard)
GEARS - 24
SHIFTERS - Shimano Ultegra disc Di2
FRONT DERAILLEUR - Shimano Ultegra Di2; FD-R8150
REAR DERAILLEUR - Shimano Ultegra Di2; RD-R8150
BOTTOM BRACKET - Shimano BB71-41B, Pressfit 86.5
CHAIN - Shimano CN-M6100-12
CHAINSET - Shimano Ultegra; 50-34 tooth chainset. Crank length: 165mm (XXS), 170mm (XS,S), 172.5mm (M,L), 175mm (XL)
CASSETTE - Shimano CS-R8101; 11-34 teeth; 12 speed
BRAKE LEVER - Shimano Ultegra
FRONT BRAKE - Shimano Ultegra hydraulic disc brake caliper with Shimano CL800 160mm rotor
REAR BRAKE - Shimano Ultegra hydraulic disc brake caliper with Shimano CL800 160mm rotor
GRIP - Merida ROAD Expert
HANDLEBAR - Merida Expert SLII; aluminium; Width: 380mm(XXS), 400mm (XS,S), 420mm (M,L), 440mm (XL)
STEM - FSA SMR ACR; aluminium; -6 degree rise. Length 90mm (XXS,XS), 100mm (S,M), 110mm (L), 120mm (XL)
HEADSET - FSA ACR
PEDAL - Not included
SADDLE - Prologo Scratch M5 with V-mount adapter; including Merida minitool
SEATPOST - Merida Team SL; 27.2mm diameter; 15mm lay back; Carbon; S-Flex
WHEEL SIZE - 700c
RIMS Merida Team GR30; 25mm inner rim width; 30mm rim depth; carbon
SPOKES - Part of wheelset
FRONT HUBMerida Team GR30; 100x12mm; Centerlock with Merida Expert TR axle
REAR HUB - Merida Team GR30; 142x12mm; Centerlock with Merida Expert SL axle including removable 6/4mm allen key
FRONT TYRE - Continental GP5000 AllSeason TR; 700 x 32C; Kevlar bead, folding
REAR TYRE - Continental GP5000 AllSeason TR; 700 x 32C; Kevlar bead, folding
COLOUR - Blue
