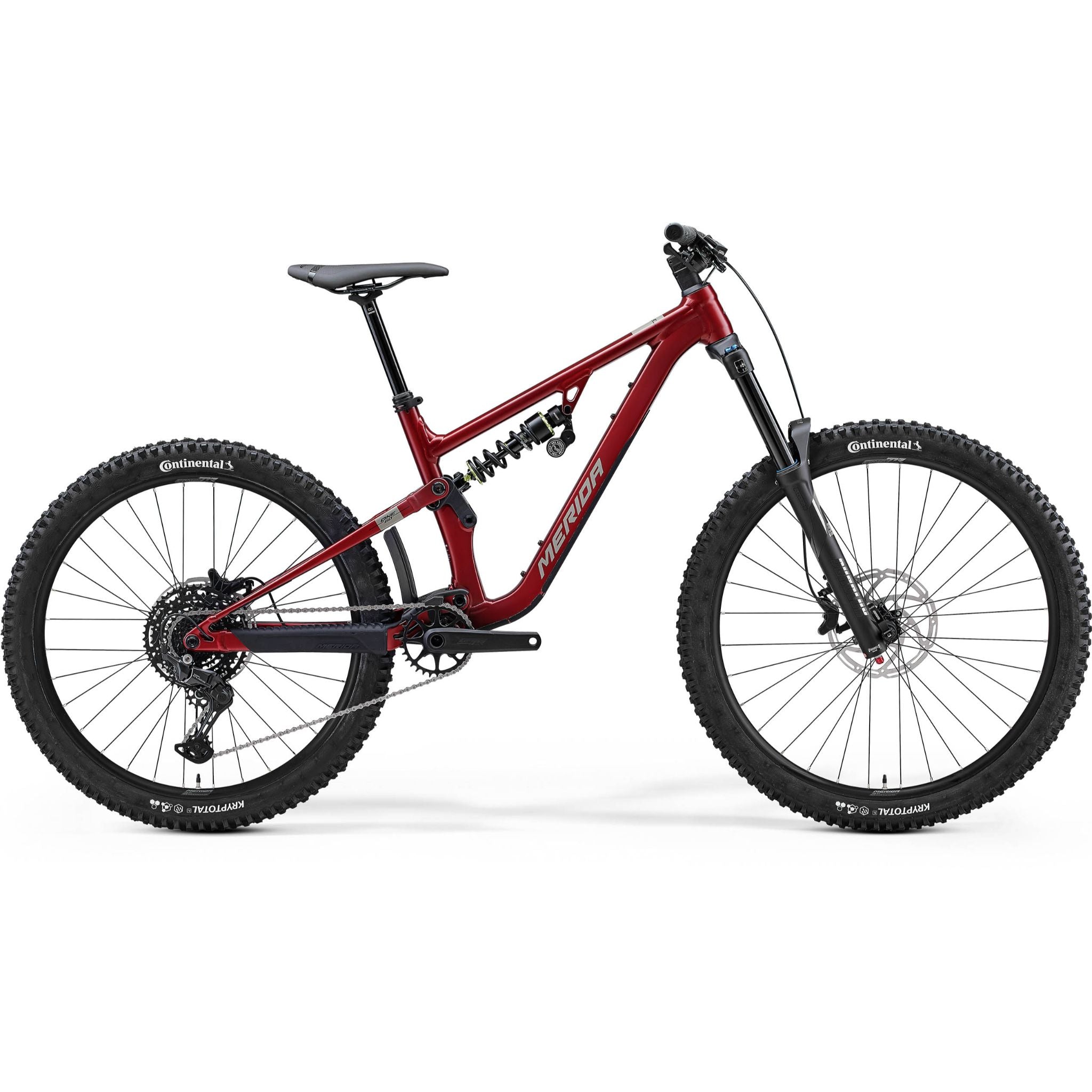

  • Merida One-Sixty FR 400 2024

Description

Want bang for your buck? You need look no further. As the hardcore cousin of the One-Sixty 6000 MBUK's Enduro Bike of the year, the 400 FR boasts big travel and aggressive geometry.

Merida's design team have taken that prize winning pedigree and turned up the fun to 11. Built for ripping bike parks, the One-Sixty FR comes mullet across all sizes and delivers more travel;180mm up front and 171mm of coil sprung travel at the rear.

The essence of the One-Sixty FR is full on fun at a value for money price, these bikes are not garage queens, they are for endless hours of sending it, Based around a tough aluminium frame the component selection is focussed on delivering the best tyres, brakes and suspension possible at the price, not on lightweight kit that won't last the course.

The One-Sixty FR is designed for the toughest possible conditions and is rated to Category 5 and comes with a 5 year frame warranty.

The Agilometer sizing concept takes account of riding style, allowing riders to run a longer or shorter reach frame independently of their height, while suspension becomes more progressive as you size up, all with long-travel dropper posts. Wire Port cable routing plus reliable threaded bottom bracket round out the package,

  • Full aluminium frame with FAST kinematic suspension and progressive geometry
  • Mixed 29/27.5" wheels with tough casing tyres
  • SR Suntour Durolux 38 180 mm fork and DVO Jade R coil rear shock
  • Continental Kryptotal tyres with Enduro front casing Downhill rear
  • Long-travel dropper post
  • Powerful Tektro 4-piston hydraulic disc brakes



Specifications

  • FR 400
  • Discipline Enduro/Bikepark

  • Material Aluminium

  • Front Travel 180mm

  • Rear Travel 171mm

  • Wheel Size 29"

  • Warranty 5 Years (frame)

FRAME - Lite Aluminium, Next Generation enduro geometry, internal cable routing, long seat post insert depth. Boost axles standard, threaded BB, trail mount and bottle bosses, flip chip for mullet or 29er. max tyre size - 2.5"
SHOCK - DVO Jade X D3; coil
FORK - SR Suntour Durolux 38 RC; Air; 180mm travel; Tapered; 44mm fork offset; Max tyre size: 29" x 2.6"
GEARS - 10
SHIFTERS - Shimano SL-MT500-IL dropper lever and Shimano CUES U6000
REAR DERAILLEUR - Shimano CUES U6000; GS
CHAIN - Shimano LG500
CHAINSET - Merida Expert TR; 32 tooth chainset; crank length 170mm all sizes with Merida Expert TR ISCG05 chainguide
CASSETTE - Shimano LG300; 11-48 teeth; 10 speed
BRAKE LEVER - Tektro Gemini M535
FRONT BRAKE - Tektro Gemini M535 4 piston hydraulic disc brake caliper with Tektro TR203-45 203mm rotor
REAR BRAKE - Tektro Gemini M535 4 piston hydraulic disc brake with Tektro TR203-45 203mm rotor
GRIP - Merida Expert EC
HANDLEBAR - Merida Expert TR II; aluminium; 780mm wide; XS/S 18mm rise; M/L/XL 30mm rise
STEM - Merida Expert eTRII; aluminium; 35mm diameter; 0 degree rise. Stem length: 40mm all sizes
HEAD SET - Acros ICR Merida external neck; Upper and lower IPS sealing
PEDAL - Not included
SADDLE - Merida Comp SL with V-mount
SEAT POST - Merida Expert TR II; 34.9mm diameter; 0mm lay back; XS/S: 150mm seat post travel - M: 170mm seat post travel - L/XL: 200mm seat post travel
WHEEL SIZE - 29" / 27.5"
RIMS - Merida Comp TR II; 110x15mm; 148x12mm; 28mm inner rim width; aluminium; Tubeless ready (tubeless tape and valves not included); front 29"; rear 27.5"
SPOKES - Double Butted Black stainless
FRONT HUB - Shimano TC500-B; 110x15mm; 32 spokes; Centerlock
REAR HUB - Shimano TC500-HM-B; 148x12mm; 32 spokes; Centerlock with Merida Comp TR axle including removable 6mm allen key
FRONT TYRE - Continental Kryptotal-F; 29" x 2.4"; Kevlar bead, folding; TR; Enduro casing; Soft Compound
REAR TYRE - Continental Kryptotal-R; 27.5" x 2.4"; Kevlar bead, folding; TR; Enduro Casing; Soft Compound

Merida One-Sixty FR 400 2024

SKU: P380 / Barcode: 4710949867898

Want bang for your buck? You need look no further. As the hardcore cousin of the One-Sixty 6000 MBUK's Enduro Bike of the year, the 400 FR boasts big travel...

Regular price £2,800.00
Colour

Size

In stock with supplier: despatched in 2-3 days

90 Day Returns -

Description

Want bang for your buck? You need look no further. As the hardcore cousin of the One-Sixty 6000 MBUK's Enduro Bike of the year, the 400 FR boasts big travel and aggressive geometry.

Merida's design team have taken that prize winning pedigree and turned up the fun to 11. Built for ripping bike parks, the One-Sixty FR comes mullet across all sizes and delivers more travel;180mm up front and 171mm of coil sprung travel at the rear.

The essence of the One-Sixty FR is full on fun at a value for money price, these bikes are not garage queens, they are for endless hours of sending it, Based around a tough aluminium frame the component selection is focussed on delivering the best tyres, brakes and suspension possible at the price, not on lightweight kit that won't last the course.

The One-Sixty FR is designed for the toughest possible conditions and is rated to Category 5 and comes with a 5 year frame warranty.

The Agilometer sizing concept takes account of riding style, allowing riders to run a longer or shorter reach frame independently of their height, while suspension becomes more progressive as you size up, all with long-travel dropper posts. Wire Port cable routing plus reliable threaded bottom bracket round out the package,

  • Full aluminium frame with FAST kinematic suspension and progressive geometry
  • Mixed 29/27.5" wheels with tough casing tyres
  • SR Suntour Durolux 38 180 mm fork and DVO Jade R coil rear shock
  • Continental Kryptotal tyres with Enduro front casing Downhill rear
  • Long-travel dropper post
  • Powerful Tektro 4-piston hydraulic disc brakes



Specifications

  • FR 400
  • Discipline Enduro/Bikepark

  • Material Aluminium

  • Front Travel 180mm

  • Rear Travel 171mm

  • Wheel Size 29"

  • Warranty 5 Years (frame)

FRAME - Lite Aluminium, Next Generation enduro geometry, internal cable routing, long seat post insert depth. Boost axles standard, threaded BB, trail mount and bottle bosses, flip chip for mullet or 29er. max tyre size - 2.5"
SHOCK - DVO Jade X D3; coil
FORK - SR Suntour Durolux 38 RC; Air; 180mm travel; Tapered; 44mm fork offset; Max tyre size: 29" x 2.6"
GEARS - 10
SHIFTERS - Shimano SL-MT500-IL dropper lever and Shimano CUES U6000
REAR DERAILLEUR - Shimano CUES U6000; GS
CHAIN - Shimano LG500
CHAINSET - Merida Expert TR; 32 tooth chainset; crank length 170mm all sizes with Merida Expert TR ISCG05 chainguide
CASSETTE - Shimano LG300; 11-48 teeth; 10 speed
BRAKE LEVER - Tektro Gemini M535
FRONT BRAKE - Tektro Gemini M535 4 piston hydraulic disc brake caliper with Tektro TR203-45 203mm rotor
REAR BRAKE - Tektro Gemini M535 4 piston hydraulic disc brake with Tektro TR203-45 203mm rotor
GRIP - Merida Expert EC
HANDLEBAR - Merida Expert TR II; aluminium; 780mm wide; XS/S 18mm rise; M/L/XL 30mm rise
STEM - Merida Expert eTRII; aluminium; 35mm diameter; 0 degree rise. Stem length: 40mm all sizes
HEAD SET - Acros ICR Merida external neck; Upper and lower IPS sealing
PEDAL - Not included
SADDLE - Merida Comp SL with V-mount
SEAT POST - Merida Expert TR II; 34.9mm diameter; 0mm lay back; XS/S: 150mm seat post travel - M: 170mm seat post travel - L/XL: 200mm seat post travel
WHEEL SIZE - 29" / 27.5"
RIMS - Merida Comp TR II; 110x15mm; 148x12mm; 28mm inner rim width; aluminium; Tubeless ready (tubeless tape and valves not included); front 29"; rear 27.5"
SPOKES - Double Butted Black stainless
FRONT HUB - Shimano TC500-B; 110x15mm; 32 spokes; Centerlock
REAR HUB - Shimano TC500-HM-B; 148x12mm; 32 spokes; Centerlock with Merida Comp TR axle including removable 6mm allen key
FRONT TYRE - Continental Kryptotal-F; 29" x 2.4"; Kevlar bead, folding; TR; Enduro casing; Soft Compound
REAR TYRE - Continental Kryptotal-R; 27.5" x 2.4"; Kevlar bead, folding; TR; Enduro Casing; Soft Compound
