Description

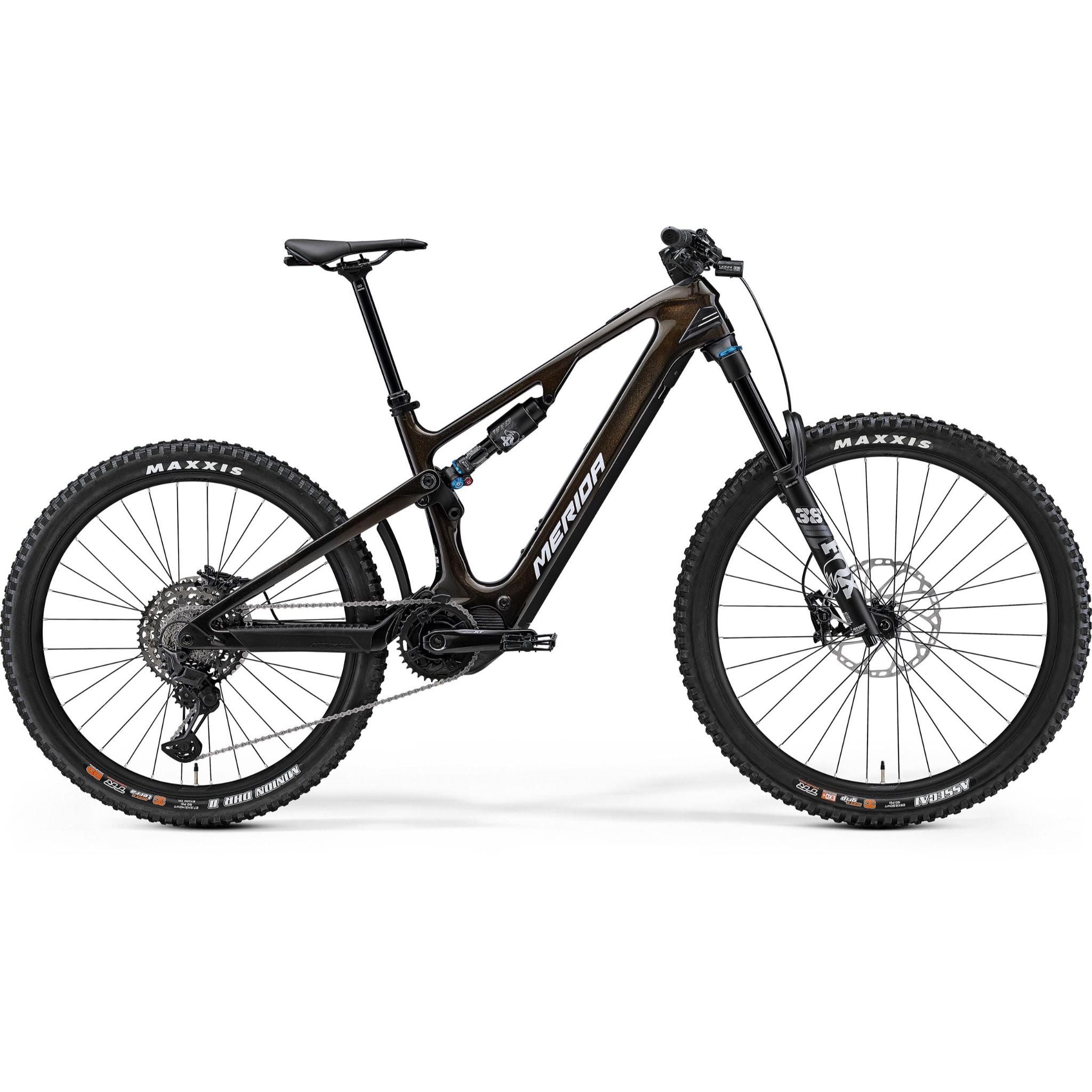

The Merida eOne-Sixty is a hard-hitting enduro-ready ebike which has wowed the press worldwide and become the most decorated, tested and awarded bike in Merida's 50 year history.
The Merida eOne-Sixty is built around a compact Shimano EP801 Steps motor with 600wh battery, the Shimano design ethos is around natural riding, and the physical design of the motor allows Merida designers to create very short chainstays which deliver agile and “regular bike” geometry.
To give the e-full suspension bikes precise steering, fantastic ‘rolling over obstacles’ behaviour yet maximum traction, we have combined a 29er front wheel with a 2.5" tyre and a 650B rear wheel, equipped with a slightly wider 2.6" tyre. The perfect combination of precision, playfulness and traction allowing you to feel planted when tackling the most demanding of trails.
The carbon frame incorporates an internal block which prevents the bars turning and damaging the frame in the event of a tumble. The signature "Thermo Gate" vents at the top of the down tube allow heat to dissipate and maintain the temperature of the battery.
Shimano's e-Tube app allows you to tailor power delivery to suit your riding style, and even set two profiles, one for shredding and one for cruising.
- Lightweight full carbon fibre CF4 frame with 174 mm rear wheel travel
- Fox 38 Performance fork with 170 mm travel and updated Float X2 Performance rear shock
- Highly durable Shimano XT Linkglide e-bike drivetrain, Merida tubeless-ready wheelset
- Integrated 600Wh battery with optional 360 Wh range extender, powerful Shimano EP801 85Nm drive unit
- Mixed wheel size as standard with option to full 29"
- Reach-based Agilometer sizing system with 30-230 mm adjustable dropper post
Merida Sizing -
- Short: 155cm - 175cm
- Mid: 165cm - 185cm
- Long: 175cm - 195cm
- X-Long: 185cm+
Merida's latest range of mountain bikes makes use of a slightly new approach to sizing. Merida encourage riders to consider their riding style when selecting a frame size.
For example the Mid size frame is suitable for riders of heights between 165-185cm. This means a rider of height 175cm could select a Short frame if the preference is agility, Mid for a balanced ride or Long for stability.
Contact us at support@biketart.com if you wish to discuss which may work for you.
Specifications
-
Discipline Endurol/All-Mountain
-
Material Carbon
-
Front Travel 170mm
-
Rear Travel 174mm
-
Wheel Size MX
-
Warranty Lifetime (frame)
FRAME - Carbon III - carbon main frame and rear triangle internal battery. Internal cable routing via Smart entry ports. Tapered head tube, 148 x 12mm axle standard. Max. tyre size 29" x 2.6"
MOTOR - Shimano Steps EP801; 85Nm
BATTERY - Simplo Trend Power internal battery; 600Wh
BATTERY CAPACITY - 600Wh
EBIKE DISPLAY - Shimano SC-EM800
CHARGER - Trendpower Simplo EU Charger; 4A
POWER BUTTON - CAP-045, Merida Power Button
MODE SWITCH - Shimano SW-EM800-L
SHOCK - FOX Float X Performance; 2 Pos Lever
FORK - FOX 38 Performance eMTB+; Air; 170mm travel; Tapered; 44mm fork offset; Max. tyre size 29" x 2.6"
GEARS - 11
SHIFTERS - Shimano XT M8130 and Shimano SL -MT500-IL dropper lever
REAR DERAILLEUR - Shimano XT RDM8130 LinkGlide 11 speed
BOTTOM BRACKET - Part of Shimano Steps motor
CHAIN - Shimano LG500
CHAINSET - FSA 1x Steel chainring; 36 tooth chainset with Shimano FC-E8150 165mm length crank all sizes with MRP 1x chainguide
CASSETTE - Shimano LG700; 10-50 teeth; 11 speed
BRAKE LEVER - Shimano XT
FRONT BRAKE - Shimano XT 4 piston hydraulic disc brake caliper with Shimano RT64 220mm rotor
REAR BRAKE - Shimano XT 4 piston hydraulic disc brake caliper with Shimano RT-EM600 203mm rotor
GRIP - Merida Expert EC
HANDLEBAR - Merida Expert eTR; 780mm wide; 20mm rise
STEM - Merida Expert eTR II; aluminium; 35mm diameter; 0 degree rise - Stem length: 40mm (all sizes). GoPro & Supernova mount point.
HEAD SET - Acros ICR Merida integrated neck w/ Blocklock
PEDAL - VP Components - VPE-527
SADDLE - Proxim W400 T2.0 with V-mount adapter; including Merida minitool
SEAT POST - Merida Team TR II; 34.9mm diameter; in-line; all sizes 30-230mm seat post travel
WHEEL SIZE - 29" / 27.5"
RIMS - Merida Expert TR II; 28mm inner rim width; aluminium; Tubeless ready (tubeless tape and valves not included); front 29"; rear 27.5"
SPOKES - Black stainless
FRONT HUB - Shimano XT; 110 x 15mm; 32 spokes; Centerlock
REAR HUB - Shimano XT; 148 x 12mm, 32 spokes; Centerlock with Merida Expert TR axle including removable 6/4mm allen key
FRONT TYRE - Maxxis Assegai; 29" x 2.5"; Kevlar bead; folding; TR EXO+ 3C MaxxGrip
REAR TYRE - Maxxis DHR II; 27.5" x 2.6"; Kevlar bead, folding; 3C EXO+ TR
FRONT LIGHT - Lezyne Power STVZO E115, reverse Merida Custom Mount
REAR LIGHT - USB rear Light CG-214RG
OTHER - Trendpower On-bike charging cable
