Description

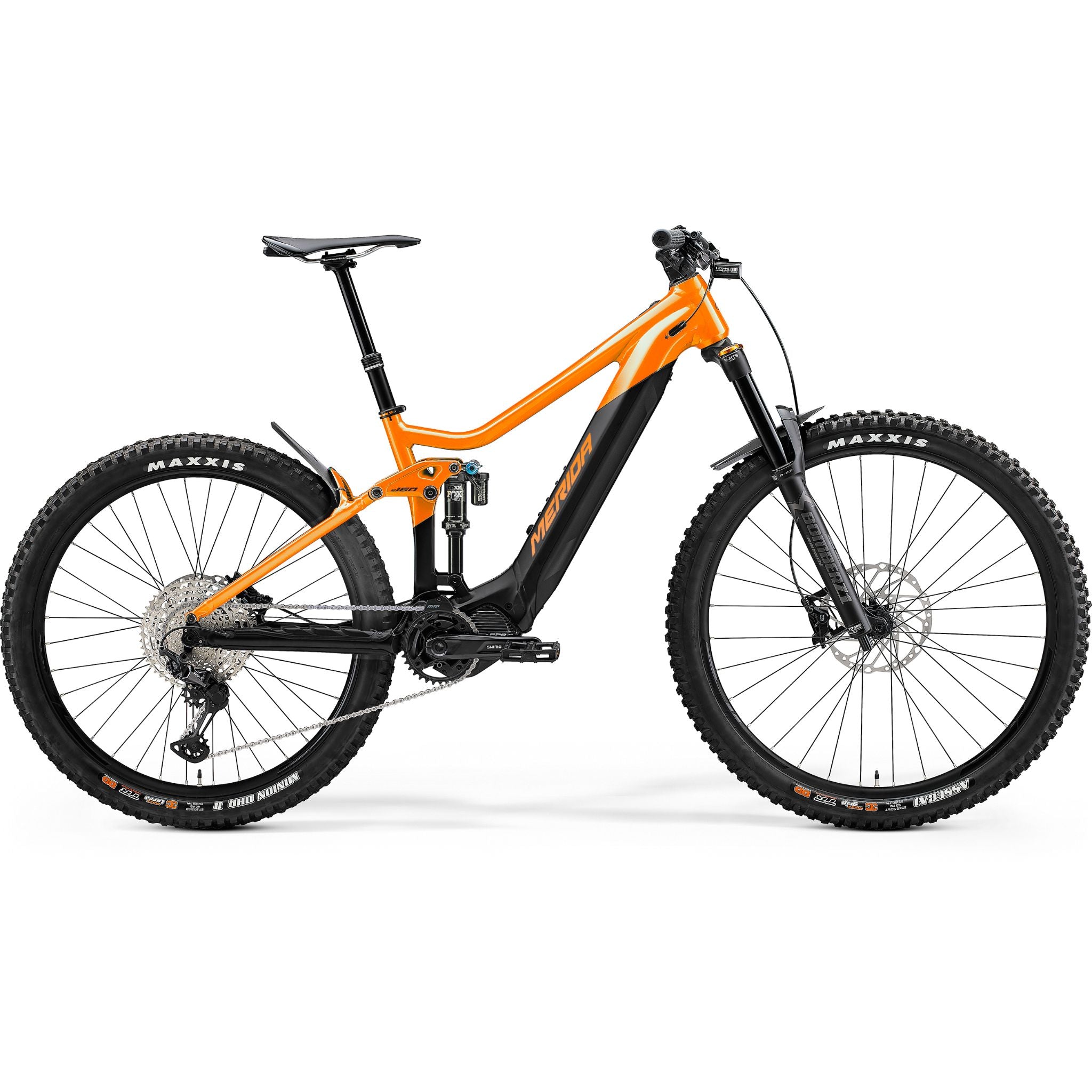

The Merida eOne-Sixty is a hard-hitting enduro-ready electric mountain bike which has wowed the press worldwide and become the most decorated, tested and awarded bike in Merida's 50 year history. E-Mountainbike gave it the 'BEST IN TEST', eMTB group test, World of MTB also gave it their 'Best of' award and FREERIDE gave the 9000 the almost perfect score of 9.5 out of ten, just to mention a few.
The Merida eOne-Sixty is built around compact Shimano Steps motors, the Shimano design ethos is around natural riding, and the physical design of the motor allows Merida designers to create very short chainstays which deliver agile and “regular bike” geometry. Shimano's e-Tube app allows you to tailor power delivery to suit your riding style, and even set two profiles, one for shredding and one for cruising.
To give the e-full suspension bikes precise steering, fantastic ‘rolling over obstacles’ behaviour yet maximum traction, Merida have combined a 29er front wheel with a 2.5" tyre and a 650B rear wheel, equipped with a slightly wider 2.6" tyre. The perfect combination of precision, playfulness and traction allowing you to feel planted when tackling the most demanding of trails.
- Tough all-aluminium chassis with integrated 630 Wh battery
- Powerful new Shimano EP6 drive unit with 85 Nm torque
- Mixed wheel size setup with 160/150 mm travel split
- High-quality Shimano brakes and wide-range drivetrain
- Marzocchi fork and Fox rear suspension
- Multiple award and test winning frame geometry
Specifications
-
Discipline Enduro/Trail
-
Material Aluminium
-
Front Travel 160mm
-
Rear Travel 150mm
-
Wheel Size MX
-
Warranty Lifetime (frame)
FRAME - Lite III - Hydroformed 6061 Double butted aluminium with integrated battery. Internal cable routing via Smart entry ports. Tapered head tube, 148 x 12mm axle standard. Max. tyre size 27.5" x 2.8".
MOTOR - Shimano Steps EP6; 85Nm
BATTERY - Shimano EN806; 630Wh internal battery
BATTERY CAPACITY - 630Wh
EBIKE DISPLAY - Shimano SC-EN600
CHARGER - Shimano EC-E8004; 4A Charging current
POWER BUTTON - Shimano satellite system on/off; EW-SW300
MODE SWITCH - Shimano SW-EN600-L
SHOCK - FOX Float X P-S A Performance; platform
FORK - Marzocchi Z1 Ebike+; Air; 160mm travel; Tapered; 51mm fork offset. Max. tyre size: 29" x 2.6"
GEARS - 12
SHIFTERS - Shimano Deore SL-M6100 12 speed with Shimano SL -MT500-IL lever
REAR DERAILLEUR - Shimano XT RDM8100 Shadow+ 12 speed
BOTTOM BRACKET - Part of Shimano Steps motor
CHAIN - KMC e12T EPT
CHAINSET - Shimano CRE80-12-B; 34 tooth chainring with Shimano FCEM600; 165mm length crank
CASSETTE - Shimano M6100; 10-51 teeth; 12 speed
BRAKE LEVER - Shimano SLX
FRONT BRAKE - Shimano SLX 4 piston hydraulic disc brake caliper with Shimano RT64 203 mm rotor
REAR BRAKE - Shimano SLX 4 piston hydraulic disc brake caliper with Shimano RTEM600 203 mm rotor
GRIP - Merida Expert EC
HANDLEBAR - Merida Expert eTR; 780mm wide; 20mm rise
STEM - Merida Expert eTR II; aluminium; 35mm diameter; 0 degree rise - Stem length: 40mm (all sizes). GoPro & Supernova mount point.
HEAD SET - Merida-8152
PEDAL - VP Components - VPE-527
SADDLE - Merida Expert CC with V-mount including Merida minitool
SEAT POST - Merida Expert TR; 30.9mm diameter; in-line; Drop: 100mm (XS), 125mm (S), 150mm (M/L), 170mm (XL)
WHEEL SIZE - 29" / 27.5"
RIMS - Merida Expert TR; 29mm inner rim width; aluminium; Tubeless ready (tubeless tape and valves not included)
SPOKES - Black stainless
FRONT HUB - Shimano SLX; 110x15mm; 32 spokes; Center lock
REAR HUB - Shimano SLX; 148x12mm, 36 spokes; Center lock; including removable lever with 4/6mm Allen key
FRONT TYRE - Maxxis Assegai; 29" x 2.5"; Kevlar bead; folding; TR EXO+ 3C MaxxGrip
REAR TYRE - Maxxis DHR II; 27.5" x 2.6"; Kevlar bead, folding; 3C EXO+ TR
FRONT LIGHT - Lezyne eBike Power STVZO E115 front light
REAR LIGHT - USB rear Light CG-214RG
OTHER - Complete with: mini fenders and front / rear lights. Shimano Satellite charging port; EW-CP100
