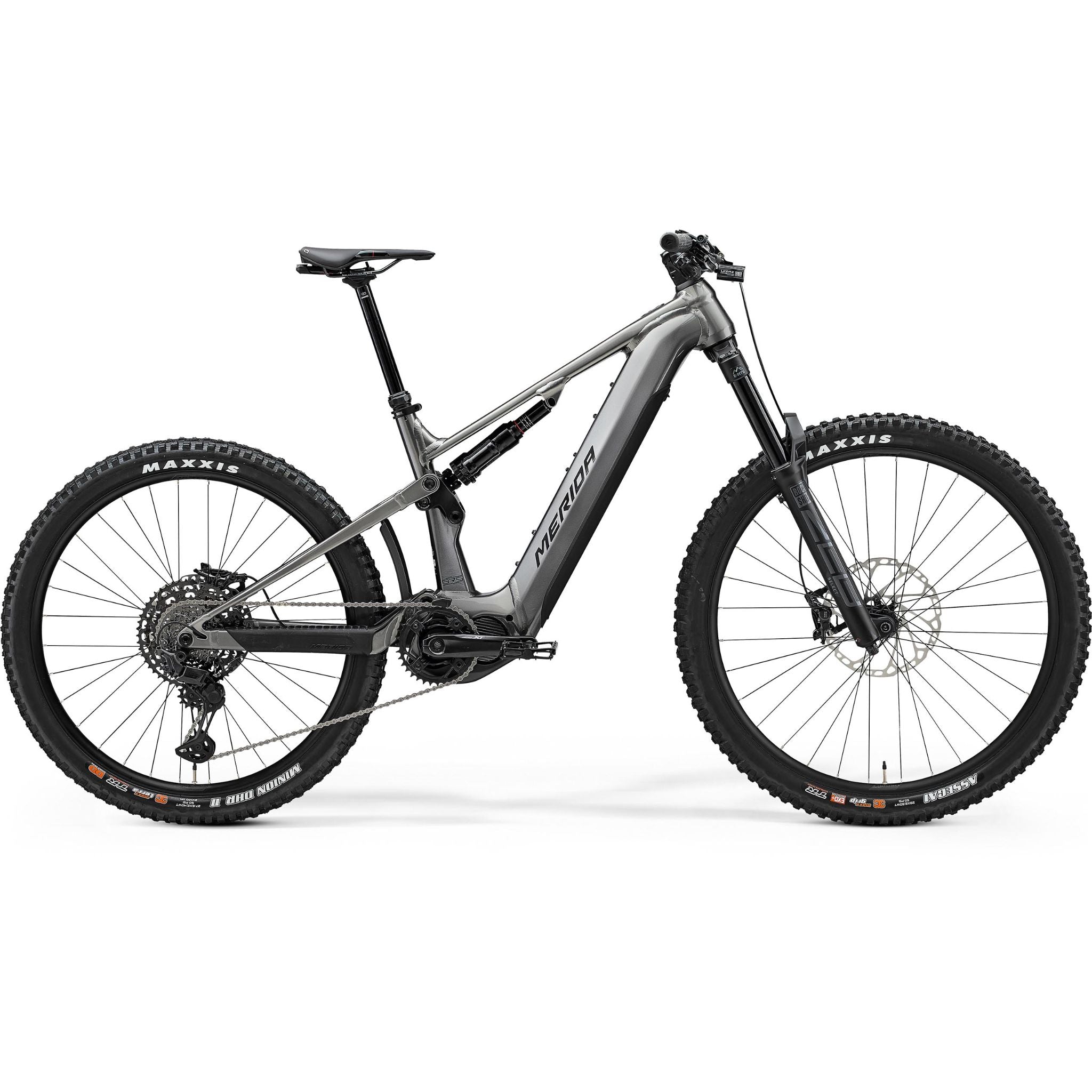

  • Merida eOne-Sixty 675 2025

Description

With the new eOne-Sixty, the next descent is always about to start. Merida's aluminium frame offersgreat value and maximum battery range, thanks to a powerful Shimano EP801 drive unit paired with a removable 750 Wh battery.

A 360 Wh range extender is available separately. The only reason to stop will be because you have to. Merida's capable, updated geometry has been influenced by the success of the original eOne-Sixty and the award winning One-Sixty; its handling will help conquer the toughest of climbs and the steepest descents.

Merida's proven FAST kinematic suspension will take care of anything the trail throws at it. Merida's low maintenance flexstay suspension offers size-tuned progression to maximise performance for all riders and it can be run with the latest coil shocks. Merida's flip chip design enables you to run with mixed size 29 front and 27.5 rear wheels as standard or switch to a focussed full 29er setup without compromising the geometry that's been designed for the toughest enduro trails.

Thanks to Merida's 30-230 mm travel-adjustable dropper post, you can choose between a longer frame for more stable handling or a shorter one for an agile feel - whichever suits you.

Features:

  • Aluminium frame with 174 mm rear wheel travel
  • Shimano EP801 85Nm motor with removable 750 Wh battery
  • Marzocchi fork with 170 mm travel and Marzocchi Bomber rear shock
  • Hardwearing Shimano XT Linkglide drivetrain
  • Shimano Deore hydraulic disc brakes



Specifications

  • eOne-Sixty 675
  • Discipline Enduro/Trail

  • Material Aluminium

  • Front Travel 170mm

  • Rear Travel 150mm

  • Wheel Size 29"

  • Warranty Lifetime (frame)

FRAME - Lite IV - Hydroformed 6061 Double butted aluminium with integrated battery. Internal cable routing via Smart entry ports. Tapered head tube, 148 x 12mm axle standard. Max. tyre size 29" x 2.6"
MOTOR - Shimano EP801; 85Nm
BATTERY - Trendpower Internal Battery Gen 2; 750Wh
BATTERY CAPACITY - 750Wh
DISPLAY Shimano SC-EM800
CHARGER Trendpower EU Smart Charger; 4A
MODE SWITCH - Shimano SW-EM800-L
SHOCK - Marzocchi Bomber Air; platform
FORK - Marzocchi Z1 eMTB; Air; 170mm travel; Tapered; 44mm fork offset; Max. tyre size 29" x 2.6"
GEARS - 10 Speed
SHIFTERS - Shimano SL-MT500-L dropper lever with Shimano XT M5130-10 shifter
REAR DERAILLEUR - Shimano XT RDM5130 LinkGlide 10
BOTTOM BRACKET - Part of Shimano Steps motor
CHAIN - Shimano LG500
CHAINSET - FSA 1x Steel chainring; 36 teeth with Shimano FC-EM600 crank; 165mm for all sizes; with Merida chain guide
CASSETTE Shimano LG400; 11-43 teeth; 10 Speed
BRAKE LEVER - Shimano Deore M6120
FRONT BRAKEShimano Deore M6120 4 piston hydraulic disc brake caliper with Shimano RT64 220mm rotor
REAR BRAKE - Shimano Deore M6120 4 piston hydraulic disc brake caliper with Shimano RT-EM910 203mm rotor
GRIP Merida Expert EC
HANDLEBAR - Merida Expert eTR; 780mm wide; XS,S 20mm rise; M,L,XL 30mm rise
STEM Merida Expert eTR II; aluminium; 35mm diameter; 0 degree rise; Supernova mount; 40 mm all sizes
HEADSET - Acros ICR Merida external neck with Blocklock
PEDALS VP VPE-527
SADDLE Merida Comp SL; 28% recycled material; V-mount; including Merida minitool
SEATPOST - Merida Expert TR II; 34.9mm diameter; in-line; XS: 125mm seat post travel - S: 150mm seat post travel - M/L: 200mm seat post travel - XL: 230mm seat post travel
RIMS Merida Expert TR II; 28mm inner rim width; aluminium; Tubeless ready (tubeless tape and valves not included); front 29"; rear 27.5"
SPOKES Black stainless
FRONT HUB - Shimano TC500-B; 110x15mm; 32 spoke; Centerlock
REAR HUB - Shimano TC600-HM-B; 148x12mm; 32 spoke; Centerlock with Merida Expert TR; including removeable lever, 6/4mm allen key
FRONT TYRE - Maxxis Assegai; 29" x 2.5"; Kevlar bead, folding; TR EXO+ 3C MaxxGrip
REAR TYRE - Maxxis DHR II; 27.5" x 2.4"; Kevlar bead, folding; 3C DD TR MaxxTerra

Merida eOne-Sixty 675 2025

SKU: Q838 / Barcode: 4711256496948

With the new eOne-Sixty, the next descent is always about to start. Merida's aluminium frame offersgreat value and maximum battery range, thanks to a powerful Shimano EP801 drive unit paired...

Regular price £5,500.00
Colour

Size

Out of stock

90 Day Returns -

Description

With the new eOne-Sixty, the next descent is always about to start. Merida's aluminium frame offersgreat value and maximum battery range, thanks to a powerful Shimano EP801 drive unit paired with a removable 750 Wh battery.

A 360 Wh range extender is available separately. The only reason to stop will be because you have to. Merida's capable, updated geometry has been influenced by the success of the original eOne-Sixty and the award winning One-Sixty; its handling will help conquer the toughest of climbs and the steepest descents.

Merida's proven FAST kinematic suspension will take care of anything the trail throws at it. Merida's low maintenance flexstay suspension offers size-tuned progression to maximise performance for all riders and it can be run with the latest coil shocks. Merida's flip chip design enables you to run with mixed size 29 front and 27.5 rear wheels as standard or switch to a focussed full 29er setup without compromising the geometry that's been designed for the toughest enduro trails.

Thanks to Merida's 30-230 mm travel-adjustable dropper post, you can choose between a longer frame for more stable handling or a shorter one for an agile feel - whichever suits you.

Features:

  • Aluminium frame with 174 mm rear wheel travel
  • Shimano EP801 85Nm motor with removable 750 Wh battery
  • Marzocchi fork with 170 mm travel and Marzocchi Bomber rear shock
  • Hardwearing Shimano XT Linkglide drivetrain
  • Shimano Deore hydraulic disc brakes



Specifications

  • eOne-Sixty 675
  • Discipline Enduro/Trail

  • Material Aluminium

  • Front Travel 170mm

  • Rear Travel 150mm

  • Wheel Size 29"

  • Warranty Lifetime (frame)

FRAME - Lite IV - Hydroformed 6061 Double butted aluminium with integrated battery. Internal cable routing via Smart entry ports. Tapered head tube, 148 x 12mm axle standard. Max. tyre size 29" x 2.6"
MOTOR - Shimano EP801; 85Nm
BATTERY - Trendpower Internal Battery Gen 2; 750Wh
BATTERY CAPACITY - 750Wh
DISPLAY Shimano SC-EM800
CHARGER Trendpower EU Smart Charger; 4A
MODE SWITCH - Shimano SW-EM800-L
SHOCK - Marzocchi Bomber Air; platform
FORK - Marzocchi Z1 eMTB; Air; 170mm travel; Tapered; 44mm fork offset; Max. tyre size 29" x 2.6"
GEARS - 10 Speed
SHIFTERS - Shimano SL-MT500-L dropper lever with Shimano XT M5130-10 shifter
REAR DERAILLEUR - Shimano XT RDM5130 LinkGlide 10
BOTTOM BRACKET - Part of Shimano Steps motor
CHAIN - Shimano LG500
CHAINSET - FSA 1x Steel chainring; 36 teeth with Shimano FC-EM600 crank; 165mm for all sizes; with Merida chain guide
CASSETTE Shimano LG400; 11-43 teeth; 10 Speed
BRAKE LEVER - Shimano Deore M6120
FRONT BRAKEShimano Deore M6120 4 piston hydraulic disc brake caliper with Shimano RT64 220mm rotor
REAR BRAKE - Shimano Deore M6120 4 piston hydraulic disc brake caliper with Shimano RT-EM910 203mm rotor
GRIP Merida Expert EC
HANDLEBAR - Merida Expert eTR; 780mm wide; XS,S 20mm rise; M,L,XL 30mm rise
STEM Merida Expert eTR II; aluminium; 35mm diameter; 0 degree rise; Supernova mount; 40 mm all sizes
HEADSET - Acros ICR Merida external neck with Blocklock
PEDALS VP VPE-527
SADDLE Merida Comp SL; 28% recycled material; V-mount; including Merida minitool
SEATPOST - Merida Expert TR II; 34.9mm diameter; in-line; XS: 125mm seat post travel - S: 150mm seat post travel - M/L: 200mm seat post travel - XL: 230mm seat post travel
RIMS Merida Expert TR II; 28mm inner rim width; aluminium; Tubeless ready (tubeless tape and valves not included); front 29"; rear 27.5"
SPOKES Black stainless
FRONT HUB - Shimano TC500-B; 110x15mm; 32 spoke; Centerlock
REAR HUB - Shimano TC600-HM-B; 148x12mm; 32 spoke; Centerlock with Merida Expert TR; including removeable lever, 6/4mm allen key
FRONT TYRE - Maxxis Assegai; 29" x 2.5"; Kevlar bead, folding; TR EXO+ 3C MaxxGrip
REAR TYRE - Maxxis DHR II; 27.5" x 2.4"; Kevlar bead, folding; 3C DD TR MaxxTerra
