Description
The eOne-Forty shares exactly the same frame and design features as the headline grabbing eOne-Sixty though has different ride characteristics. The eOne-Forty is the option to go for if fast trail riding with the occasional visit to a bikepark is your mountain biking style of choice.
The new eOne-Forty has a big range in every sense. It's highly versatile, from the trail to the commute, and the impressive 750Wh battery can be boosted with a 360Wh range extender that's available separately. The suspension platform and geometry has been influenced by previous generation ebikes and our award-winning trail and enduro range so it has peerless off-road performance and handling that's confident and capable. The suspension offers 143 mm of rear wheel travel and 150 mm up front. Our simplified AGILOMETER sizing system allows you to choose the handling you want thanks to low standover heights. Choose a longer size for off road stability or go shorter to increase agility.
- Durable LITE aluminium frame with 143 mm rear wheel travel
- Suntour Aion fork with 150 mm travel and RockShox Deluxe rear shock
- SRAM NX Eagle 12-speed, wide-range drivetrain
- User-removable 750Wh battery with optional 360Wh range extender, powerful Shimano EP801 drive unit
- Full 29" with option to run mixed 'mullet' wheel sizes
- Low standover height and long travel dropper posts on all sizes
Merida Warranty -
Merida are proud to offer a fantastic warranty policy. In the unlikely event that you have an issue with the bike frame, motor or components, Merida personally take care and supply replacement parts to get you out riding asap.
Merida Sizing -
- X-Short: 145cm - 165cm
- Short: 155cm - 175cm
- Mid: 165cm - 185cm
- Long: 175cm - 195cm
- X-Long: 185cm+
Merida's latest range of mountain bikes makes use of a slightly new approach to sizing. Merida encourage riders to consider their riding style when selecting a frame size.
For example the Mid size frame is suitable for riders of heights between 165-185cm. This means a rider of height 175cm could select a Short frame if the preference is agility, Mid for a balanced ride or Long for stability.
Contact us at support@biketart.com if you wish to discuss which may work for you.
Specifications
-
Discipline Trail/All-Mountain
-
Material Aluminium
-
Front Travel 150mm
-
Rear Travel 143mm
-
Wheel Size 29"
-
Warranty Lifetime (frame)
FRAME - Lite IV - Hydroformed 6061 Double butted aluminium with integrated battery. Internal cable routing via Smart entry ports. Tapered head tube, 148 x 12mm axle standard. Max. tyre size 27.5" x 2.8"
MOTOR - Shimano Steps EP801; 85Nm
BATTERY - Simplo Trend Power Internal Battery Gen 2; 750Wh
BATTERY CAPACITY - 750Wh
EBIKE DISPLAY - Shimano SC-EN600
CHARGER - Trend Power Simplo EU Charger; 4A
MODE SWITCH - Shimano SW-EN600-L
SHOCK - RockShox Super Deluxe Select
FORK - Suntour AION 36X-Boost; 150mm travel; Tapered, 44mm fork offset
GEARS - 12
SHIFTERS - Limotech RM10 dropper post lever and SRAM NX Eagle 12 speed
REAR DERAILLEUR - SRAM NX Eagle
BOTTOM BRACKET - Part of Shimano Steps motor
CHAIN - SRAM SX Eagle
CHAINSET - FSA 1x Steel chainring; 36 tooth chainset with Shimano FC-EM600; 165mm length crank all sizes with MRP 1x chainguide
CASSETTE - SRAM PG-1210 Eagle; 10-50 teeth; 12 speed
BRAKE LEVER - SRAM DB8
FRONT BRAKE - SRAM DB8 4 piston hydraulic disc brake caliper with SRAM CenterLine 200mm rotor
REAR BRAKE - SRAM DB8 4 piston hydraulic disc brake caliper with SRAM CenterLine 200mm rotor
GRIP - Merida Expert EC
HANDLEBAR - Merida Expert eTR; 780mm wide; 20mm rise
STEM - Merida Expert eTR II; aluminium; 35mm diameter; 0 degree rise - Stem length: 40mm (all sizes). GoPro & Supernova mount point.
HEAD SET - Acros ICR Merida external neck w/ Blocklock
PEDAL - VP Components - VPE-527
SADDLE - Merida Expert SL with V-mount; including Merida minitool
SEAT POST - Merida Expert TR II; 34.9mm diameter; in-line; XS: 125mm - S: 150mm - M/L/XL: 200mm seat post travel
WHEEL SIZE - 29"
RIMS - Merida Expert TR II; 28mm inner rim width; aluminium; Tubeless ready (tubeless tape and valves not included); 29"
SPOKES - Black stainless
FRONT HUB - Novatec SL-ELITE D041SB-B15; 110 x 15mm; 32 spokes; 6 bolt
REAR HUB - Novatec SL-Team D462SB-S3S-B12-11S; 148 x 12mm; 32 spokes; 6 bolt with Merida Expert TR axle including removable 6/4mm allen key
FRONT TYRE - Maxxis Rekon; 29" x 2.4"; Kevlar bead, folding; 3C EXO MaxxTerra
REAR TYRE - Maxxis Rekon; 29" x 2.4"; Kevlar bead, folding; TR 3C EXO MaxxTerra
FRONT LIGHT - Lezyne Power STVZO E115, reverse Merida Custom Mount
REAR LIGHT - USB rear Light CG-214RG
OTHER - Trend Power On-bike charging cable

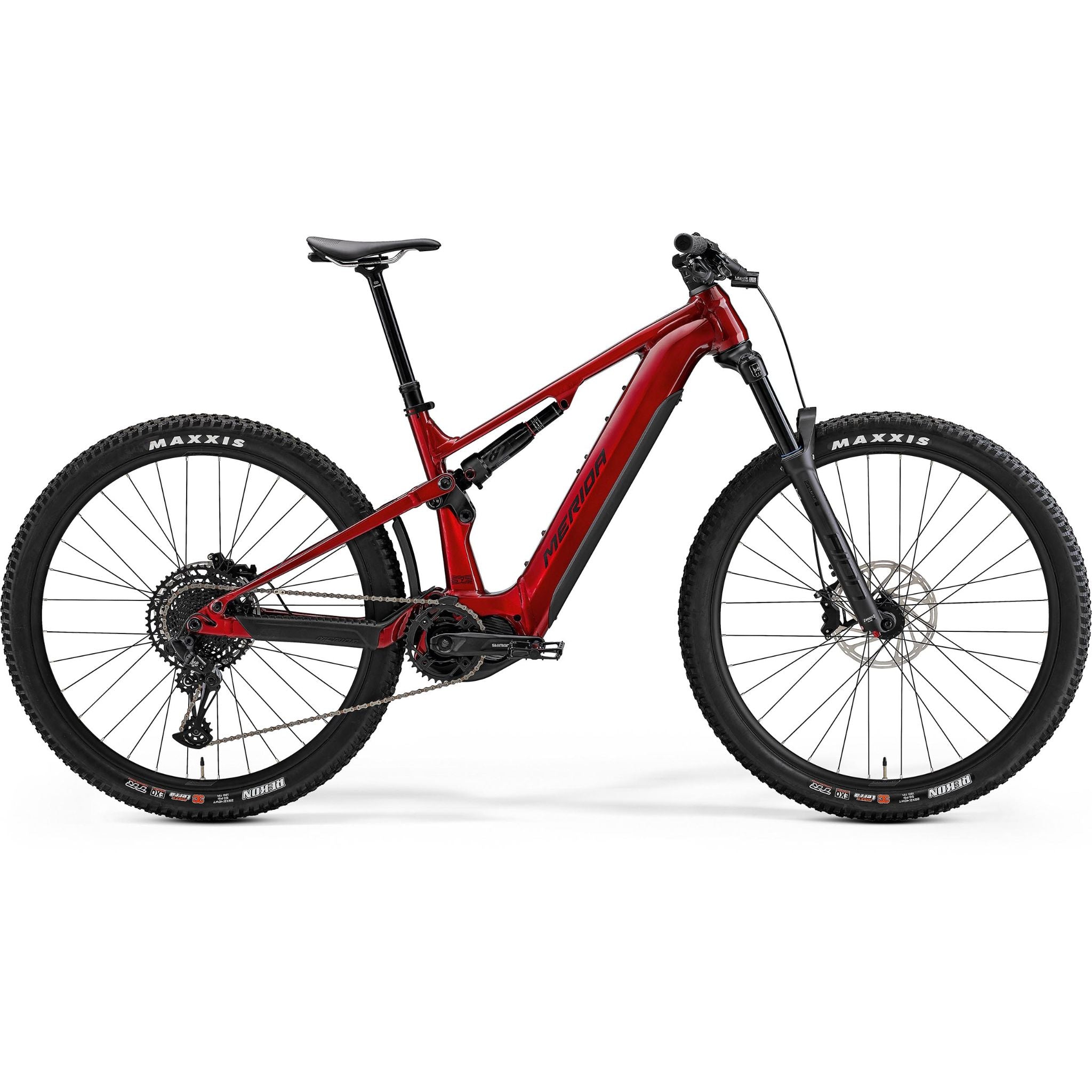

Merida eOne-Forty 675 2024
