Description

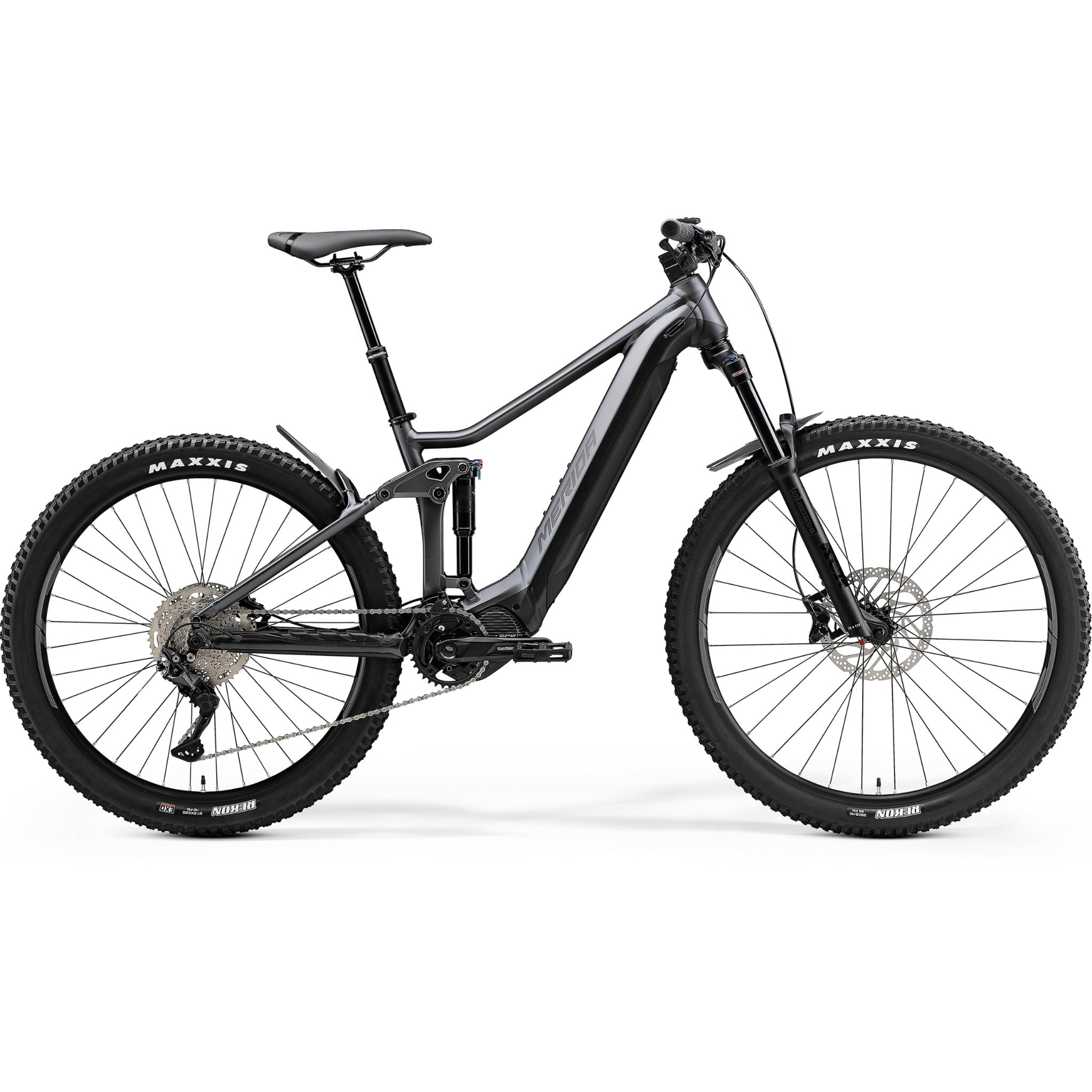

At an unbeatable price the Merida eOne-Forty is the perfect electric mountain bike to get you out on your local trails.
Sharing exactly the same frame and design features as the big-travel, award winning eOne-Sixty but with lower travel numbers and different ride characteristics, the eOne-Forty is a welcoming, comfortable ride.
The eOne-Forty models use the powerful Shimano EP600 85NM motor and bigger 630Wh battery (with the exception of frame size - S which uses 504Wh). Shimano's e-Tube app allows you to tailor power delivery to suit your riding style; you can set two profiles; one for shredding and one for cruising.
Shock stroke on the eOne-Forty is shorter, reducing rear travel to 133mm and creating a steeper seat angle. The shorter 140mm fork extends the reach, delivering a slightly steeper head angle. In combination these small changes make the eOne-Forty more agile and playful; a highly competent climber that's perfect for all day riding.
The mixed wheel size set up is carried over, to give the e-full suspension bikes precise steering, fantastic ‘rolling over obstacles’ behaviour yet maximum traction, a 29er front wheel with a 2.5" tyre is combined with a 650B rear wheel, equipped with a slightly wider 2.6" tyre. The perfect combination of precision, playfulness and traction.
KEY FEATURES -
- Tough all-aluminium chassis with integrated 630wh battery
- Updated, lightweight Shimano EP600 drive unit
- Mixed wheel size setup with 140/133 mm travel split
- High-quality Shimano brakes and drivetrain
- Suntour rear shock and fork
- Multiple award and test winning frame geometry
SIZING -
- M: 5'6 - 5'10
- L: 5'10 - '6'1
- XL: 6'1 - 6'4
Merida Warranty -
Merida offer a fantastic warranty policy. In the unlikely event that you have an issue with the bike frame, motor or components, Merida personally take care and supply replacement parts to get you out riding asap.
Specifications
-
Discipline Trail/All-Mountain
-
Material Aluminium
-
Front Travel 140mm
-
Rear Travel 133mm
-
Wheel Size MX
-
Warranty Lifetime (frame)
FRAME - Lite III - Hydroformed 6061 Double butted aluminium with integrated battery. Internal cable routing via Smart entry ports. Tapered head tube, 148 x 12mm axle standard. Max. tyre size 27.5" x 2.8"
SHOCK - Suntour RS-Edge-TR-LO-R8-M6; lockout
FORK - Suntour XCR34 LOR DS; Air; Boost; 140mm travel; Tapered; 51mm fork offset; Max. tyre size: 29" x 2.4"
MOTOR - Shimano Steps EP6; 85Nm
BATTERY - Shimano EN806; 630Wh internal battery
DISPLAY - Shimano SC-EN500
DRIVETRAIN - Shimano 1x10 speed
CHAINSET - Shimano CRE70-B; 34 tooth chainring with Shimano FC-EM600; 165mm length crank
CASSETTE - Shimano M4100; 11-46 teeth; 10 speed
BRAKE LEVER - Shimano M4100
FRONT BRAKE - Shimano M4204; 4 piston hydraulic disc brake caliper with Shimano RT30; 203 mm rotor
REAR BRAKE - Shimano M4100 2 piston hydraulic disc brake caliper with Shimano RTEM300 180 mm rotor
GRIP - Merida Expert EC
HANDLEBAR - Merida Expert eTR; 780mm wide; 20mm rise
STEM - Merida Expert eTRII; aluminium; 35mm diameter; 0 degree rise - Stem length: 50mm (all sizes). GoPro & Supernova mount point.
HEAD SET - Merida 8152
PEDAL - VP Components - VPE-537
SADDLE - Merida Comp SL; V-mount
SEAT POST - Merida Comp TR ; 34.9mm diameter; in-line; Drop: 125mm (XS), 150mm (S), 200mm (M/L/XL)
RIMS - Merida Comp TR; 29mm inner rim width; Aluminium. Tubeless ready (tubeless tape and valves not included)
SPOKES - Black stainless
FRONT HUB - Shimano MT400-B; 110x15mm; 32 spokes; Center lock
REAR HUB - Shimano MT400-B; 148x12mm; 32 spokes; Center lock. With Merida Comp TR axle including removable lever, 6mm allen key
FRONT TYRE - Maxxis Rekon; 29" x 2.4"; wire bead; dual
REAR TYRE - Maxxis Rekon; 27.5" x 2.6"; wire bead; EXO
