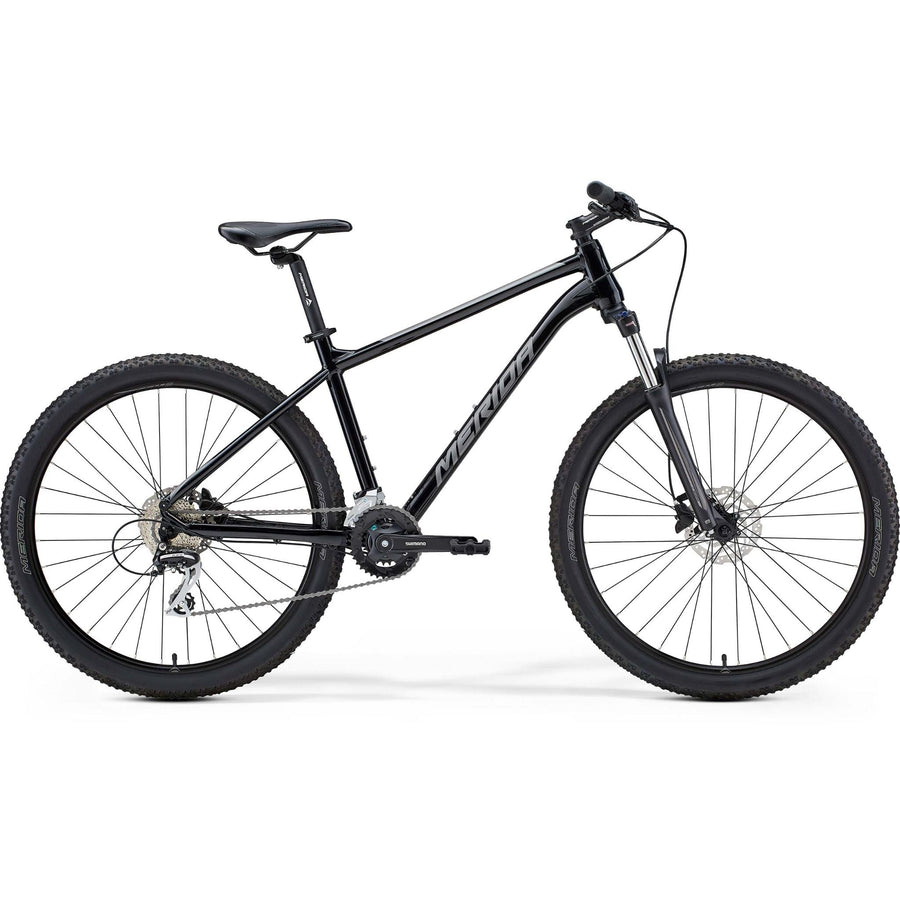

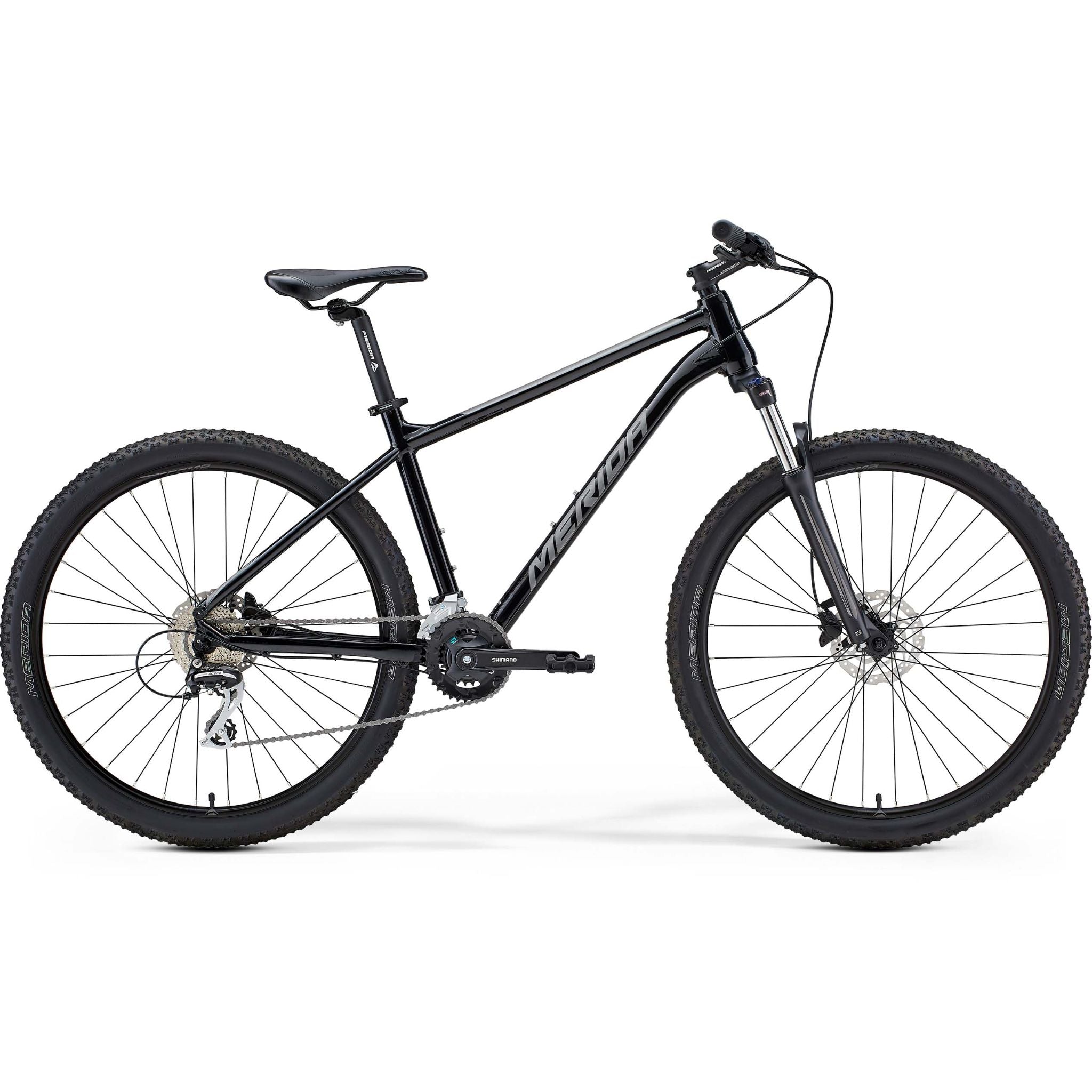

The Merida Big Seven 20 is a modern 27.5" wheel mountain bike with sophisticated TFS aluminium frame and a great component spec list.

Merida's heartland has always been bombproof aluminium hardtails. Half a century of frame building experience counts for a lot. Merida UK chose to upgrade all the Big Nine and Big Seven bikes destined for the UK to use a sophisticated TFS frame featuring the latest technology: full internal cable routing, for a neat and clean set up, tapered headtube for future upgrade potential inboard disc brake mounts to protect the brake and maximise stopping power Perfectly matching the modern frame Merida have used as much Shimano componentry as possible for reliability

Merida's 'Big' hardtail family come in the option for 27.5" or 29" wheels. The Big Seven uses the 27.5" wheel size which is the more agile than the faster rolling Big Nine's 29" wheels.

SIZING -

• S: 5'0 - 5'5
• M: 5'4 - 5'9
• L: 5'9 - 6'1

SPECIFICATION -

• FRAME - TFS III - 6061 aluminium, double butted and techno-formed. Tapered head tube. Chain stay mounted disc brake. Internal cable routing. Mudguard and kick stand mounts. BSA threaded BB. 135mm x 9mm axle. Max Tyre clearance 27.5" x 2.25"
• FORK - SunTour XCT30 HLO; Coil; 100mm travel; Lockout. Max tyre clearance 27.5" x 2.25"
• GEARS - 16
• SHIFTERS - Shimano ST-EF505
• FRONT DERAILLEUR - Shimano FD-M315-TS
• REAR DERAILLEUR - Shimano RD-M360
• BOTTOM BRACKET - FSA TH-7420ST-W, Cartridge Bearing
• CHAIN - Sunrace M84
• CHAINSET - Shimano FC-M315-2; 36-22 chainwheel with 170mm - XS/S, 175mm - M/L length crank
• CASSETTE - Sunrace CSM668; 11-32 teeth; 8 speed
• BRAKE LEVER - Shimano BR-MT200 (or Tektro HD-M275 if Shimano supply is delayed)
• FRONT BRAKE - Shimano BR-MT200 (or Tektro HD-M275) hydraulic brake caliper with Shimano RT10; 160mm rotor
• REAR BRAKE - Shimano BR-MT200 (or Tektro HD-M275) hydraulic brake caliper with Shimano RT10; 160mm rotor
• GRIP - Merida EC
• HANDLEBAR - Merida CC; aluminium; 690mm wide; 15mm rise
• STEM - Merida CC; aluminium; 31.8mm diameter; 6 degree rise - Length : 70 mm-XS/S, 80 mm-M, 90 mm-L
• HEAD SET - Merida M2345
• PEDAL - VP Components, VPE-891
• SADDLE - Merida Sport comfort
• SEAT POST - Merida CC; aluminium; 30.9mm diameter; 15mm lay back
• WHEEL SIZE - 27.5"
• RIMS - Merida CC; 17mm inner rim width; Material: aluminium
• SPOKES - Black steel
• FRONT HUB - Shimano TX505; 100x9mm; 32 spokes; Centerlock
• REAR HUB - Shimano TX505; 135x9mm; 32 spokes; Centerlock
• FRONT TYRE - Merida K1080; 27.5" x 2.2"; wire bead
• REAR TYRE - Merida K1080; 27.5" x 2.2"; wire bead
