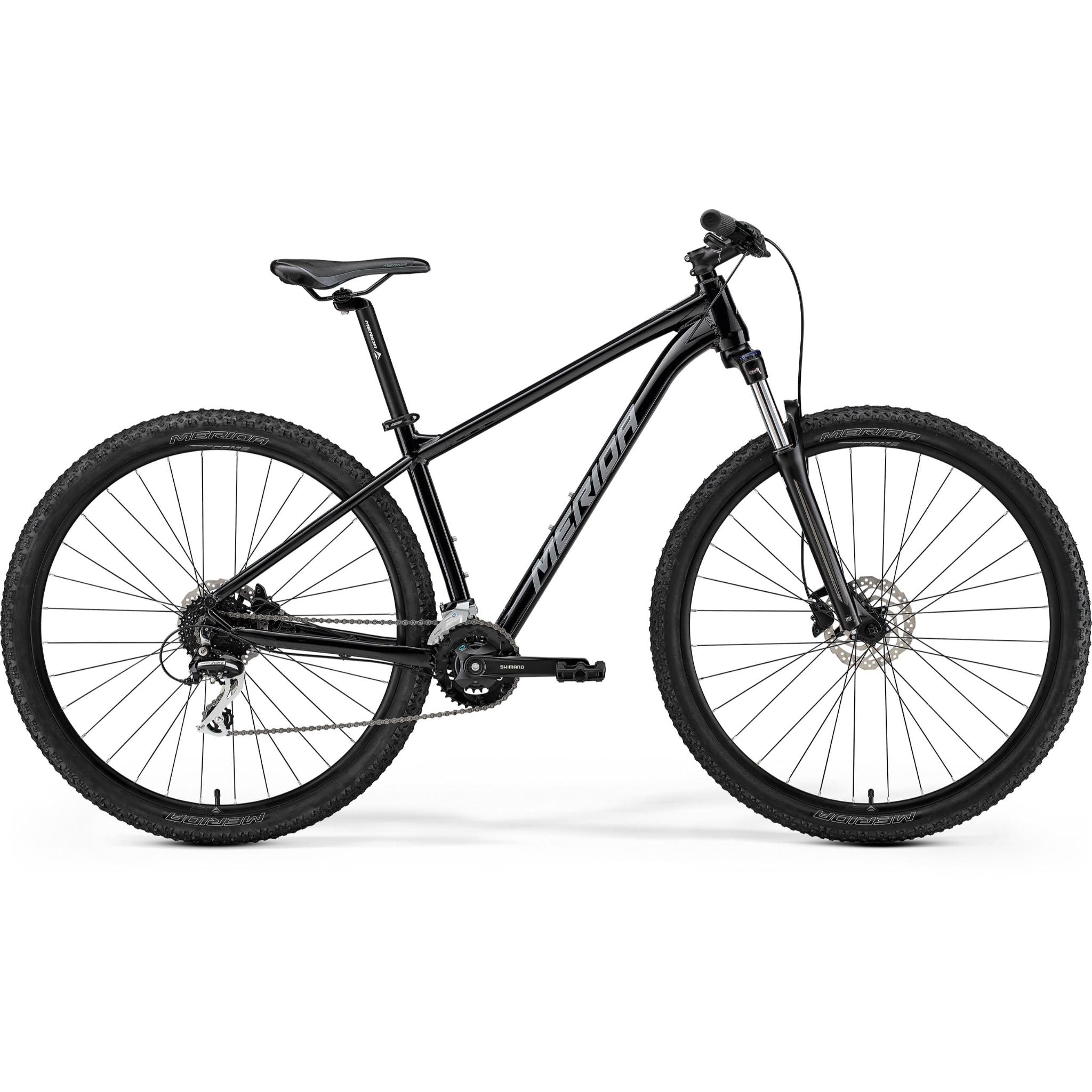

  • Merida Big Nine 20 SE 2025

Description

Merida's heartland has always been bombproof aluminium hardtails. Half a century of frame building experience counts for a lot.

All Big Nine and Big Seven models use a sophisticated TFS frame featuring the latest technology:

  • Full internal cable routing for a clean, neat set up
  • Tapered headtube offering the potential for future upgrades
  • Inboard disc brake mounts protect the brake and maximise stopping power

As much Shimano componentry as possible has been added to complement the modern frame and enhance reliability.

There are a wide range of sizes; Big Nine for taller riders and Big Seven for shorter riders with a healthy overlap between the two.

For riders in the middle, riding style can be taken into account. If you are looking for speed and efficiency choose a Big Nine, if you are looking for agility choose a Big Seven.

Features:

  • Sophisticated aluminium frame
  • Tapered head tube and internal cable routing
  • Shimano Hydraulic disc brakes
  • 3 x 8 Shimano drivetrain
  • Lockout fork
  • Shimano hubs & chainset

Specifications

  • Big Nine 20 SE
  • Discipline Trail/XC

  • Material Aluminium

  • Front Travel 100mm

  • Rear Travel Hardtail

  • Wheel Size 27.5"

  • Warranty Lifetime (frame)

Frame- TFS IV - 6061 aluminium, double butted and technoformed.  Tapered head tube. Chain stay mounted disc brake. Internal cable routing. Mudguard and kick stand mounts. BSA threaded BB. 135mm x 9mm axle. Max. tyre size 27.5" x 2.25"
Fork- SR Suntour XCT30; Coil; 100mm travel; Max tyre size 27.5" x 2.25"
Gears- 24
Shifters Shimano FH-TY505
Front Derailleur - Shimano FD-M315-TS
Rear Derailleur - Shimano RD-M302-8; SGS
Bottom Bracket - FSA TH-7420ST, 68-124
Chain KMC Z8.3
Chainset Shimano TY301; 42-34-24 tooth chainset; Aluminium; Crank length - 170mm (XS/S), 175mm (M/L)
CassetteSunrace CSM558AU; 11-32 teeth; 8 speed
Brake Lever- Shimano EF505
Front Brake- Shimano ST-EF505; hydraulic disc brake caliper with Shimano RT10; 160mm rotor
Rear Brake- Shimano ST-EF505; hydraulic disc brake caliper with Shimano RT10; 160mm rotor
Grip Merida EC
Handlebar- Merida CC; aluminium; 690mm wide; 15mm rise
Stem Merida CC; aluminium; 31.8mm diameter; 6 degree rise - Length - 70mm (XS-S), 90mm (M-L)
Headset- Merida M2345
Pedals - VP VPE-891
SaddleMerida Sport comfort
Seatpost- Merida CC; 30.9mm diameter; 15 mm layback; Aluminium
Wheel Size- 27.5"
Rims- Merida CC; 17mm inner rim width; aluminium
Sokes- Black steel
Front Hub- Shimano TX505; 100 x 9mm; 32 spoke; Centerlock
Rear Hub- Shimano TX505; 135 x 9mm; 32 spoke; Centerlock
Front Tyre- Merida K1080; 27.5" x 2.2"; wire bead
Rear Tyre- Merida K1080; 27.5" x 2.2"; wire bead

Merida Big Nine 20 SE 2025

SKU: Q426 / Barcode: 4711256499819

Merida's heartland has always been bombproof aluminium hardtails. Half a century of frame building experience counts for a lot.

All Big Nine and Big Seven models use a sophisticated TFS...

Regular price £700.00
Colour

Size

In stock with supplier: despatched in 2-3 days

90 Day Returns -

Description

Merida's heartland has always been bombproof aluminium hardtails. Half a century of frame building experience counts for a lot.

All Big Nine and Big Seven models use a sophisticated TFS frame featuring the latest technology:

  • Full internal cable routing for a clean, neat set up
  • Tapered headtube offering the potential for future upgrades
  • Inboard disc brake mounts protect the brake and maximise stopping power

As much Shimano componentry as possible has been added to complement the modern frame and enhance reliability.

There are a wide range of sizes; Big Nine for taller riders and Big Seven for shorter riders with a healthy overlap between the two.

For riders in the middle, riding style can be taken into account. If you are looking for speed and efficiency choose a Big Nine, if you are looking for agility choose a Big Seven.

Features:

  • Sophisticated aluminium frame
  • Tapered head tube and internal cable routing
  • Shimano Hydraulic disc brakes
  • 3 x 8 Shimano drivetrain
  • Lockout fork
  • Shimano hubs & chainset

Specifications

  • Big Nine 20 SE
  • Discipline Trail/XC

  • Material Aluminium

  • Front Travel 100mm

  • Rear Travel Hardtail

  • Wheel Size 27.5"

  • Warranty Lifetime (frame)

Frame- TFS IV - 6061 aluminium, double butted and technoformed.  Tapered head tube. Chain stay mounted disc brake. Internal cable routing. Mudguard and kick stand mounts. BSA threaded BB. 135mm x 9mm axle. Max. tyre size 27.5" x 2.25"
Fork- SR Suntour XCT30; Coil; 100mm travel; Max tyre size 27.5" x 2.25"
Gears- 24
Shifters Shimano FH-TY505
Front Derailleur - Shimano FD-M315-TS
Rear Derailleur - Shimano RD-M302-8; SGS
Bottom Bracket - FSA TH-7420ST, 68-124
Chain KMC Z8.3
Chainset Shimano TY301; 42-34-24 tooth chainset; Aluminium; Crank length - 170mm (XS/S), 175mm (M/L)
CassetteSunrace CSM558AU; 11-32 teeth; 8 speed
Brake Lever- Shimano EF505
Front Brake- Shimano ST-EF505; hydraulic disc brake caliper with Shimano RT10; 160mm rotor
Rear Brake- Shimano ST-EF505; hydraulic disc brake caliper with Shimano RT10; 160mm rotor
Grip Merida EC
Handlebar- Merida CC; aluminium; 690mm wide; 15mm rise
Stem Merida CC; aluminium; 31.8mm diameter; 6 degree rise - Length - 70mm (XS-S), 90mm (M-L)
Headset- Merida M2345
Pedals - VP VPE-891
SaddleMerida Sport comfort
Seatpost- Merida CC; 30.9mm diameter; 15 mm layback; Aluminium
Wheel Size- 27.5"
Rims- Merida CC; 17mm inner rim width; aluminium
Sokes- Black steel
Front Hub- Shimano TX505; 100 x 9mm; 32 spoke; Centerlock
Rear Hub- Shimano TX505; 135 x 9mm; 32 spoke; Centerlock
Front Tyre- Merida K1080; 27.5" x 2.2"; wire bead
Rear Tyre- Merida K1080; 27.5" x 2.2"; wire bead
