Description
The San Quentin is for the aggressive hardtail trail rider looking for a blend between singletrack capabilities and extended air time. The San Quentin 3 is the top spec level available.
SERIES 3 ALUMINUM FRAME: A light and strong alloy frame with advanced tube forming, upgraded dropouts, post mount disc tabs, full internal cable routing, and a boost 148mm thru-axle
DIRT JUMP INSPIRED FRAME STYLE: Taking cues from the Alcatraz, the San Quentin line up provides all the benefits of the DJ style with massive stand over, slick frame tubes, and a sexy paint job.
MODERN TRAIL GEOMETRY: The slack head tube angle paired with a steep seat tube angle create a ride that will fly uphill with perfect front wheel precision but then descend like it’s on rails. The balanced rider position thanks to the steep seat tube puts your weight between the wheels for impressive climbing and handling on flats, while the slack front end and short rear centre help to pull you through the rough descents and corners with an intuitive feel.
SIZING -
- S: 5'2"-5'5"
- M: 5'5"-5'8"
- L: 5'8"-5'10"
- XL: 5'10"-6'0"
Specifications
-
Discipline Trail/Dirt-Jump
-
Material Aluminium
-
Front Travel 140mm
-
Rear Travel Hardtail
-
Wheel Size 27.5"
-
Warranty 5 Years (frame)
FRAME - All New Series 3 6061 Aluminium, Double Butted Frame, Internal Cable Routing, 12x148mm Thru-Axle, 73mm Threaded BB
FRONT SUSPENSION - Marzocchi Bomber Z2, 110x15mm Boost Spacing, 140mm Travel, Kabolt Axle
RIMS - Marin Aluminium Double Wall, Disc Specific, 29mm Inner, Sleeved Joint, 32H, Tubeless Compatible
HUB, REAR - Forged Aluminium, 148x12mm, Centerlock Disc, 32H
HUB, FRONT - Shimano HF-MT410B, 110x15mm, Disc
SPOKE, NIPPLES - 14g Black Stainless Steel
TIRES - Maxxis Assegai, 27.5x2.5" MAXX TERRA, EXO Casing, Tubeless Compatible
DERAILLEUR, REAR - Shimano Deore, 12-Speed, SGS
SHIFT LEVER - Shimano Deore, 12-Speed, SL-7100R
CRANKSET - FSA Comet, Modular 1x, 32T Direct Mount Chainring, MegaTooth Technology, Boost Spacing
BOTTOM BRACKET - MegaExo 73mm BSA
CHAIN - KMC X-12 Silver and Black
CASSETTE - SunRace 12-speed, 11-51
BRAKE, FRONT - Shimano MT420, 4-Piston Hydraulic Disc, Metallic Pads, 203mm Rotor
BRAKE, REAR - Shimano MT420, 4-Piston Hydraulic Disc, Metallic Pads, 180mm Rotor
BRAKE LEVERS - Shimano MT4100 Hydraulic Lever, I-Spec EV Compatible
HANDLEBAR - Marin Mini-Riser, 6061 Double Butted Aluminium, 780mm Width, 28mm Rise, 5º Up, 9º Back
STEM - Marin 3D Forged Alloy, 35mm
GRIPS - Marin Grizzly Lock On
HEADSET - FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
SEATPOST - TranzX YSP23JL, 1x Remote, Size S 125mm Travel, Size M 150mm, L 170mm Travel, and Size XL 200mm Travel, 30.9mm
SADDLE - Marin Speed Concept
PEDALS - Nylon Platform

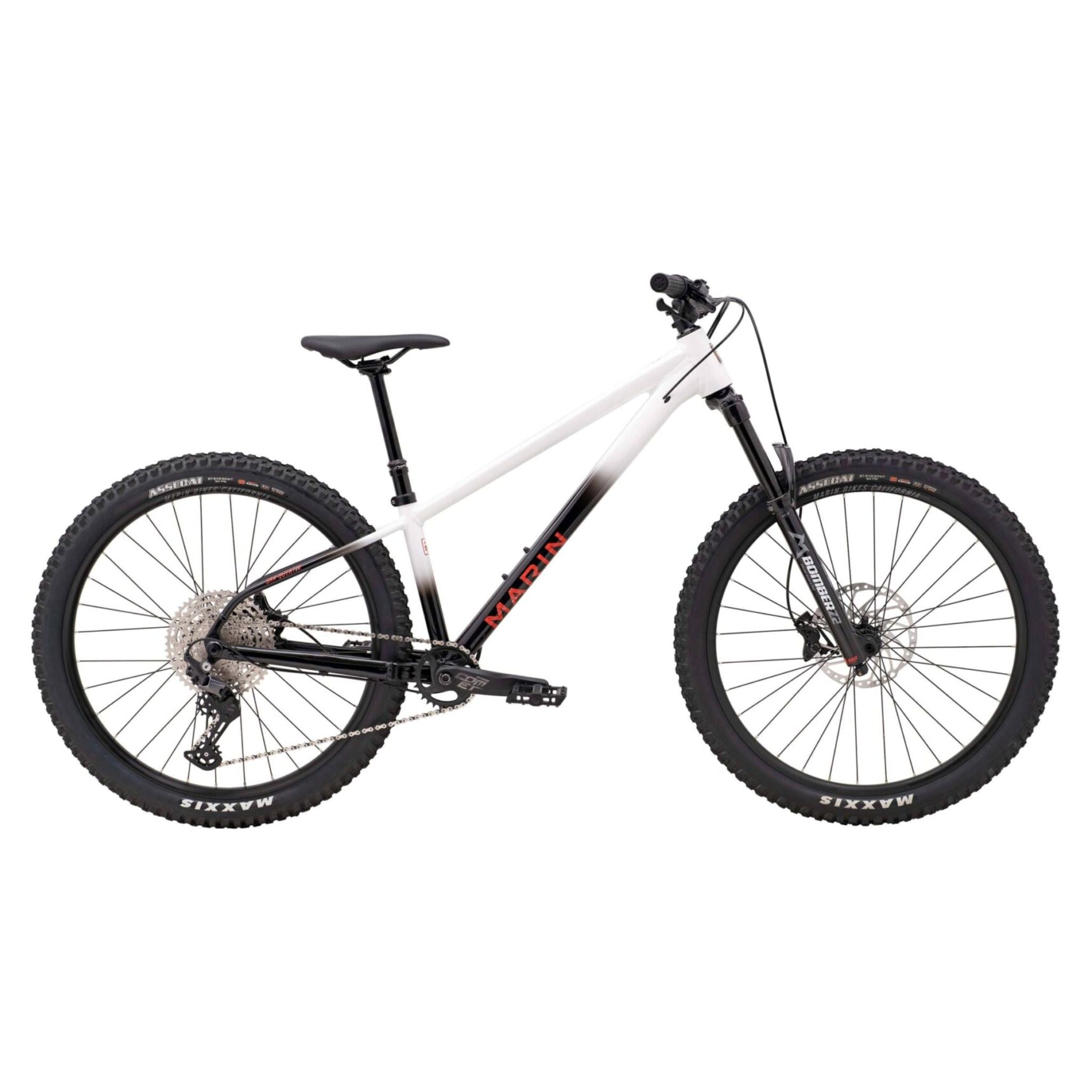

Marin San Quentin 3 2025
