Description
The San Quentin is for the aggressive hardtail trail rider looking for a blend between singletrack capabilities and extended air time.
SERIES 3 ALUMINUM FRAME: A light and strong alloy frame with advanced tube forming, upgraded dropouts, post mount disc tabs, full internal cable routing, and a boost 148mm thru-axle
DIRT JUMP INSPIRED FRAME STYLE: Taking cues from the Alcatraz, the San Quentin line up provides all the benefits of the DJ style with massive stand over, slick frame tubes, and a sexy paint job.
MODERN TRAIL GEOMETRY: The slack head tube angle paired with a steep seat tube angle create a ride that will fly uphill with perfect front wheel precision but then descend like it’s on rails. The balanced rider position thanks to the steep seat tube puts your weight between the wheels for impressive climbing and handling on flats, while the slack front end and short rear centre help to pull you through the rough descents and corners with an intuitive feel.
SIZING -
- S: 5'2"-5'5"
- M: 5'5"-5'8"
- L: 5'8"-5'11"
- XL: 5'11"-6'2"
Specifications
-
Discipline Trail/Dirt-Jump
-
Material Aluminium
-
Front Travel 140mm
-
Rear Travel Hardtail
-
Wheel Size 27.5"
-
Warranty 5 Years (frame)
FRAME - All New Series 3 6061 Aluminium, Double Butted Frame, Internal Cable Routing, 12x148mm Thru-Axle, 73mm Threaded BB
FRONT SUSPENSION - RockShox FS35 Silver, 110x15mm Boost Spacing, 140mm Travel, Maxle Stealth
RIMS - Marin Aluminium Double Wall, Disc Specific, 29mm Inner, Pinned Joint, 32H, Tubeless Compatible
HUB, REAR - Shimano HF-MT400B, 148x12, Disc, Standard Freehub Body
HUB, FRONT - Shimano HF-MT400B, 110x15mm, Disc
SPOKE, NIPPLES - 14g Black Stainless Steel
TIRES - Vee Tire Co., Flow Snap, 27.5x2.6", MPC Compound, Wire Bead
DERAILLEUR, REAR - Shimano Deore, 11-Speed, SGS
SHIFT LEVER - Shimano Deore, 11-Speed, SL-5100R
CRANKSET - Marin Forged Alloy, Integrated Steel 32T Narrow Wide Chainring, Boost Spacing
BOTTOM BRACKET - External Sealed Cartridge Bearing
CHAIN - KMC X-11 Silver and Black
CASSETTE - SunRace, 11-Speed, 11-51T, ED Black
BRAKE, FRONT - Shimano BR-MT201 Hydraulic Disc, 180mm Rotor
BRAKE, REAR - Shimano BR-MT201 Hydraulic Disc, 180mm Rotor
BRAKE LEVERS - Shimano BR-MT201 Hydraulic
HANDLEBAR - Marin Mini-Riser, 6061 Double Butted Aluminium, 780mm Width, 28mm Rise, 5º Up, 9º Back
STEM - Marin 3D Forged Alloy, 35mm
GRIPS - Marin Grizzly Lock On
HEADSET - FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
SEATPOST - TranzX, YSP18, 1x Remote, Size S 125mm Travel, Size M-XL 150mm Travel, 30.9mm
SADDLE - Marin Speed Concept
PEDALS - Nylon Platform

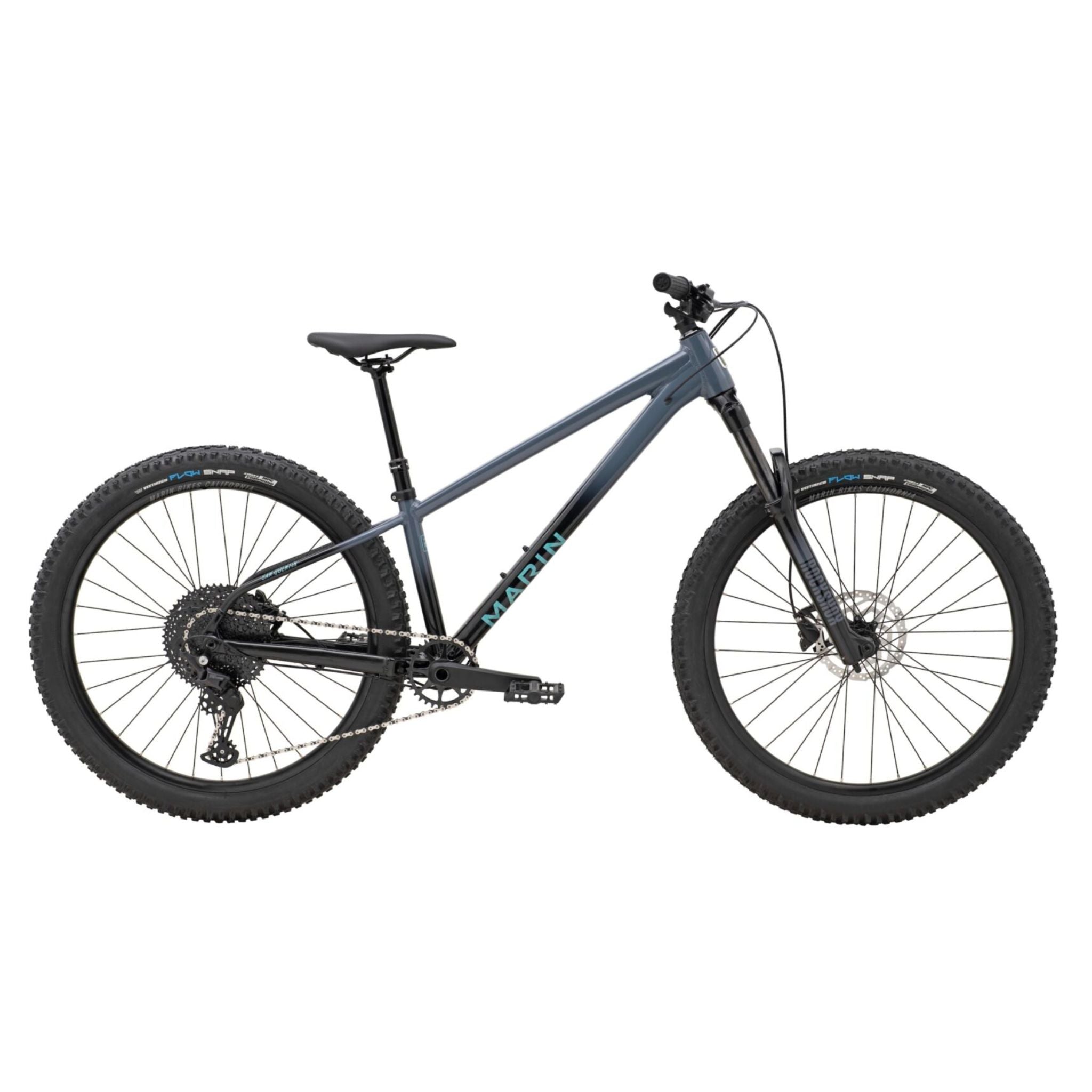

Marin San Quentin 2 2025
The San Quentin is for the aggressive hardtail trail rider looking for a blend between singletrack capabilities and extended air time.
SERIES 3 ALUMINUM FRAME: A light...
Order within [time] for delivery by [date]
90 Day Returns -
Description
The San Quentin is for the aggressive hardtail trail rider looking for a blend between singletrack capabilities and extended air time.
SERIES 3 ALUMINUM FRAME: A light and strong alloy frame with advanced tube forming, upgraded dropouts, post mount disc tabs, full internal cable routing, and a boost 148mm thru-axle
DIRT JUMP INSPIRED FRAME STYLE: Taking cues from the Alcatraz, the San Quentin line up provides all the benefits of the DJ style with massive stand over, slick frame tubes, and a sexy paint job.
MODERN TRAIL GEOMETRY: The slack head tube angle paired with a steep seat tube angle create a ride that will fly uphill with perfect front wheel precision but then descend like it’s on rails. The balanced rider position thanks to the steep seat tube puts your weight between the wheels for impressive climbing and handling on flats, while the slack front end and short rear centre help to pull you through the rough descents and corners with an intuitive feel.
SIZING -
- S: 5'2"-5'5"
- M: 5'5"-5'8"
- L: 5'8"-5'11"
- XL: 5'11"-6'2"
Specifications
-
Discipline Trail/Dirt-Jump
-
Material Aluminium
-
Front Travel 140mm
-
Rear Travel Hardtail
-
Wheel Size 27.5"
-
Warranty 5 Years (frame)
FRAME - All New Series 3 6061 Aluminium, Double Butted Frame, Internal Cable Routing, 12x148mm Thru-Axle, 73mm Threaded BB
FRONT SUSPENSION - RockShox FS35 Silver, 110x15mm Boost Spacing, 140mm Travel, Maxle Stealth
RIMS - Marin Aluminium Double Wall, Disc Specific, 29mm Inner, Pinned Joint, 32H, Tubeless Compatible
HUB, REAR - Shimano HF-MT400B, 148x12, Disc, Standard Freehub Body
HUB, FRONT - Shimano HF-MT400B, 110x15mm, Disc
SPOKE, NIPPLES - 14g Black Stainless Steel
TIRES - Vee Tire Co., Flow Snap, 27.5x2.6", MPC Compound, Wire Bead
DERAILLEUR, REAR - Shimano Deore, 11-Speed, SGS
SHIFT LEVER - Shimano Deore, 11-Speed, SL-5100R
CRANKSET - Marin Forged Alloy, Integrated Steel 32T Narrow Wide Chainring, Boost Spacing
BOTTOM BRACKET - External Sealed Cartridge Bearing
CHAIN - KMC X-11 Silver and Black
CASSETTE - SunRace, 11-Speed, 11-51T, ED Black
BRAKE, FRONT - Shimano BR-MT201 Hydraulic Disc, 180mm Rotor
BRAKE, REAR - Shimano BR-MT201 Hydraulic Disc, 180mm Rotor
BRAKE LEVERS - Shimano BR-MT201 Hydraulic
HANDLEBAR - Marin Mini-Riser, 6061 Double Butted Aluminium, 780mm Width, 28mm Rise, 5º Up, 9º Back
STEM - Marin 3D Forged Alloy, 35mm
GRIPS - Marin Grizzly Lock On
HEADSET - FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
SEATPOST - TranzX, YSP18, 1x Remote, Size S 125mm Travel, Size M-XL 150mm Travel, 30.9mm
SADDLE - Marin Speed Concept
PEDALS - Nylon Platform
