Description
Top of the line spec model of the UK trail favourite Marin Rift Zone E electric mountain bike.
The Rift Zone range handles fast-trail duty for Marin. With modern aggressive geometry paired with mid travel numbers and rapid 29" wheels the Rift Zone is insanely fun to ride and more than capable of handling big terrain features. Whether at a local trail centre or bike park, the Rift Zone will perform.
The Rift Zone E features the great, proven MultiTrac suspension technology. This Marin designed linkage system provides fantastic ride feel and consistent, reliable grip.
The Rift Zone E XR is adorned with the finest components, ready for miles and miles of efficient, responsive riding. RockShox Lyrik Ultimate fork and Super Deluxe Ultimate Shock, Vee Tire Co rubber, Shimano XT drivetrain, next-gen Shimano EP801 motor, SRAM Code 4-piston brakes with SRAM AXS wireless shifting and a wireless RockShox Reverb dropper post.
SIZING -
- S: 5'3 - 5'6
- M: 5'6 - 5'10
- L: 5'10 - 6'1
- XL: 6'1 - 6'4
Specifications
-
Discipline Trail/All-Mountain
-
Material Aluminium
-
Front Travel 140mm
-
Rear Travel 140mm
-
Wheel Size 29"
-
Warranty 5 Years (frame)
FRAME - Series 4 Alloy, 140mm MultiTrac Suspension, Integrated Battery/Charging Port, 148mm Rear Thru-Axle, Built-in Rear Speed Sensor
FORK - RockShox Lyrik Ultimate, 150mm Travel, 29", 110x15 Maxle Stealth, 42mm Offset
SHOCK - RockShox Super Deluxe Ultimate, 210x55, 25mm x M8 Hardware, Custom Tune
RIMS - Marin Aluminium Double Wall, 29" Diameter, 29mm Inner Rim Width, Sleeved Joint, Disc Specific, Tubeless Compatible
HUB REAR - Formula DC-711, 110x15, 6-Bolt, 32H
HUB FRONT - Formula DCL-3482, 4 Sealed Bearings, 148x12, XD Driver, 6-Bolt, 32H
SPOKES - 14g Black Stainless Steel
TIRES - Vee Tire Co. Attack HPL, 29x2.5", Top 40 Tubeless Compatible, Overide E-Specific Casing
DERAILLEUR REAR - SRAM GX AXS
SHIFT LEVER - SRAM AXS POD
CRANKSET - Shimano XT M8150, 160mm Length, 38T Steel SRAM Chainring
MOTOR - Shimano EP801, 250W, 85Nm
CHAIN - SRAM GX
CASSETTE - SRAM CS-XS-1275, 10-52T
BRAKES FRONT - SRAM Code Bronze, 4-Piston Hydraulic Disc, 203mm HS2 Rotor
BRAKES REAR - SRAM Code Bronze, 4-Piston Hydraulic Disc, 180mm HS2 Rotor w/ Bolt on Speed Sensor
BRAKE LEVERS - SRAM Code Bronze Stealth
HANDLEBAR - Marin Trail, 35mm Clamp, 7000 Alloy Bar, 800mm Length, 20mm Rise, 5 Degree Up, 8 Degree Back
STEM - Marin CNC, 35mm Length, 35mm Bar Bore
GRIPS - Marin Grizzly Lock On
HEADSET - FSA No 57, Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
SEATPOST - Rock Shox Reverb AXS with POD remote, Size S: 125mm, Size M: 150mm, Size L/XL: 170mm
SADDLE - Marin eMTB
PEDALS - Marin MTB Plastic
BATTERY - BT-8036, Internal 630Wh
DISPLAY - Shimano SC-E600
SWITCH - SW-EN600L Left Hand Switch for Assist Mode Change
EXTRAS - Shimano CS-EM800 Chain Guide, Shimano Battery Charger EC-E6002, CushCore Tire Inserts and Valve Stems, Marin Tire Sealant 300ml, Squeeze Top with Valve Core Removal Tool Cap

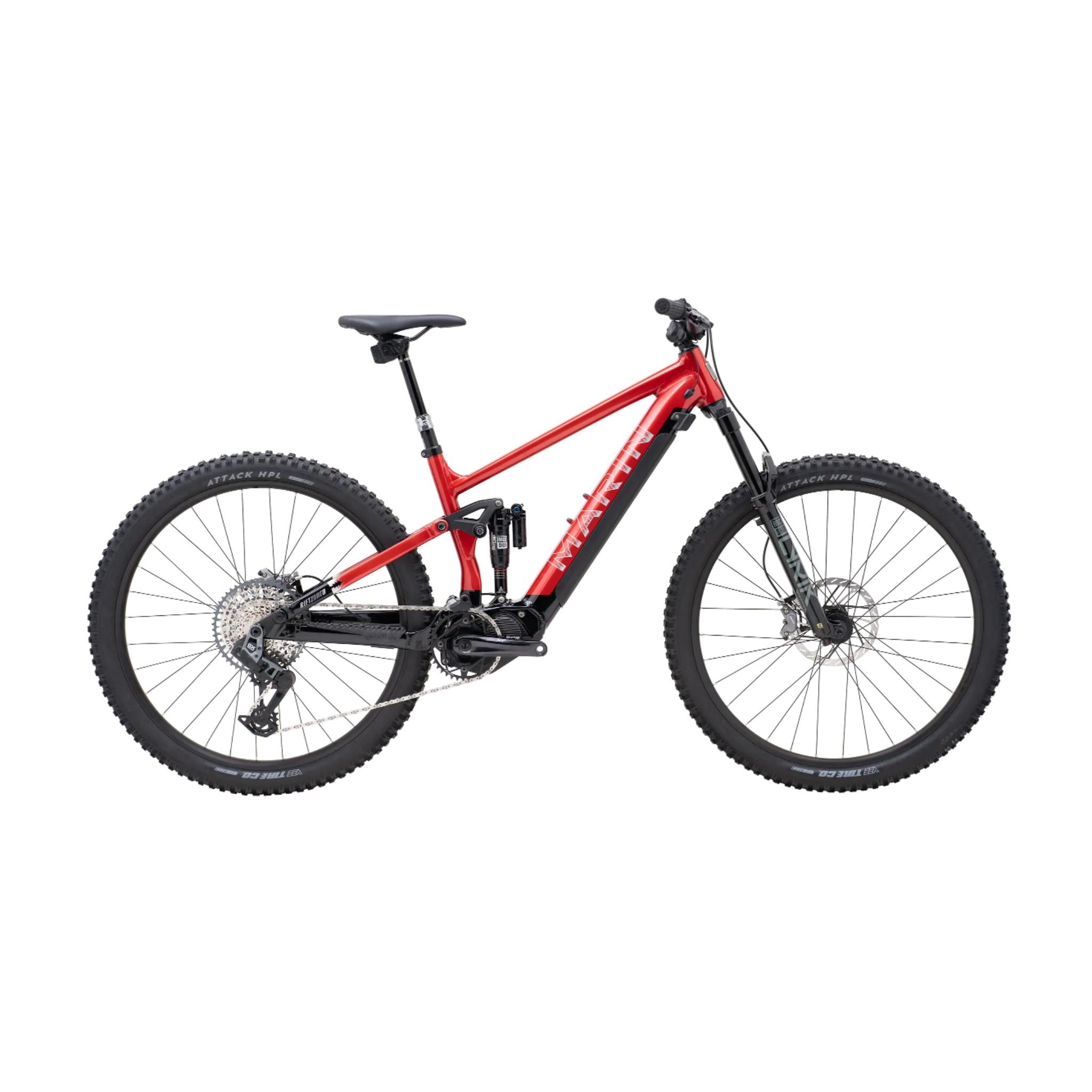

Marin Rift Zone E XR 2025
Top of the line spec model of the UK trail favourite Marin Rift Zone E electric mountain bike.
The Rift Zone range handles fast-trail duty for Marin. With modern aggressive...
Order within [time] for delivery by [date]
90 Day Returns -
Description
Top of the line spec model of the UK trail favourite Marin Rift Zone E electric mountain bike.
The Rift Zone range handles fast-trail duty for Marin. With modern aggressive geometry paired with mid travel numbers and rapid 29" wheels the Rift Zone is insanely fun to ride and more than capable of handling big terrain features. Whether at a local trail centre or bike park, the Rift Zone will perform.
The Rift Zone E features the great, proven MultiTrac suspension technology. This Marin designed linkage system provides fantastic ride feel and consistent, reliable grip.
The Rift Zone E XR is adorned with the finest components, ready for miles and miles of efficient, responsive riding. RockShox Lyrik Ultimate fork and Super Deluxe Ultimate Shock, Vee Tire Co rubber, Shimano XT drivetrain, next-gen Shimano EP801 motor, SRAM Code 4-piston brakes with SRAM AXS wireless shifting and a wireless RockShox Reverb dropper post.
SIZING -
- S: 5'3 - 5'6
- M: 5'6 - 5'10
- L: 5'10 - 6'1
- XL: 6'1 - 6'4
Specifications
-
Discipline Trail/All-Mountain
-
Material Aluminium
-
Front Travel 140mm
-
Rear Travel 140mm
-
Wheel Size 29"
-
Warranty 5 Years (frame)
FRAME - Series 4 Alloy, 140mm MultiTrac Suspension, Integrated Battery/Charging Port, 148mm Rear Thru-Axle, Built-in Rear Speed Sensor
FORK - RockShox Lyrik Ultimate, 150mm Travel, 29", 110x15 Maxle Stealth, 42mm Offset
SHOCK - RockShox Super Deluxe Ultimate, 210x55, 25mm x M8 Hardware, Custom Tune
RIMS - Marin Aluminium Double Wall, 29" Diameter, 29mm Inner Rim Width, Sleeved Joint, Disc Specific, Tubeless Compatible
HUB REAR - Formula DC-711, 110x15, 6-Bolt, 32H
HUB FRONT - Formula DCL-3482, 4 Sealed Bearings, 148x12, XD Driver, 6-Bolt, 32H
SPOKES - 14g Black Stainless Steel
TIRES - Vee Tire Co. Attack HPL, 29x2.5", Top 40 Tubeless Compatible, Overide E-Specific Casing
DERAILLEUR REAR - SRAM GX AXS
SHIFT LEVER - SRAM AXS POD
CRANKSET - Shimano XT M8150, 160mm Length, 38T Steel SRAM Chainring
MOTOR - Shimano EP801, 250W, 85Nm
CHAIN - SRAM GX
CASSETTE - SRAM CS-XS-1275, 10-52T
BRAKES FRONT - SRAM Code Bronze, 4-Piston Hydraulic Disc, 203mm HS2 Rotor
BRAKES REAR - SRAM Code Bronze, 4-Piston Hydraulic Disc, 180mm HS2 Rotor w/ Bolt on Speed Sensor
BRAKE LEVERS - SRAM Code Bronze Stealth
HANDLEBAR - Marin Trail, 35mm Clamp, 7000 Alloy Bar, 800mm Length, 20mm Rise, 5 Degree Up, 8 Degree Back
STEM - Marin CNC, 35mm Length, 35mm Bar Bore
GRIPS - Marin Grizzly Lock On
HEADSET - FSA No 57, Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
SEATPOST - Rock Shox Reverb AXS with POD remote, Size S: 125mm, Size M: 150mm, Size L/XL: 170mm
SADDLE - Marin eMTB
PEDALS - Marin MTB Plastic
BATTERY - BT-8036, Internal 630Wh
DISPLAY - Shimano SC-E600
SWITCH - SW-EN600L Left Hand Switch for Assist Mode Change
EXTRAS - Shimano CS-EM800 Chain Guide, Shimano Battery Charger EC-E6002, CushCore Tire Inserts and Valve Stems, Marin Tire Sealant 300ml, Squeeze Top with Valve Core Removal Tool Cap
