Description
The Rift Zone 27.5 brings together agile 27.5" wheels, 140mm front, 130mm of rear travel, a lightweight aluminium frame with Marin's super-plush MultiTrac suspension platform for endless good times on the trails.
MultiTrac is an acclaimed suspension system, fine-tuned to have a balanced ride capable of absorbing big hits with an efficient pedaling platform. The rocker link provides a progressive leverage ratio for the rear shock for small bump sensitivity and the feeling of a long travel system on large drops and rocks
Available at a fantastic price point, the Rift Zone is an excellent choice for a versatile UK trail bike.
The Rift Zone 1 is available is sizes XS, S and M with 27.5" wheels, sizes M, L and XL are available with 29" wheels - HERE
SIZING -
- S: 5'3 - 5'6
- M: 5'6 - 5'10
- L: 5'10 - 6'1
- XL: 6'1 - 6'4
Specifications
-
Discipline Trail
-
Material Aluminium
-
Front Travel 140mm
-
Rear Travel 130mm
-
Wheel Size 27.5"
-
Warranty Lifetime (frame)
FRAME - Series 3 6061 Aluminium, 130mm Travel, MultiTrac Suspension Platform, 141 Boost Spacing (upgradable to 148x12), 73mm Threaded BB w/ ISCG05 Tabs
FORK - X-Fusion Sweep (27.5") Boost RC, 140mm Travel, Compression and Rebound Adjustment, 44mm Offset
SHOCK - X-Fusion O2 Pro R, Custom Tune, 210x55mm, M8x25mm Hardware Top and Bottom
RIMS - Marin Aluminium Double Wall, 29" Diameter, 29mm Inner Rim Width, Pinned Joint, Disc Specific, Tubeless Compatible
HUBS REAR - Shimano HB-MT200B, 141 QR, Centerlock, Standard Freehub Body
HUBS FRONT - Shimano MT-400B, 110x15mm, Centerlock Disc, 32H
SPOKES - 14g Black Stainless Steel
TIRES - Vee Tire Co. Snap WCE 2.35", Top 40 Compound, GXE Core, 90 TPI, Tubeless Compatible
DERAILLEUR REAR - Shimano Deore, Direct Attachment, 11-Speed, SGS
SHIFT LEVER - Shimano Deore, 11-Speed
CRANKSET - Marin Forged Alloy, Integrated Steel 32T Narrow Wide Chainring, Boost Spacing
CHAIN - KMC X-11, Silver
CASSETTE - SunRace 11-Speed, 11-51T
BRAKE FRONT - Tektro HD-M280 Hydraulic, 180mm Rotor
BRAKES REAR - Tektro HD-M280 Hydraulic, 180mm Rotor
BRAKE LEVERS - Tektro HD-M280
HANDLEBAR - Marin Mini-Riser, 6061 Double Butted Aluminium, 780mm Width, 28mm Rise, 5º Up, 9º Back
STEM - Marin 3D Forged Alloy, 35mm
GRIPS - Marin MTN
HEADSET - FSA No 57E, Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
SEATPOST - X-Fusion Manic, 1x Composite Remote, Size XS-S 150mm Travel, Size M-XL 170mm Travel, 30.9mm
SADDLE - Marin Speed Saddle
PEDALS - Not included

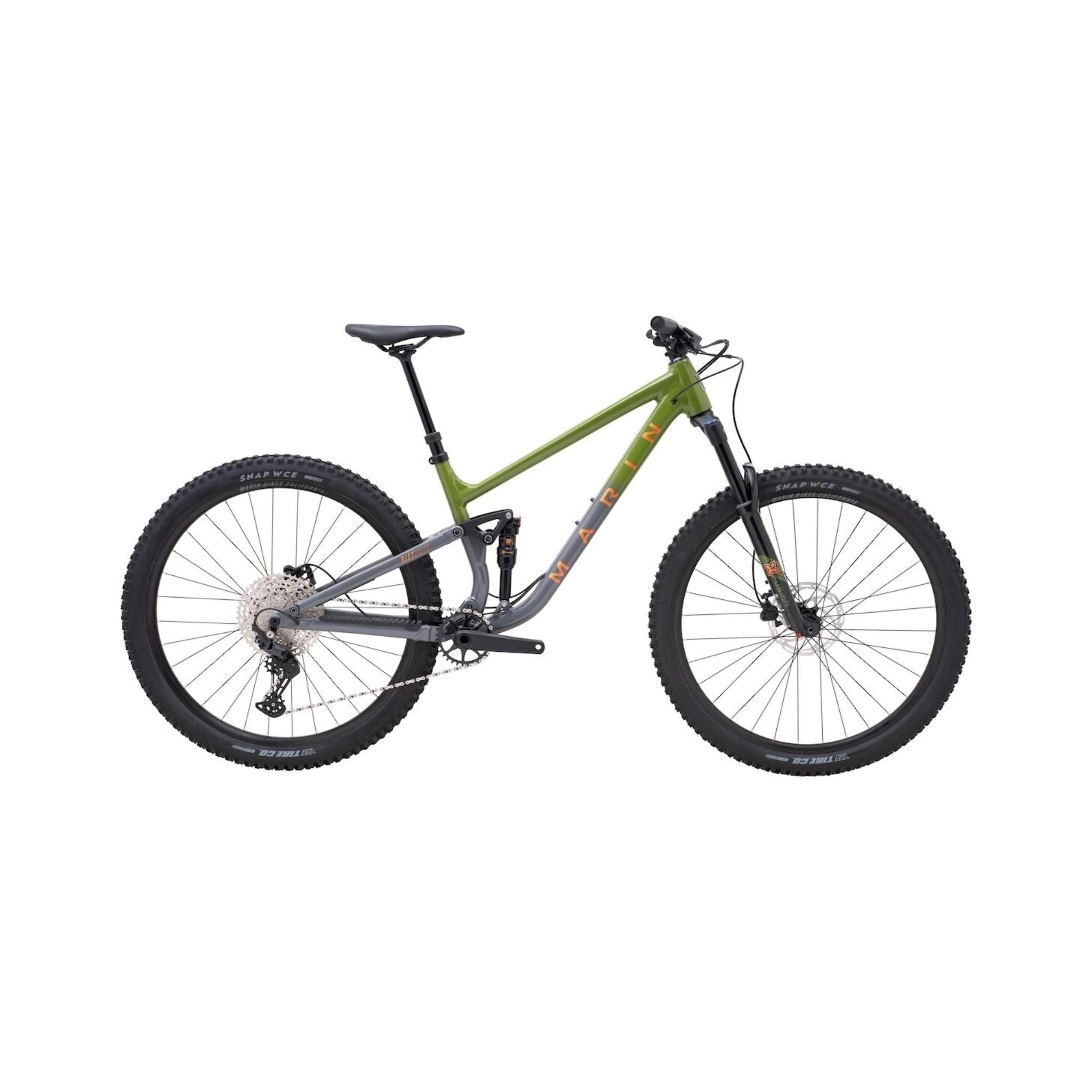

Marin Rift Zone 1 27.5 2025
