Description

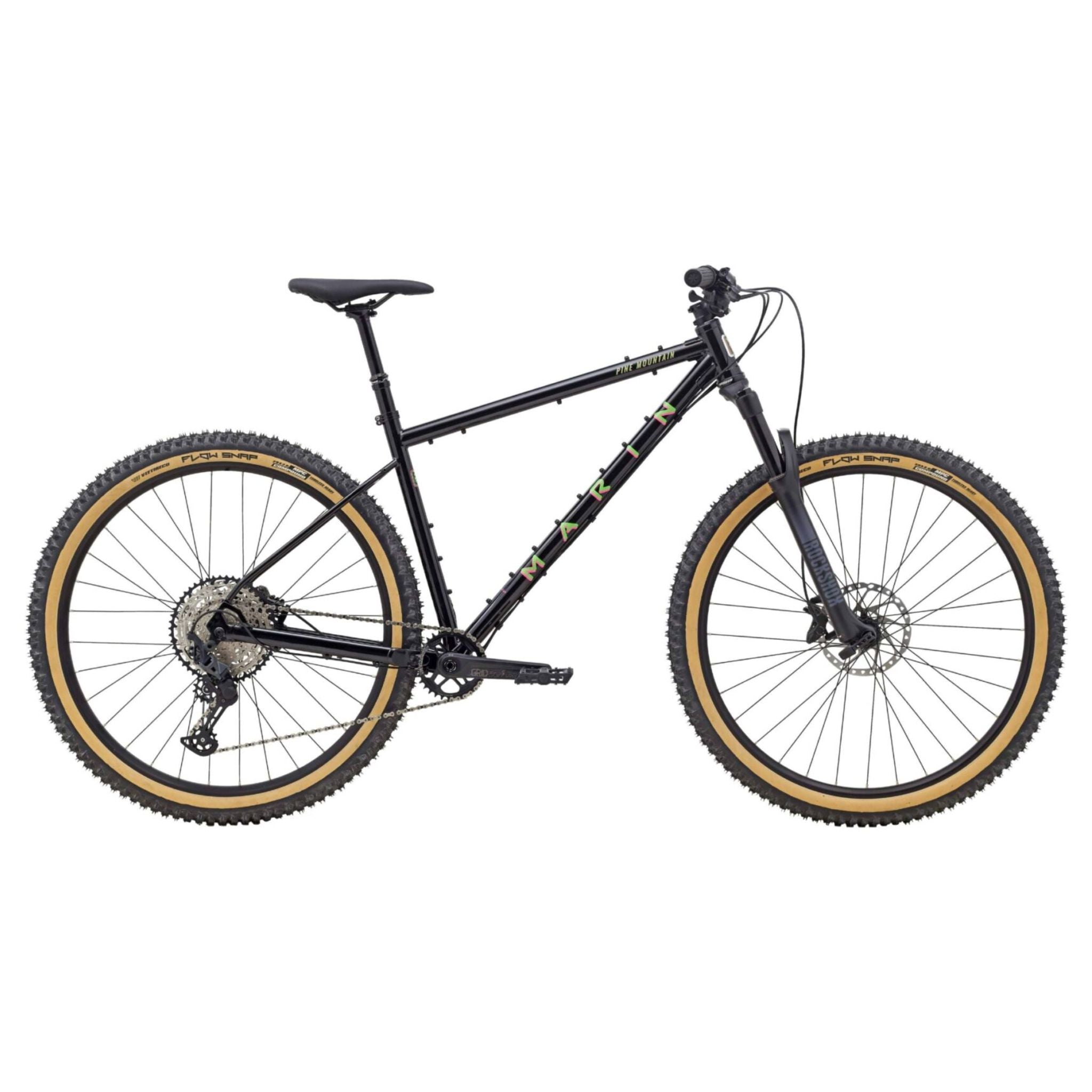

The Marin Pine Mountain 2 is a high-end, high-performance steel bikepacking mountain bike.
Marin Series 3 version of the frame upgrades to higher-grade CrMo for a lively, zippier ride and has a bolt-through rear axle for a little added stiffness where it matters. It’s built up with a RockShox FS 35 fork, Shimano SLX 12-speed drivetrain, Vee Tire Flow Snap 2.6” tires, powerful Shimano brakes and a super-useful dropper post for added comfort and speed. Last but not least, you’ve got the much-loved Marin Bedroll handlebar
SIZING -
- S: 5'3"-5'6"
- M: 5'6"-5'9"
- L: 5'9"-6'0"
- XL: 6'0"-6'4"
Specifications
-
Discipline Bike-Packing/Trail
-
Material Steel
-
Front Travel 120mm
-
Rear Travel Hardtail
-
Wheel Size 29"
-
Warranty 5 Years (frame)
FRAME - Series 3 Double Butted and Heat Treated CrMo, 29" Wheels, Custom Cast Boost 148x12mm Dropouts, 148x12mm Thru-Axle, 73mm Threaded BB, Plentiful Gear Mounts (custom bag templates here)
FRONT SUSPENSION - RockShox 35 Gold RL, 120mm Travel, DebonAir, Alloy Tapered Steerer, 110x15mm Boost Spacing, Maxle Lite, 44mm Offset
RIMS - Alloy Double-Wall, Offset Spoke, 32mm ID, Tubeless Compatible
HUB, REAR - Forged Aluminium, 148x12mm, Centerlock Disc, 32H
HUB, FRONT - Forged Alloy, 110x15mm, Sealed Cartridge Bearings, Disc, 32H
SPOKE, NIPPLES - 14g Black Stainless Steel
TIRES - Vee Tire Co. Flow Snap, 29x2.6", Folding Bead, Tubeless Ready
DERAILLEUR, REAR - Shimano SLX 12-Speed
SHIFT LEVER - Shimano SLX 12-Speed
CRANKSET - FSA Grid, Modular 1x, 32T Direct Mount MegaTooth Chainring
BOTTOM BRACKET - FSA Outboard Cartridge Bearings
CHAIN - KMC X12
CASSETTE - SunRace 12-speed, 11-51
BRAKE, FRONT - Shimano MT520, 4-Piston, Hydraulic Disc, 180mm Rotor
BRAKE, REAR - Shimano MT500, 2-Piston, Hydraulic Disc, 180mm Rotor
BRAKE LEVERS - Shimano MT500 Hydraulic
HANDLEBAR - Marin Bedroll Bar, 50mm Rise, 780 Width, 10˚ Backsweep, 6˚ Upsweep
STEM - Marin 3D Forged Alloy, 35mm
GRIPS - Marin Bear Paw Locking
HEADSET - FSA Orbit ITA, Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
SEATPOST - TranzX Dropper Post, YSP23 w/ 1x Remote, Size S 150mm Travel, All Other Sizes: 170mm Travel, 30.9mm
SADDLE - Marin Pine Mountain Trail
PEDALS - Nylon Platform
EXTRAS - Bolt-On Thru-Axle
