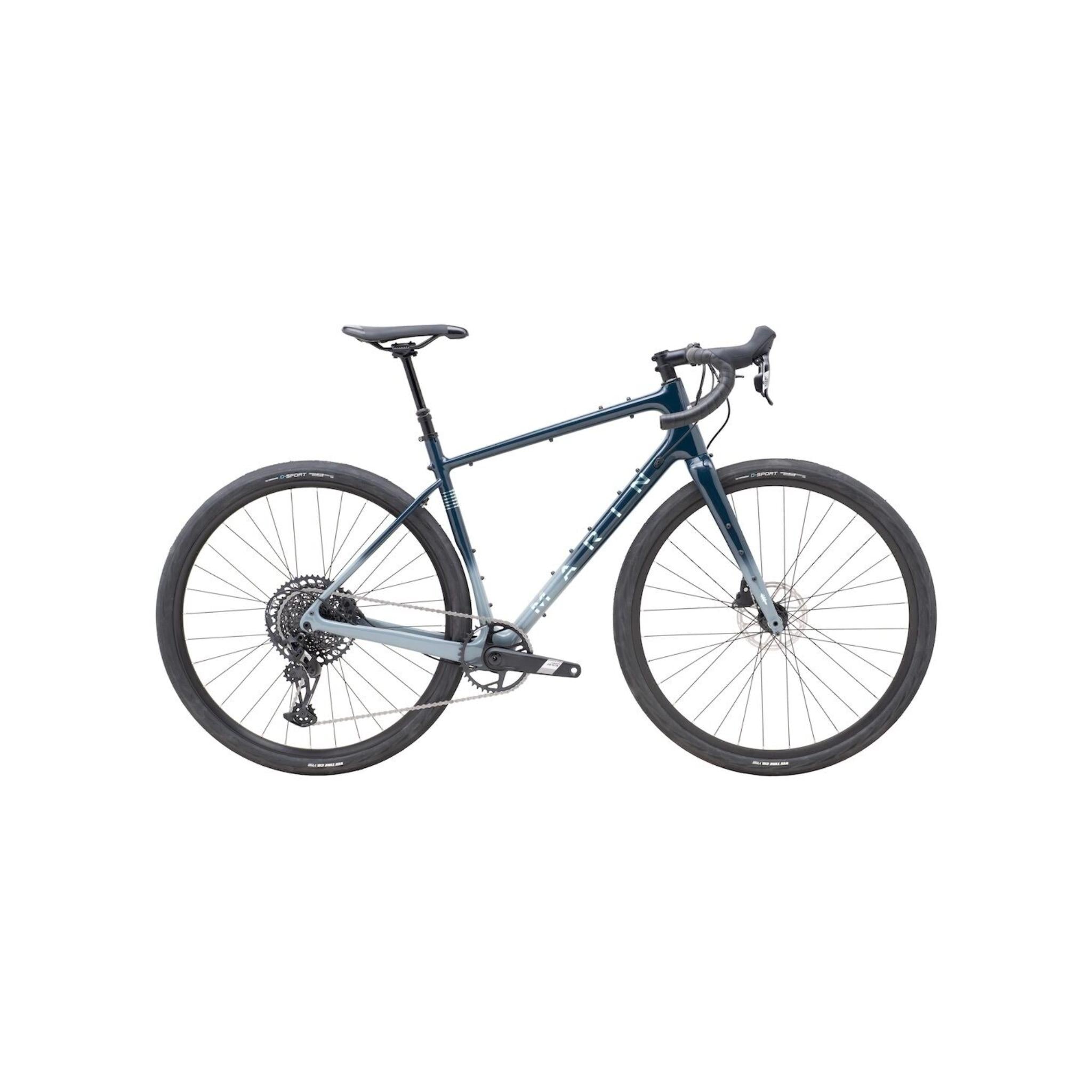

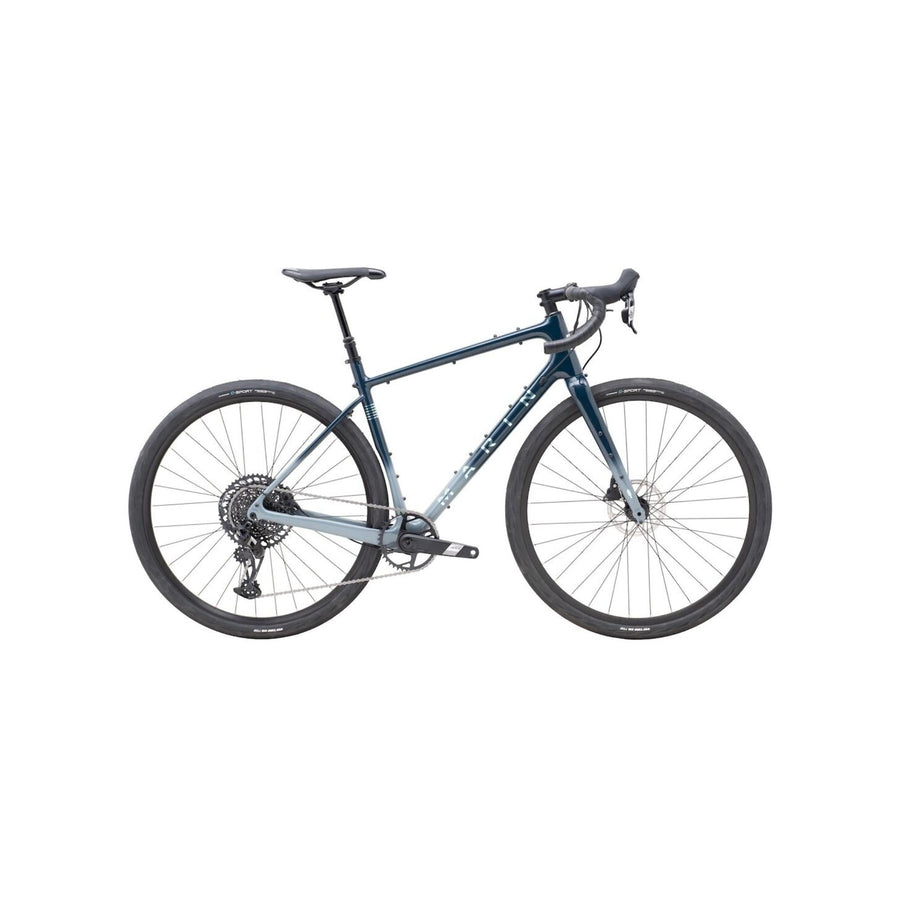

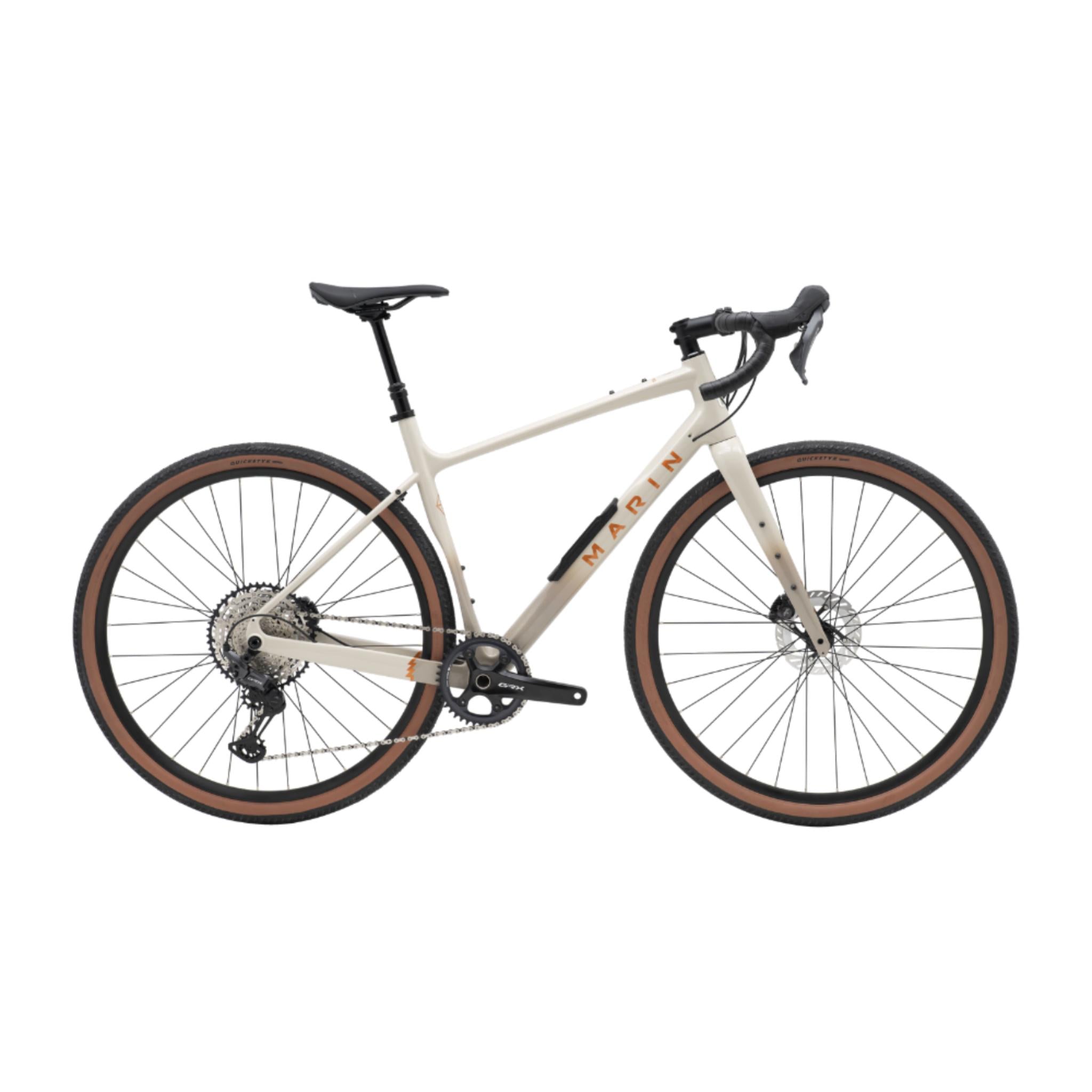

Fully loaded bike-packing, fast and light off-road adventures, gravel and CX racing… or simply exploring your favourite tracks and trails. The Marin Headlands is a high-tech, high-spec carbon fiber gravel and adventure bike that’s made to be lightning-fast, confidence-inspiring and super comfortable on all surfaces.

A unidirectional carbon fiber frame, added mountain bike-inspired geometry, loads of tire clearance and a whole heap of mounting points for gear and fenders to create a super versatile, super capable all-terrain dart of a bike. Go 700c with room for up to 45mm tires or 650b up to 47mm.

Gravel-specific Shimano GRX 12-speed groupset, GRX hydraulic brakes, Vee Tire Co tires and Marin wheels and finishing kit all add up to a whole mountain of fun and adventure. Last but not least, we’ve added a TranzX dropper seat post to really push you and your Headlands’ limits on the trails.

SIZING -

• 49cm - 4'11" to 5'3"
• 52cm - 5'3" to 5'6"
• 54cm - 5'6" to 5'9"
• 56cm - 5'9" to 6'0"
• 58cm - 6'0" to 6'2"
• 60cm - 6'2" to 6'4"

SPECIFICATION -

FRAME - Unidirectional Carbon Beyond Road Platform, 1x Drivetrain Specific, 700c x 50mm Compatible, Flat Mount Disc, 142x12mm Thru-Axle, Internal Dropper Post Routing, Internal Housing Routing, Mudguard and Rear Carrier Mounting, Plentiful Gear Mounts
FORK - Marin Full Carbon w/ Tapered Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets
RIM - Marin Aluminium Double Wall, 21mm Inner, 21mm Tall, Disc Specific, Tubeless Compatible
HUB REAR - Forged Aluminium Alloy, Disc, 28H
HUB FRONT - Forged Aluminium Alloy, Disc, 28H
SPOKES NIPPLES - Double Butted Stainless
TIRES - Vee Tire Co., Quikstyk, 700c x 45mm, Tubeless Compatible
DERAILLEUR REAR - Shimano GRX RDX822, 12-Speed, Shadow Plus w/ Clutch
SHIFT LEVER - Shimano GRX RX820, 12-Speed
CRANKSET - Shimano GRX FCRX8020, 1x12, HollowTech 2, 42T
BOTTOM BRACKET - Shimano BB-RS500, BSA
CHAIN - KMC X12
CASSETTE - Shimano CSM7100, 12-Speed, 10-51T
BRAKES FRONT - Shimano GRX, RX820, Hydraulic Disc, 160mm Rotor
BRAKES REAR - Shimano GRX, RX820, Hydraulic Disc, 160mm Rotor
BRAKE LEVERS - Shimano GRX w/ Integrated Shifter
HANDLEBAR - Marin Butted Alloy, Compact 16º Flared Drop
STEM - Marin 3D Forged Alloy
GRIPS - Marin Shock Absorbing Tape
HEADSET - FSA Orbit IS, Sealed Cartridge Bearings, 1 1/8” x 1 1/2”
SEATPOST - TranzX YSP38J, Size 49-54 70mm, Size 56-60 110mm Travel, 27.2mm
SADDLE - Marin Beyond Road Concept Elite
EXTRAS - Bolt-On Thru-Axles F and R
