Description
The DSX is the mountain biker’s gravel bike with familiar flat handlebar, reliable 1x drivetrains, large tire clearance, and dropper post routing for better off road control, and on road descending stability.
The DSX is a perfect choice for a mixture of commuting and adventure riding, both on and off-road.
SIZING -
- S: 5'3"-5'6"
- M: 5'6"-5'10"
- L: 5'10"-6'2"
- XL: 6'2"-6'5"
Specifications
-
Discipline Adventure/Commuting
-
Material Aluminium
-
Front Travel N/A
-
Rear Travel N/A
-
Wheel Size 700c
-
Warranty 5 Years (frame)
FRAME - Series 3 DSX, 6061 Aluminium, Tapered Head Tube, Relieved BB, Internal Cable Routing, Mudguard and Rack Mounts, Flat Mount Disc, 142x12mm Thru-Axle
FORK - Marin Full Carbon w/ Tapered Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets
RIM - Marin Aluminium Double Wall, 21mm Inner, Disc Specific, Tubeless Compatible
HUB REAR - Shimano Forged Aluminium, 142x12mm, Microspline, Disc, 32H
HUB FRONT - Forged Aluminium, 100x12mm, Disc, 32H
SPOKES NIPPLES - 14g Black Stainless Steel
TYRES - WTB Riddler, 700Cx45mm
DERAILLEUR REAR - Shimano Deore, RDM6100, 12-Speed
SHIFT LEVER - Shimano Deore, SLM6100, 12-Speed
CRANKSET - Forged Aluminium, 42T Steel Narrow Wide Chainring
BOTTOM BRACKET - Sealed Outboard Bearing
CHAIN - KMC X12
CASSETTE - Shimano Deore, CSM6100, 12-Speed, 10-51T
BRAKES FRONT - Tektro HDR285 Flat Mount Hydraulic, 160mm Rotor
BRAKES REAR - Tektro HDR285 Flat Mount Hydraulic, 160mm Rotor
BRAKE LEVERS - Tektro Hydraulic
HANDLEBAR - Marin MiniRiser
STEM - Marin 3D Forged Alloy
GRIPS - Marin MTB
HEADSET - FSA No.42 ACB, Sealed Cartridge Bearings, 1 1/8” x 1 1/2”
SEATPOST - Marin Alloy
SADDLE - Marin DSX
PEDALS - Marin Oso OE Flat
EXTRAS - Bolt-On Thru-Axles F and R

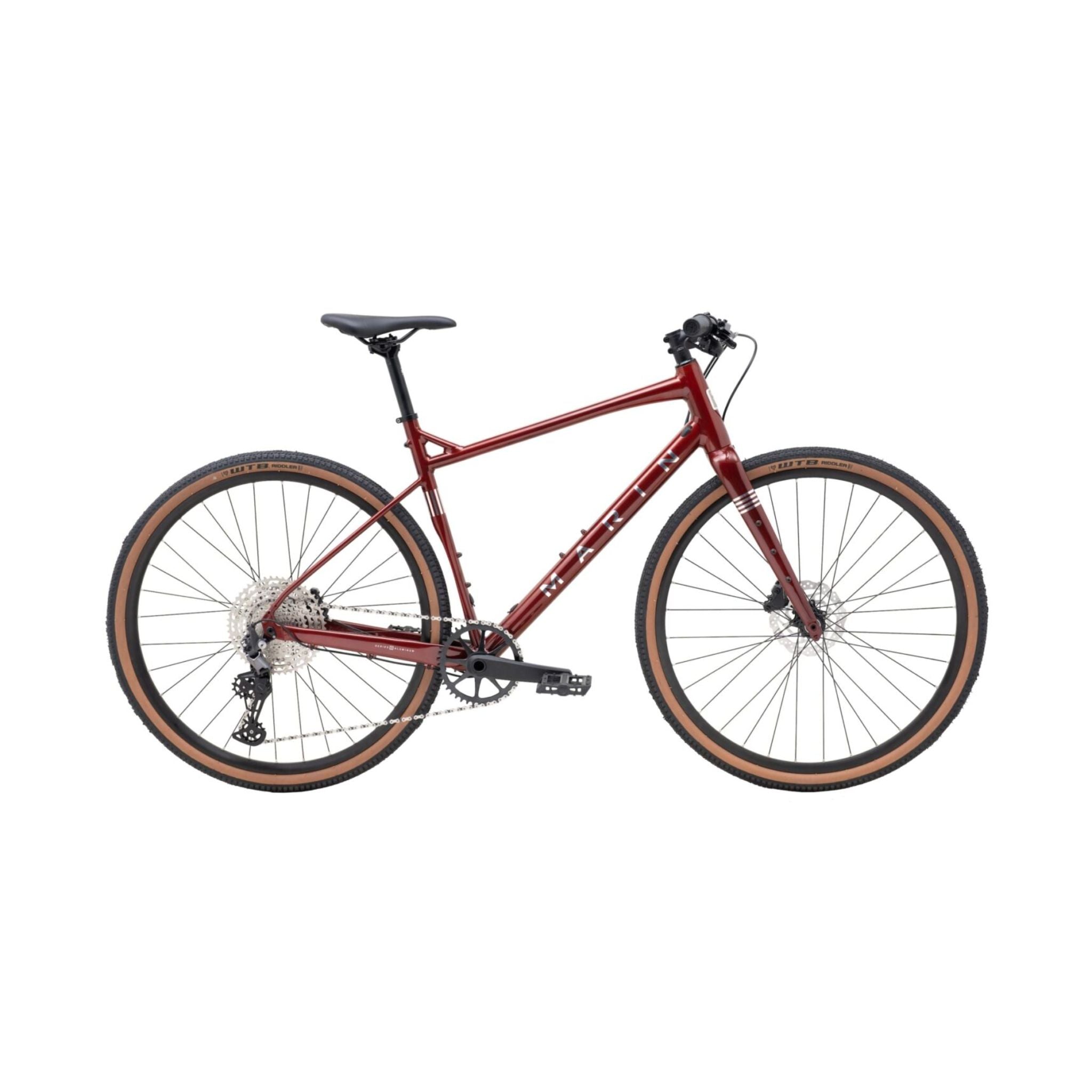

Marin DSX 2 2025
The DSX is the mountain biker’s gravel bike with familiar flat handlebar, reliable 1x drivetrains, large tire clearance, and dropper post routing for better off road control, and on road...
Order within [time] for delivery by [date]
90 Day Returns -
Description
The DSX is the mountain biker’s gravel bike with familiar flat handlebar, reliable 1x drivetrains, large tire clearance, and dropper post routing for better off road control, and on road descending stability.
The DSX is a perfect choice for a mixture of commuting and adventure riding, both on and off-road.
SIZING -
- S: 5'3"-5'6"
- M: 5'6"-5'10"
- L: 5'10"-6'2"
- XL: 6'2"-6'5"
Specifications
-
Discipline Adventure/Commuting
-
Material Aluminium
-
Front Travel N/A
-
Rear Travel N/A
-
Wheel Size 700c
-
Warranty 5 Years (frame)
FRAME - Series 3 DSX, 6061 Aluminium, Tapered Head Tube, Relieved BB, Internal Cable Routing, Mudguard and Rack Mounts, Flat Mount Disc, 142x12mm Thru-Axle
FORK - Marin Full Carbon w/ Tapered Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets
RIM - Marin Aluminium Double Wall, 21mm Inner, Disc Specific, Tubeless Compatible
HUB REAR - Shimano Forged Aluminium, 142x12mm, Microspline, Disc, 32H
HUB FRONT - Forged Aluminium, 100x12mm, Disc, 32H
SPOKES NIPPLES - 14g Black Stainless Steel
TYRES - WTB Riddler, 700Cx45mm
DERAILLEUR REAR - Shimano Deore, RDM6100, 12-Speed
SHIFT LEVER - Shimano Deore, SLM6100, 12-Speed
CRANKSET - Forged Aluminium, 42T Steel Narrow Wide Chainring
BOTTOM BRACKET - Sealed Outboard Bearing
CHAIN - KMC X12
CASSETTE - Shimano Deore, CSM6100, 12-Speed, 10-51T
BRAKES FRONT - Tektro HDR285 Flat Mount Hydraulic, 160mm Rotor
BRAKES REAR - Tektro HDR285 Flat Mount Hydraulic, 160mm Rotor
BRAKE LEVERS - Tektro Hydraulic
HANDLEBAR - Marin MiniRiser
STEM - Marin 3D Forged Alloy
GRIPS - Marin MTB
HEADSET - FSA No.42 ACB, Sealed Cartridge Bearings, 1 1/8” x 1 1/2”
SEATPOST - Marin Alloy
SADDLE - Marin DSX
PEDALS - Marin Oso OE Flat
EXTRAS - Bolt-On Thru-Axles F and R
