Description

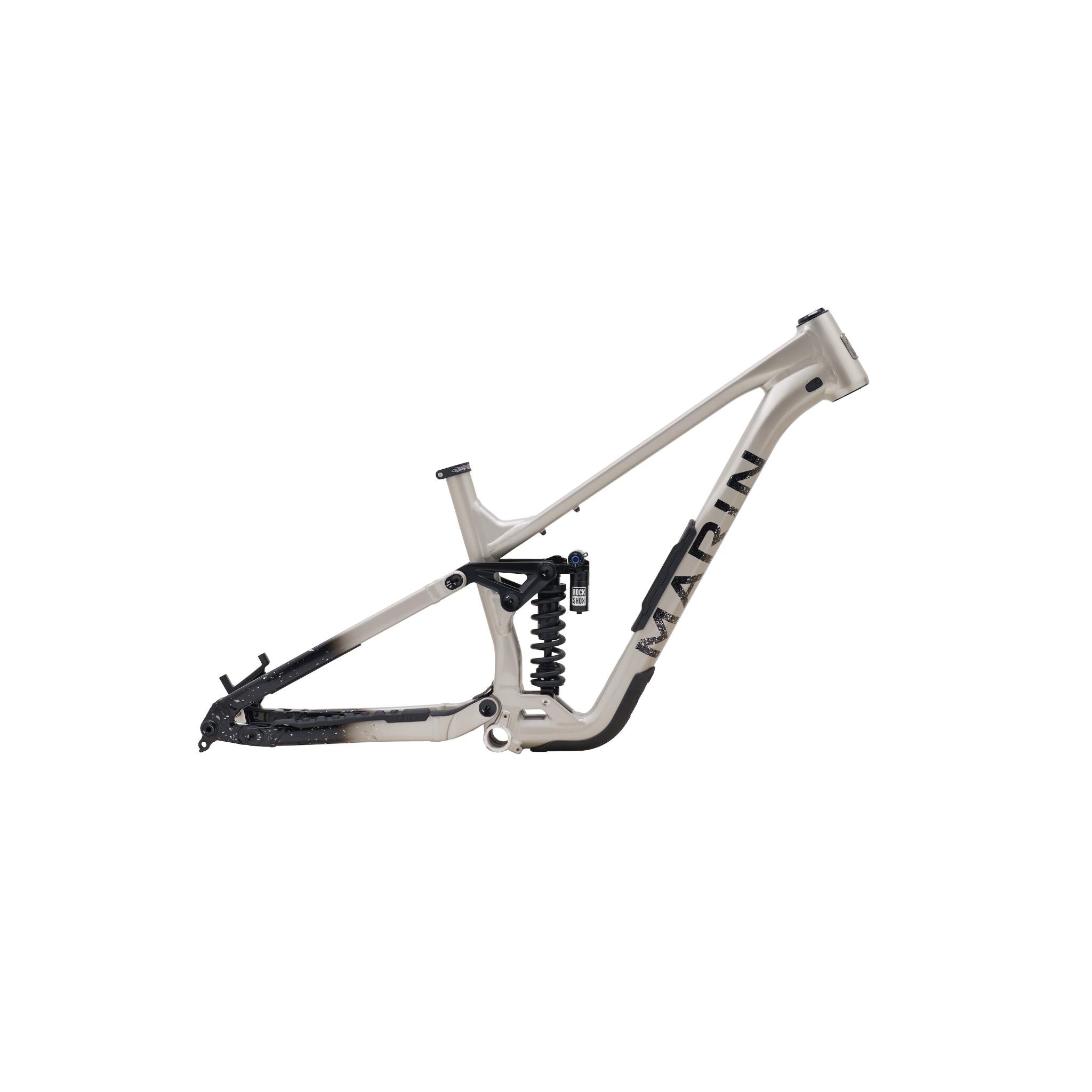

The Marin Alpine Trail is Marin's big-hitting, big-wheeling, hard charger. It's built for the roughest and rowdiest around. Whether you're a park rat, enduro racer snake or just love to send it with the big dogs, the Alpine Trail is the perfect beast for the job.
Consistently a Biketart staff favourite enduro mountain bike, Marin's Alpine Trail available here as a frame only for your own custom builds.
The series 4 aluminium MultiTrac 2 LT frames is designed for mixed 29”/27.5” wheels, has 160mm rear travel and is recommended to be fitted with a 17mm front fork. Riders can alter the head tube angle and bottom bracket/chainstay length, as well as run 29” rear wheels if desired. “Bear Box” downtube storage includes a zippered nylon bag to house trail essentials, and a 34.9mm seatpost increases strength and is compatible with the latest dropper posts
Contact us at support@biketart.com to discuss components or to arrange your own custom built Alpine Trail XR
SIZING -
- S: 5'3"-5'6"
- M: 5'6"-5'10"
- L: 5'10"-6'2"
- XL: 6'2"-6'4"
Specifications
-
Discipline Enduro
-
Material Aluminium
-
Front Travel 170mm (Recommended)
-
Rear Travel 160mm
-
Wheel Size MX
-
Warranty 5 Years (frame)
Frame - All New Series 4 6061 Aluminium , 29” Wheels, 160mm Travel MultiTrac LT Suspension Platform, Integrated Downtube Storage, Adjustable Headset & CS Length/BB Height, Full Internal Cable Routing, Chainstay Mounted Post Mount Disc Brake, 148x12mm Boost Thru- Axle, 73mm Threaded BB w/ ISCG05 Tabs
Rear Suspension - RockShox Super Deluxe Coil Ultimate, 205x65, 30xM8 Lower Hardware, Custom Tune, Spring Rates S/M: 350lbs, L/XL:450lbs
Headset - FSA Custom, Adjustable HTA Design
Extras - Marin MTB Seat Clamp, Bolt Type
Extras - Bolt-On 12mm Thru-Axle, 174mm Length, 1.0 Thread Pitch, 16.5mm, Tapered Head
Extras - Downtube Storage Bag
