  • Ibis DV9 Frame
  • Ibis DV9 Frame

Description

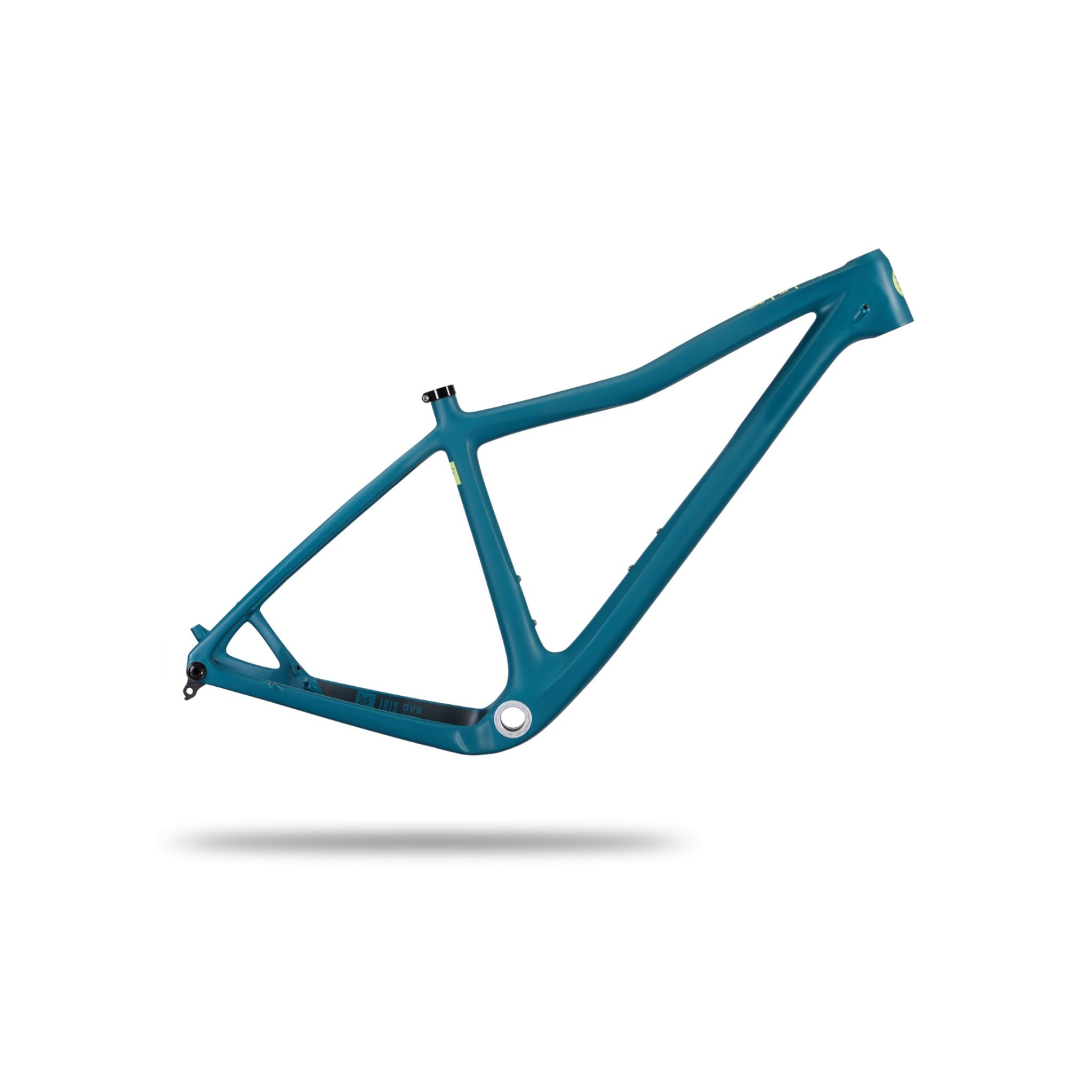

The DV9 is a do-it-all carbon fiber hardtail designed to take you from the trailhead to the starting line, with a session at the pump track in between. Lighter-weight, with up-to-date geometry, and engineered to the same exacting standards as the rest of Ibis line, it packs a ton of performance into a more accessible price.

Inspired by the World Cup Race Winning Exie USA, the DV9 features a rowdy-but-not-too-rowdy 66.5° head angle and ultra-playful 425mm chainstays. A low standover improves fit for the inseam-challenged rider, while size-specific seat tube angles give riders of all heights an efficient yet enjoyable riding position.

Whether you prefer the cushy and confident ride that 2.6” tyres deliver or the blazing speed of weight-conscious 2.25” rubber, Ibis got you covered.

SIZING -

  • S: 5' - 5'4
  • M: 5'3 - 5'8
  • L: 5'7 - 6'1
  • XL: 6' - 6'5



SPECIFICATIONS:

Version - V2
Frame Material - Carbon Fiber
Frame Weight - 1305g, 2.9 lbs (size large)
Wheel Size - 29" (up to 2.6" tires)
Front Travel - 120mm (compatible with 100mm–140mm)
Axle Width - 148mm rear / 110mm front
Seatpost Diameter - 31.6mm
Rear Brake - 160mm Post mount / 203mm max
Chainstay Length - 425mm
BB - 73mm English threaded
Chainline - 55mm chainline
Chainring Clearance - Up to 34T (round)
Derailleur Hanger - Universal Derailleur Hanger (UDH)
Tapered Headtube - IS 41/28.6 upper, IS 52/40 lower
Colours - Silver Lining, Electric Teal
Sizes - S, M, L, XL
Frame Warranty - Lifetime

Ibis DV9 Frame

SKU: DVC1SLS00000025 / Barcode: 840345311795

The DV9 is a do-it-all carbon fiber hardtail designed to take you from the trailhead to the starting line, with a session at the pump track in between. Lighter-weight, with...

Regular price £1,399.00
Colour

Size

Out of stock

90 Day Returns -

Description

The DV9 is a do-it-all carbon fiber hardtail designed to take you from the trailhead to the starting line, with a session at the pump track in between. Lighter-weight, with up-to-date geometry, and engineered to the same exacting standards as the rest of Ibis line, it packs a ton of performance into a more accessible price.

Inspired by the World Cup Race Winning Exie USA, the DV9 features a rowdy-but-not-too-rowdy 66.5° head angle and ultra-playful 425mm chainstays. A low standover improves fit for the inseam-challenged rider, while size-specific seat tube angles give riders of all heights an efficient yet enjoyable riding position.

Whether you prefer the cushy and confident ride that 2.6” tyres deliver or the blazing speed of weight-conscious 2.25” rubber, Ibis got you covered.

SIZING -

  • S: 5' - 5'4
  • M: 5'3 - 5'8
  • L: 5'7 - 6'1
  • XL: 6' - 6'5



SPECIFICATIONS:

Version - V2
Frame Material - Carbon Fiber
Frame Weight - 1305g, 2.9 lbs (size large)
Wheel Size - 29" (up to 2.6" tires)
Front Travel - 120mm (compatible with 100mm–140mm)
Axle Width - 148mm rear / 110mm front
Seatpost Diameter - 31.6mm
Rear Brake - 160mm Post mount / 203mm max
Chainstay Length - 425mm
BB - 73mm English threaded
Chainline - 55mm chainline
Chainring Clearance - Up to 34T (round)
Derailleur Hanger - Universal Derailleur Hanger (UDH)
Tapered Headtube - IS 41/28.6 upper, IS 52/40 lower
Colours - Silver Lining, Electric Teal
Sizes - S, M, L, XL
Frame Warranty - Lifetime
