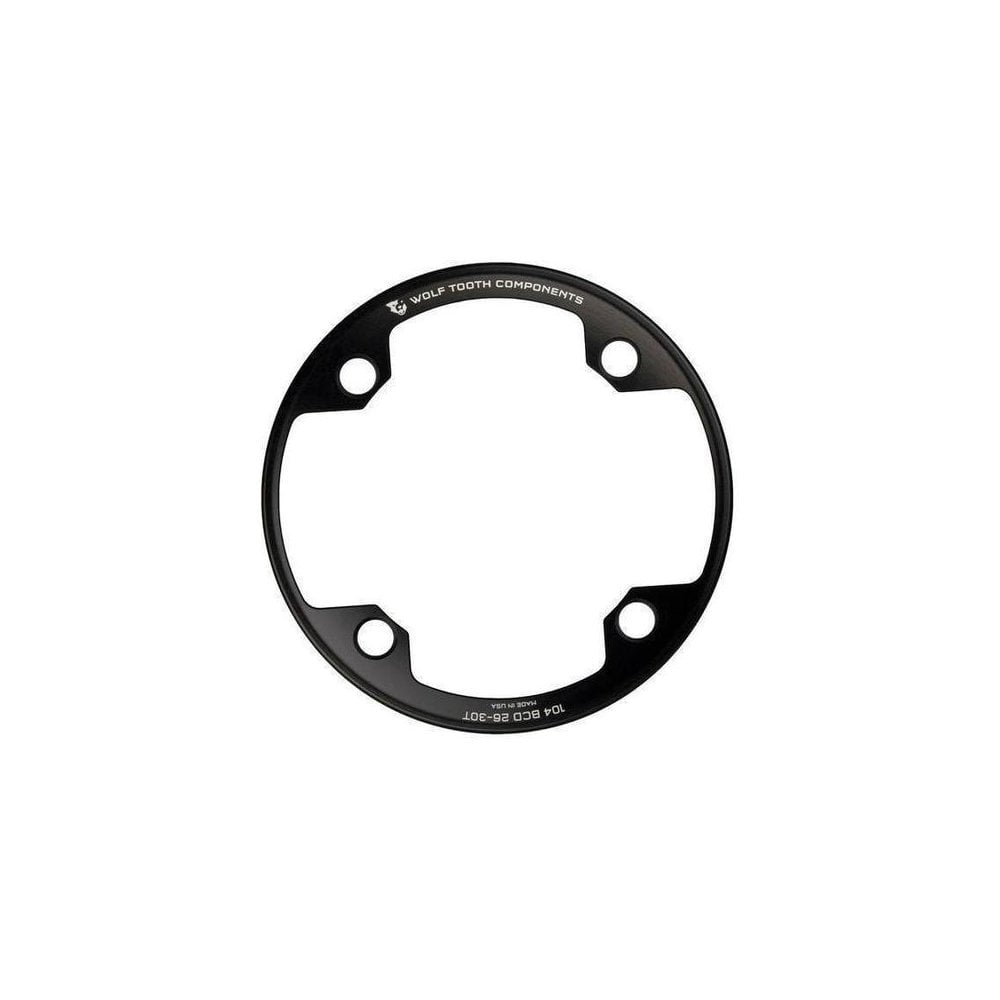

  • Wolf Tooth 104 BCD Bash Ring

Description

  • The Wolf Tooth 104 BCD Bash Ring is a sturdy, precision-machined protection ring that can be added to your crankset to protect high-end 104 or 64 BCD chainrings. It is available in two sizes for a wide range of chainring sizes.
  • Choose between a smaller 26-30t (132 mm diameter) and mid-sized 32t-34t (148 mm diameter) bash ring.
Compatibility
These are for use with 104 BCD chainrings or 64 BCD chainrings on 104 BCD cranksets.
Compatible with all triple 104 BCD cranksets and mount in the “big ring” position.
Compatible with double cranksets that have flat outfacing mounting tabs, like XTR M980. However, many 2x specific cranks, like Shimano XT M785, have a profiled outer surface on the mounting tab so our bash ring cannot be mounted on that non-flat surface.
These work great with the 104 BCD Elliptical 32t ring. They will work with the 34t as well, but at the max diameter, a few teeth will extend just beyond the bash ring.
Chainring bolt requirements for this bash ring:
104 x 30t - 10mm bolts are required for use with the bash ring.
Other 104 BCD sizes - you will need 8mm bolts (stock size that comes on 3x cranksets holding the middle and big rings on). Wolf Tooth does not make these.
When using with the 64 BCD you will need 6mm bolts to mount the bash ring.

Wolf Tooth 104 BCD Bash Ring

SKU: WTBR1042630 / Barcode: 812719021357
  • The Wolf Tooth 104 BCD Bash Ring is a sturdy, precision-machined protection ring that can be added to your crankset to protect high-end 104 or 64 BCD chainrings....
Regular price £44.00
Colour Black
Size 26-30T
In stock

90 Day Returns -

Description

  • The Wolf Tooth 104 BCD Bash Ring is a sturdy, precision-machined protection ring that can be added to your crankset to protect high-end 104 or 64 BCD chainrings. It is available in two sizes for a wide range of chainring sizes.
  • Choose between a smaller 26-30t (132 mm diameter) and mid-sized 32t-34t (148 mm diameter) bash ring.
Compatibility
These are for use with 104 BCD chainrings or 64 BCD chainrings on 104 BCD cranksets.
Compatible with all triple 104 BCD cranksets and mount in the “big ring” position.
Compatible with double cranksets that have flat outfacing mounting tabs, like XTR M980. However, many 2x specific cranks, like Shimano XT M785, have a profiled outer surface on the mounting tab so our bash ring cannot be mounted on that non-flat surface.
These work great with the 104 BCD Elliptical 32t ring. They will work with the 34t as well, but at the max diameter, a few teeth will extend just beyond the bash ring.
Chainring bolt requirements for this bash ring:
104 x 30t - 10mm bolts are required for use with the bash ring.
Other 104 BCD sizes - you will need 8mm bolts (stock size that comes on 3x cranksets holding the middle and big rings on). Wolf Tooth does not make these.
When using with the 64 BCD you will need 6mm bolts to mount the bash ring.
