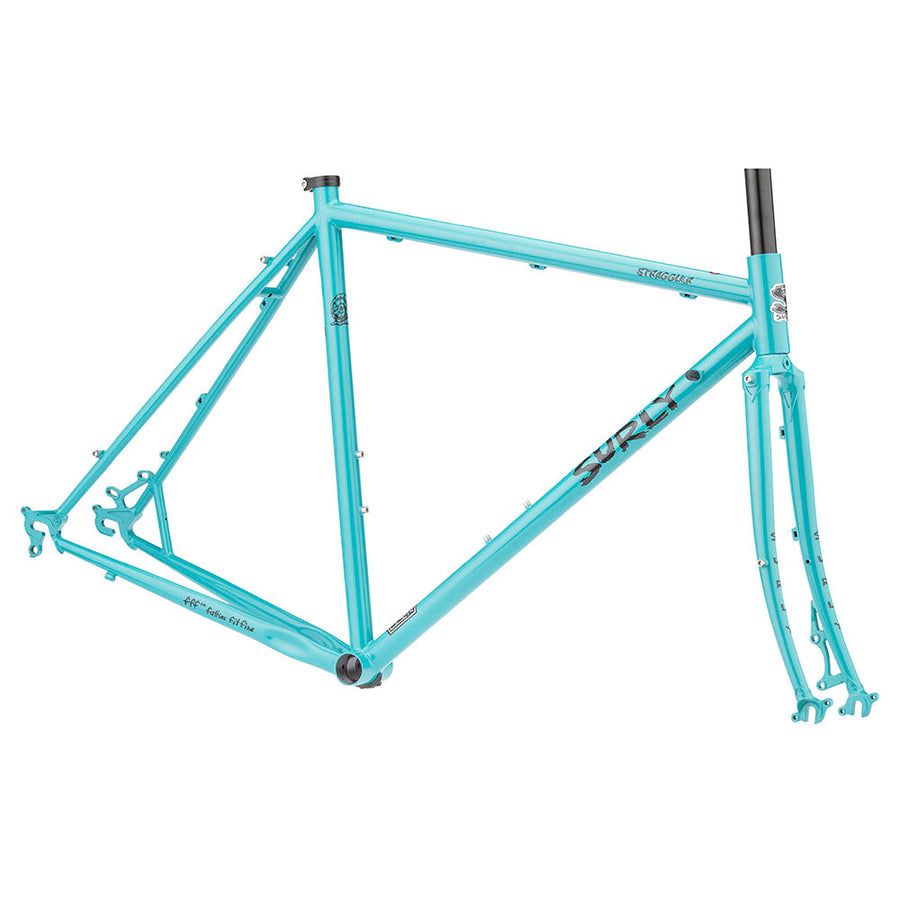

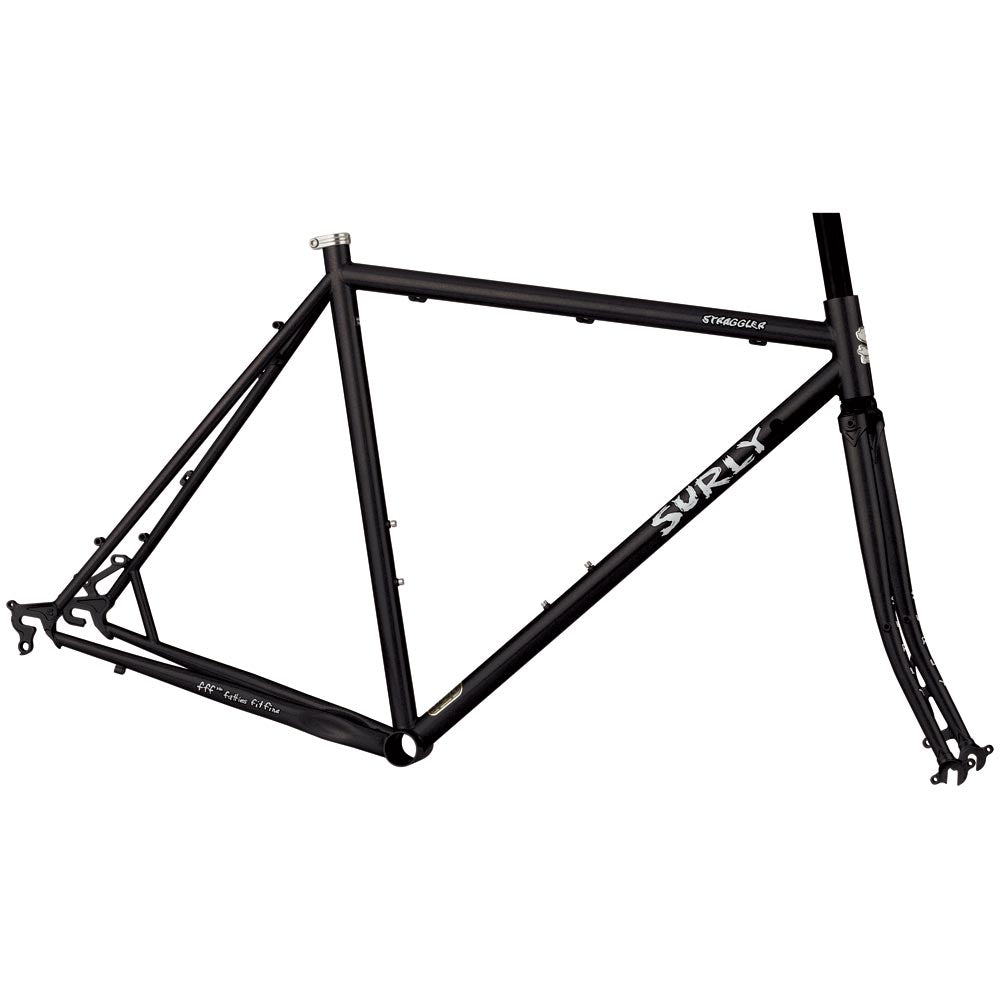

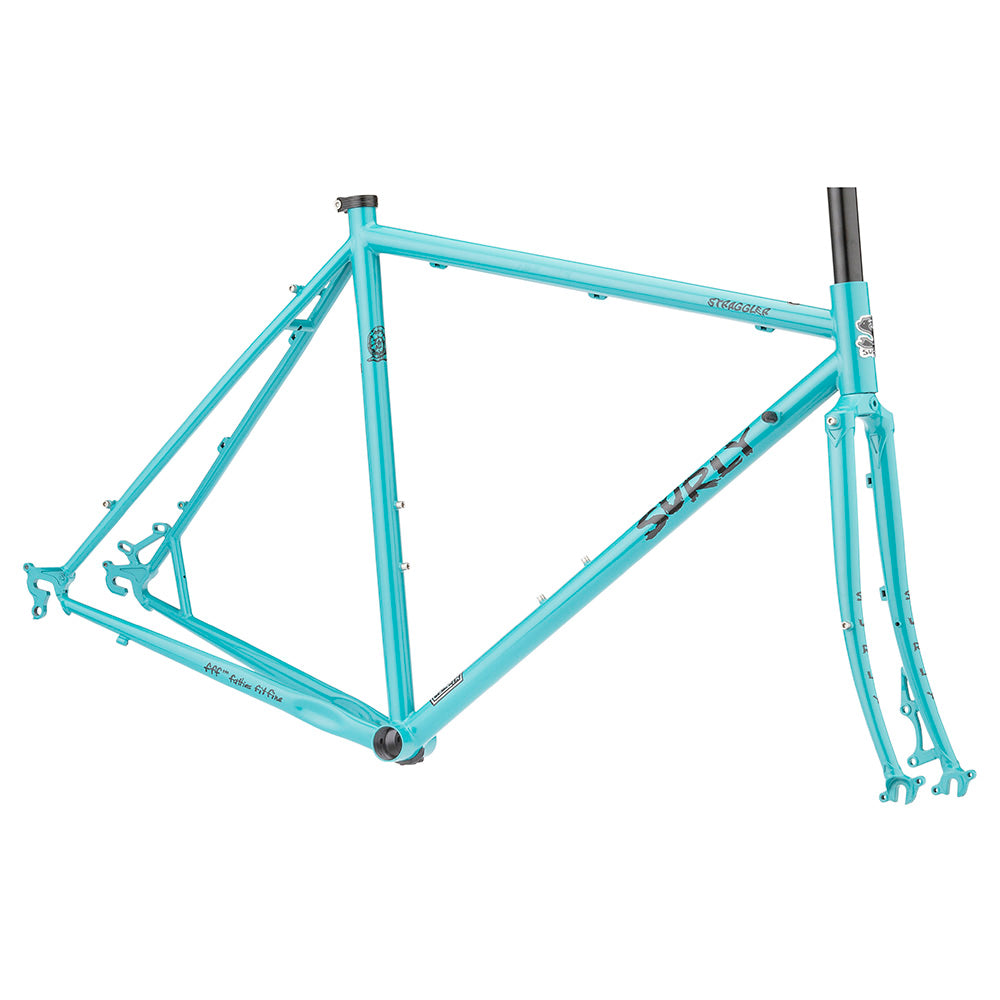

The Straggler is a steel gravel bike built for versatile exploration across all kinds of terrain, and this frameset is the base for building your own. It's ideal for day trips and weekend adventures, rough roads, cyclocross without the pressure of racing, city errands and light touring, blending the ruggedness of a mountain bike with the efficiency of a road bike.
It's also great for light touring, accommodating frame bags and seat packs for credit-card touring, with rack mounts when you need to carry more. Forward-exiting horizontal dropouts with adjusters give single-speed compatibility and wheelbase adjustability, and there's clearance for 650b x 42mm tyres with mudguards. The frame comes with a lugged and brazed 4130 CroMoly fork and is covered by a 3-year warranty. See the Surly sizing chart for reference.
Features
- Surly 4130 CroMoly frame and lugged, brazed fork
- Designed for 650b wheels with up to 42mm tyres and mudguards
- Forward-exiting horizontal dropouts for single speed and wheelbase adjustment
- Rack, mudguard and dual bottle mounts, plus down tube shifter mounts
- Disc brake only, up to 160mm rotors
- 3-year frame warranty
Specifications
DisciplineGravel /
Touring Material4130 CroMoly Steel
Wheel Size650b
Warranty3 years (frame)
Frame - 100% Surly 4130 CroMoly, ED coated, TIG welded, double-butted main triangle
Fork - 4130 CroMoly, disc only, lugged and brazed, tapered and butted curved blades, mid-blade rack eyelets
Rear Dropouts - Forward-exiting horizontal with adjusters, 135mm spacing
Brakes - Disc only, max 160mm rotor
Mounts - Front and rear rack, mudguard eyelets, dual bottle mounts, down tube shifter mounts
Seatpost - 27.2mm
Seat Clamp - 30.0mm, Surly stainless clamp included
Headset - 1 1/8" threadless
Front Derailleur Clamp - 28.6mm
Bottom Bracket - 68mm English threaded
Tyre Clearance - 650b x 42mm with mudguards
Weight - Frame 2.27kg (54cm), fork 1,050g (uncut)
