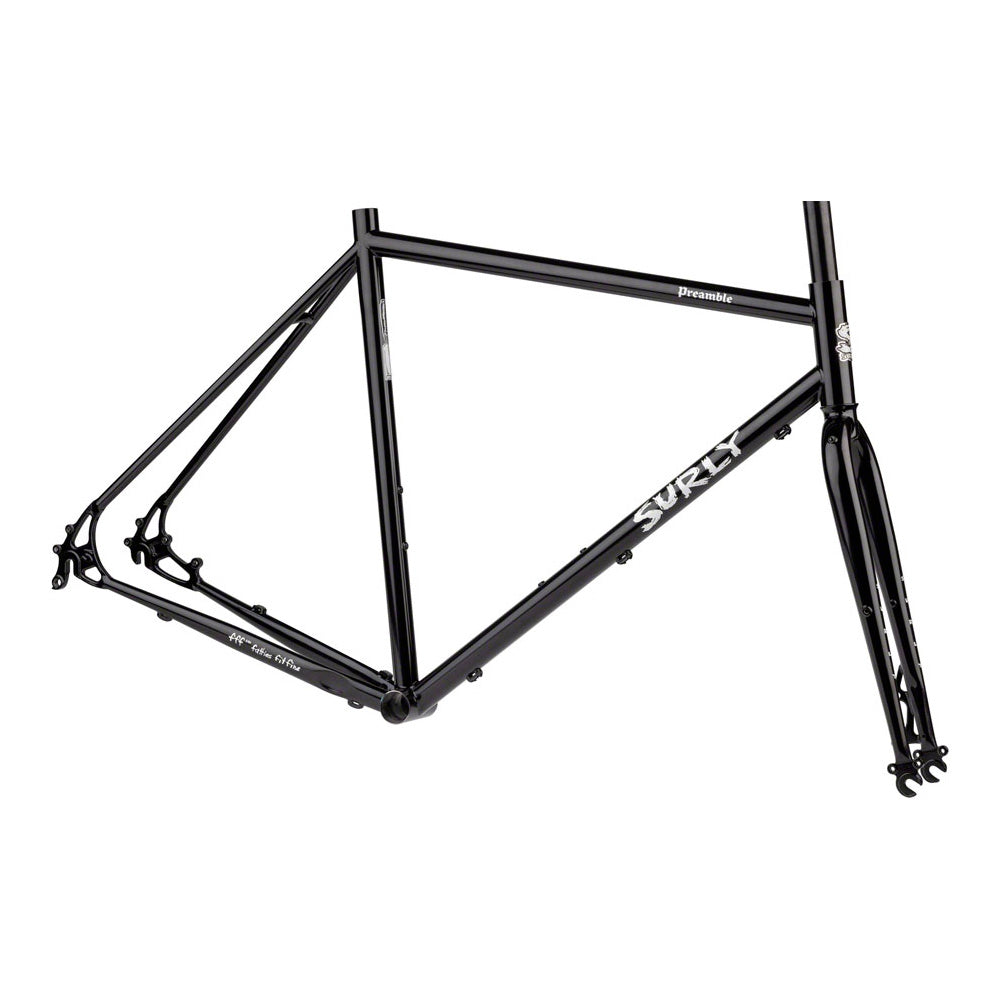

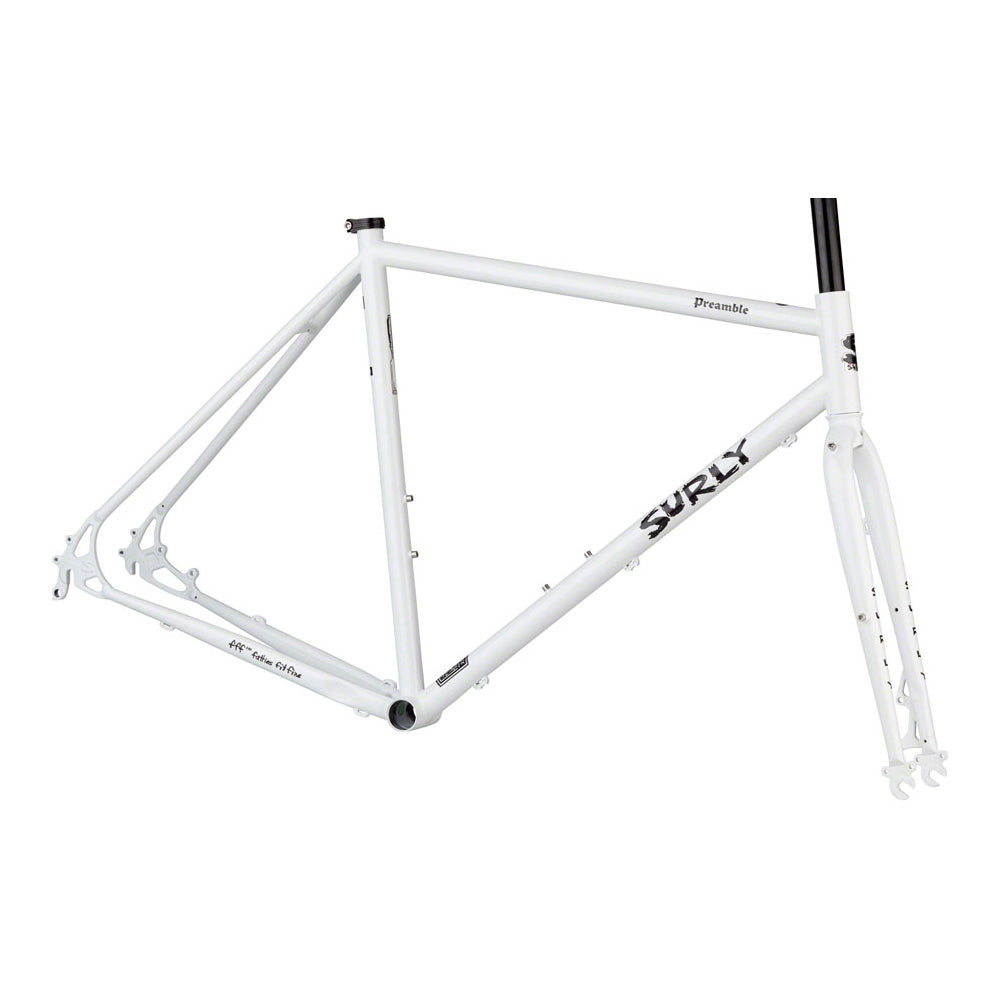

The Preamble frameset introduces riders to Surly's road and gravel range, showcasing the brand's essentials: durable custom steel tubing, a renowned ride feel and just the right mounts for racks, mudguards and bottle cages. It's an ideal base for building a tough, comfortable commuter or weekend bike.
It works with flat or drop bars, is disc-brake specific and shares its single-position vertical dropout with the Surly Bridge Club. XS and S frames have sloping top tubes for improved standover and are designed for 650b wheels, while M to XL use 700c. See the Surly sizing chart for reference, and contact us at support@biketart.com to discuss components or to arrange a full custom build.
Features
- 100% chromoly steel frame and disc-only fork
- Flat-bar or drop-bar compatible
- Sloping top tube on XS and S for better standover
- Size-specific wheels: 650b (XS-S), 700c (M-XL)
- Custom-cast single-position vertical dropout
- Fork crown and mid-blade rack mounts plus mudguard mounts
Specifications
DisciplineRoad /
Gravel / Commute MaterialChromoly Steel
Wheel Size700c (XS-S 650b)
Frame - Surly Preamble, 100% chromoly steel tubing, ED coated
Fork - Surly Preamble, 100% chromoly steel, disc only
Headset Standard - EC34 upper and lower
Seatpost - 27.2mm
Seat Clamp - 30.0mm
Bottom Bracket - 68mm BSA threaded
Front Hub Spacing - 10x100mm
Rear Hub Spacing - 10x138mm
Frame Tyre Clearance - XS-S 650b x 41mm / M-XL 700c x 41mm, with or without mudguards
Fork Tyre Clearance - 38mm with mudguards, 41mm without
