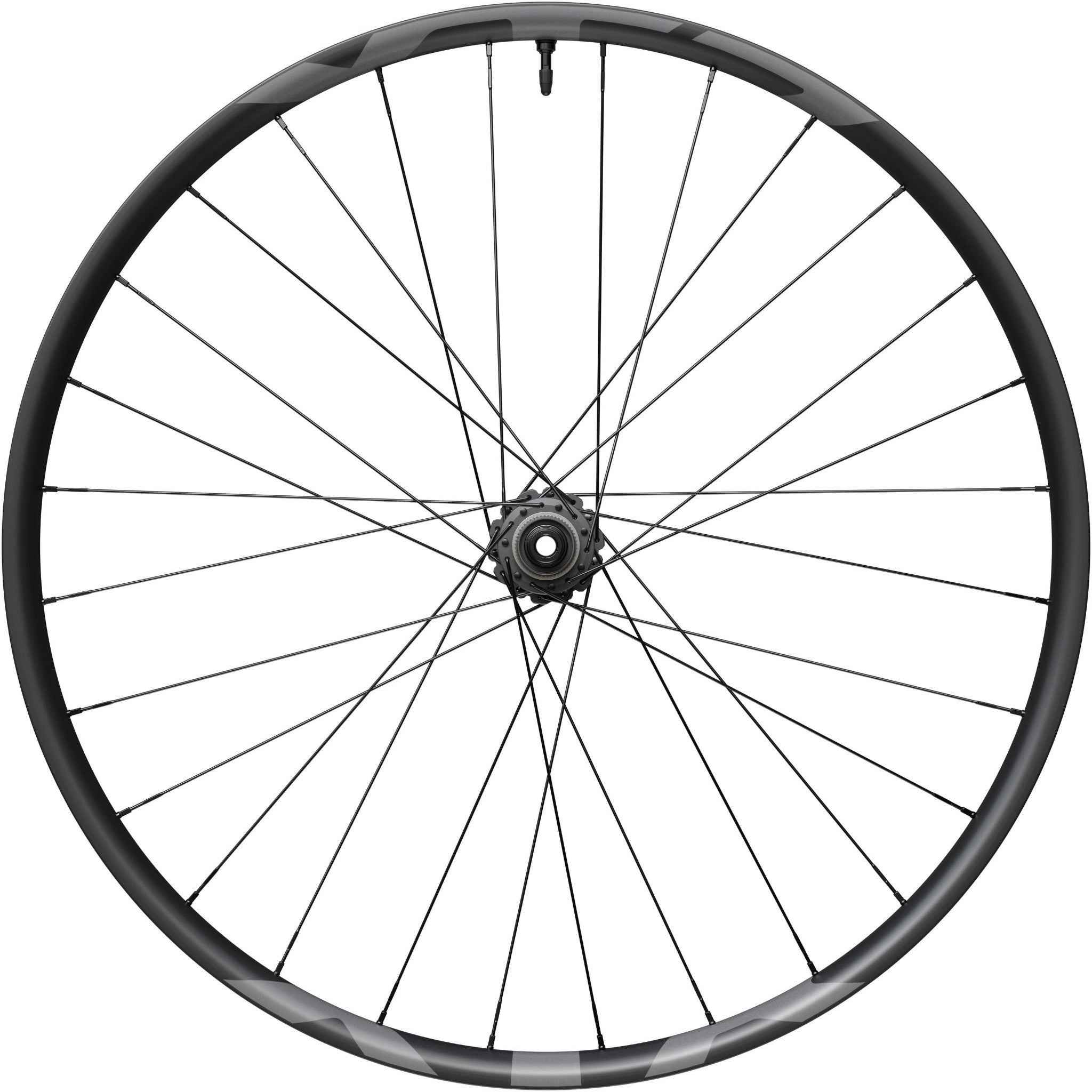

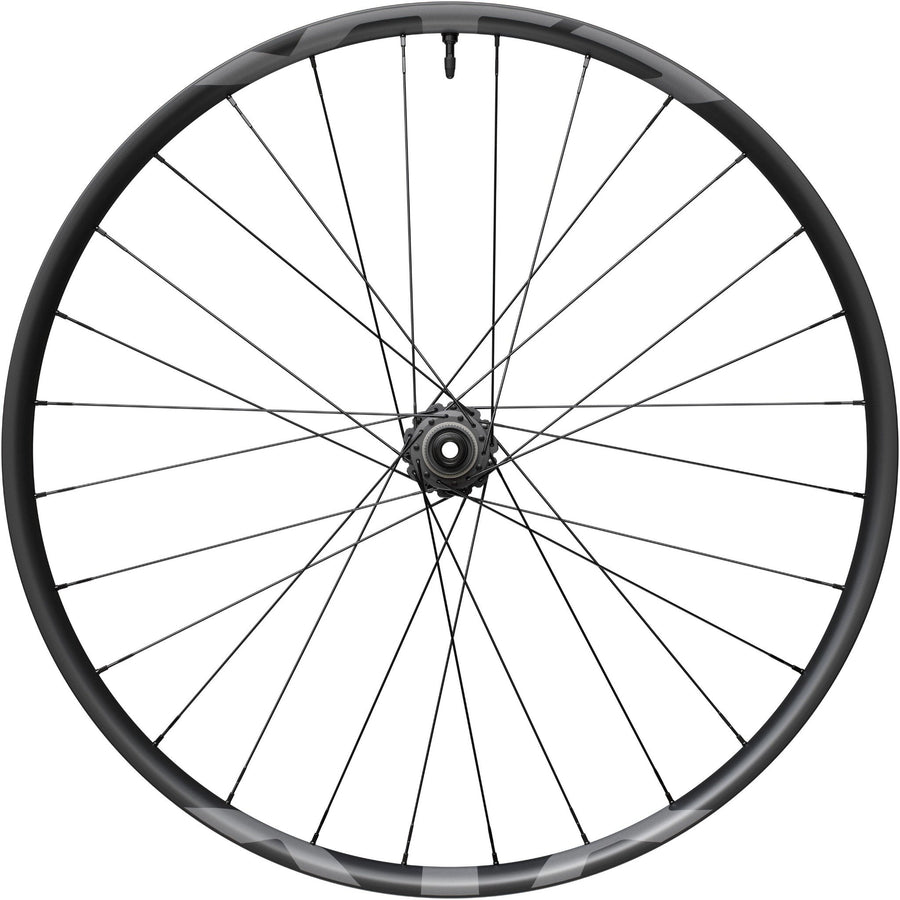

Built with the Enduro World Series racing and serviceability in mind, the Shimano XTR M9220 29er Rear Wheel is Shimano’s beefiest full-carbon wheel offering yet.

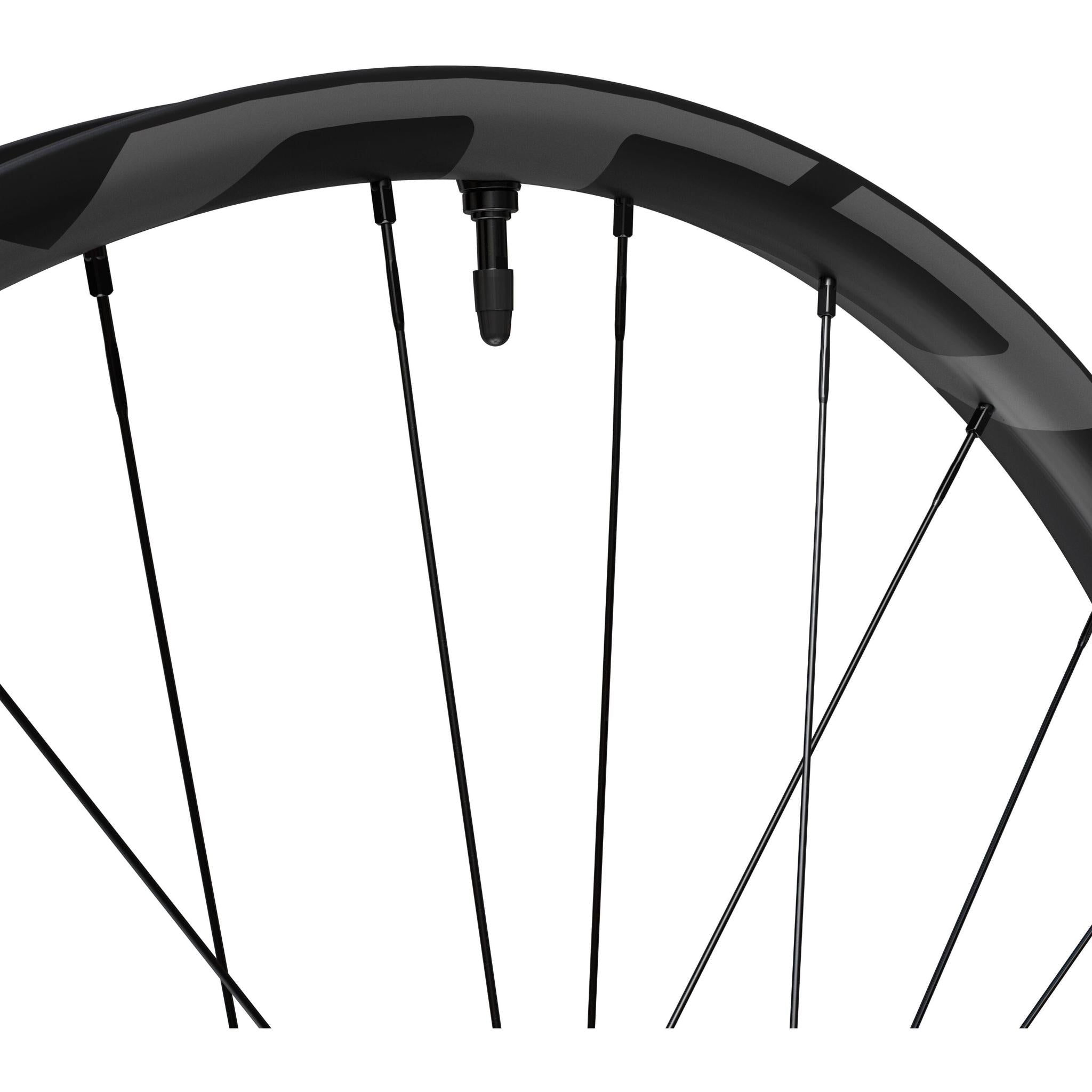

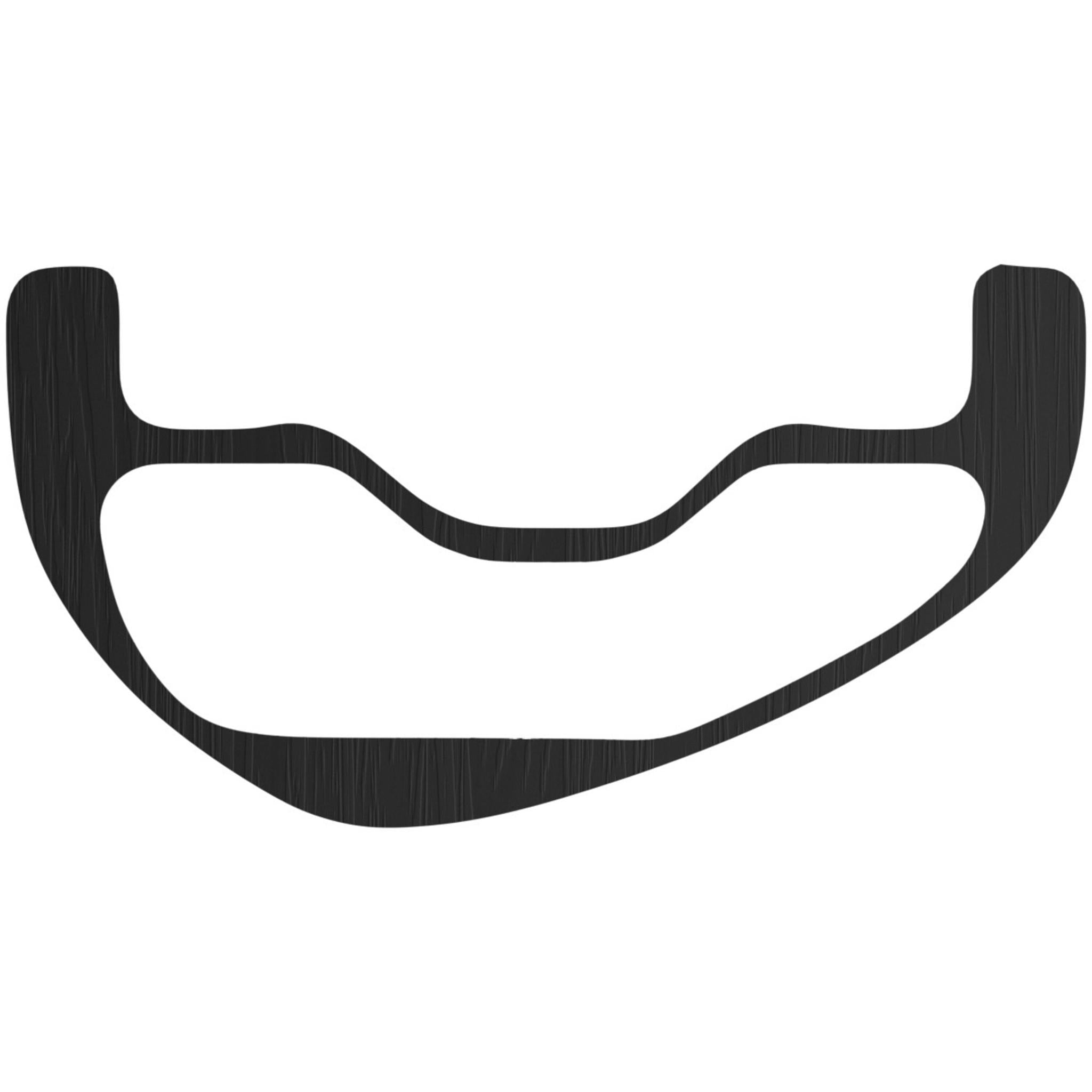

Equipped with a hookless 30 mm carbon rim, all-new XTR hubs and traditional 28H stainless steel J-Bend spokes, the WH-M9220 is built to survive and easy to repair if things go wrong.

Features:

Quicker Engagement/Less Drag: A 3.5-degree engagement angle makes FH-M9210-B fast off the line, while smart seal design and smooth bearings mean less drag while coasting.

Conventional Drilling/Boost Spacing: Available in conventional 29-inch, 148x12 rear hub boost spacing and traditional 28H drilling option.

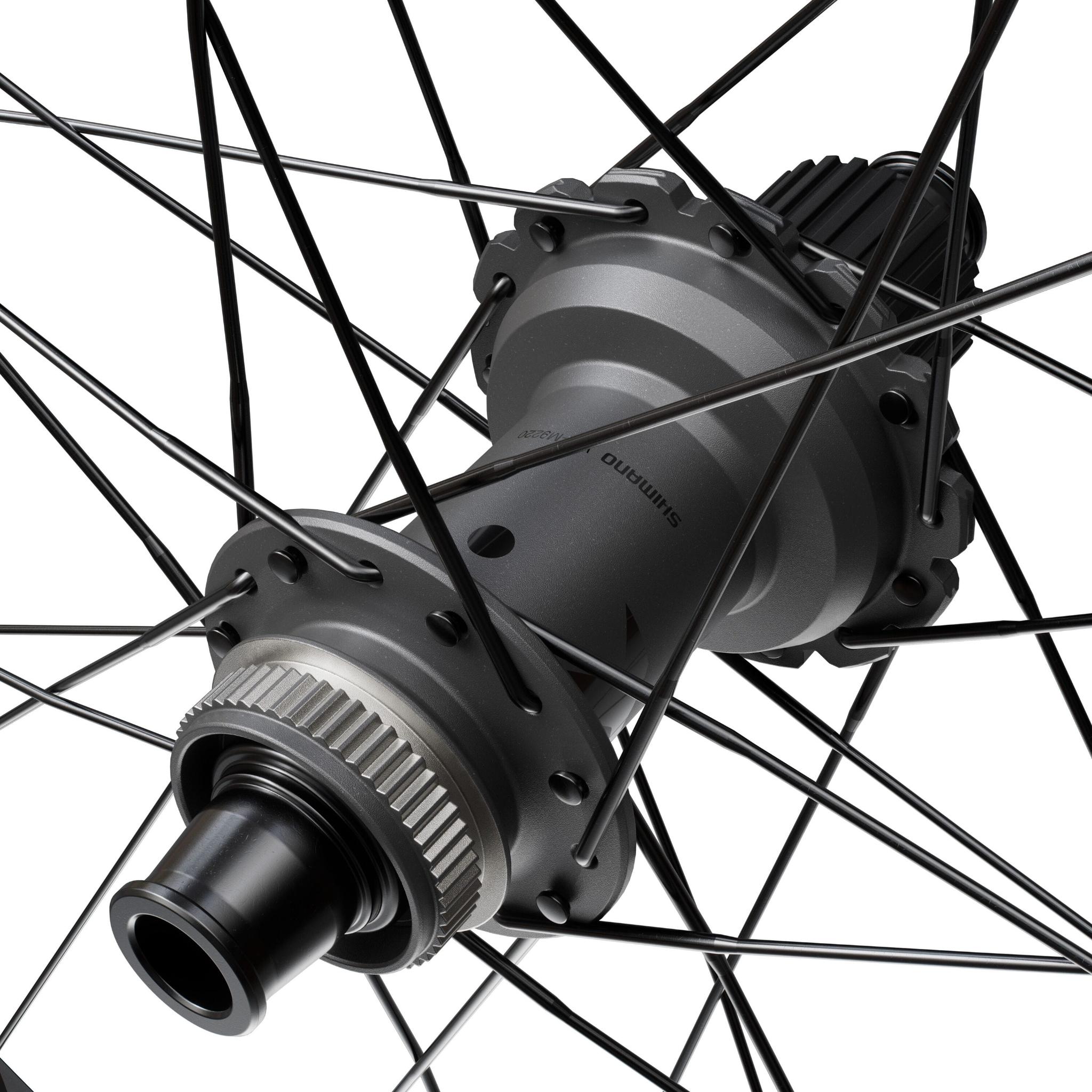

Cartridge Bearings: XTR hubs are now available with easily serviceable stainless steel cartridge bearings.

Rotation: Cartridge bearings, optimized seal designs and preload adjust keep the hub consistently rolling smoothly.

Specifications:

• Series XTR
• Model name WH-M9220-TL
• Brake type - CENTER LOCK disc brake
• Rear speeds - 12
• O.L.D. (mm) - 148
• Wheel size - 622 x 30TSS (29 inch)
• Type - Tubeless ready
• Recommended size 29 x 2.30 - 2.60
• Height (mm) 19.7
• Internal width (mm) 30
• External width (mm) 38
• Offset Rim
• Spoke type J-bend
• Diameter (mm) 2.0-1.6
• Spline type MICROSPLINE
