Description

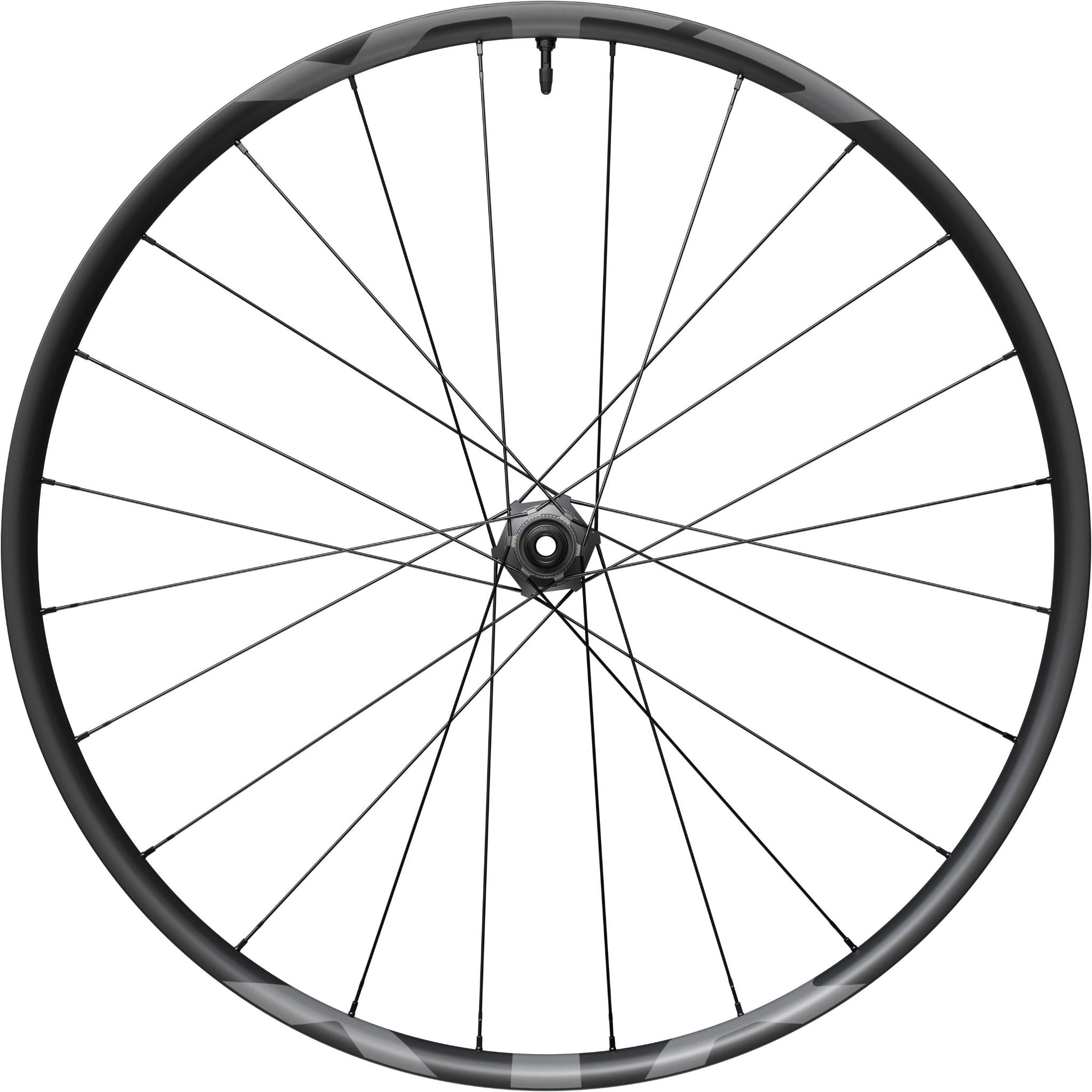

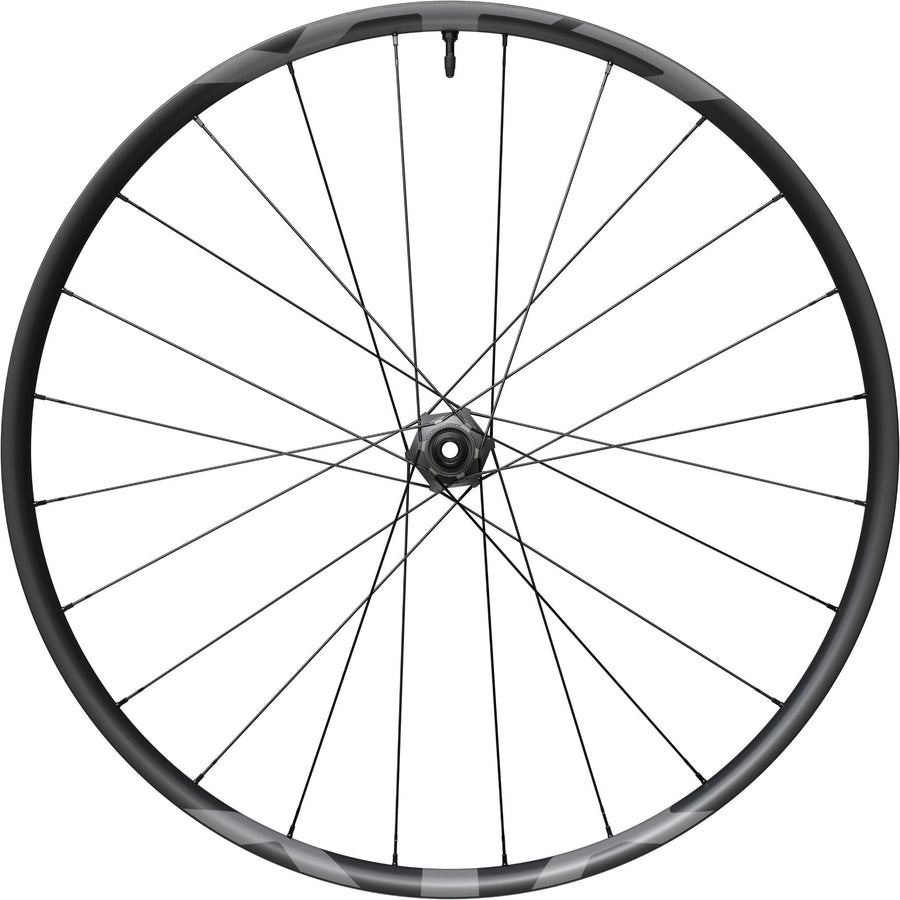

The Shimano XTR M9200 29er Rear Wheel is a featherweight wheel designed for the XC racer (or racer at heart), built around Shimano’s lightest-ever carbon tubeless 29.6 mm hooked rim, laced with titanium straight spokes, and spinning on more reliable, higher-performing XTR hubs.
Along with being the lightest production ever produced in the XTR family, WH-M9200 wheels also feature Center-lock brake mounts and MICRO SPLINE to complete the full XC package.
Features:

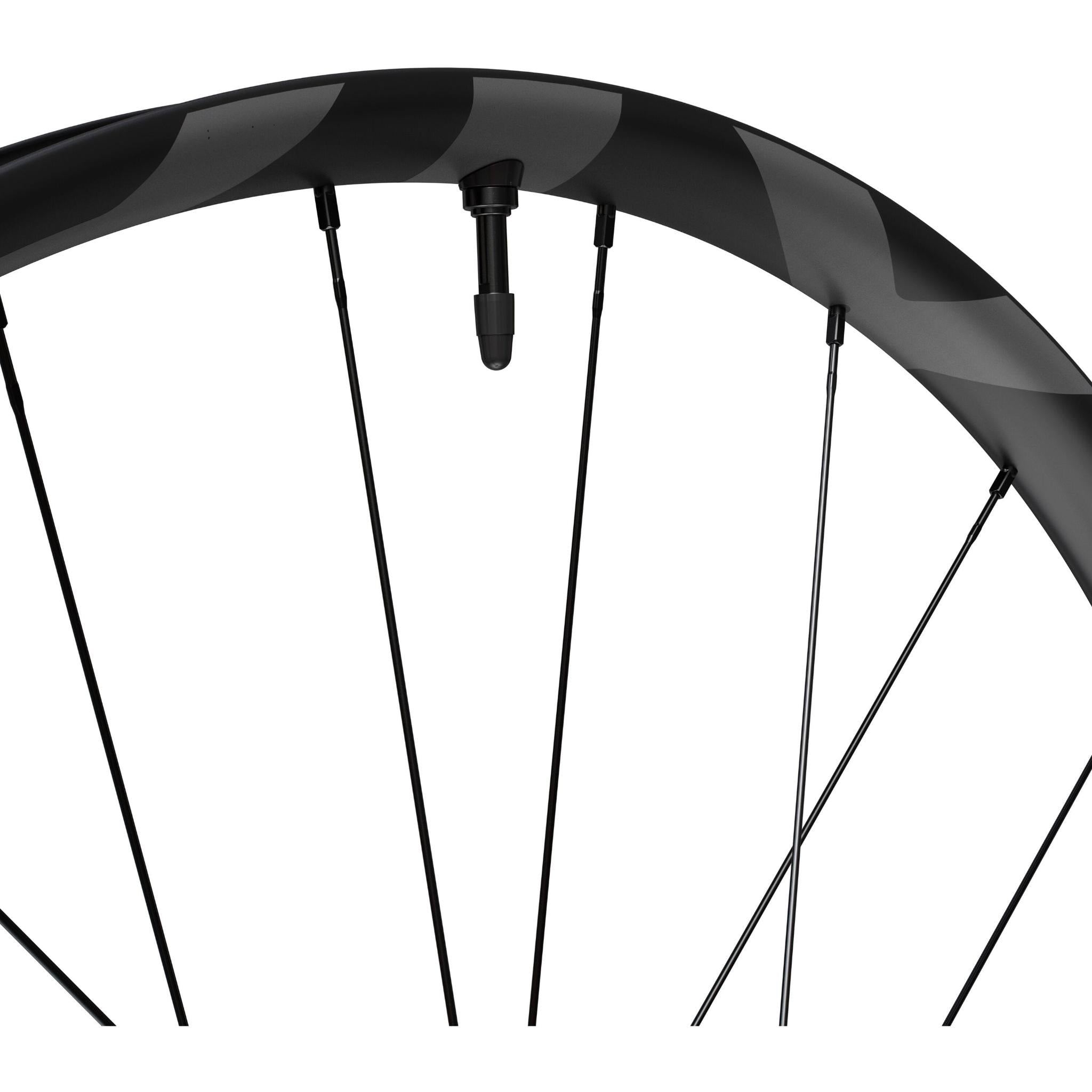

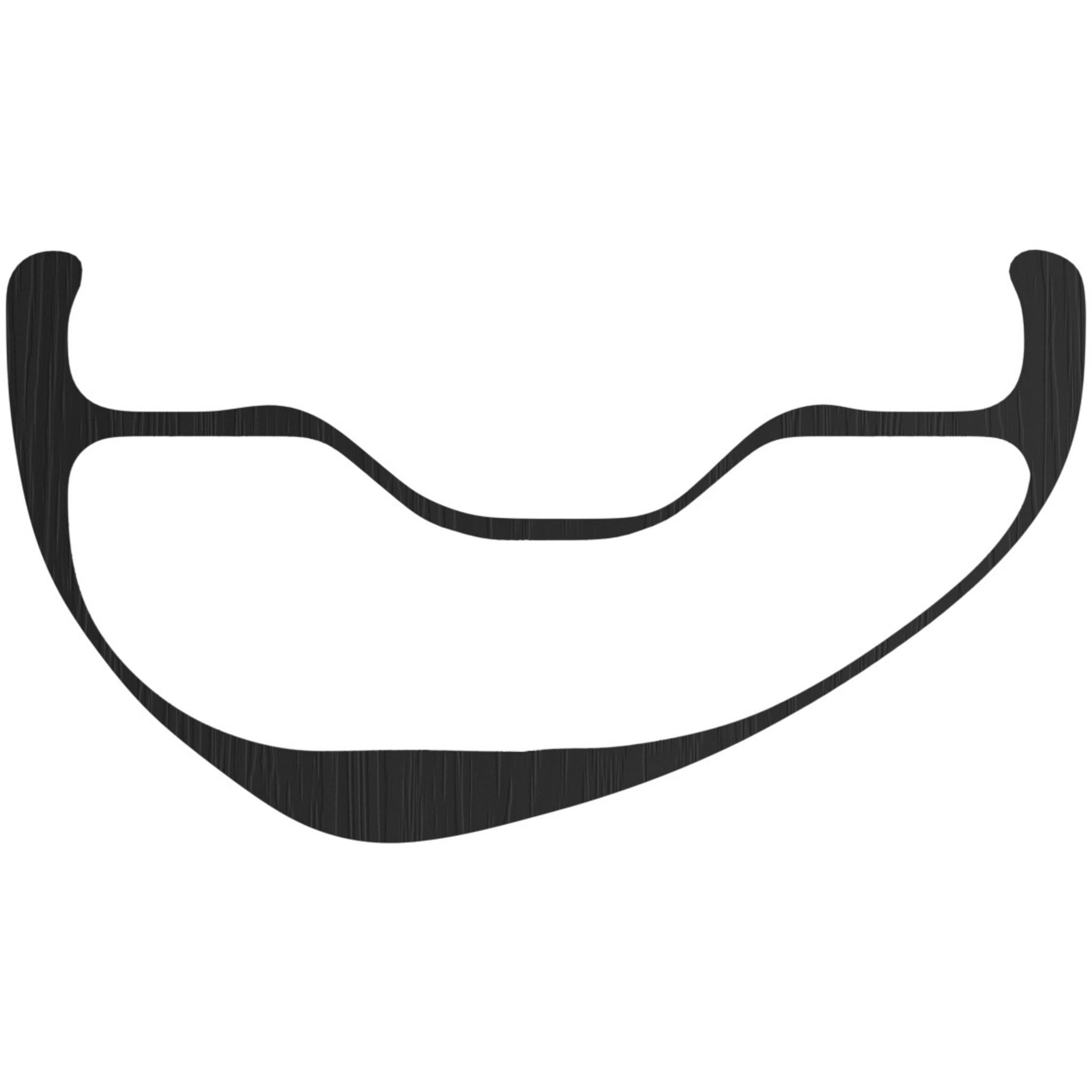

Carbon Rim: 29.6 mm full-carbon rim keeps the wheel light but robust enough for high-level XC racing.
Titanium Spokes/24H Straight-laced: 29-inch rims, 148x12 rear hub boost spacing and titanium spokes balance weight and strength.

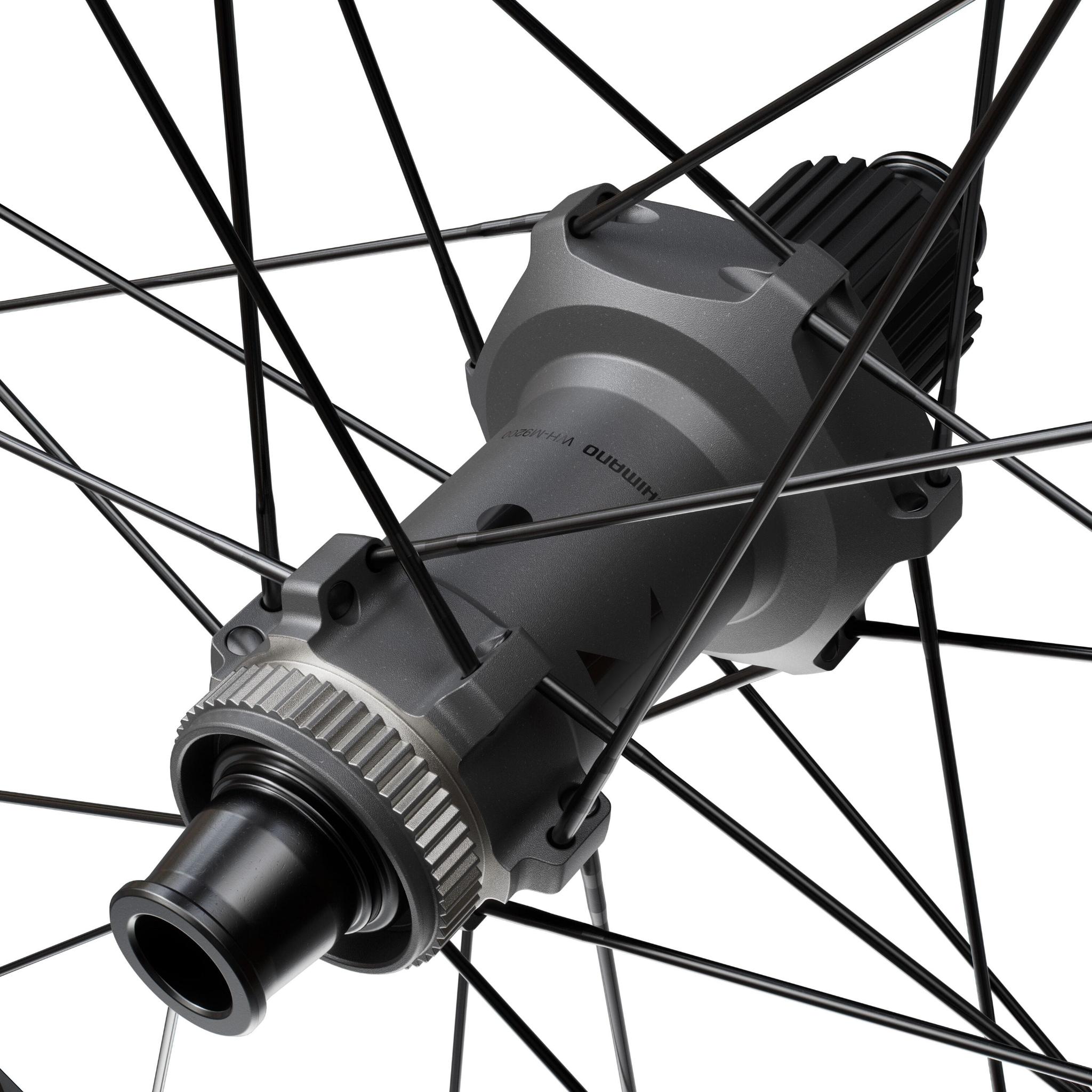

Quicker Engagement/Less Drag: A 3.5-degree engagement angle makes the FH-M9210-B fast off the line, while smart seal design and smooth bearings mean less drag when coasting.
Cartridge Bearings: XTR hubs are now available with easily serviceable cartridge bearings.
Rotation: Cartridge bearings, optimized seal designs and preload adjust keep the hub consistently rolling smoothly.
Specifications:
- Series XTR
- Brake type CENTER LOCK disc brake
- Rear speeds 12
- O.L.D. (mm) 148
- 622 x 29.6TC (29 inch)
- Tubeless ready
- Recommended size 29 x 2.20 - 2.60
- Height (mm) 19.2
- Internal width (mm) 29.6
- External width (mm) 35
- OFFSET RIM
- Spokes 24H Straight pull
- Diameter (mm) 2.2-2.0-1.7-2.0
- Spline type MICRO SPLINE
- Direct engagement & Quick engagement
- Hub Seal Labyrinth+Contact
- FREEHUB body Seal Labyrinth+Contact
