Built for the rigors of the Enduro World Series racing, the Shimano XTR FC-M9220 12-Speed Crankset is the strongest XTR crankset ever produced. HOLLOWTECH II forging and a thicker steel spindle ensure this crank survives the burliest of impacts while optimizing rigidity and weight.

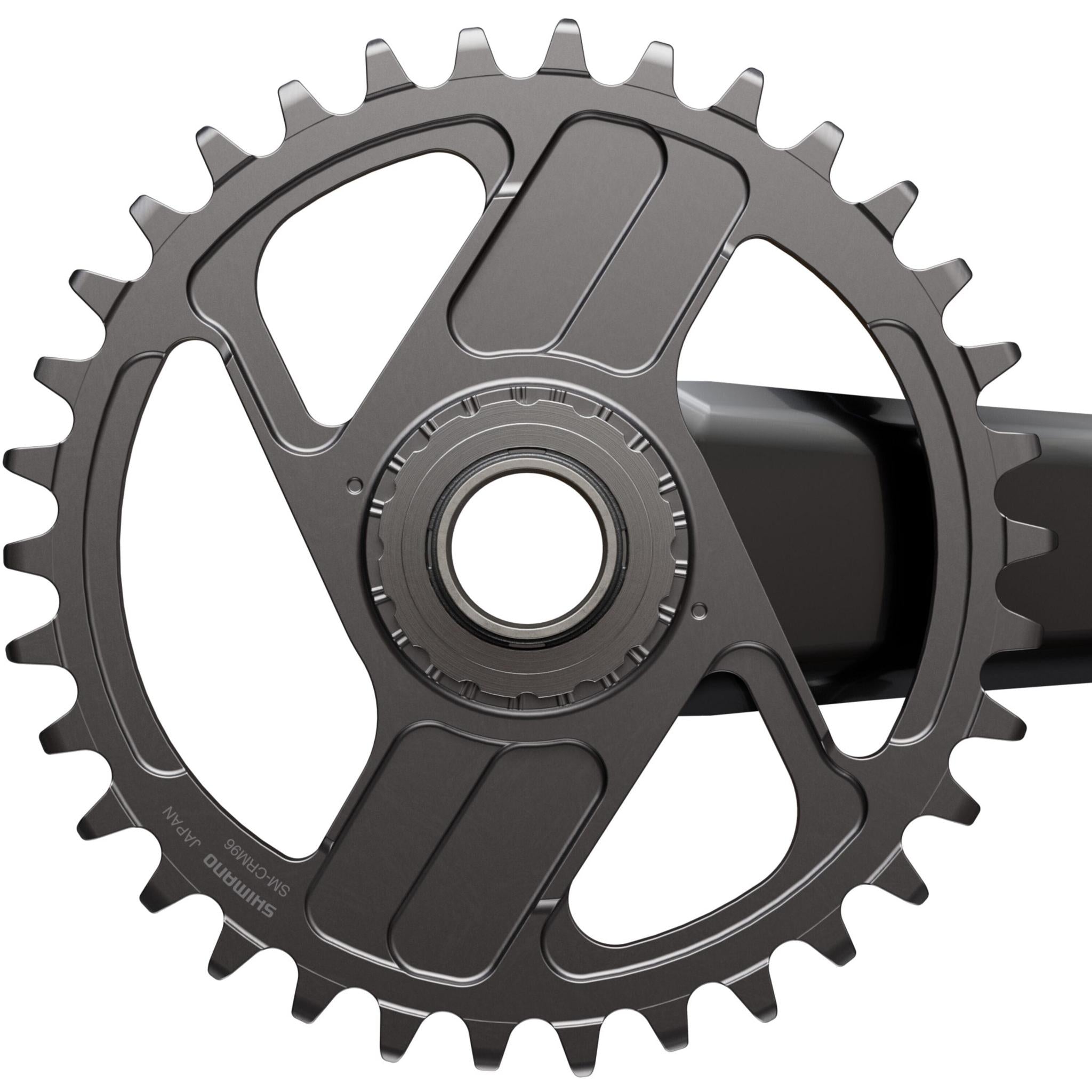

Offered in lengths from 160-175 mm and with all sizes of the reinforced SM-CR96 direct-mount chainring, there is a specification of FC-M9220 for every enduro rider.

Features:

Enduro Specific Spindle: A thicker enduro-specific spindle raises the mark for durability and big-hit survivability.

HOLLOWTECH II: Shimano’s forging provides optimal weight, stiffness and rigidity for enduro riding and racing.

Q Factor/Chain Line: An enduro-optimized Q Factor brings race-feel familiarity, while a 55 mm chain line offers wide frame compatibility.

Compatibility: M9220 cranks come standard with a 24 mm spindle and are compatible with Shimano’s Threaded and Press Fit bottom brackets.

Specifications:

• Series XTR
• Rear speeds 12
• Compatible chain HG 12-speed
• Chain line (mm) 55
• O.L.D. Thru (mm) 148
• P.C.D. (mm) Direct
• Chainring combination 28T, 30T, 32T, 34T
• Q-factor (mm) 176
• Crank arm length (mm)160, 165, 170 and 175mm
• Optional chain guard
• Without chain/bash guard
• HOLLOWTECH II
• Recommended bottom bracket Threaded (normal) SM-BB93 Press-Fit SM-BB94-41A
