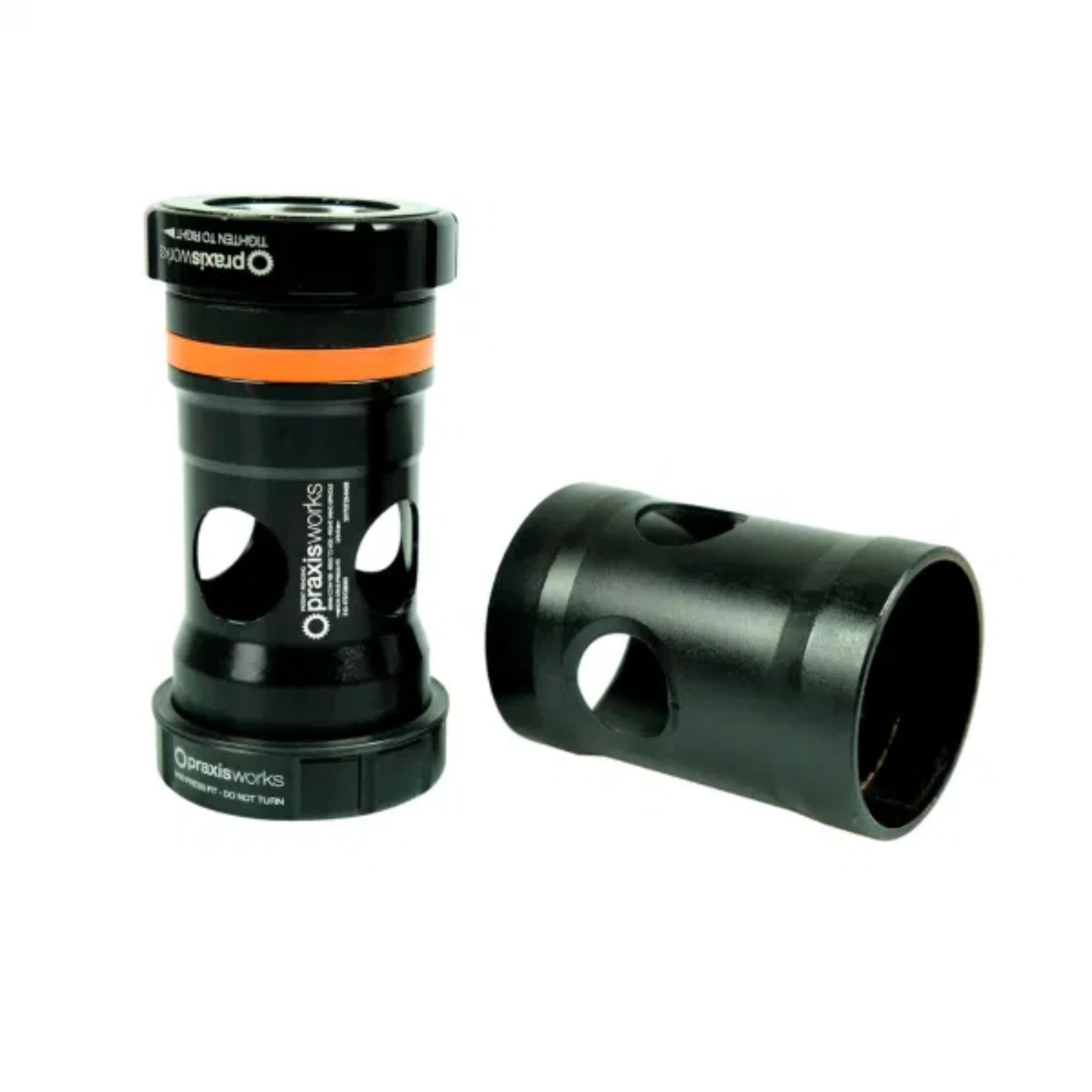

Praxis M30 Bottom Bracket Converter – BB30 / PF30 MTB

The Praxis Works M30 bottom bracket converter allows installation of Praxis M30 cranks (30/28mm stepped spindle) into BB30 or PF30 MTB frames. High-grade Enduro 2437 sealed cartridge bearings deliver smooth performance and long service life. The patent-pending outboard bearing design positions the bearings outside the frame for increased rigidity and eliminates tolerance issues found in other conversion bottom brackets.

Features

• Designed for M30 spindle-based cranks only

• 30mm drive / 28mm non-drive bearing configuration

• Patent-pending outboard bearing design

• Collet expansion system for secure press-fit installation

• Non-drive O-ring compensates for frame shell width variations

Compatibility

• BB30 / PF30 MTB frames

• 73mm MTB version

• Not compatible with: BBRight, 386EVO, Cannondale BB30A / PF30A, Specialized OSBB Aluminium frames

• Frame shells must be free of internal obstructions

• 73mm MTB version cannot be used with road cranks

• Praxis M30 BB tool required (sold separately)

• MTB guides: ISCG05 – Compatible, ST Mounted – Compatible, ISCG03 – Not compatible

Specifications

• Crank compatibility: Praxis M30 spindle cranks

• Frame compatibility: BB30 / PF30 MTB frames

• Bearings: Enduro 2437 ceramic cartridge bearings

• Material: Forged & machined 7075-T6 aluminium cups

• Shell width: 73mm MTB
