The Loam Pedal Gen 3 is PNW's flagship alloy flat pedal, built to give you the locked-in feel of a clipless pedal without ever having to clip out. It keeps the cradling platform and Tectonic pin system that made the Loam such a popular pedal, and pairs them with a completely redesigned axle system that's stronger and easier to look after.
The new axle is SNCM220 alloy steel and spins on two sealed cartridge bearings and an oversized bushing, which keep it turning freely while shedding trail grime. The whole pedal has passed EFBE's Tri-Test E-Gravity certification, the testing standard for downhill and e-bike use, so it's happy being ridden hard on any bike in your shed.
Grip comes from PNW's patented Tectonic pins. Each stainless steel pin works on both sides of the platform, which means fewer holes in the body and fewer pins to look after, and each one is held in by an outboard set screw, so swapping out a damaged pin takes moments rather than a battle with a seized thread. The body is extruded, CNC machined, anodised and laser etched, measuring 115 x 109mm with a thin 14mm centre that rises to 17mm over the axle.
Features
- Redesigned, serviceable axle system
- EFBE Tri-Test E-Gravity certified, suitable for DH and e-bike use
- Two sealed cartridge bearings and an oversized bushing
- Patented stainless steel Tectonic pins, retained by outboard set screws for quick replacement
- Cradling platform for a planted, connected feel
- Extruded, CNC-machined, anodised and laser-etched aluminium body
- Spare parts pack included: 2 Tectonic pins, 2 set screws and 2 pedal washers
- PNW lifetime warranty
Specification
- Platform: 115mm long x 109mm wide
- Thickness: 14mm centre, 15.5mm front and rear, 17mm over the axle
- Body: Aluminium, extruded and CNC machined
- Axle: SNCM220 alloy steel
- Bearings (per pedal): 2 sealed cartridge bearings, 1 oversized bushing
- Pins: Stainless steel (SUS 630) Tectonic and threaded cylinder pins, 12 per pedal
- Certification: EFBE Tri-Test E-Gravity
- Axle nut: 5mm hex, 5-6Nm
- Weight: 440g per pair

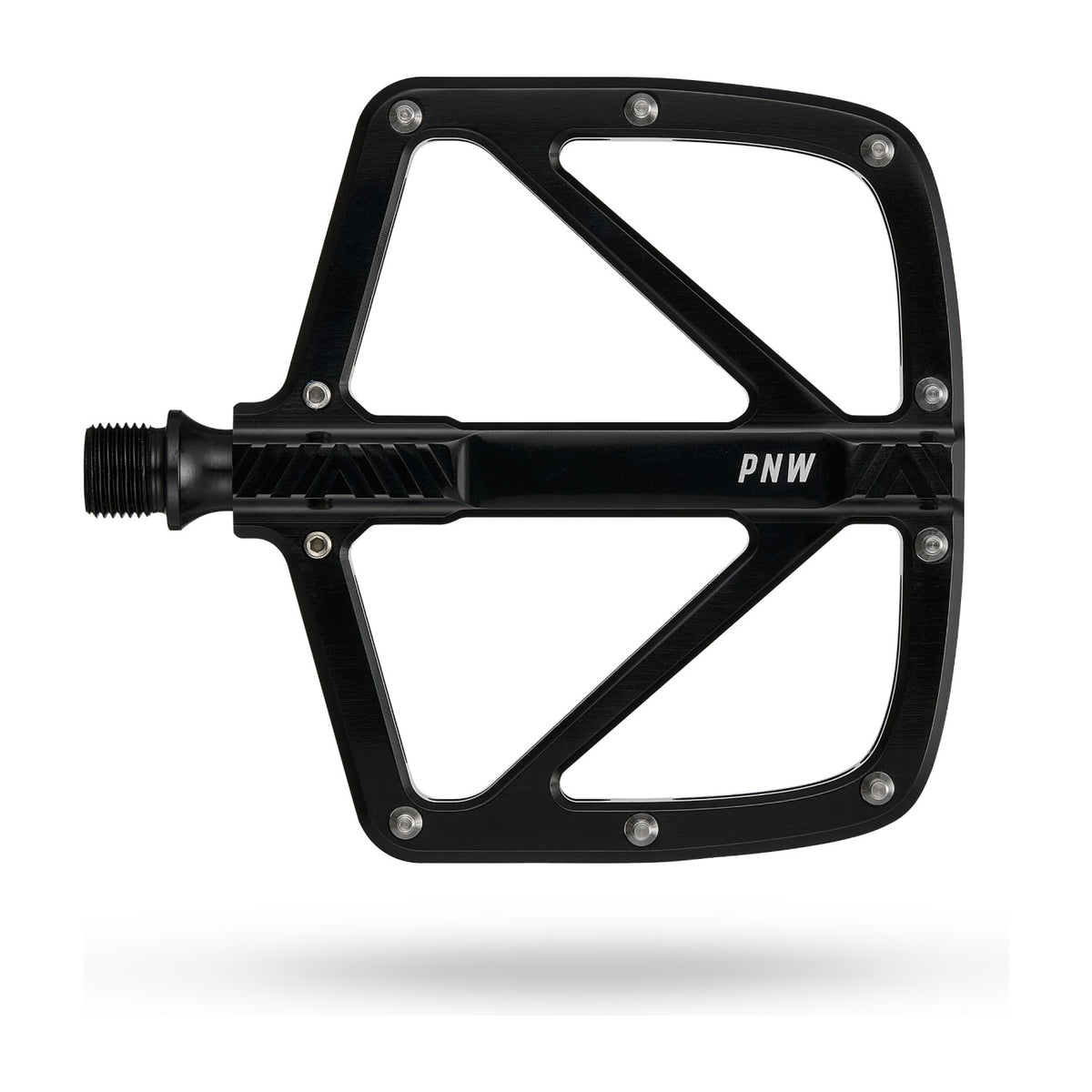

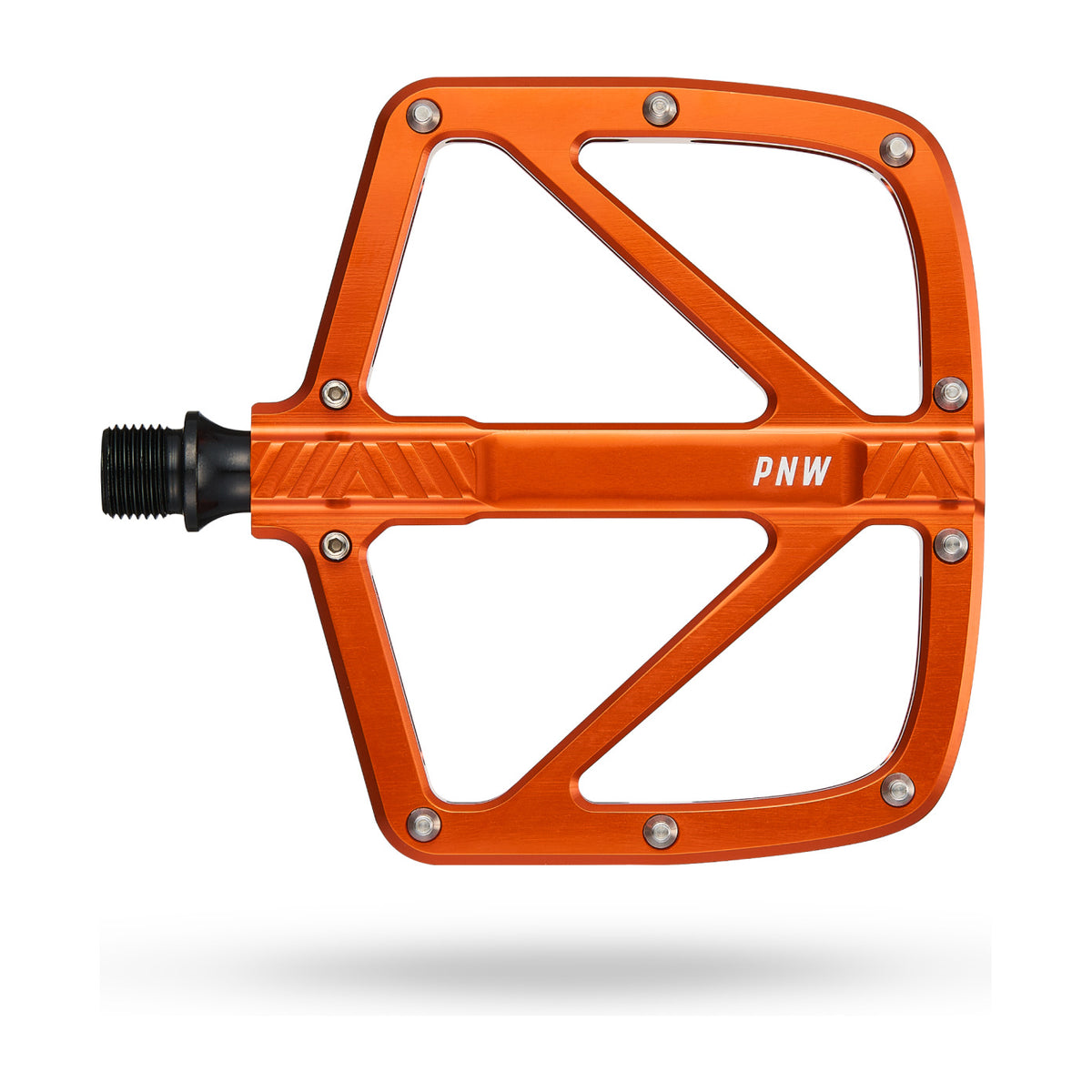

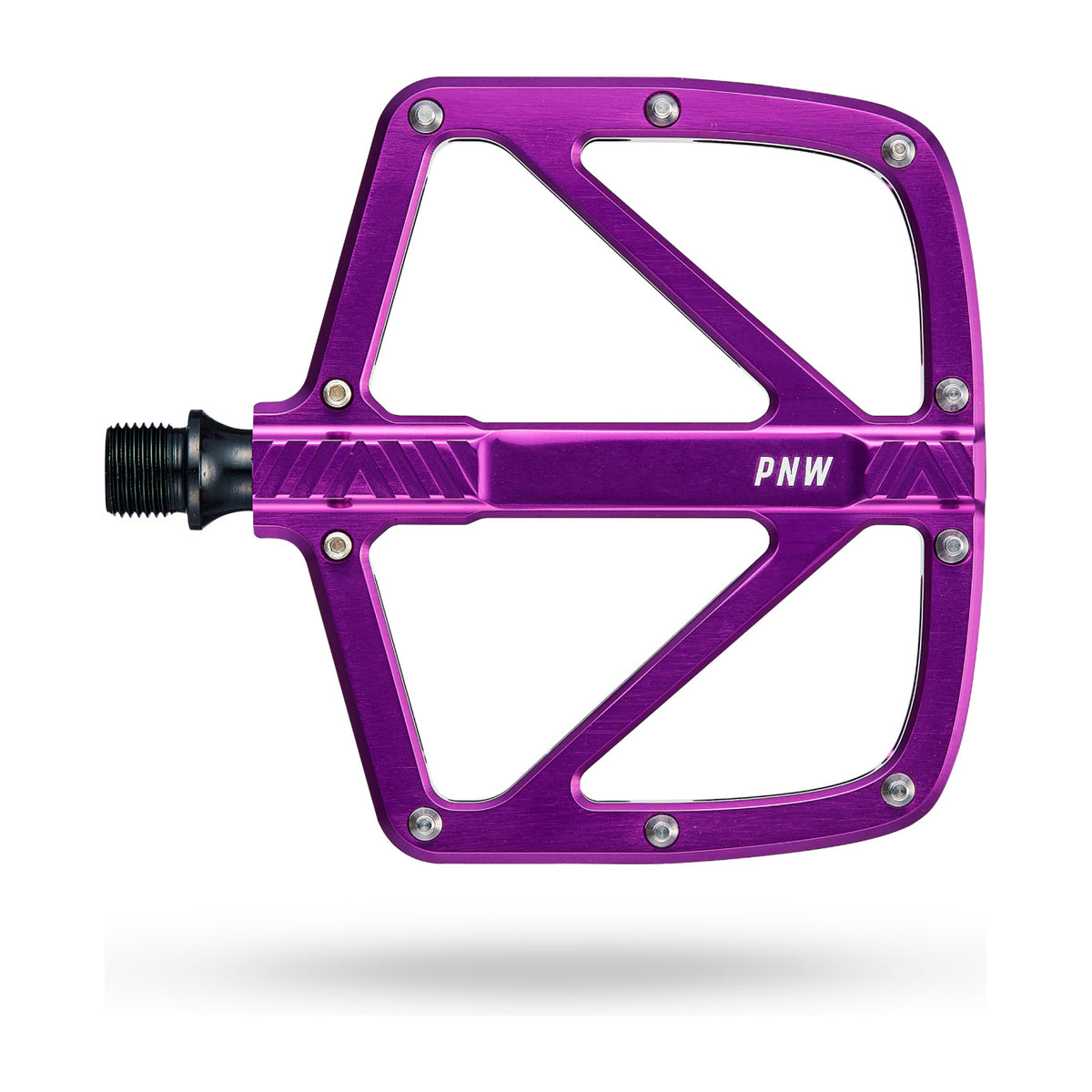

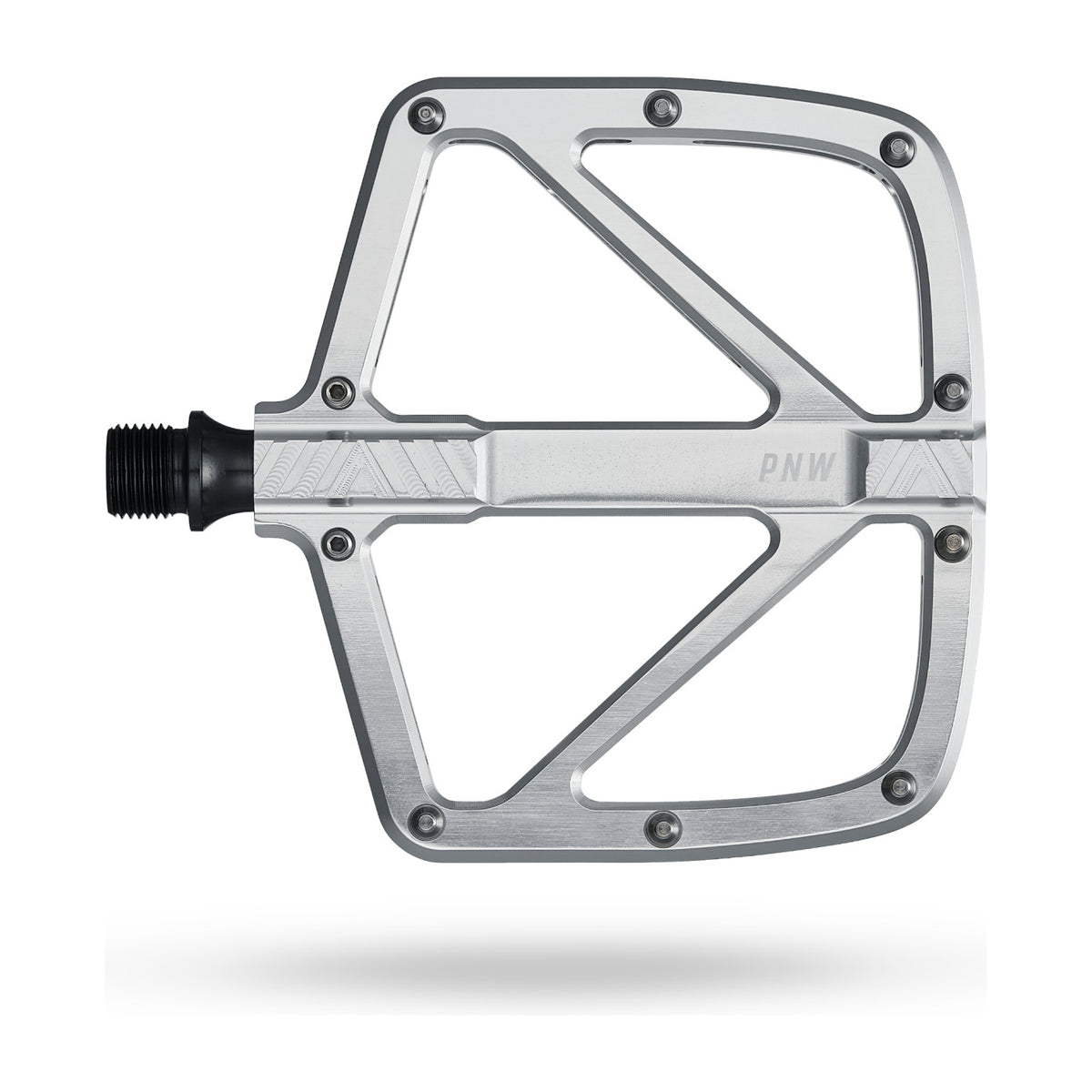

- Colours: Blackout Black, Blood Orange, Fruit Snacks, Moss Green, Lightning Silver
