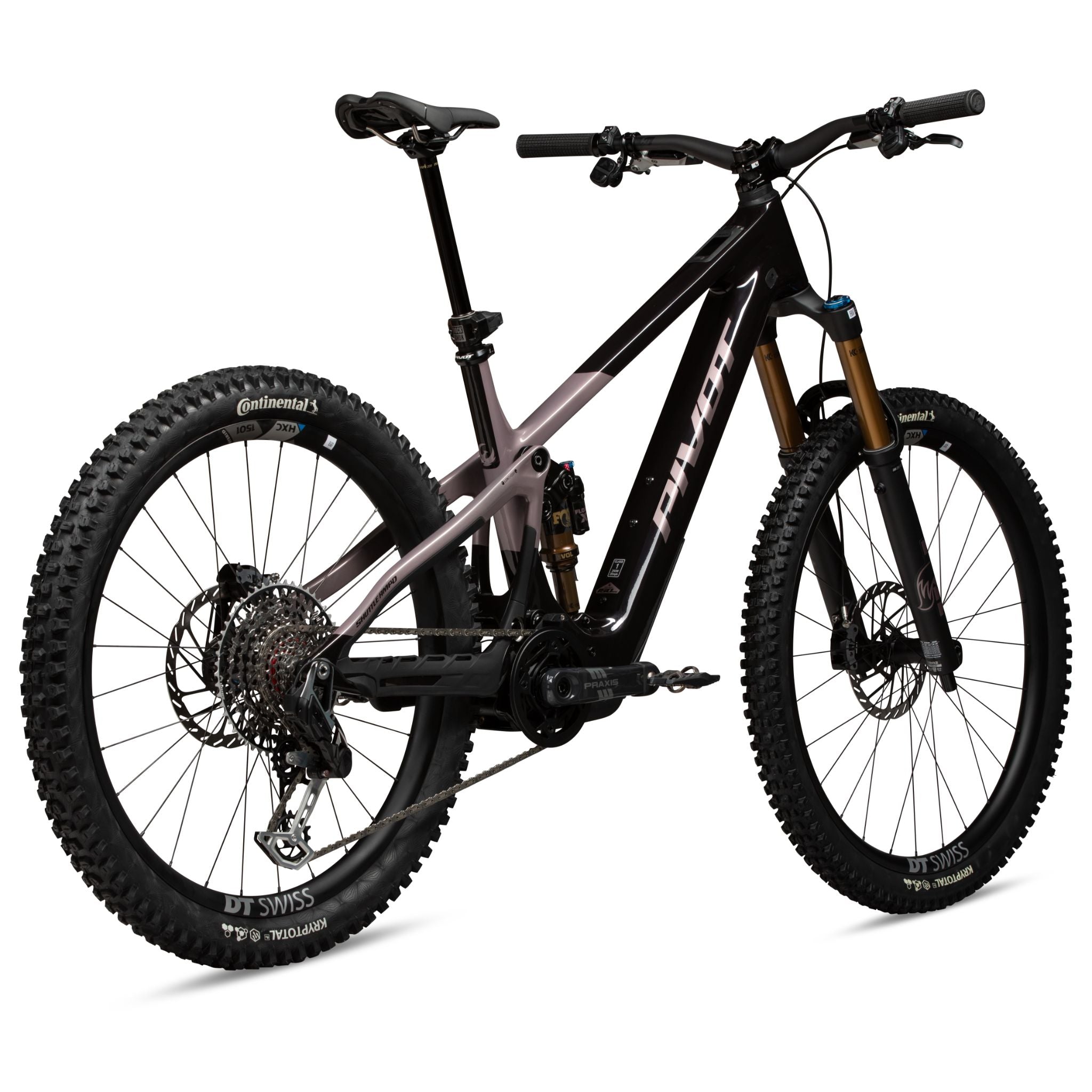

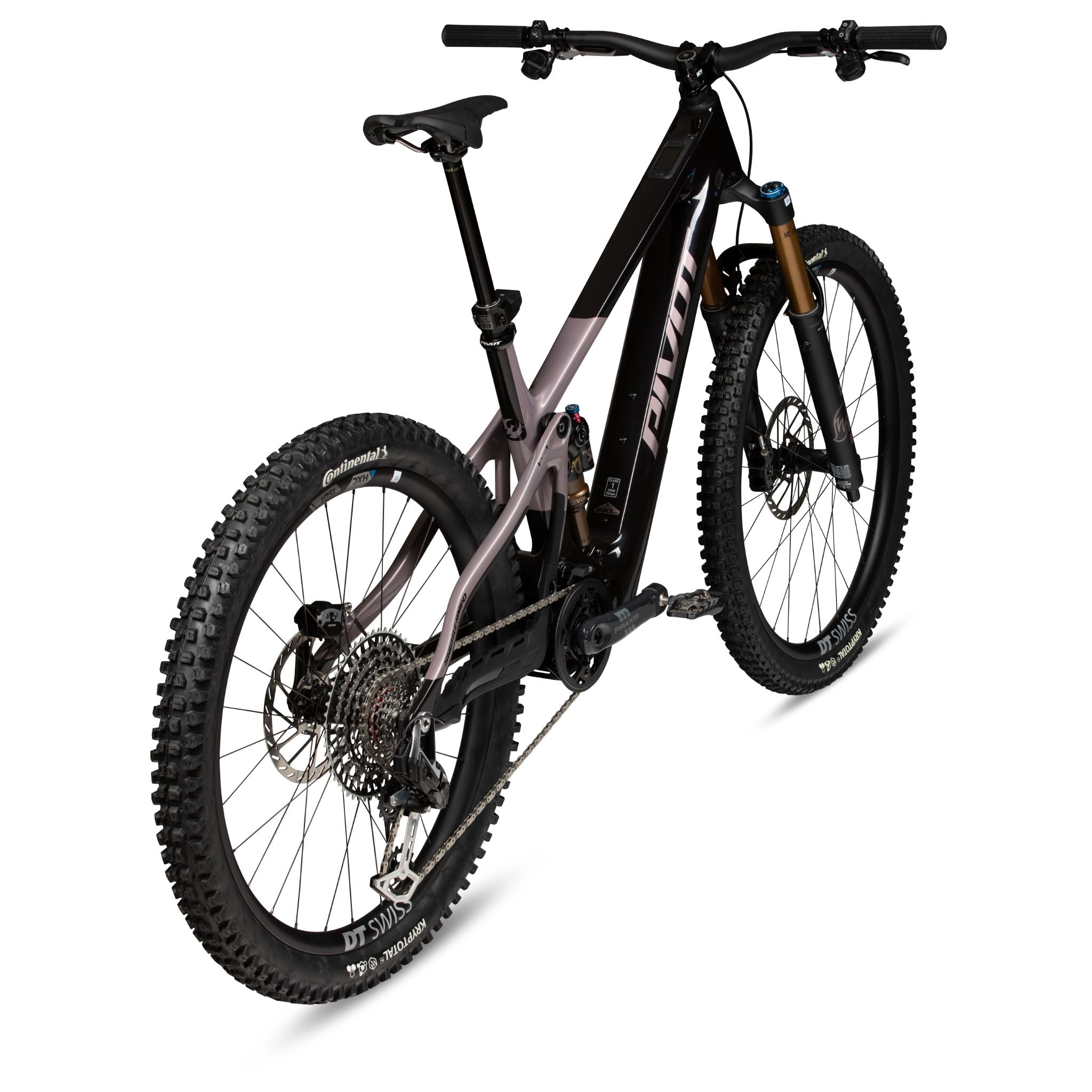

The Pivot Shuttle AMP'd Team is the full-ticket flagship — the best of everything Pivot can put on their Hollow Core carbon e-MTB platform. Fox Factory suspension front and rear, SRAM XX Eagle Transmission, DT Swiss carbon wheels, and the Avinox 508W fast charger. If you want the lightest, stiffest, most capable build available on the Shuttle AMP'd chassis, this is it.

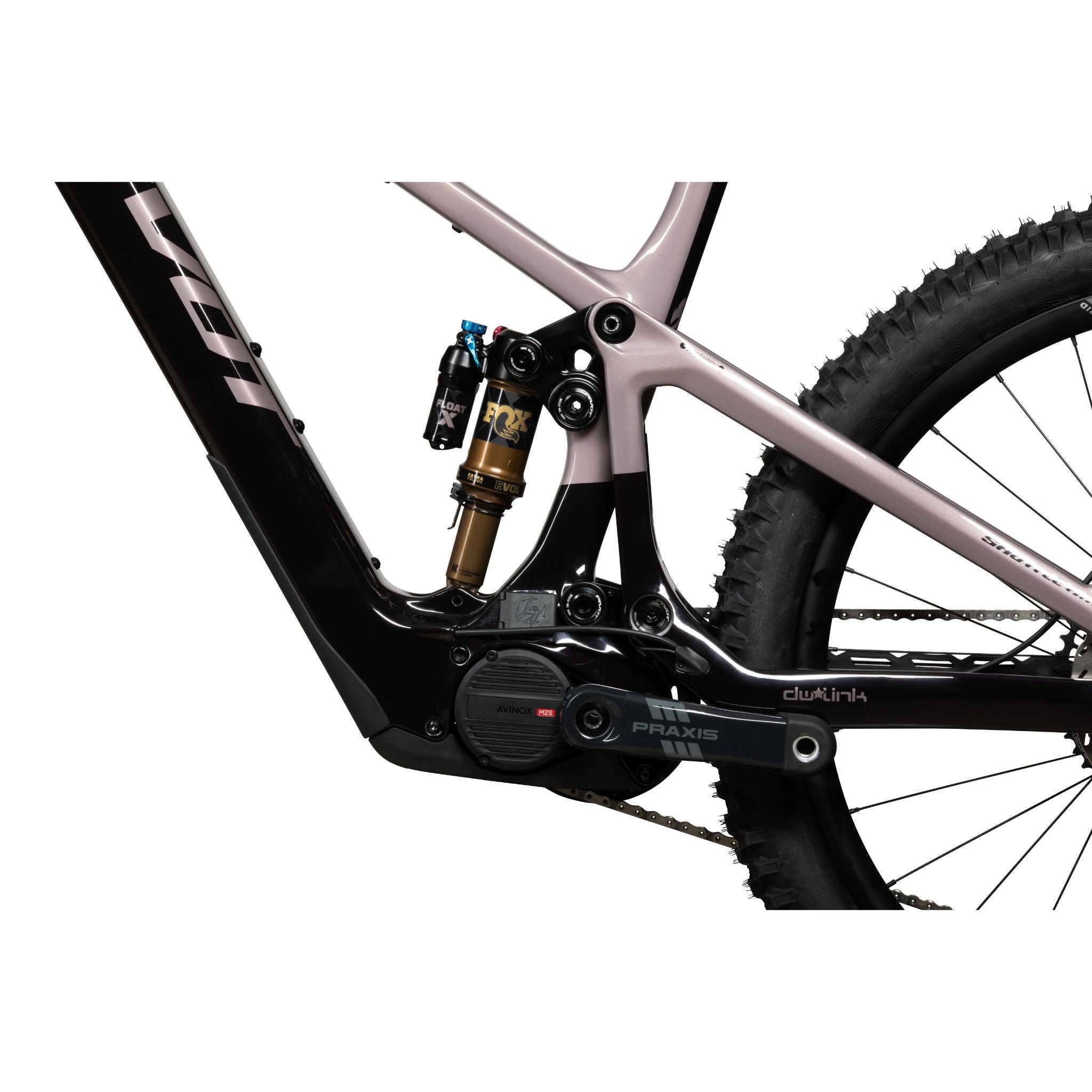

The suspension package is headlined by the new Fox Factory 38 GRIP X2 fork (160mm) and Fox Factory Float X rear shock. The 38 features completely redesigned lowers, updated dampers, and the GlideCore air spring, while the Float X gets all-new internals with a high-flow piston and improved bumpers for a quieter, smoother, more controlled ride. Paired with Pivot's dw-link kinematics and 150mm of rear travel, the result is a suspension platform that stays composed and efficient under power while delivering serious capability when the trail turns steep and rough.

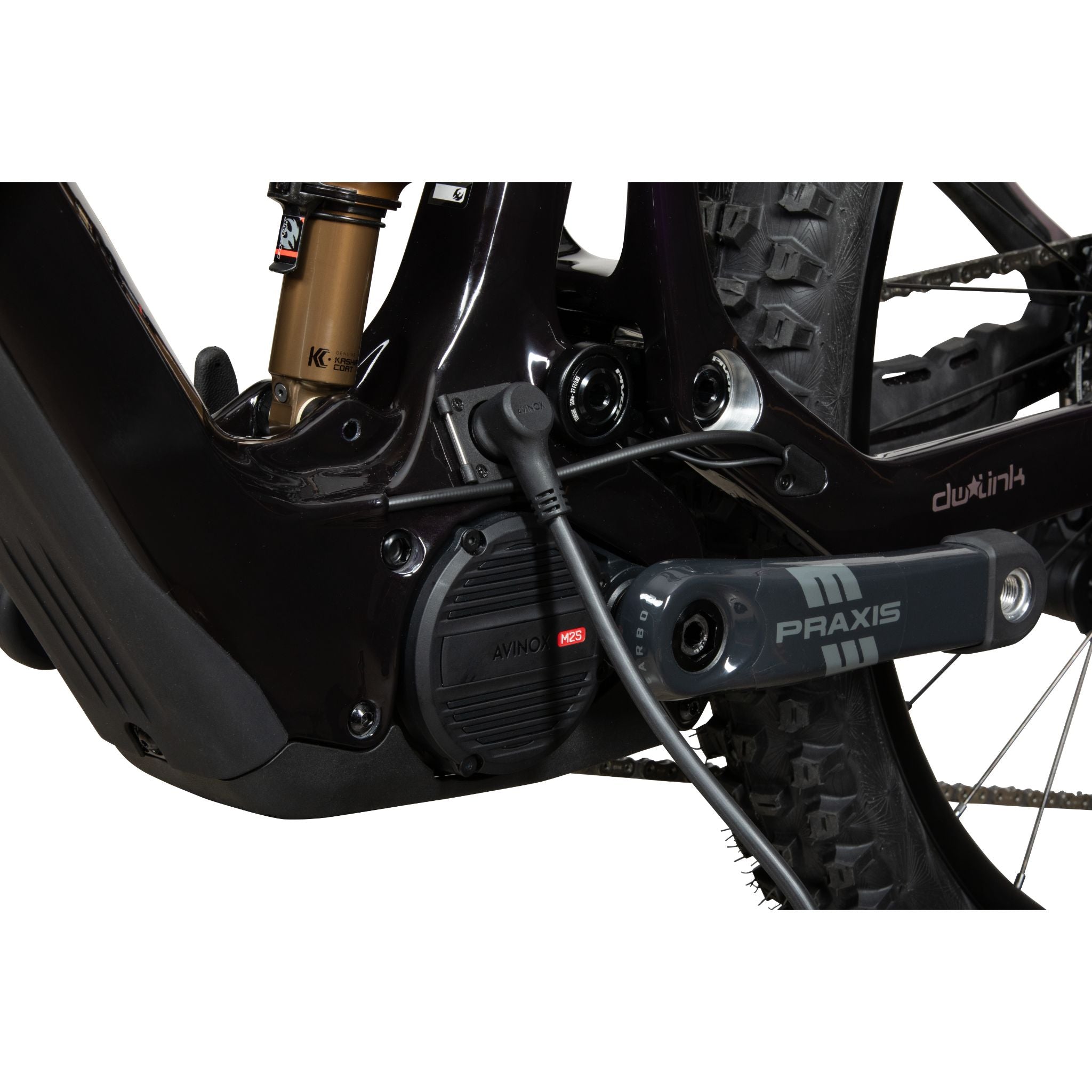

The Avinox M2S motor produces 130Nm of torque and up to 1,300W of peak power from a compact 2.6kg package. The integrated 800Wh battery provides all-day range, and the Team build includes the Avinox 508W fast charger as standard — getting you back to a usable charge quickly between rides or during a lunch stop. Smart-Assist traction control uses a 42-point rear speed sensor and gyroscope to detect and eliminate wheel slip on loose, technical climbs, modulating motor output in real time to keep traction where it needs to be.

The SRAM XX Eagle Transmission drivetrain is the top of SRAM's lineup, and on the Shuttle AMP'd it's hardwired directly into the Avinox system — eliminating the separate derailleur battery entirely. This direct integration enables SmoothShift, an automated power delivery system that produces cleaner gear changes under load and even allows shifting while coasting. A partitioned battery reserve ensures the derailleur keeps functioning even if the main battery is fully depleted. SRAM Maven Ultimate 4-piston brakes with 200mm HS2 rotors front and rear provide the stopping power this bike demands.

Where the Team really separates itself from the Pro and Ride is in the wheels, cranks, and dropper. DT Swiss Hybrid HXC1501 carbon wheels with 30mm internal width save significant rotational weight while handling the demands of e-MTB riding. Praxis Carbon eCranks replace the alloy units found on the other two builds. The RockShox Reverb V2 dropper seatpost offers smooth, reliable actuation with size-specific travel (150mm on XS-SM up to 225mm on XL). The Phoenix Team Carbon handlebar and CNC stem complete a cockpit that's both light and stiff.

Like all Shuttle AMP'd models, the Team runs a mixed wheel setup as standard (29" front, 27.5" rear) for precise, agile handling without sacrificing front-end traction. A geometry flip chip on the upper link allows you to adjust the ride to suit your terrain and preference. Continental Kryptotal tyres in Super Soft (front) and Soft (rear) compounds with Enduro casing provide grip and durability in equal measure.

Five sizes from XS to XL, available in Black Metallic Stone or Burgundy Berry Freeze.

Features

• Hollow Core full carbon frame with dw-link suspension — 150mm rear travel
• Avinox M2S drive system (130Nm, 1,300W peak) with integrated 800Wh battery
• Avinox 508W fast charger included as standard
• Smart-Assist traction control with 42-point rear speed sensor and gyroscope
• Seamless SRAM drivetrain integration — no separate derailleur battery, SmoothShift enabled

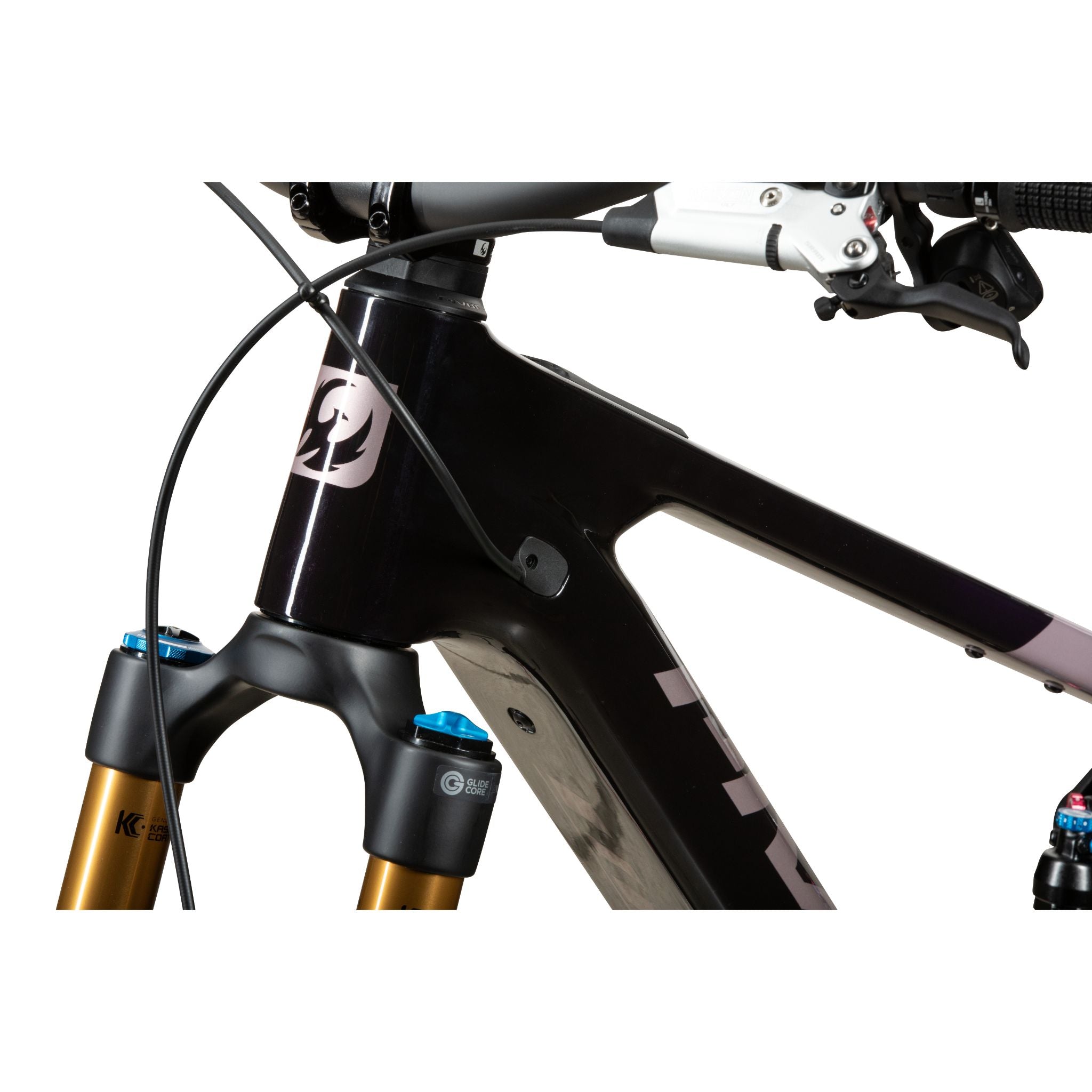

• Fox Factory 38 GRIP X2 fork, 160mm travel (GlideCore air spring)

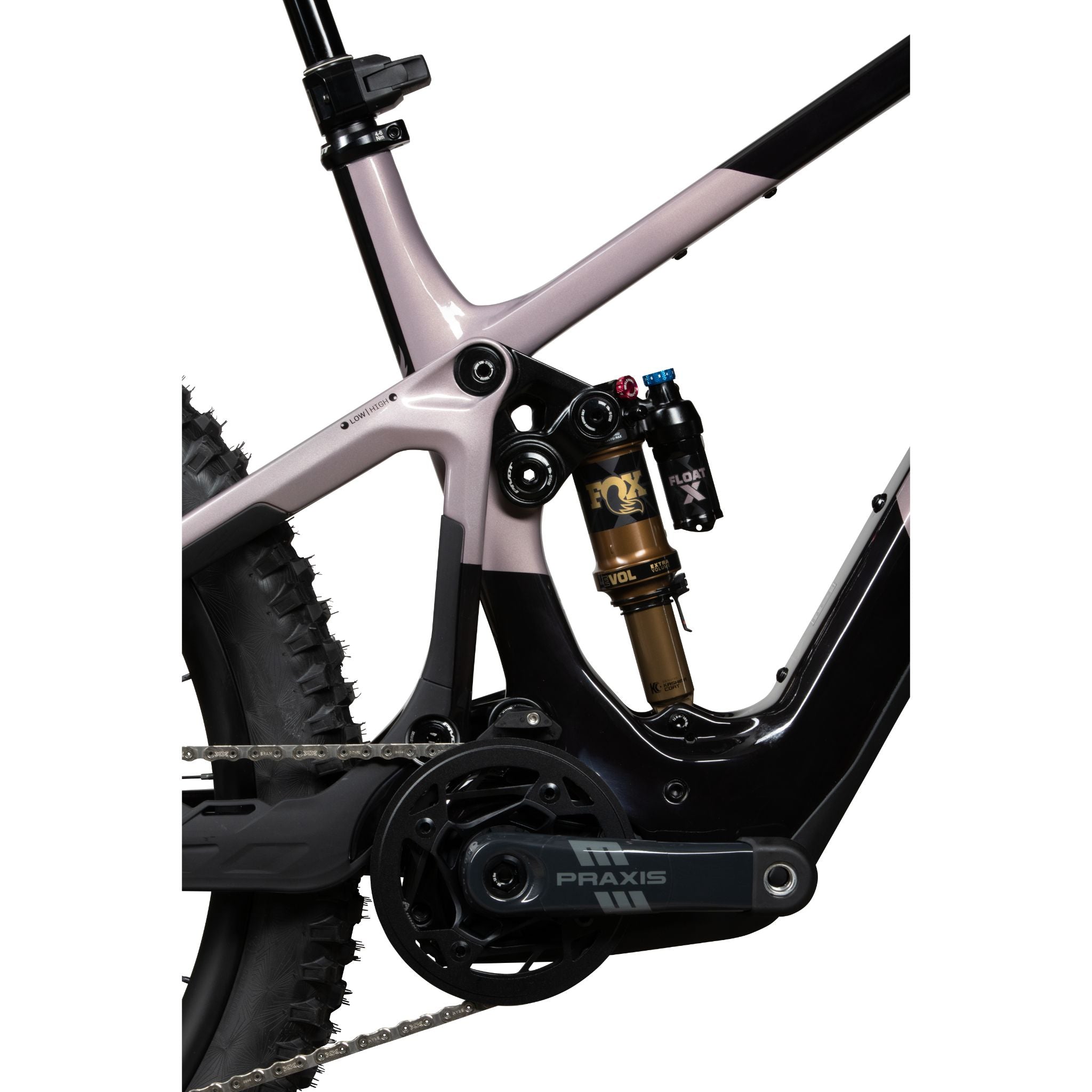

• Fox Factory Float X rear shock (high-flow piston, improved bumpers)
• SRAM XX Eagle Transmission wireless 12-speed drivetrain
• SRAM Maven Ultimate 4-piston brakes, 200mm HS2 rotors front and rear
• DT Swiss Hybrid HXC1501 carbon wheels, 30mm internal width
• Praxis Carbon eCranks, 155mm
• RockShox Reverb V2 dropper seatpost
• Mixed wheel (29"/27.5") as standard with geometry flip chip

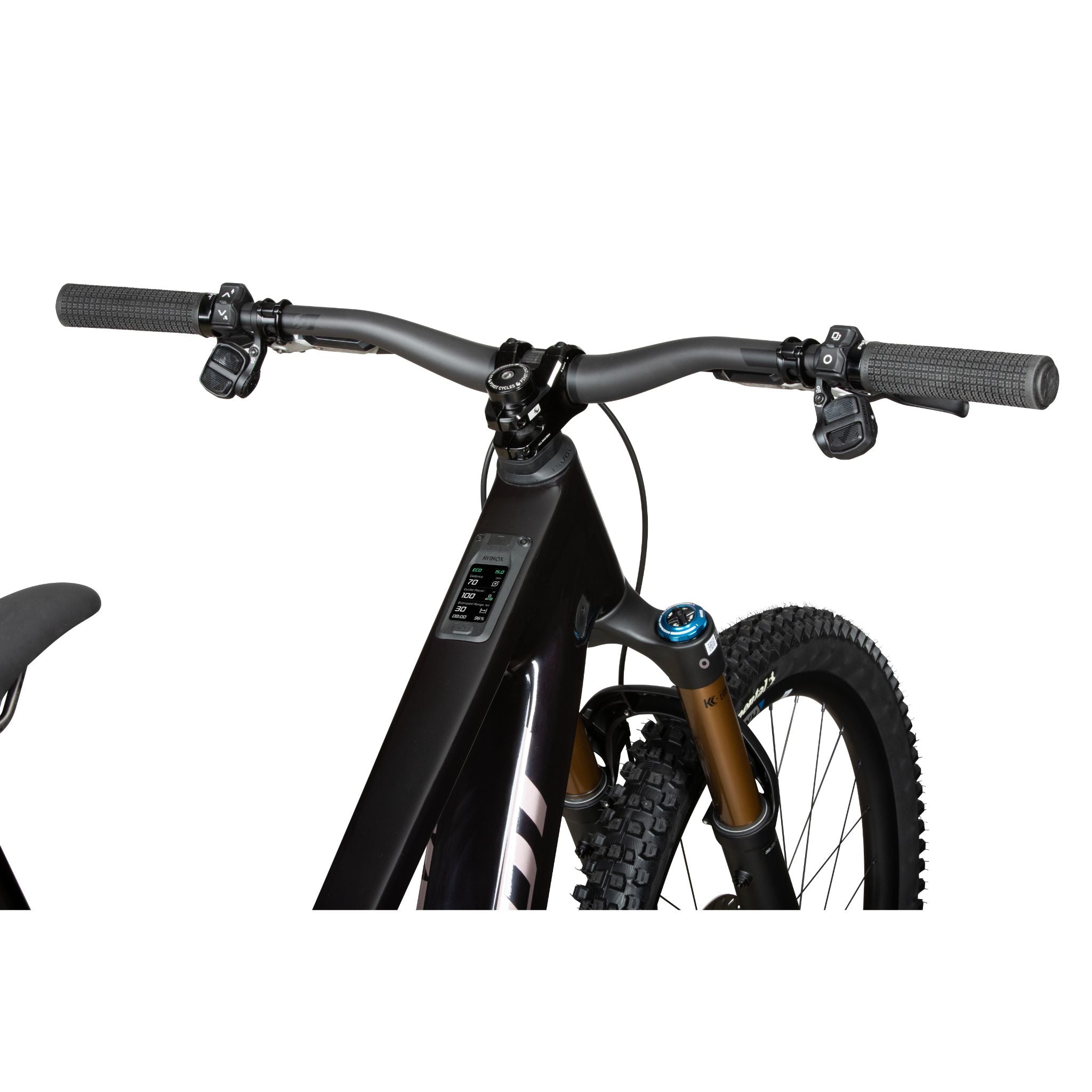

• Full-colour OLED touchscreen display with wireless Avinox remotes
• Phoenix Team Carbon handlebar and CNC stem
• Continental Kryptotal tyres (Super Soft front / Soft rear, Enduro casing)
• Five sizes (XS, SM, MD, LG, XL)

Specifications

• Frame: Pivot Shuttle AMP'd Hollow Core Carbon, dw-link, 150mm travel
• Motor: Avinox M2S
• Battery: Avinox 800Wh (integrated) / 508W fast charger
• Display: Avinox OLED Touchscreen / Wireless Remotes
• Fork: Fox Factory 38 29", GRIP X2, 44mm offset, 160mm
• Rear Shock: Fox Factory Float X
• Wheels: DT Swiss Hybrid HXC1501, 30mm internal width, carbon, mixed 29"/27.5"
• Front Tyre: Continental Kryptotal-F 29x2.4, Super Soft, Enduro casing
• Rear Tyre: Continental Kryptotal-R 27.5x2.6, Soft, Enduro casing
• Brakes: SRAM Maven Ultimate, 4-piston, HS2 200mm rotors front and rear
• Rear Derailleur: SRAM XX Eagle Transmission, 12-speed
• Cassette: SRAM XX 1297 Eagle Transmission, 10-52T
• Crankset: Praxis Carbon eCranks E-MTB, 34T, 155mm
• Handlebar: Phoenix Team Carbon, 20mm rise 760mm (XS), 20mm rise 780mm (SM), 35mm rise 780mm (MD-XL)
• Stem: Phoenix Team Enduro V2, 32mm (XS), 40mm (SM-LG), 50mm (XL)
• Seatpost: RockShox Reverb V2, 150mm (XS-SM), 175mm (MD), 200mm (LG), 225mm (XL)
• Saddle: Pivot Team E-Bike
• Headset: Pivot Precision Sealed Cartridge
• Rotors: SRAM HS2, 6-bolt, 200mm front and rear
• Chain: SRAM XX Eagle Flattop, 12-speed
• Sizes: XS / SM / MD / LG / XL
• Colours: Black Metallic Stone / Burgundy Berry Freeze
