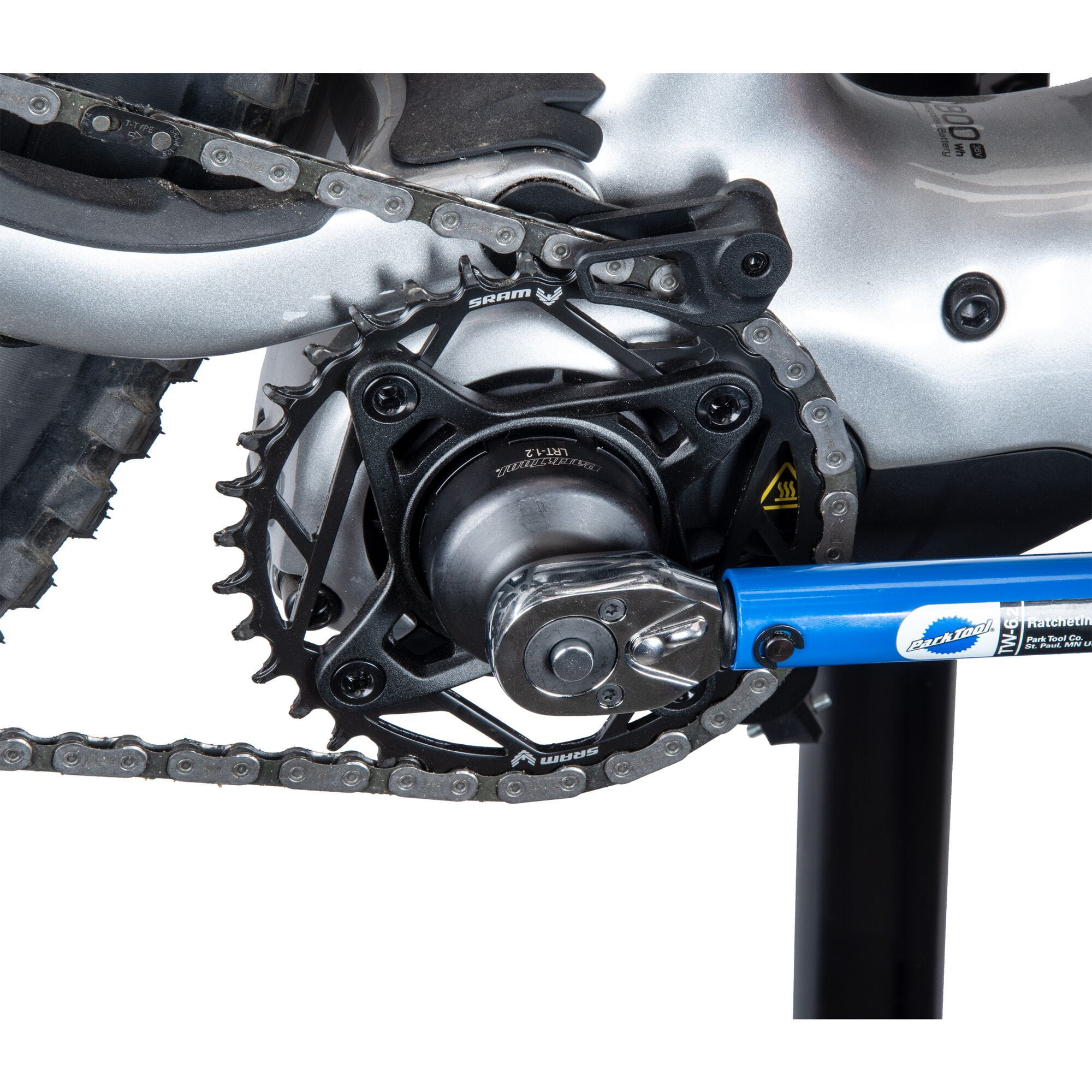

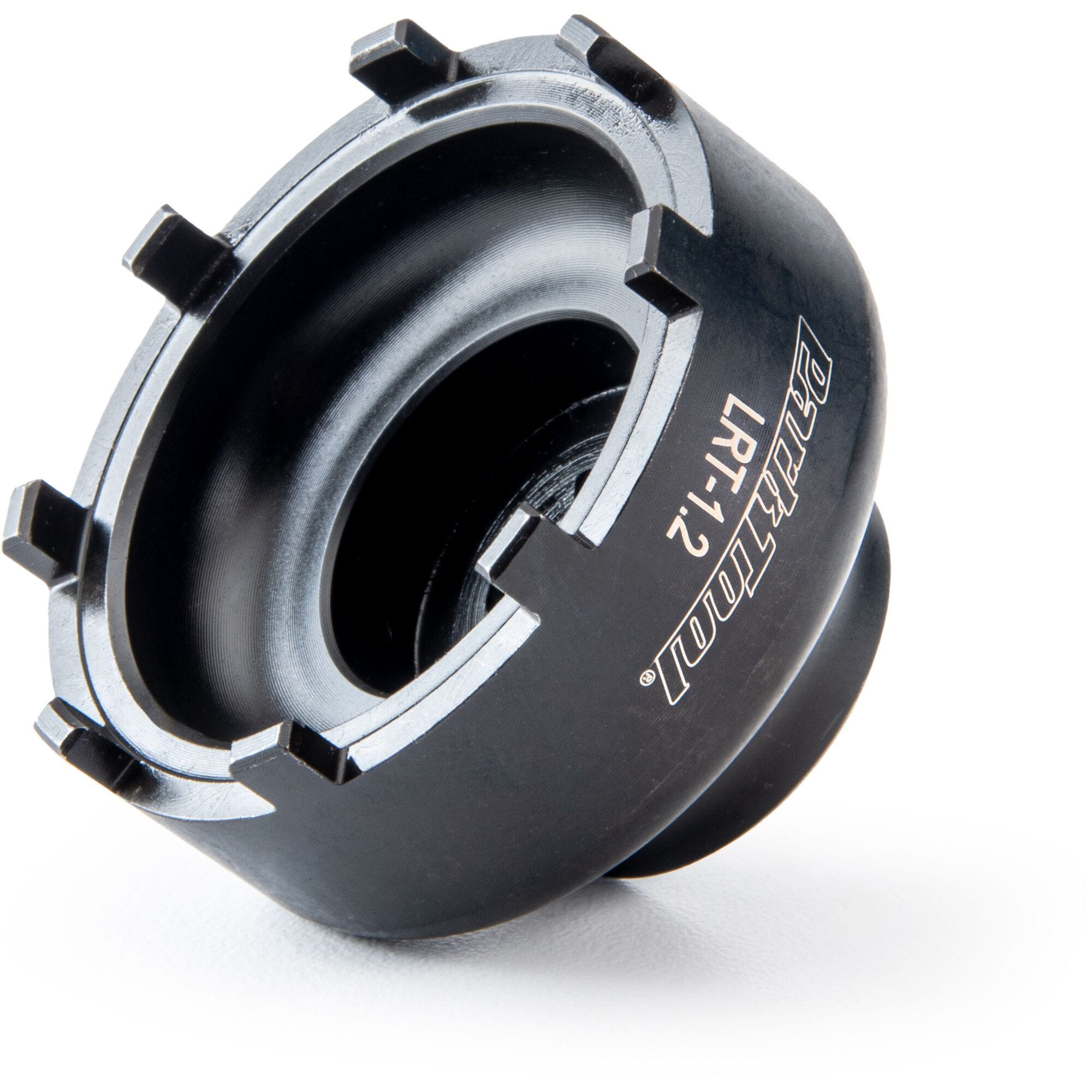

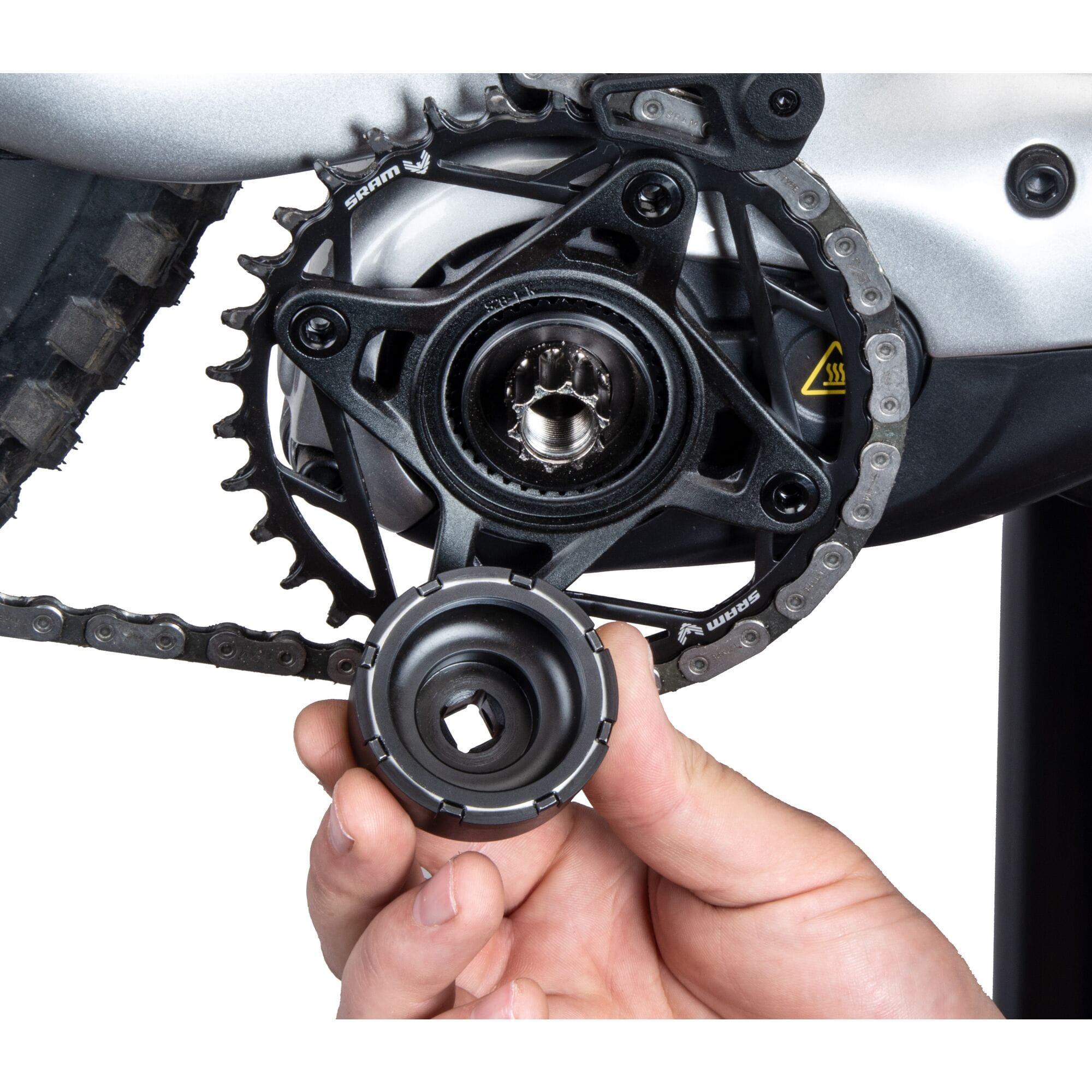

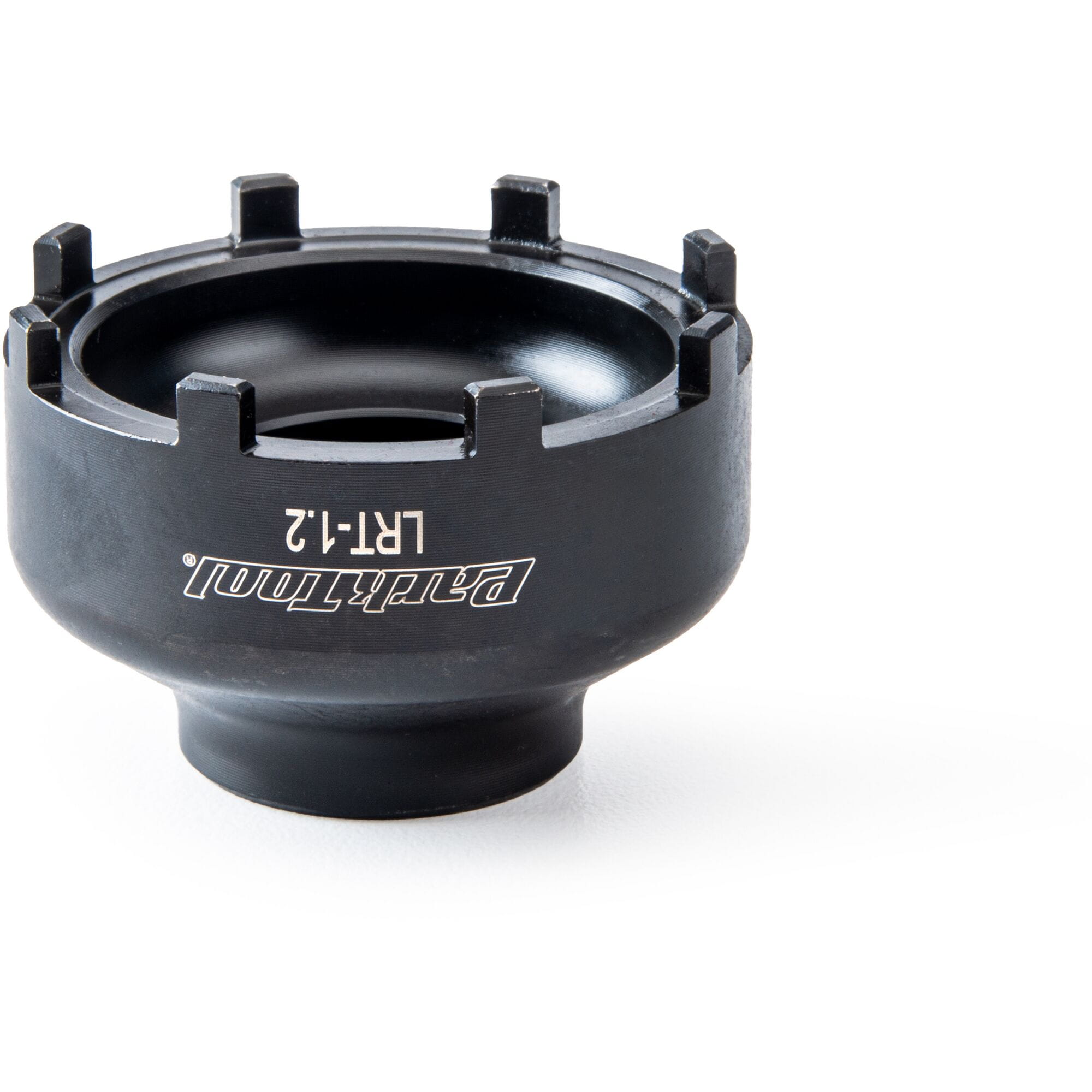

The LRT-1.2 is a purpose-built workshop tool for removing and refitting the lockring that secures the front chainring on DJI Avinox and Bosch Gen 2 e-bike motors. Once the driveside crank arm has been taken off, the tool locates on the 8 notches of the lockring so you can service the drive unit cleanly, without chewing up the ring or the motor. It is machined from heat-treated 4140 steel and plated for a long working life, and is a direct replacement for the Bosch 0275009003 service tool.

Features

• Removes and installs the lockring that retains the front chainring on DJI Avinox and Bosch Gen 2 e-bike motors
• Fits Bosch Active Line (chainrings under 20 teeth), Performance Line and Performance Line CX motors, as well as Avinox units
• Sized for lockrings with a 50mm outside diameter and 8 notches
• Direct replacement for the Bosch 0275009003 tool

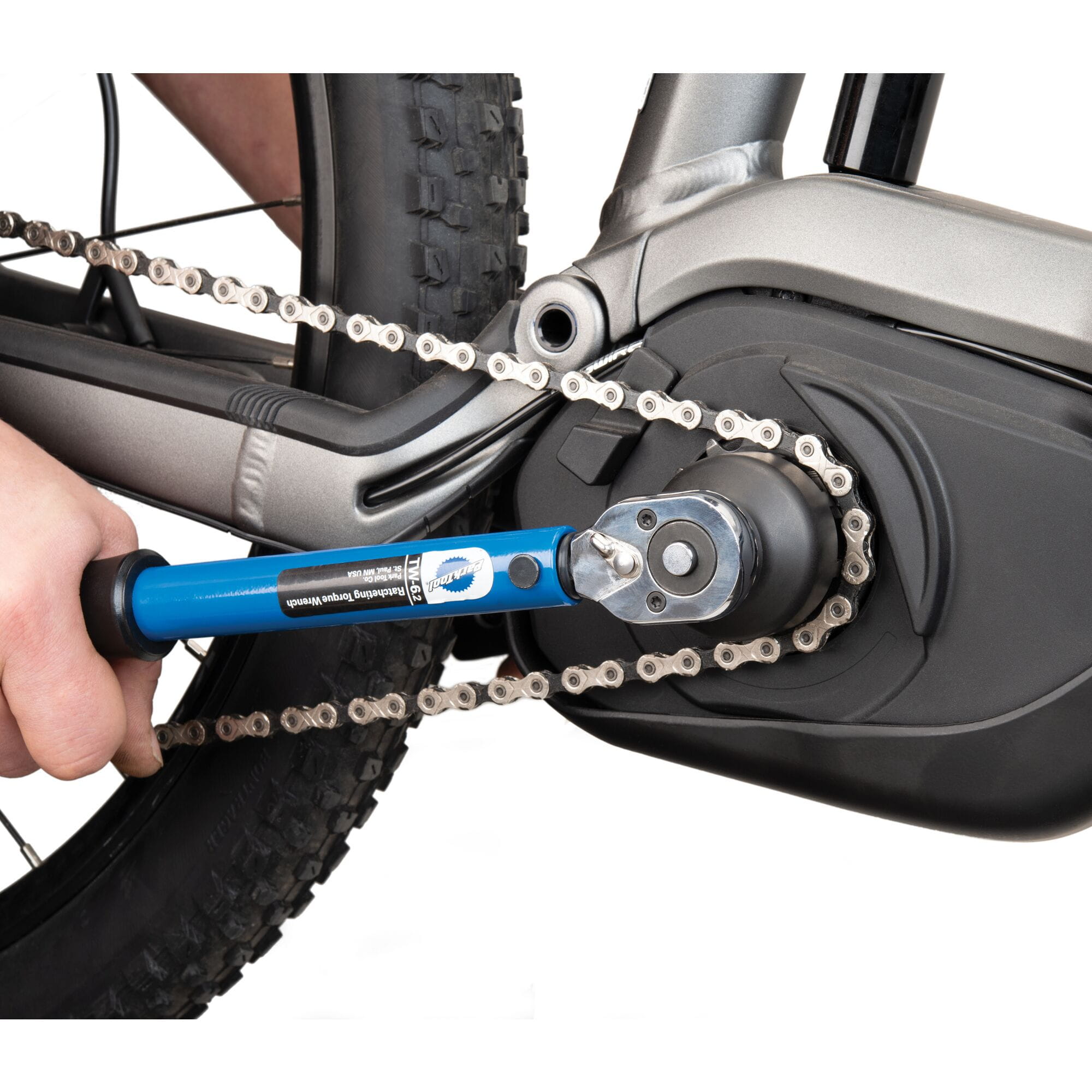

• 3/8" square drive for use with a torque wrench (not intended for use with impact drivers)
• Machined from heat-treated 4140 steel and plated for durability

Specification

• Type: Lockring / bottom bracket tool
• Compatibility: DJI Avinox and Bosch Gen 2 (Active Line under 20t, Performance Line, Performance Line CX)
• Lockring fit: 50mm outside diameter, 8 notches
• Drive: 3/8" square drive, torque wrench compatible
• Material: Heat-treated 4140 steel, plated
• Replaces: Bosch 0275009003
