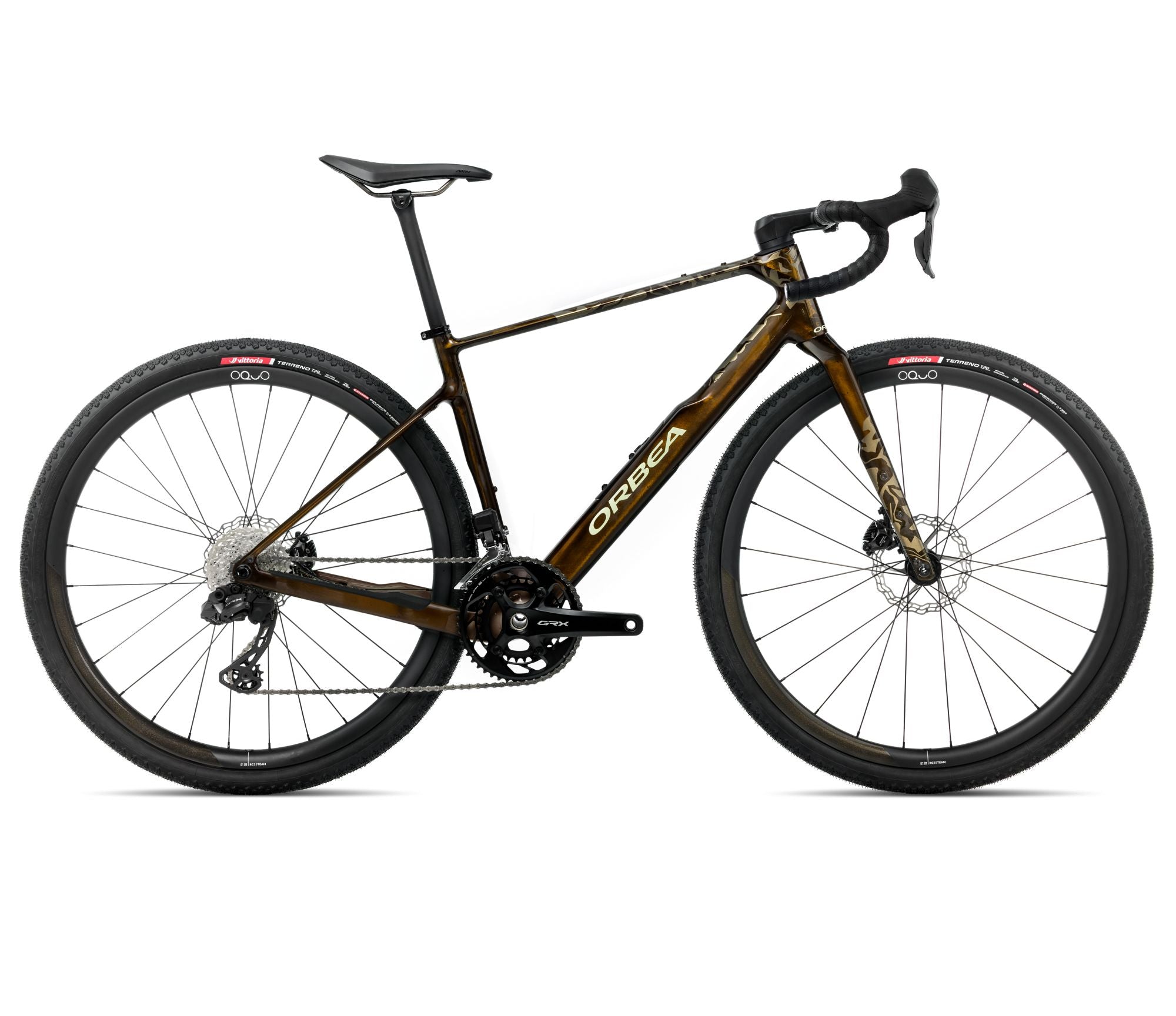

  • Terra M20iTeam 2026 Caramel Carbon View (Gloss) / XS

The Orbea Terra M20iTeam is a do-it-all carbon gravel bike built to roam off the map or line up for a long-distance race. Terra combines dialled gravel geometry with a vibration-damping carbon frame, generous tyre clearance and plenty of mounting points.

The frame and fork are shaped to soak up rough terrain, with a slim top tube and a flexible 27.2mm seatpost that take the edge off long, bumpy days. Multiple mounts, fender compatibility and a UDH dropout make it as ready for bikepacking as it is for race day, with clearance for up to 50c tyres (45c with mudguards).

This Terra M20iTeam build features a Shimano GRX Di2 RX825 drivetrain, Shimano RX820 Hydraulic Disc braking and Oquo Road Control RC30TEAM wheels. Priced at £5,699.

Features

  • Orbea Terra Carbon carbon frame — vibration-damping layup, gravel geometry
  • Shimano GRX Di2 RX825 drivetrain
  • Shimano RX820 Hydraulic Disc brakes
  • Fork: Orbea Terra OMR carbon disc fork, full carbon steerer
  • Full carbon ICR fork with internal cable routing
  • Multiple mounting points, fender compatibility and UDH dropout
  • Dropper-post compatible
  • Clearance for up to 50c tyres (45c with mudguards)
  • Fully customisable through Orbea's MyO programme

Specifications

  • Terra M20iTeam
  • Discipline Gravel

  • Frame Carbon

  • Wheel Size 700c

  • Tyre Clearance 50c (45c w/ mudguards)

  • Warranty Lifetime (frame)

Frame - Orbea Terra
Fork - Orbea Terra OMR carbon disc fork, full carbon steerer
Headset - FSA 1-1/2" Integrated Aluminium Cup
Stem - OC Road Performance RP11, -8º
Handlebar - OC Gravel GR10 Carbon, Reach 70, Drop 110
Brakes - Shimano RX820 Hydraulic Disc
Front Derailleur - Shimano GRX Di2 RX825
Rear Derailleur - Shimano GRX Di2 RX825
Shifters - Shimano GRX Di2 RX825
Cassette - Shimano Ultegra R8100 11-34t 12-Speed
Chain - Shimano M7100
Crankset - Shimano GRX RX820 31x48t
Wheels - Oquo Road Control RC30TEAM
Front Hub - Orbea Thru Axle 12x100mm M12xP1 Hollow
Rear Hub - Orbea Thru Axle 12x142mm M12xP1 Solid inner threaded
Tyres - Vittoria Terreno T30 fine loose Gravel Endurance G2.0 700x45c
Seatpost - OC Performance XP10 Carbon, 27.2mm, Setback 0
Saddle - Fizik Terra Argo X3 Kium Rail 140mm
Storage - Accessories Containers
Handlebar Plugs - Orbea Anti-Slippery/Shock Proof

Terra M20iTeam 2026

SKU: T14205GT / Barcode: 8434446935121
The Orbea Terra M20iTeam is a do-it-all carbon gravel bike built to roam off the map or line up for a long-distance race. Terra combines dialled gravel geometry with a Read more
Regular price £5,699.00
Colour

Size

In stock with supplier: despatched in 2-3 days

90 Day Returns

£5699.0
Finance is subject to status. Terms and conditions apply.

The Orbea Terra M20iTeam is a do-it-all carbon gravel bike built to roam off the map or line up for a long-distance race. Terra combines dialled gravel geometry with a vibration-damping carbon frame, generous tyre clearance and plenty of mounting points.

The frame and fork are shaped to soak up rough terrain, with a slim top tube and a flexible 27.2mm seatpost that take the edge off long, bumpy days. Multiple mounts, fender compatibility and a UDH dropout make it as ready for bikepacking as it is for race day, with clearance for up to 50c tyres (45c with mudguards).

This Terra M20iTeam build features a Shimano GRX Di2 RX825 drivetrain, Shimano RX820 Hydraulic Disc braking and Oquo Road Control RC30TEAM wheels. Priced at £5,699.

Features

  • Orbea Terra Carbon carbon frame — vibration-damping layup, gravel geometry
  • Shimano GRX Di2 RX825 drivetrain
  • Shimano RX820 Hydraulic Disc brakes
  • Fork: Orbea Terra OMR carbon disc fork, full carbon steerer
  • Full carbon ICR fork with internal cable routing
  • Multiple mounting points, fender compatibility and UDH dropout
  • Dropper-post compatible
  • Clearance for up to 50c tyres (45c with mudguards)
  • Fully customisable through Orbea's MyO programme

Specifications

  • Terra M20iTeam
  • Discipline Gravel

  • Frame Carbon

  • Wheel Size 700c

  • Tyre Clearance 50c (45c w/ mudguards)

  • Warranty Lifetime (frame)

Frame - Orbea Terra
Fork - Orbea Terra OMR carbon disc fork, full carbon steerer
Headset - FSA 1-1/2" Integrated Aluminium Cup
Stem - OC Road Performance RP11, -8º
Handlebar - OC Gravel GR10 Carbon, Reach 70, Drop 110
Brakes - Shimano RX820 Hydraulic Disc
Front Derailleur - Shimano GRX Di2 RX825
Rear Derailleur - Shimano GRX Di2 RX825
Shifters - Shimano GRX Di2 RX825
Cassette - Shimano Ultegra R8100 11-34t 12-Speed
Chain - Shimano M7100
Crankset - Shimano GRX RX820 31x48t
Wheels - Oquo Road Control RC30TEAM
Front Hub - Orbea Thru Axle 12x100mm M12xP1 Hollow
Rear Hub - Orbea Thru Axle 12x142mm M12xP1 Solid inner threaded
Tyres - Vittoria Terreno T30 fine loose Gravel Endurance G2.0 700x45c
Seatpost - OC Performance XP10 Carbon, 27.2mm, Setback 0
Saddle - Fizik Terra Argo X3 Kium Rail 140mm
Storage - Accessories Containers
Handlebar Plugs - Orbea Anti-Slippery/Shock Proof
