The Orbea Terra is a gravel race bike, built to be fast and composed whether you're racing the clock, linking up backroads or loading up for an adventure. The frame pairs road-bike efficiency with gravel capability, with clearance for big tyres, a stable-yet-lively geometry and mounts for the gear that long days demand.
Full internal cable routing keeps it clean, the MMS multi-mount system and fender-ready design add versatility, and the frame is ready for 1X or 2X drivetrains. Whether you want a drop-bar racer or a do-anything explorer, Terra adapts to the ride.
The Terra H50 is the most accessible Terra in the range, the ideal way onto the platform without giving up the frame and ride quality that matter most. It pairs Shimano Cues U6020 SGS Shadow shifting with Shimano RS405 Hydraulic Disc brakes on tubeless-ready alloy wheels.
Features
- Aluminium frame
- Drivetrain: Shimano Cues U6020 SGS Shadow
- Brakes: Shimano RS405 Hydraulic Disc
- Tyres: Vittoria Terreno T50 mixed Gravel Sport Rigid 700x40c
- Fast, capable gravel race frame
- Generous tyre clearance for mixed-terrain grip
- Stable, confident gravel geometry
- Full internal cable routing
- MMS multi-mount system and fender-ready design
- 1X and 2X drivetrain compatible
Specifications
Discipline Gravel
Material Aluminium
Wheel Size 700c
Warranty Lifetime (frame)
Frame - Orbea Terra Hydro disc, hydroformed triple butted aluminium, HS 1,5", PF, Thru Axle 12mm x 142mm rear, thread M12x2 P1, DT internal cable routing, 27,2mm seat tube
Fork - Orbea Terra Race ICR, full carbon, 1-1/8" - 1,5" tappered head tube compatible, Thru axle 12x100mm, thread M12xP1, MMS multi mount system, fender ready.
Headset - FSA 1-1/2" Integrated Aluminium Cup
Stem - OC Road Performance RP23, -5º
Handlebar - OC Gravel GR31-R, Rise 15, Reach 70, Drop 110
Brakes - Shimano RS405 Hydraulic Disc
Front Derailleur - Shimano Cues U6030
Rear Derailleur - Shimano Cues U6020 SGS Shadow
Shifters - Shimano U6030
Cassette - Shimano CS-LG300 11-39t 10-Speed
Chain - Shimano LG500
Crankset - Shimano Cues U6030 34x50t
Wheels - Alloy, Tubeless, 700c, 21c
Rear Hub - Orbea Thru Axle 12x142mm M12xP1 Solid inner threaded
Front Hub - Orbea Thru Axle 12x100mm M12xP1 Hollow
Tyres - Vittoria Terreno T50 mixed Gravel Sport Rigid 700x40c
Seatpost - SP 0.2 Carbon, 27.2mm, Setback 20
Saddle - Fizik Terra Argo X7 Aluminium Rail 140mm
Handlebar Plugs - Orbea Eva

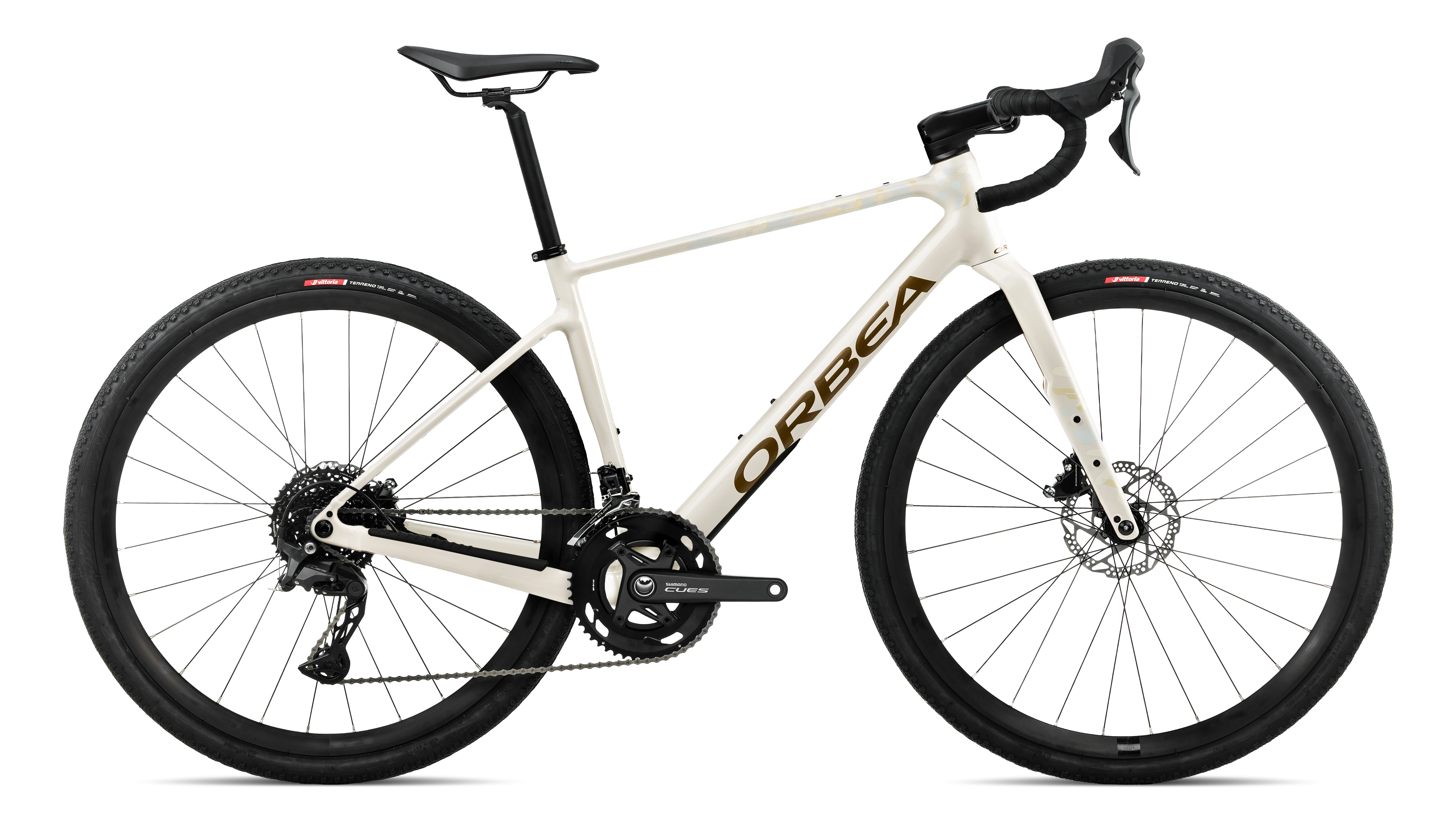

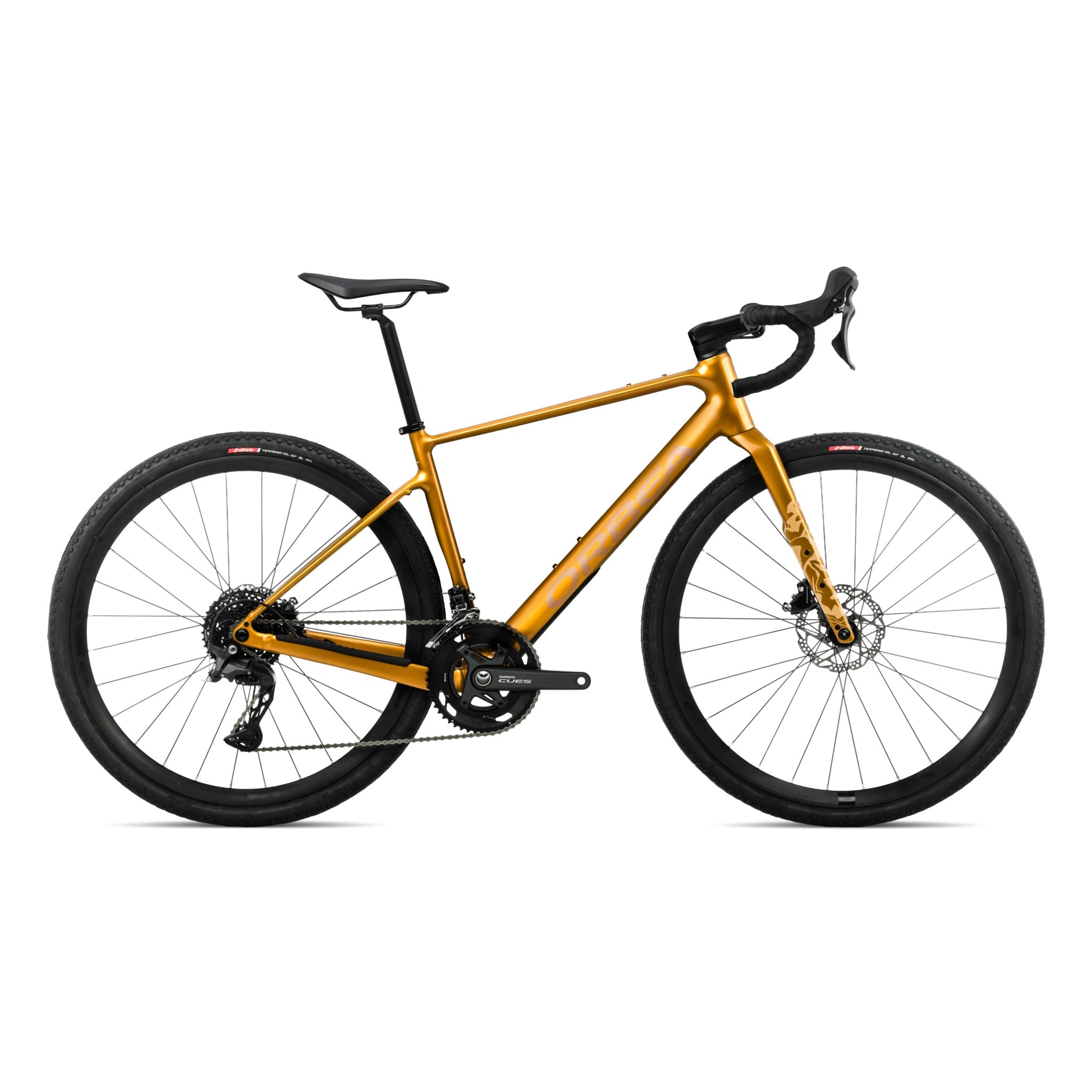

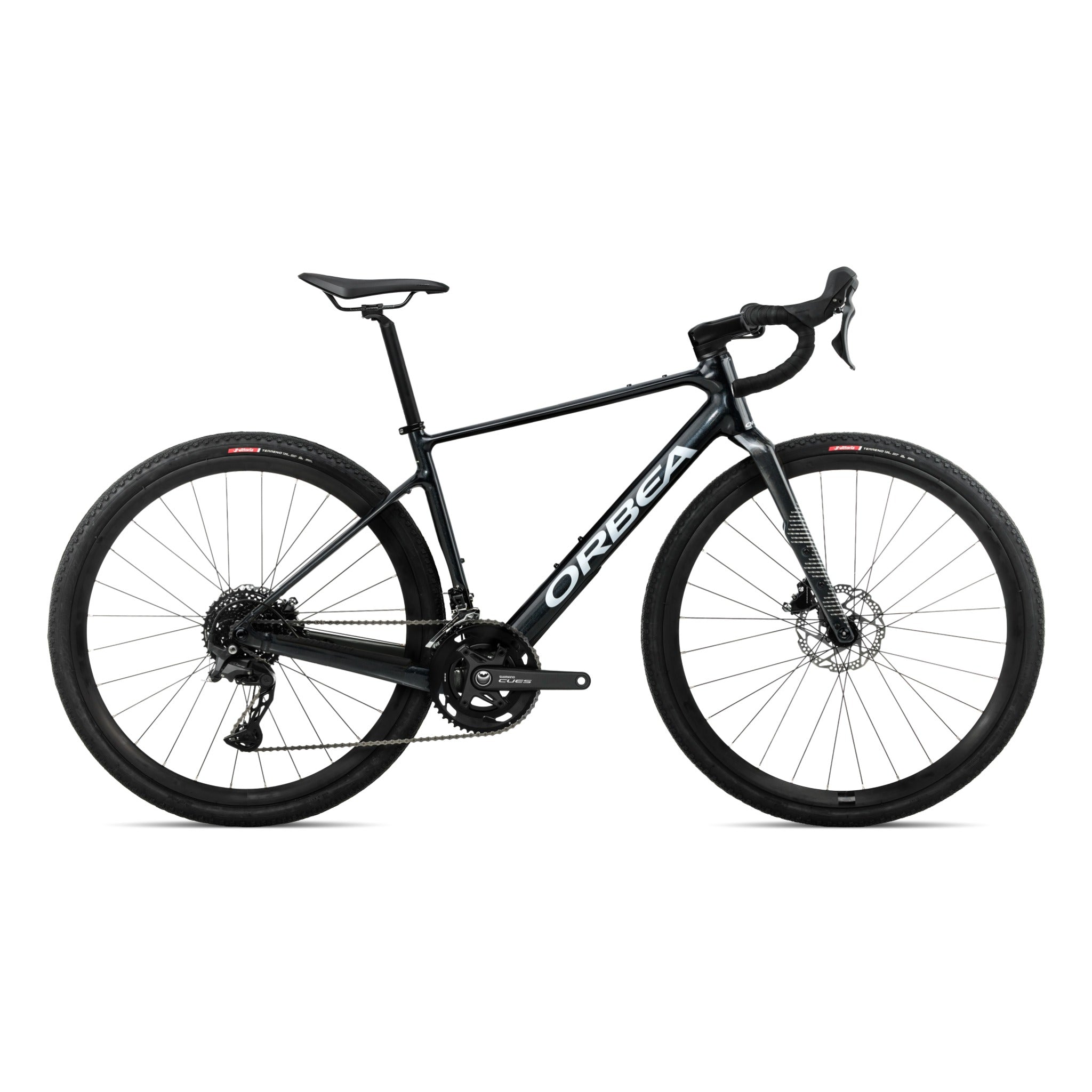

Terra H50 2027
