The Orbea Rallon RS is a ground-breaking smart electric enduro bike, and one of the most advanced mountain bikes Orbea has ever made. It takes the race-winning Rallon gravity chassis – 180mm fork, 170mm rear travel, OMR carbon frame – and adds a fully integrated electronic system in which the motor, suspension, dropper and shifting all share information and run from a single battery, managed by one compact RS-HMI controller.

At its heart is TQ's near-silent HPR40 motor, delivering 40Nm of torque and up to 200W of subtle, elastic assistance that supports your effort on the climbs without ever taking over, and eases off automatically on the descents. The compact motor and 290Wh battery add only around 1.3kg over a standard Rallon and sit low and central, so it still handles like a Rallon – planted, composed and agile. A custom FOX eNeo Live Valve shock (on equipped models), the MC10-RS smart dropper and an optional Range Extender round out a genuinely next-generation package, available in full 29in or mullet.

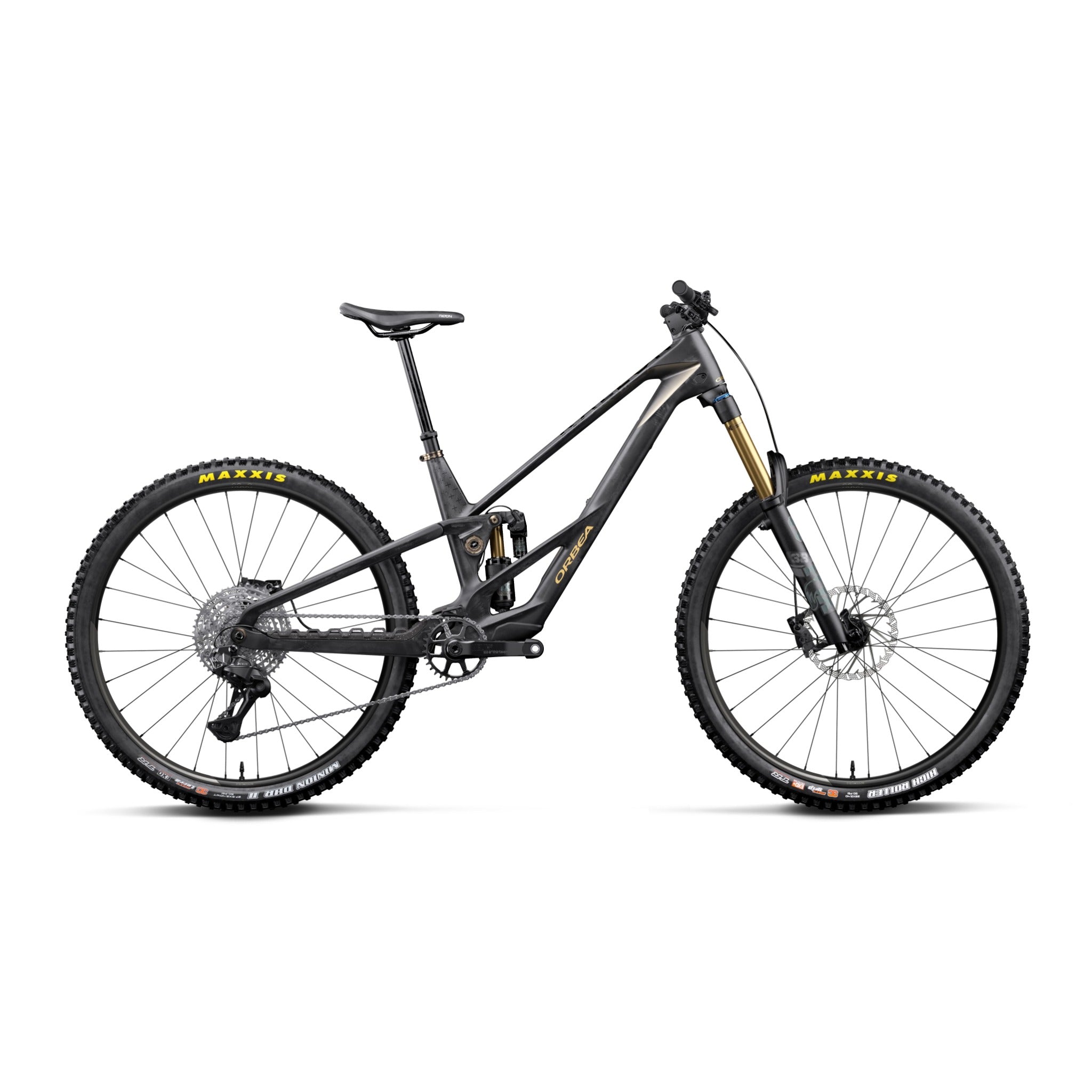

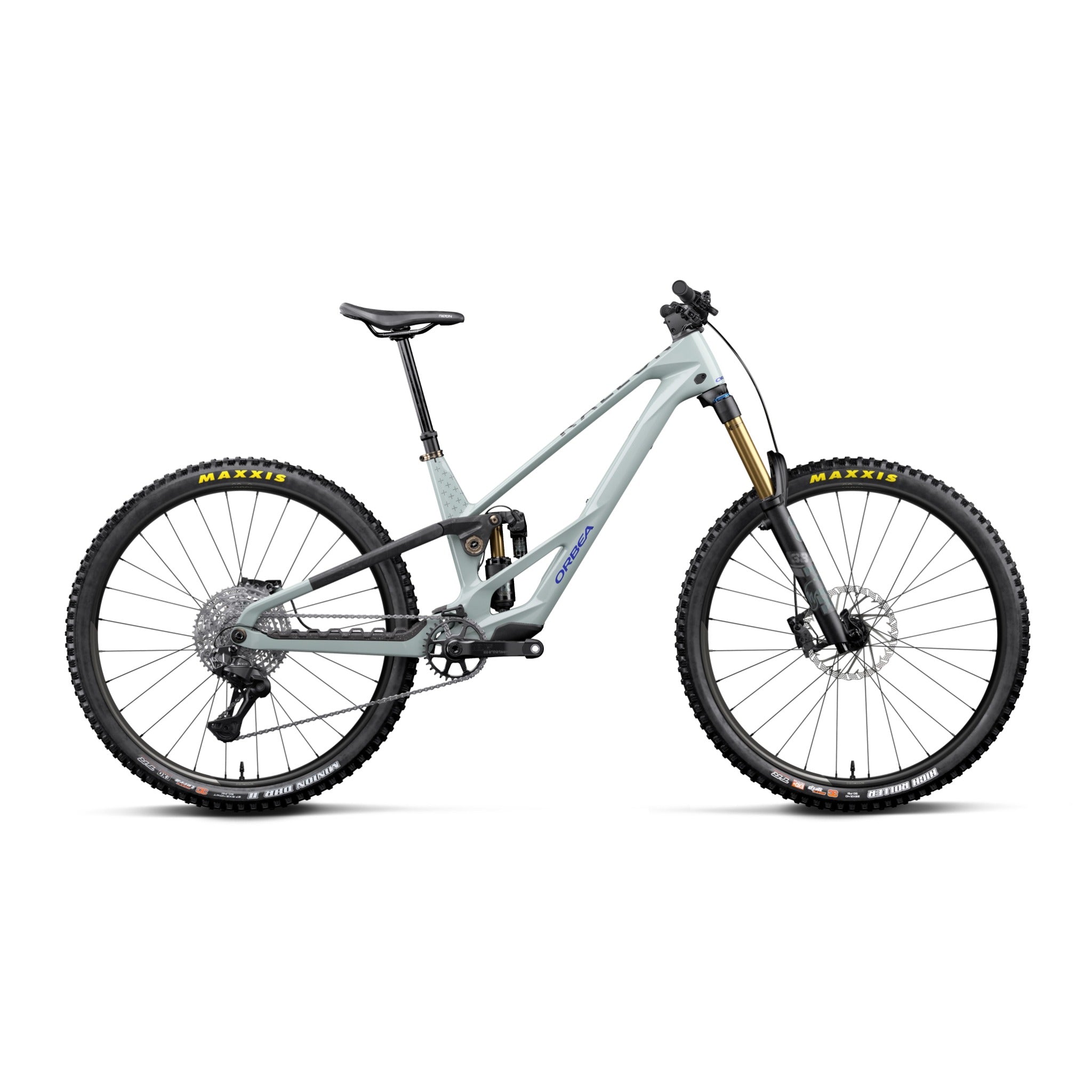

The Rallon RS-LTD is the flagship, with the finest spec Orbea fits to the Rallon RS – including the integrated FOX eNeo Live Valve electronic shock for the fullest smart-suspension experience. A no-compromise gravity weapon with a discreet, intelligent boost. It runs a Fox 38 Float Factory 180 fork and a Fox Float X2 Live Valve Neo Factory Trunnion Evol LV custom tune 205x62.5mm shock, with Shimano XTR M9260 12s shifting and Shimano XTR 9200 Hydraulic Disc brakes, powered by the lightweight TQ-HPR40 system with a TQ HPR 290Wh battery.

Features

• Carbon frame
• Fork: Fox 38 Float Factory 180, Grip X2, QR15x110, Kashima
• Rear shock: Fox Float X2 Live Valve Neo Factory Trunnion Evol LV custom tune 205x62.5mm
• Motor: TQ-HPR40 with TQ HPR 290Wh battery
• Brakes: Shimano XTR 9200 Hydraulic Disc
• Tyres: Maxxis High Roller III 2.40" 60 TPI 3CG/EXO+/TR MaxxGripp
• Fully integrated RS smart system – motor, suspension, dropper and shifting connected and run from a single battery
• Near-silent TQ HPR40 motor: 40Nm torque and up to 200W of subtle, elastic assistance (Range and Rally modes, plus optional Ultra)
• Compact 290Wh battery (around 1,200–1,800m of climbing) with an optional 160Wh Range Extender for roughly 55% more
• 180mm fork / 170mm rear travel on the OMR carbon Rallon chassis
• Only around 1.3kg heavier than a standard Rallon, with weight kept low and central for true Rallon handling
• Custom FOX eNeo Live Valve electronic shock that reacts to the trail in real time (on equipped models)
• MC10-RS smart dropper and RS-HMI bar controller, with Descent Mode and partial-drop functions
• Pure Gravity geometry with Attitude Adjust; full 29in or mullet via dedicated linkage
