The Orbea Rallon is an enduro race bike, the do-it-all gravity weapon the brand's racers rely on. With 180mm up front and 170mm at the rear on the OMR carbon frame, Pure Gravity geometry and Attitude Adjust, it's built to be ridden flat-out on the roughest, steepest tracks while still pedalling to the top under its own steam.
A Concentric Boost rear axle, ISCG05 mounts, a Fully Loaded Pivot multitool and fully sealed bearings make it as practical as it is capable, and the geometry can be fine-tuned to suit the trail or your style. It's a genuinely race-bred enduro bike.
The Rallon 450 E10 is the most accessible Rallon enduro build with the longer 450mm chainstay for 29" wheels, which adds high-speed stability and a more planted feel on steep, fast terrain. Great value capability for aggressive riders. It runs a Fox 38 Float Factory 180 fork and a Fox Float X Factory Trunnion 2-Pos Evol LV Kashima custom tune 205x62.5mm shock. Finishing kit includes Shimano Deore M7200 SGS Shadow Plus shifting and Shimano MT620 Hydraulic Disc brakes.
Features
- Carbon frame
- Fork: Fox 38 Float Factory 180, Grip X2, 15x110, Kashima
- Rear shock: Fox Float X Factory Trunnion 2-Pos Evol LV Kashima custom tune 205x62.5mm
- Drivetrain: Shimano Deore M7200 SGS Shadow Plus
- Brakes: Shimano MT620 Hydraulic Disc
- Wheels: Race Face AR 30c Tubeless Ready
- Tyres: Schwalbe Magic Mary Radial TLR, 29x2.50, Gravity Pro, Ultra Soft
- 180mm fork / 170mm rear travel – OMR carbon enduro race platform
- Pure Gravity geometry with Attitude Adjust
- 29" wheels (mullet compatible)
- Concentric Boost rear axle and ISCG05 mounts
- Fully Loaded Pivot multitool and fully sealed bearings
Specifications
-
Discipline Enduro
-
Material Carbon
-
Front Travel 180mm
-
Rear Travel 170mm
-
Wheel Size 29"
-
Warranty Lifetime (frame)
Frame - Orbea Rallon OMR. 450mm chainstay length. Concentric Boost 12x148 rear axle. Pure Gravity geometry. Attitude Adjust. ISCG05
Fork - Fox 38 Float Factory 180, Grip X2, 15x110, Kashima
Shock - Fox Float X Factory Trunnion 2-Pos Evol LV Kashima custom tune 205x62.5mm
Headset - Alloy 1-1/2", Black Oxidated Bearing
Stem - OC Mountain Control MC21, 0°
Handlebar - OC Mountain Control MC20 Alu SL, Rise 35, Width 800
Brakes - Shimano MT620 Hydraulic Disc
Rear Derailleur - Shimano Deore M7200 SGS Shadow Plus
Shifters - Shimano Deore M6200 I-Spec EV
Cassette - Shimano CS-M6200 10-51t 12-Speed
Chain - Shimano M6100
Chainguide - e*thirteen CL55 30-36t black
Crankset - Race Face Aeffect 32t
Wheels - Race Face AR 30c Tubeless Ready
Tyres - Schwalbe Magic Mary Radial TLR, 29x2.50, Gravity Pro, Ultra Soft
Seatpost Remote - Shimano SL-MT500 I-Spec EV
Saddle - Fizik Terra Ridon X5 145mm
Storage - Accesories Containers
Side Bag - Accesories Containers
Grips - OC Lock On
Computer Mount - OC Computer Mount CM-05, Garmin/Sigma

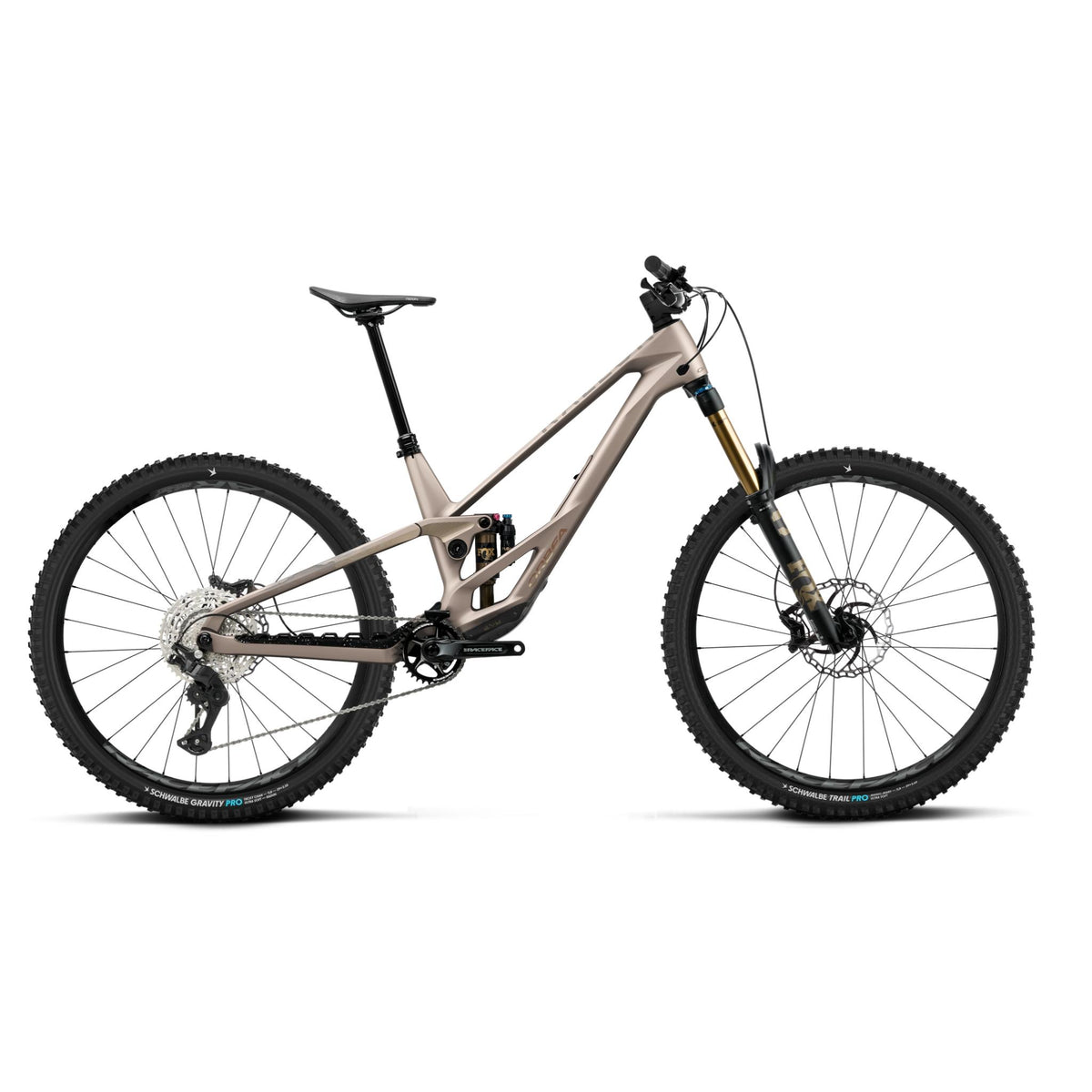

Rallon 450 E10 2027
- Enduro
- 180 / 170mm travel
- Carbon frame
Finance available – see options
Order within [time] for delivery by [date]
90 Day Returns
-
Pro builtBuilt and safety-checked by our mechanics before it leaves us
-
Free courier deliveryFree UK delivery on every bike
-
Collect in CanterburyPick up and get set up at our store
-
Talk to a riderChat with our team
The Orbea Rallon is an enduro race bike, the do-it-all gravity weapon the brand's racers rely on. With 180mm up front and 170mm at the rear on the OMR carbon frame, Pure Gravity geometry and Attitude Adjust, it's built to be ridden flat-out on the roughest, steepest tracks while still pedalling to the top under its own steam.
A Concentric Boost rear axle, ISCG05 mounts, a Fully Loaded Pivot multitool and fully sealed bearings make it as practical as it is capable, and the geometry can be fine-tuned to suit the trail or your style. It's a genuinely race-bred enduro bike.
The Rallon 450 E10 is the most accessible Rallon enduro build with the longer 450mm chainstay for 29" wheels, which adds high-speed stability and a more planted feel on steep, fast terrain. Great value capability for aggressive riders. It runs a Fox 38 Float Factory 180 fork and a Fox Float X Factory Trunnion 2-Pos Evol LV Kashima custom tune 205x62.5mm shock. Finishing kit includes Shimano Deore M7200 SGS Shadow Plus shifting and Shimano MT620 Hydraulic Disc brakes.
Features
- Carbon frame
- Fork: Fox 38 Float Factory 180, Grip X2, 15x110, Kashima
- Rear shock: Fox Float X Factory Trunnion 2-Pos Evol LV Kashima custom tune 205x62.5mm
- Drivetrain: Shimano Deore M7200 SGS Shadow Plus
- Brakes: Shimano MT620 Hydraulic Disc
- Wheels: Race Face AR 30c Tubeless Ready
- Tyres: Schwalbe Magic Mary Radial TLR, 29x2.50, Gravity Pro, Ultra Soft
- 180mm fork / 170mm rear travel – OMR carbon enduro race platform
- Pure Gravity geometry with Attitude Adjust
- 29" wheels (mullet compatible)
- Concentric Boost rear axle and ISCG05 mounts
- Fully Loaded Pivot multitool and fully sealed bearings
Specifications
-
Discipline Enduro
-
Material Carbon
-
Front Travel 180mm
-
Rear Travel 170mm
-
Wheel Size 29"
-
Warranty Lifetime (frame)
Frame - Orbea Rallon OMR. 450mm chainstay length. Concentric Boost 12x148 rear axle. Pure Gravity geometry. Attitude Adjust. ISCG05
Fork - Fox 38 Float Factory 180, Grip X2, 15x110, Kashima
Shock - Fox Float X Factory Trunnion 2-Pos Evol LV Kashima custom tune 205x62.5mm
Headset - Alloy 1-1/2", Black Oxidated Bearing
Stem - OC Mountain Control MC21, 0°
Handlebar - OC Mountain Control MC20 Alu SL, Rise 35, Width 800
Brakes - Shimano MT620 Hydraulic Disc
Rear Derailleur - Shimano Deore M7200 SGS Shadow Plus
Shifters - Shimano Deore M6200 I-Spec EV
Cassette - Shimano CS-M6200 10-51t 12-Speed
Chain - Shimano M6100
Chainguide - e*thirteen CL55 30-36t black
Crankset - Race Face Aeffect 32t
Wheels - Race Face AR 30c Tubeless Ready
Tyres - Schwalbe Magic Mary Radial TLR, 29x2.50, Gravity Pro, Ultra Soft
Seatpost Remote - Shimano SL-MT500 I-Spec EV
Saddle - Fizik Terra Ridon X5 145mm
Storage - Accesories Containers
Side Bag - Accesories Containers
Grips - OC Lock On
Computer Mount - OC Computer Mount CM-05, Garmin/Sigma
