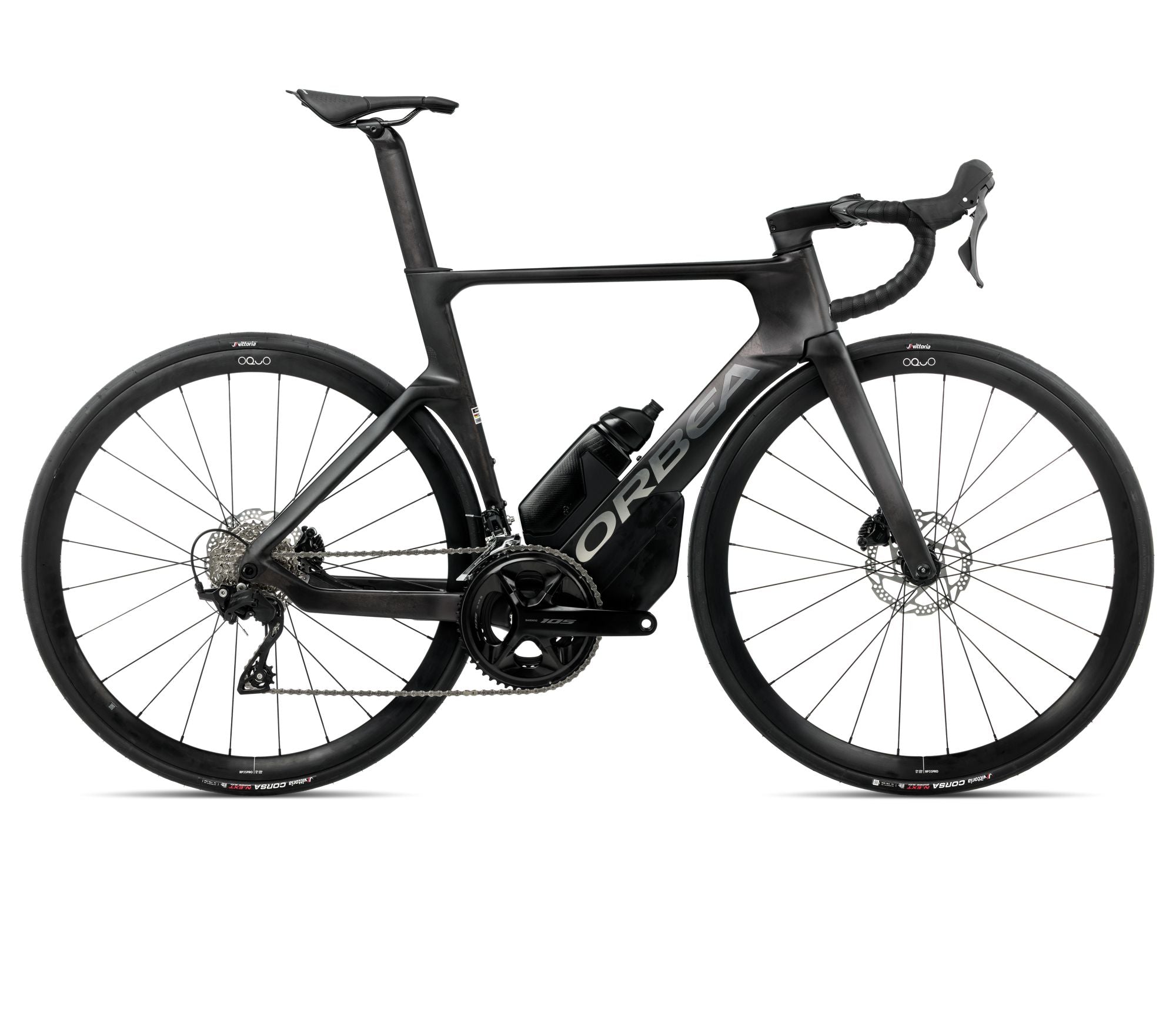

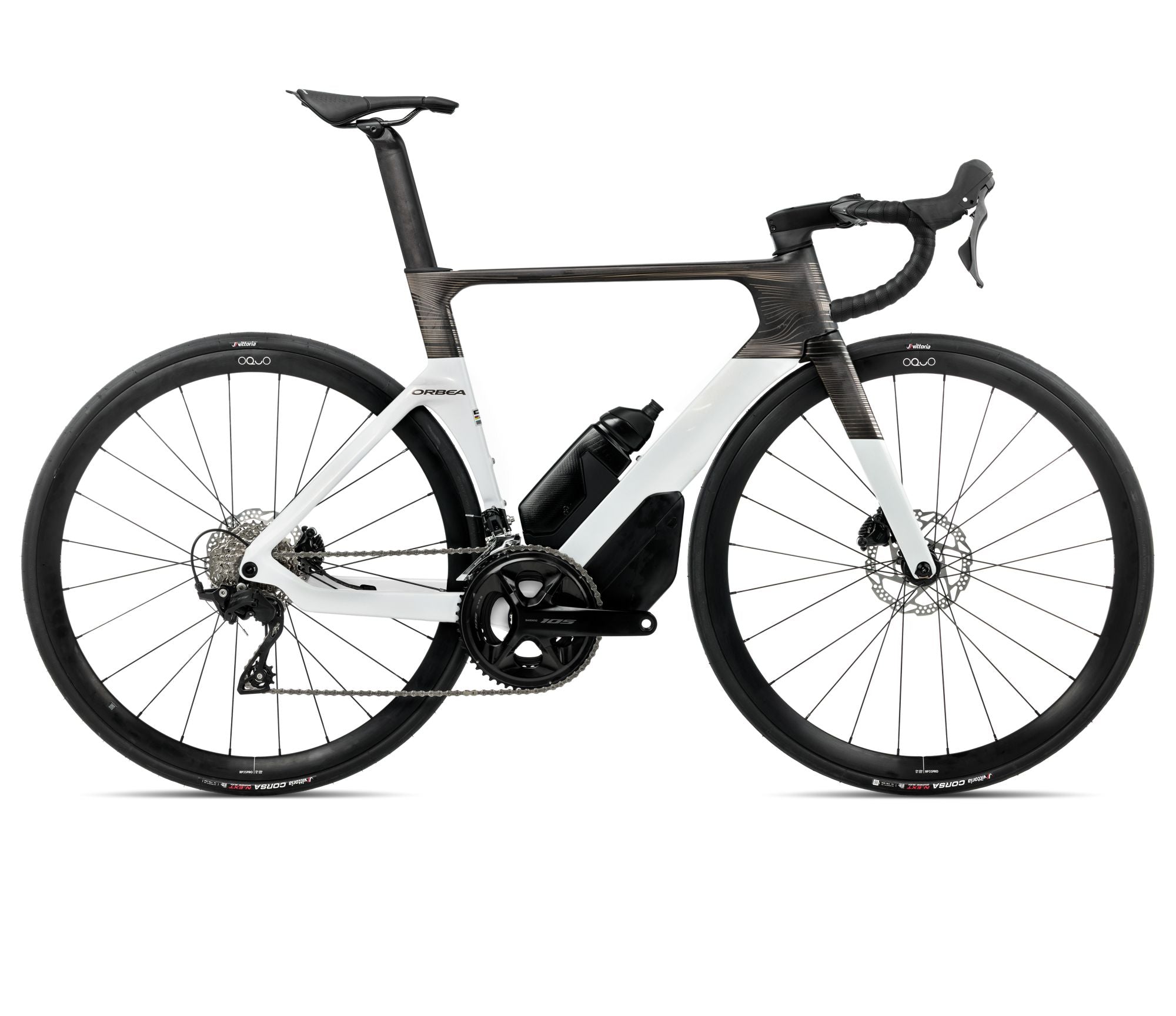

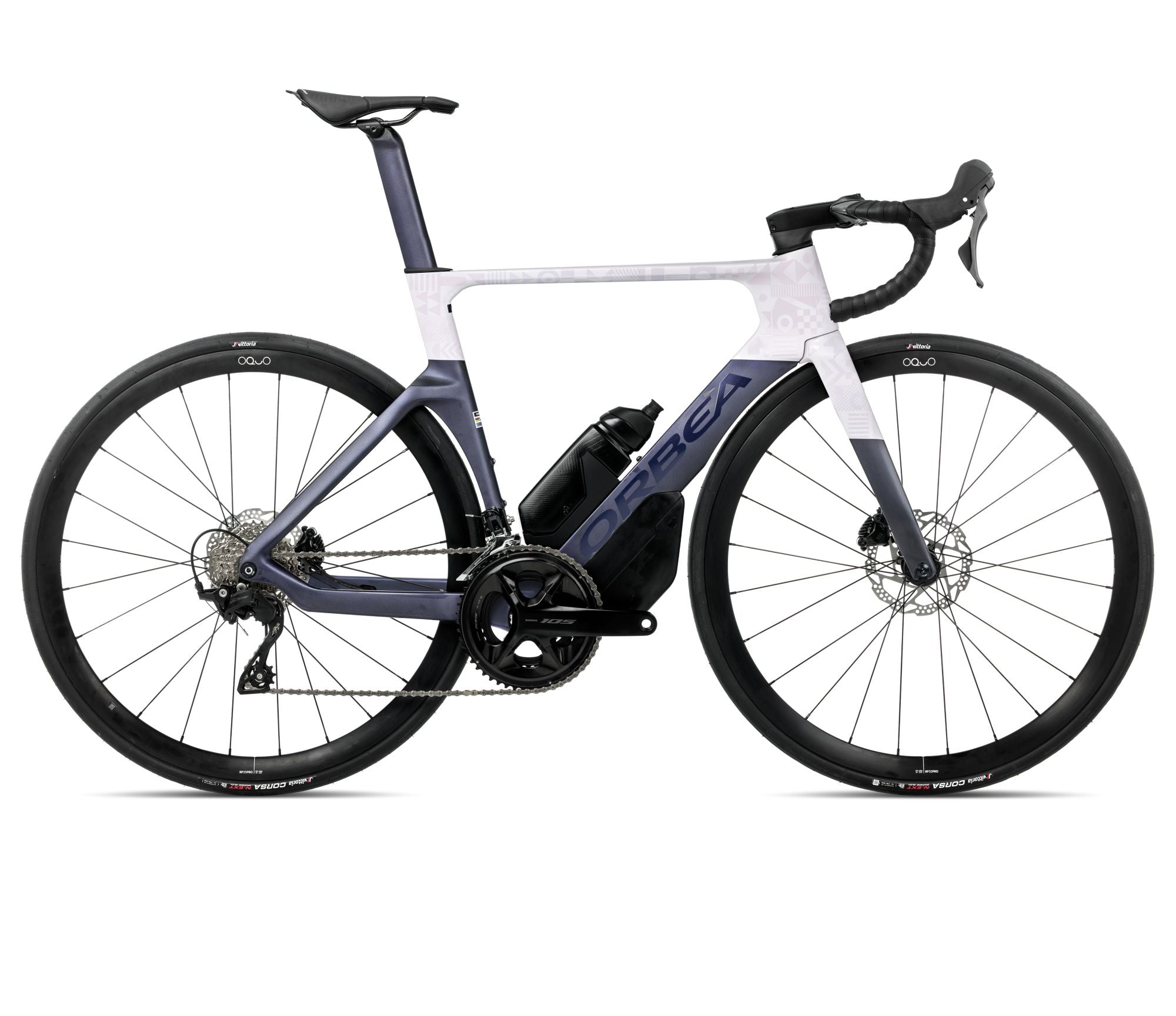

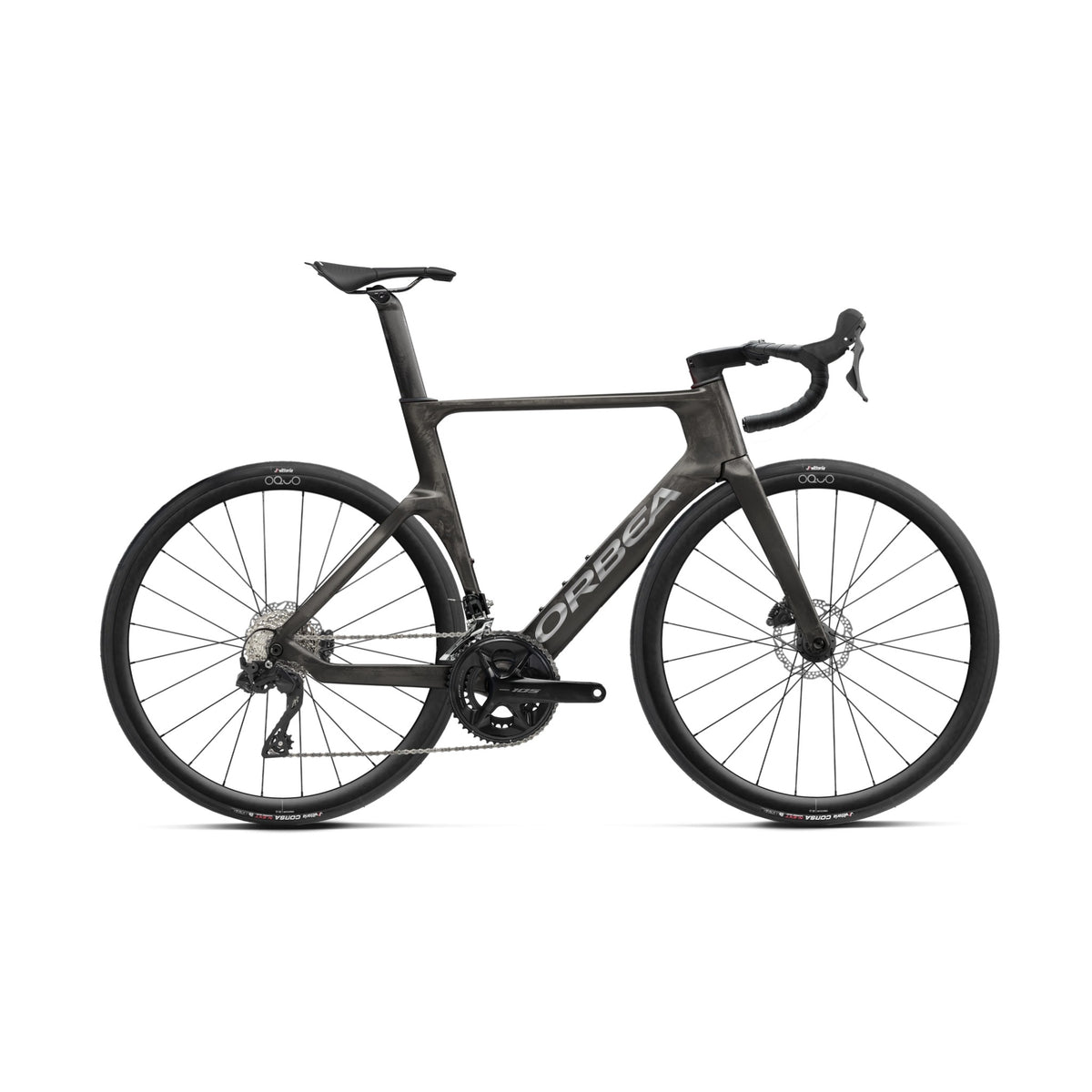

The Orbea Orca Aero M30Ltd is an aerodynamic carbon race bike for riders who want to go faster for the same effort. Where the standard Orca chases pure lightness, Orca Aero is all about slippery speed — an OMX carbon frame shaped to cut cleanly through the wind.
Orbea's aero-at-every-angle approach uses CFD-developed airfoil tube shaping to hold efficiency in real-world crosswinds, not just head-on. Neat details like flush, lowered bottle-cage mounts and an integrated service box keep airflow tidy around the frame, and there's clearance for up to 37mm tyres so you can add comfort without giving up race pace.
This Orca Aero M30Ltd build features a Shimano R7120 drivetrain, Shimano R7170 Hydraulic Disc braking and Oquo Road Performance RP35PRO wheels. Priced at £3,799.
Features
- Orbea Orca Aero Carbon OMX carbon frame — aero-optimised tube shaping, power-meter compatible
- Shimano R7120 drivetrain
- Shimano R7170 Hydraulic Disc brakes
- Fork: Orbea Orca Aero OMX ICR, full carbon, 1-1/8" - 1.5" tapered head tube compatible, Thru axle 12x100mm, thread M12x2 P1, Speed release compatible dropout.
- Full carbon Orca Aero OMX ICR fork with fully internal routing
- Flush, lowered bottle-cage mounts and integrated service-box storage
- Clearance for up to 37mm tyres
- Fully customisable through Orbea's MyO programme
Specifications
-
Discipline Road / Aero Racing
-
Frame Carbon OMX
-
Wheel Size 700c
-
Tyre Clearance 37mm
-
Warranty Lifetime (frame)
Frame - Orbea Orca Aero Carbon OMX disc, monocoque construction, HS 1.5", BB 386, powermeter compatible, Thru Axle 12mm x 142mm rear, thread M12x2 P1, Speed release compatible, internal cable routing, EC/DC compatible
Fork - Orbea Orca Aero OMX ICR, full carbon, 1-1/8" - 1.5" tapered head tube compatible, Thru axle 12x100mm, thread M12x2 P1, Speed release compatible dropout.
Headset - FSA 1-1/2" Integrated Aluminium Cup
Stem - OC Road Performance RP10, -8º
Handlebar - OC Road Aero RA11 Carbon, Reach 80, Drop 125
Brakes - Shimano R7170 Hydraulic Disc
Front Derailleur - Shimano 105 R7100
Rear Derailleur - Shimano 105 R7100
Shifters - Shimano R7120
Cassette - Shimano 105 R7100 11-34t 12-Speed
Chain - Shimano M6100
Crankset - Shimano 105 R7100 36x52t
Wheels - Oquo Road Performance RP35PRO
Front Hub - Orbea Thru Axle 12x100mm M12x2 P1 Lite
Rear Hub - Orbea Thru Axle 12x142mm M12x2 P1 Lite
Tyres - Vittoria Corsa N.Ext G2.0 Foldable 700x28c
Seatpost - OC Road Aero RA10 Carbon Ultralight, SB0/25, w/Micro tilt adjustment
Saddle - Prologo Scratch-M5 Pas T2.0 size 140mm
Storage - OC Aero Toolbox TB01PP
Handlebar Plugs - Orbea Anti-Slippery/Shock Proof
Orca Aero M30Ltd 2026
