The Orbea Orca Aero is an aero road race bike, designed to be fast against the wind without the weight penalty aero bikes used to carry. The OMX carbon frame and fork are shaped for slipperiness through the air while staying stiff and responsive, so it accelerates hard and holds speed on the flats and rolling roads where races are won.
Deep, integrated tube profiles, fully internal cabling and Speed Release dropouts keep it clean and quick, while the frame stays power-meter compatible and ready for wide, fast tyres. With Orbea's MyO personalisation, you can build an aero weapon that's unmistakably yours.
The Orca Aero M30i Ltd is the most accessible Orca Aero in the range, the ideal way onto the platform without giving up the frame and ride quality that matter most. It pairs Shimano 105 Di2 R7150 shifting with Shimano R7170 Hydraulic Disc brakes on Oquo Road Performance RP50TEAM.
Features
- Carbon frame
- Drivetrain: Shimano 105 Di2 R7150
- Brakes: Shimano R7170 Hydraulic Disc
- Wheels: Oquo Road Performance RP50TEAM
- Tyres: Vittoria Corsa N.EXT 29-622 TLR wide rim G2.0 OEM HP
- Aerodynamic OMX carbon frame and fork
- Aero race geometry tuned for speed on the flats and rollers
- Fully integrated internal cabling and Speed Release dropouts
- Power-meter compatible
- Clearance for wide, fast road tyres
- Personalisable through Orbea's MyO programme
Specifications
Discipline Road
Material Carbon
Wheel Size 700c
Warranty Lifetime (frame)
Frame - Orbea Orca Aero Carbon OMX disc, monocoque construction, HS 1,5", BB 386, powermeter compatible, Thru Axle 12mm x 142mm rear, thread M12x2 P1, Speed release compatible, internal cable routing, EC/DC compatible
Fork - Orbea Orca Aero OMX ICR, full carbon, 1-1/8" - 1,5" tappered head tube compatible, Thru axle 12x100mm, thread M12x2 P1, Speed release compatible dropout.
Headset - FSA 1-1/2" Integrated Aluminium Cup
Brakes - Shimano R7170 Hydraulic Disc
Front Derailleur - Shimano 105 Di2 R7150
Rear Derailleur - Shimano 105 Di2 R7150
Shifters - Shimano Di2 R7170
Cassette - Shimano 105 R7100 11-34t 12-Speed
Chain - Shimano M6100
Crankset - Shimano 105 R7100 36x52t
Wheels - Oquo Road Performance RP50TEAM
Rear Hub - Orbea Thru Axle 12x142mm M12x1 Lite
Front Hub - Orbea Thru Axle 12x100mm M12x1 Lite
Tyres - Vittoria Corsa N.EXT 29-622 TLR wide rim G2.0 OEM HP
Seatpost - OC Road Aero RA11 Carbon, SB25
Saddle - Fizik Vento Antares R3 Kium Rail 140mm
Storage - OC Toolbox SB04
Side Bag - OC Toolbox SB04
Handlebar Plugs - OC Components

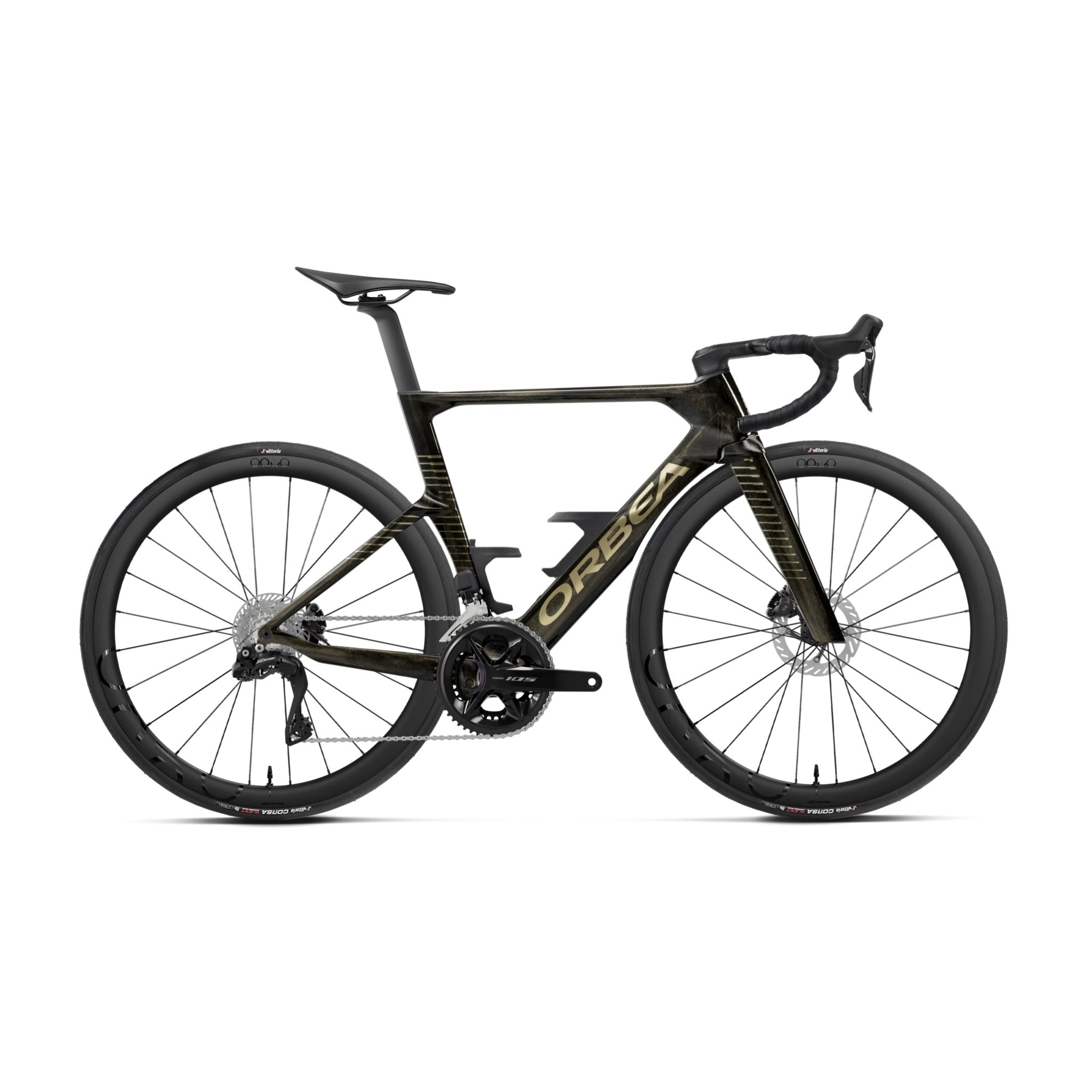

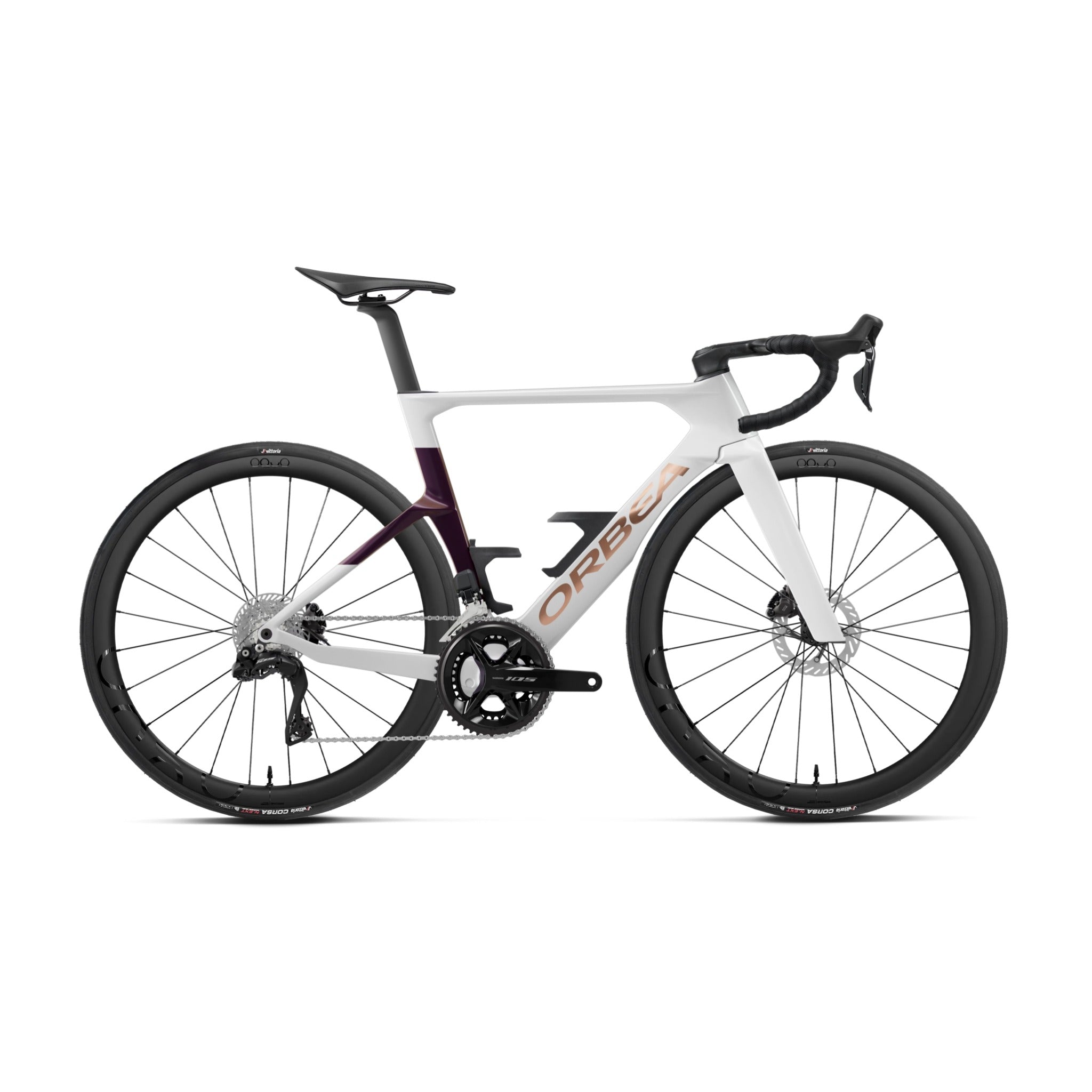

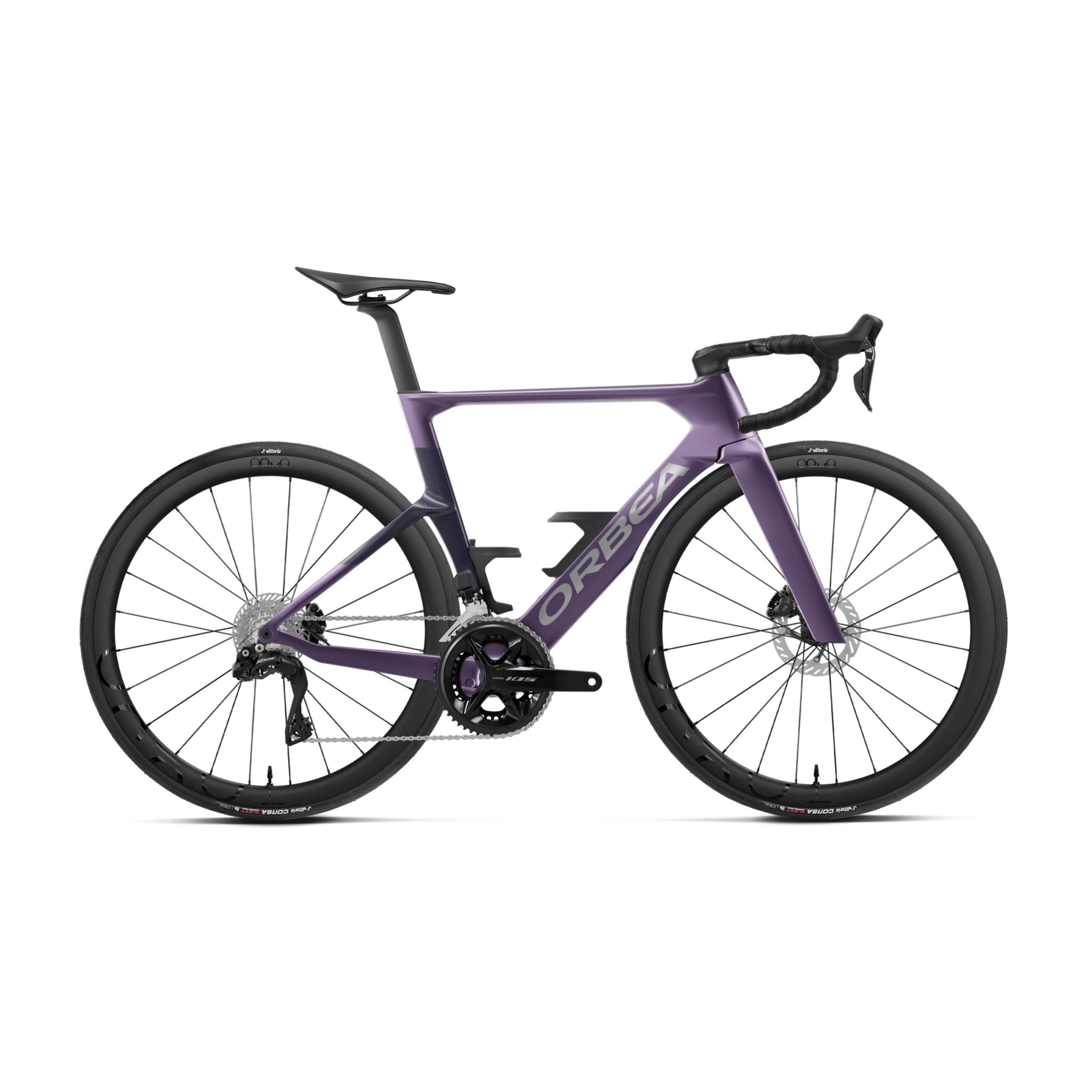

Orca Aero M30i Ltd 2027
