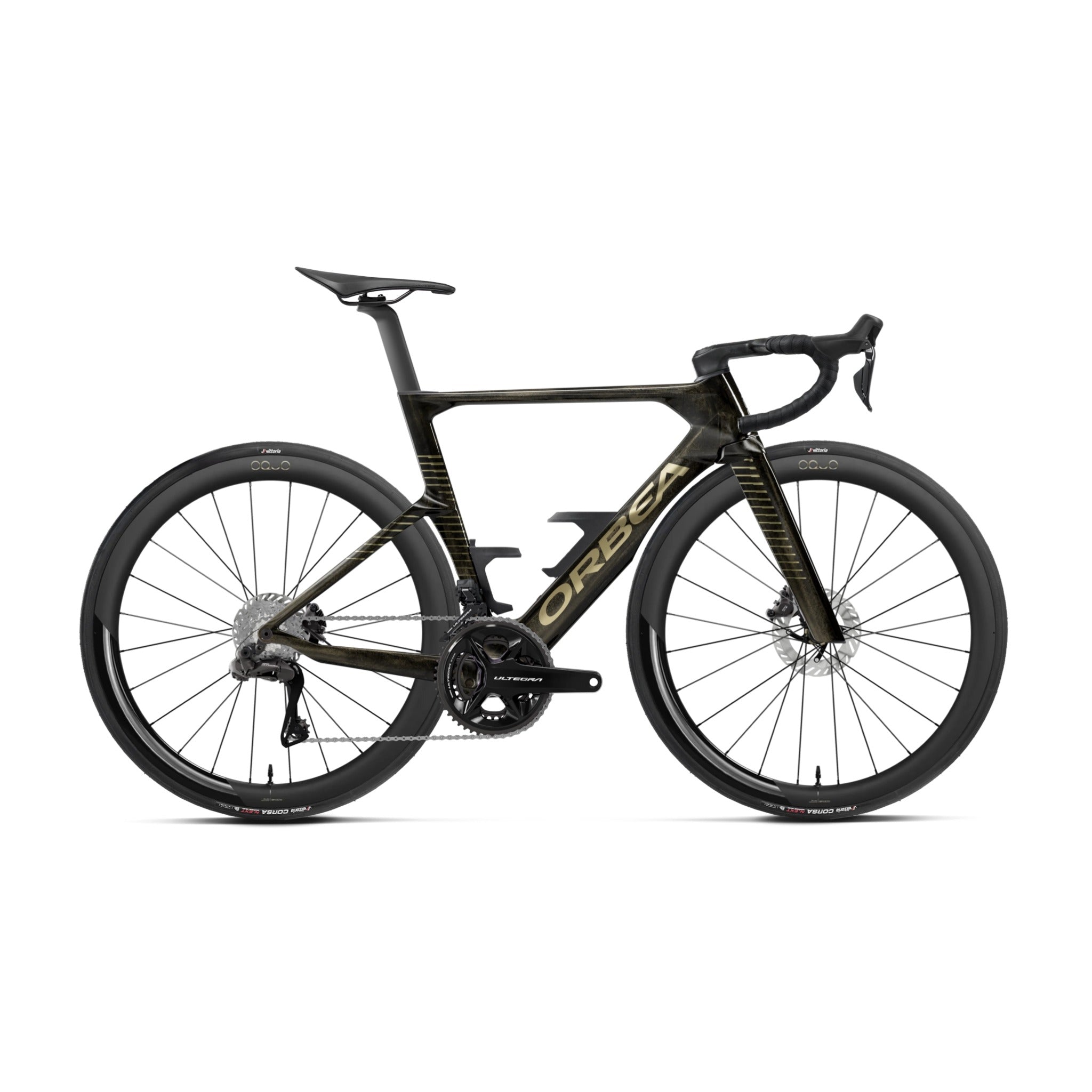

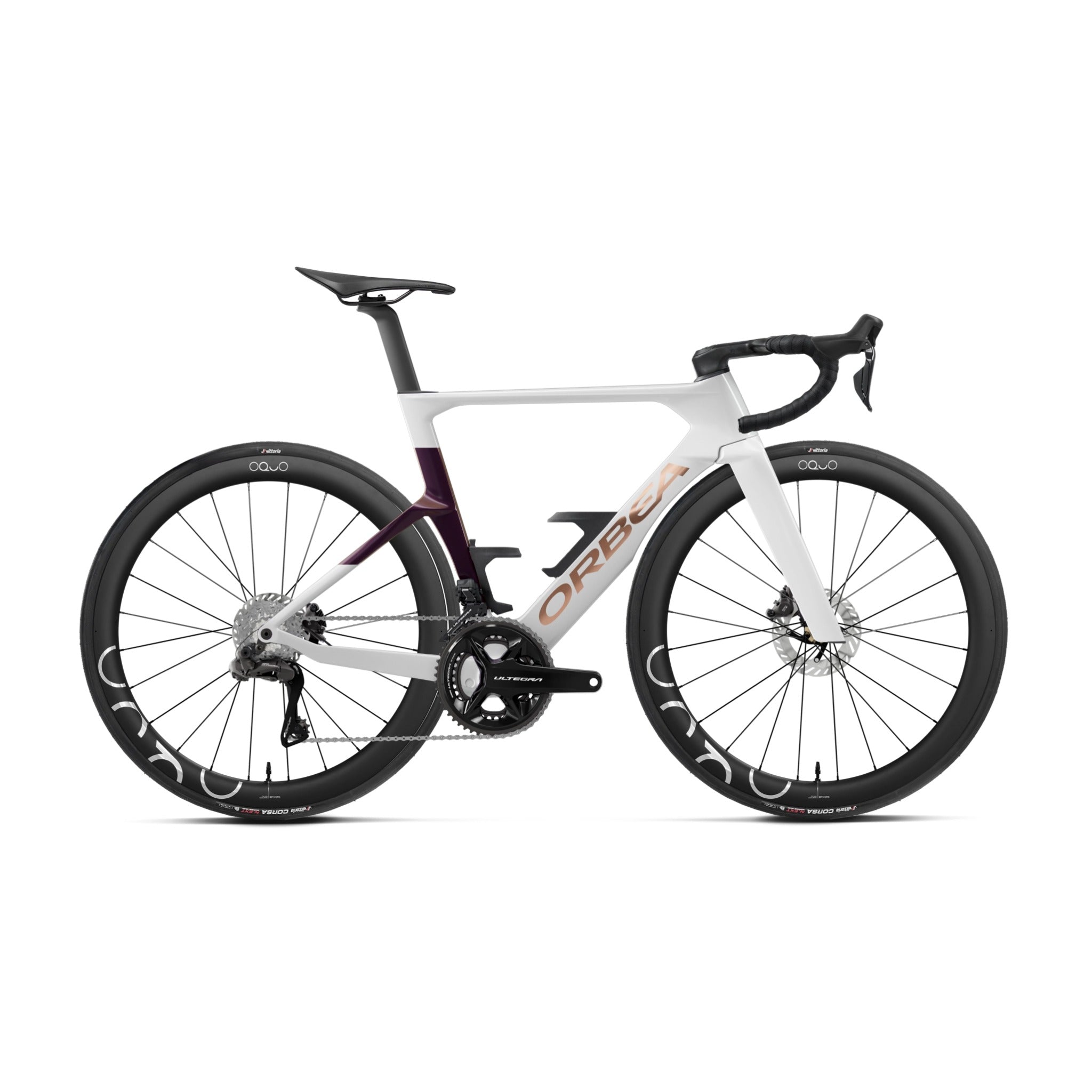

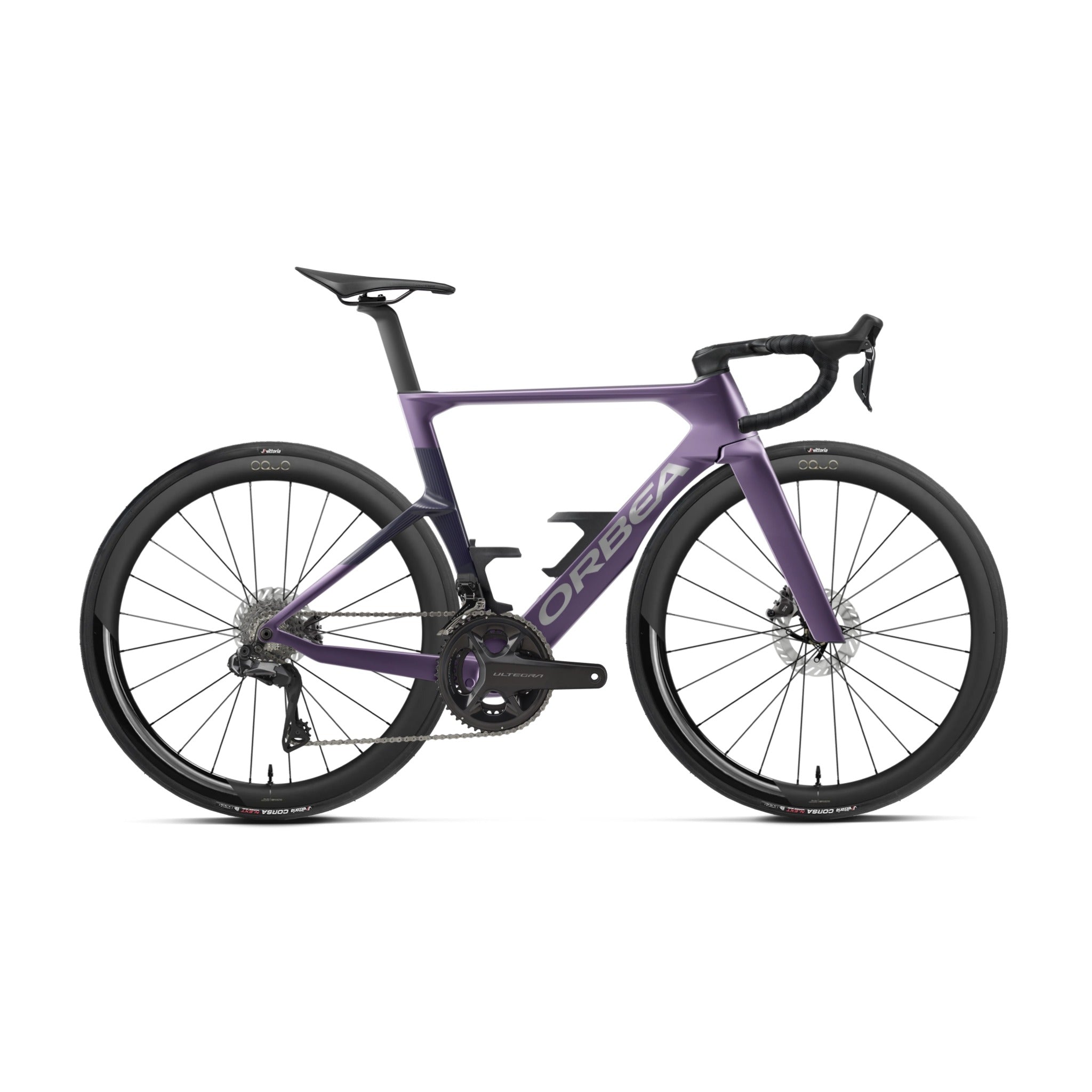

The Orbea Orca Aero is an aero road race bike, designed to be fast against the wind without the weight penalty aero bikes used to carry. The OMX carbon frame and fork are shaped for slipperiness through the air while staying stiff and responsive, so it accelerates hard and holds speed on the flats and rolling roads where races are won.
Deep, integrated tube profiles, fully internal cabling and Speed Release dropouts keep it clean and quick, while the frame stays power-meter compatible and ready for wide, fast tyres. With Orbea's MyO personalisation, you can build an aero weapon that's unmistakably yours.
The Orca Aero M20i Ltd offers a smartly balanced Orca Aero build that puts your money where it counts. It pairs Shimano Ultegra Di2 R8150 shifting with Shimano R8170 Hydraulic Disc brakes on Oquo Road Performance RP50LTD.
Features
- Carbon frame
- Drivetrain: Shimano Ultegra Di2 R8150
- Brakes: Shimano R8170 Hydraulic Disc
- Wheels: Oquo Road Performance RP50LTD
- Tyres: Vittoria Corsa N.EXT 29-622 TLR wide rim G2.0 OEM HP
- Aerodynamic OMX carbon frame and fork
- Aero race geometry tuned for speed on the flats and rollers
- Fully integrated internal cabling and Speed Release dropouts
- Power-meter compatible
- Clearance for wide, fast road tyres
- Personalisable through Orbea's MyO programme
Specifications
Discipline Road
Material Carbon
Wheel Size 700c
Warranty Lifetime (frame)
Frame - Orbea Orca Aero Carbon OMX disc, monocoque construction, HS 1,5", BB 386, powermeter compatible, Thru Axle 12mm x 142mm rear, thread M12x2 P1, Speed release compatible, internal cable routing, EC/DC compatible
Fork - Orbea Orca Aero OMX ICR, full carbon, 1-1/8" - 1,5" tappered head tube compatible, Thru axle 12x100mm, thread M12x2 P1, Speed release compatible dropout.
Headset - FSA 1-1/2" Integrated Aluminium Cup
Brakes - Shimano R8170 Hydraulic Disc
Front Derailleur - Shimano Ultegra Di2 R8150
Rear Derailleur - Shimano Ultegra Di2 R8150
Shifters - Shimano ST-8170
Cassette - Shimano Ultegra R8100 11-34t 12-Speed
Chain - Shimano M8100
Crankset - Shimano Ultegra R8100 36x52t
Wheels - Oquo Road Performance RP50LTD
Rear Hub - Orbea Thru Axle 12x142mm M12x1 Lite
Front Hub - Orbea Thru Axle 12x100mm M12x1 Lite
Tyres - Vittoria Corsa N.EXT 29-622 TLR wide rim G2.0 OEM HP
Seatpost - OC Road Aero RA11 Carbon, SB25
Saddle - Fizik Vento Antares R1 Carbon Rail 140mm
Storage - OC Toolbox SB04
Side Bag - OC Toolbox SB04
Handlebar Plugs - OC Components
Orca Aero M20i Ltd 2027
