The Orbea Oiz M30 is a World Cup-bred cross-country race bike built to go uphill fast. With 120mm of efficient travel and a light, stiff carbon frame, it turns your effort into forward speed like few others.
Oiz uses Orbea's Fiberlink pivotless rear triangle for a light, low-maintenance back end, and i-Line internal routing for a clean remote lockout with minimal friction. Race-tuned geometry and a firm, efficient suspension platform make it as sharp on the climbs as it is composed across rough XC terrain.
This Oiz M30 build features a Shimano Deore M6100 I-Spec EV drivetrain, Shimano M6100 Hydraulic Disc braking and Alloy, 26c, 28H, TLR wheels. Priced at £3,999.
Features
- Orbea Oiz Carbon OMR carbon frame — 120mm travel, race XC geometry
- Shimano Deore M6100 I-Spec EV drivetrain
- Shimano M6100 Hydraulic Disc brakes
- Fork: Fox 34 Float SL Performance 120, Grip, Remote Push to Lock, QR15x110
- Fiberlink pivotless rear triangle — light and low-maintenance
- i-Line internal routing for a clean, low-friction remote lockout
- 29in wheels
- Fully customisable through Orbea's MyO programme
Specifications
-
Discipline Cross-Country
-
Frame Carbon OMR
-
Front Travel 120mm
-
Wheel Size 29"
-
Warranty Lifetime (frame)
Frame - Orbea Oiz Carbon OMR, Fiberlink, Boost, BSA, SIC, UFO, I-line shock
Fork - Fox 34 Float SL Performance 120, Grip, Remote Push to Lock, QR15x110
Shock - Fox Float SL Performance 120mm Remote Push-lock Evol custom tune190x45mm
Remote lockout - OC Squidlock MP11, Suspension + Dropper
Headset - Alloy 1-1/2", Black Oxidated Bearing
Stem - OC Mountain Performance MP21, -6º
Handlebar - OC Mountain Performance MP30, Width 760
Brakes - Shimano M6100 Hydraulic Disc
Rear Derailleur - Shimano SLX M7100 SGS Shadow Plus
Shifters - Shimano Deore M6100 I-Spec EV
Cassette - Shimano CS-M6100 10-51t 12-Speed
Chain - Shimano M6100
Crankset - Shimano MT511 32t
Wheels - Alloy, 26c, 28H, TLR
Tyres - Maxxis Rekon Race 2.40" WT 120 TPI Exo TLR
Seatpost - OC Mountain Control MC22, 31.6mm, Dropper
Saddle - Selle Italia Model X FecAlloy Rail 145x248mm
Grips - OC Lock On

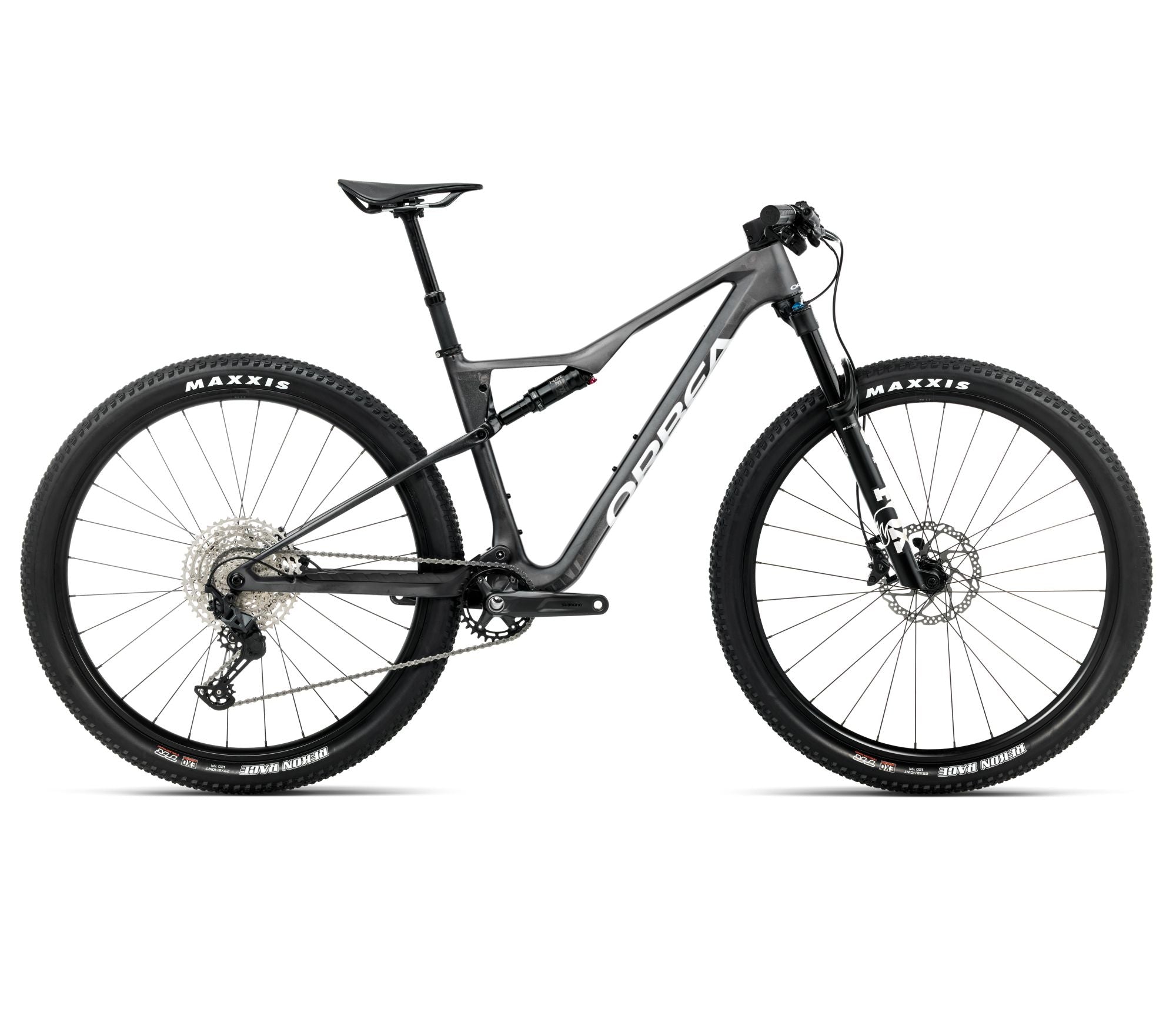

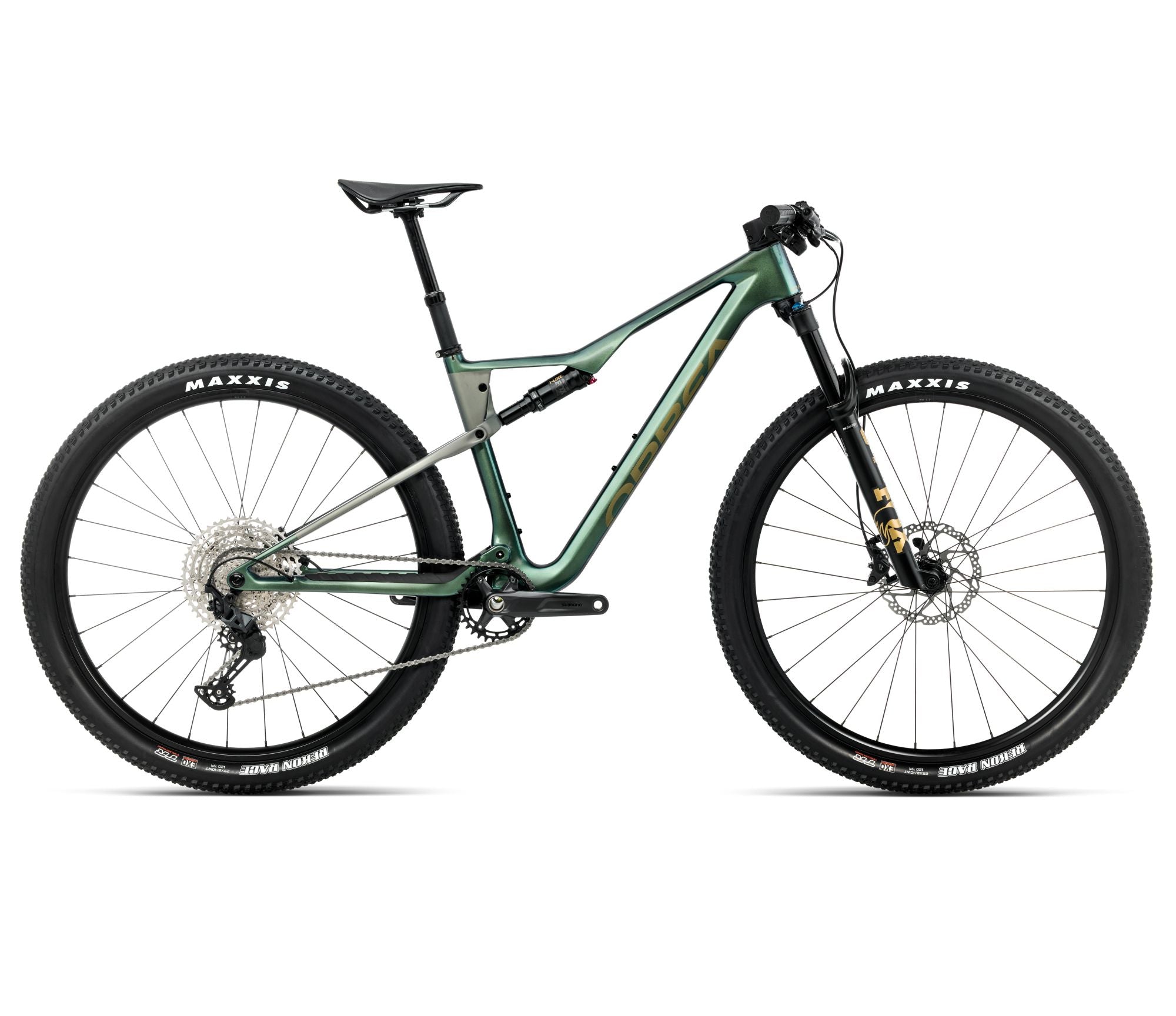

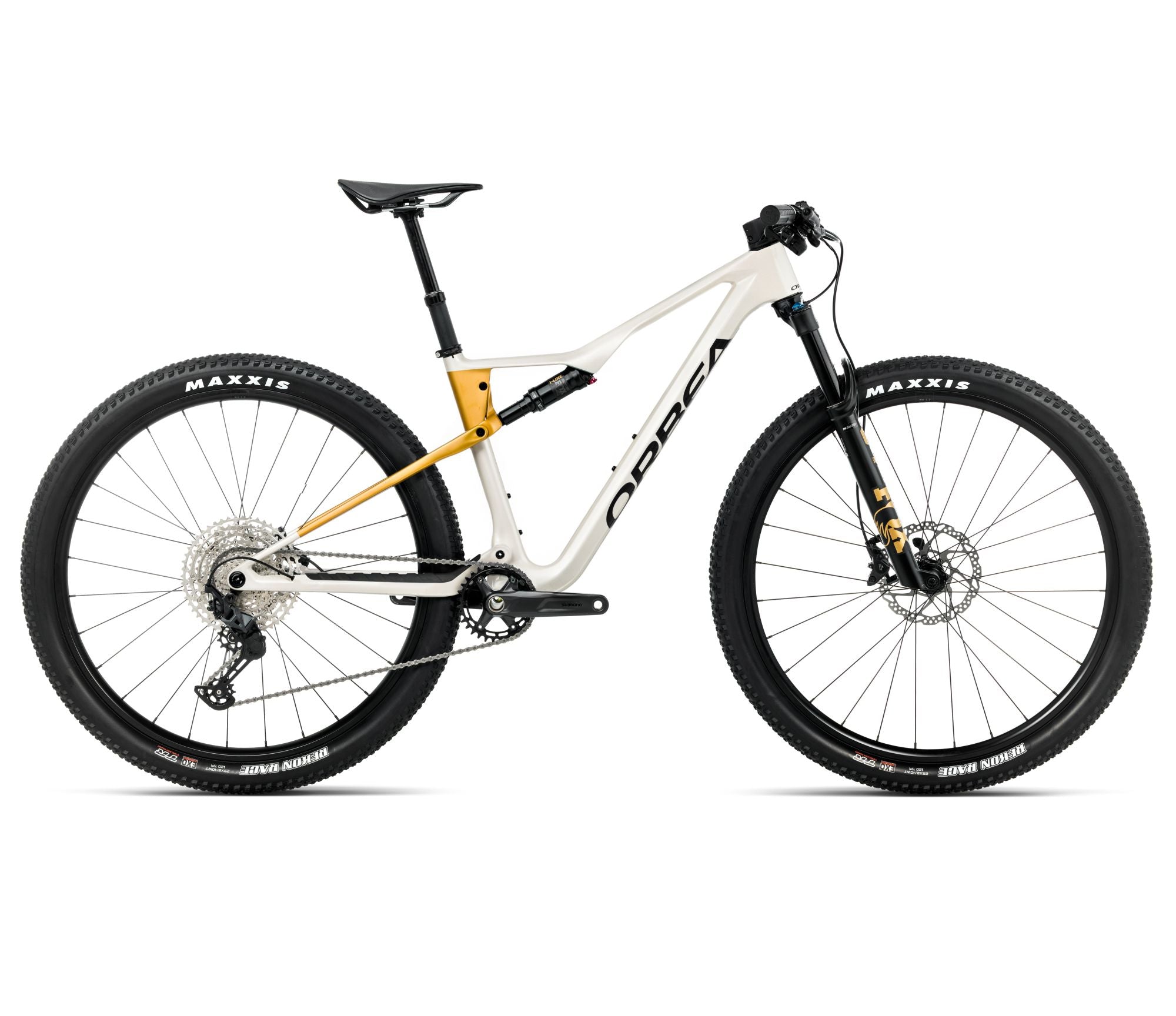

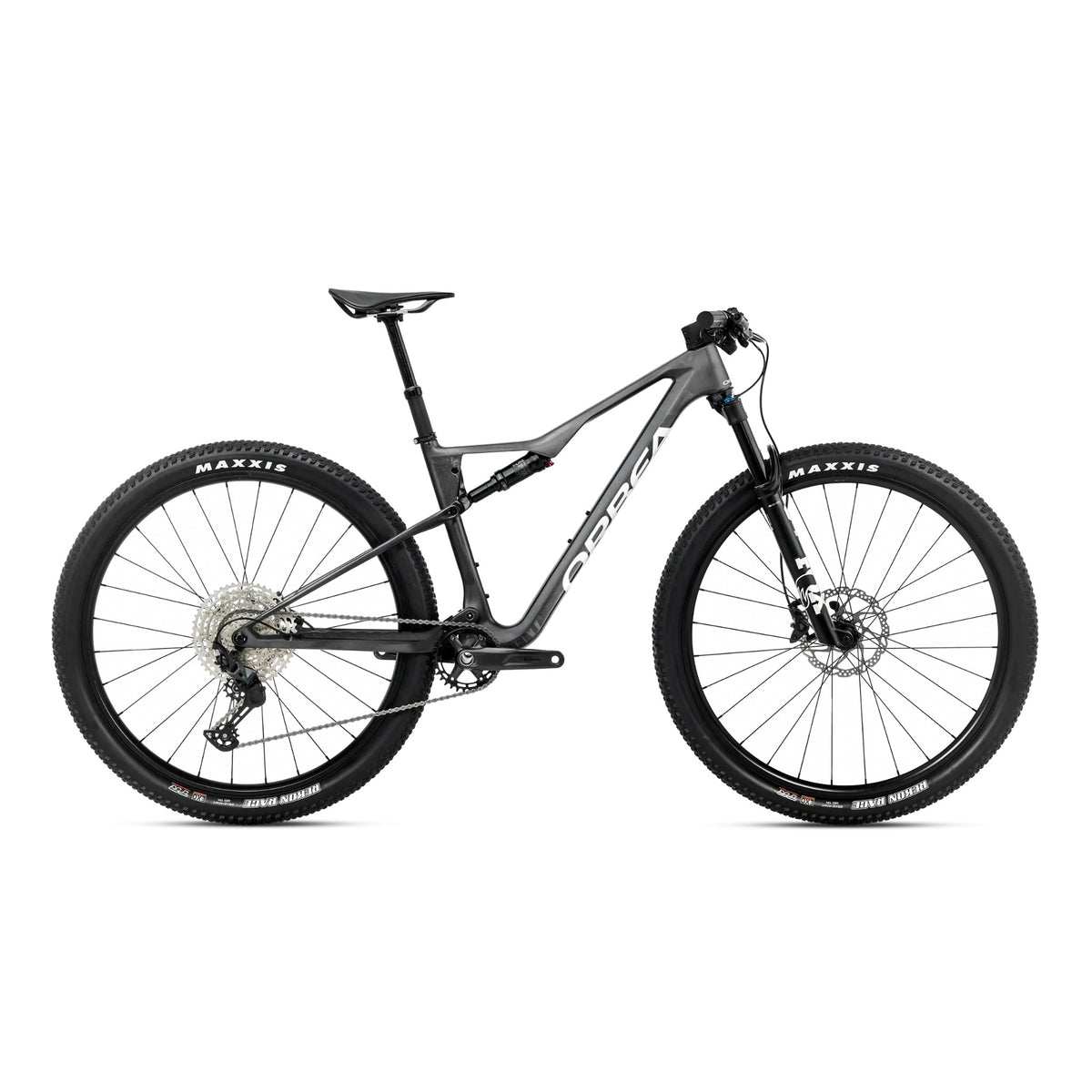

Oiz M30 2026
